Model # GTDX520GD2WW Official GE gas dryer

Here are the diagrams and repair parts for Official GE GTDX520GD2WW gas dryer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

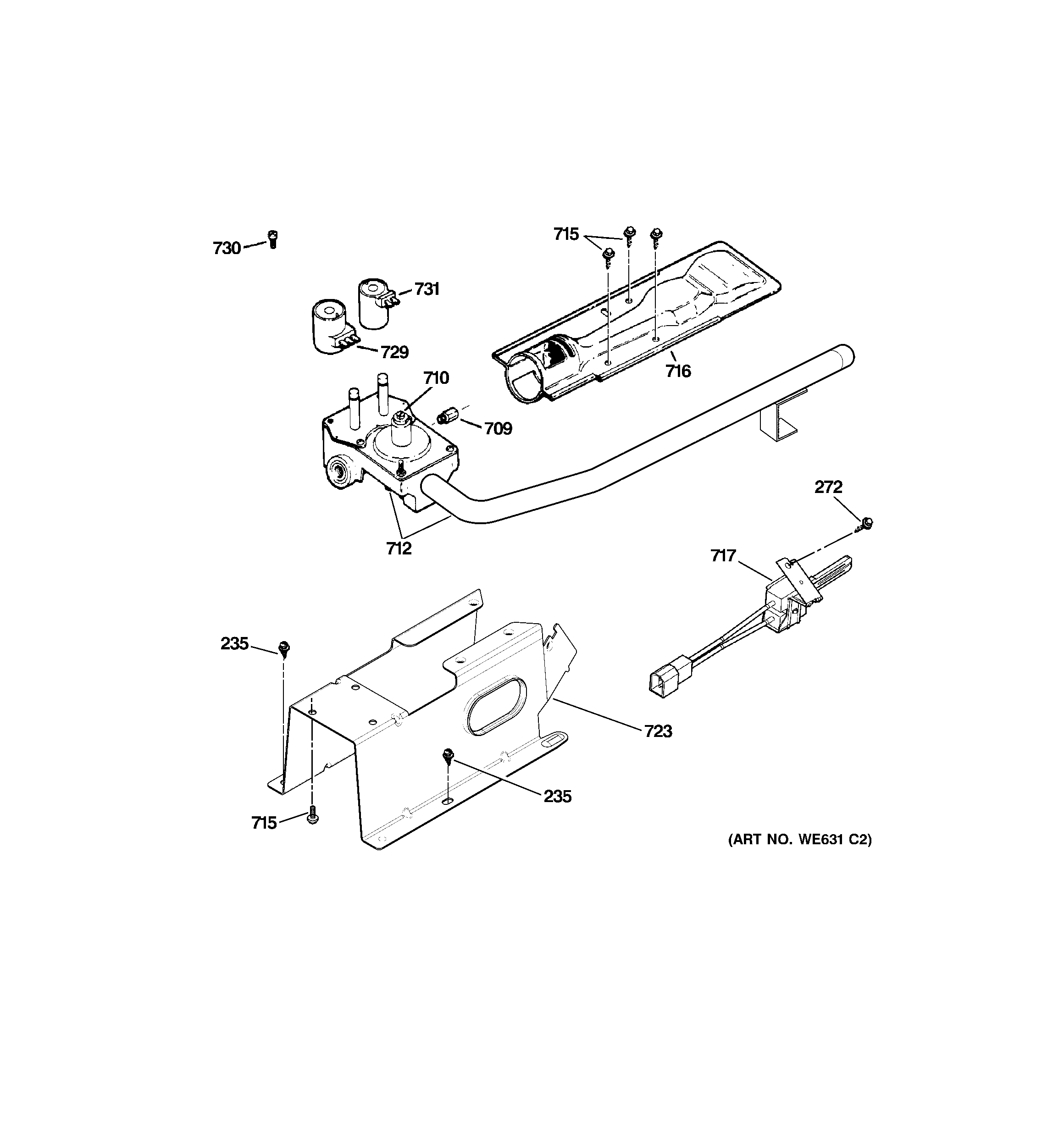

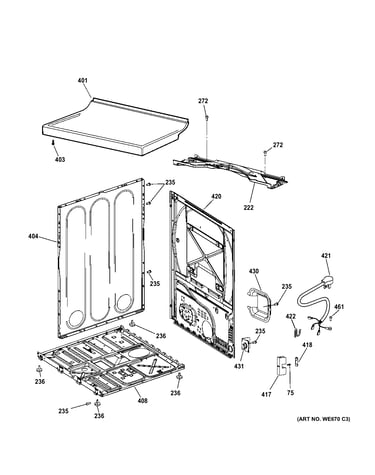

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forGTDX520GD2WW Gas Dryer

  • Inlet Control WE4M333
    #507

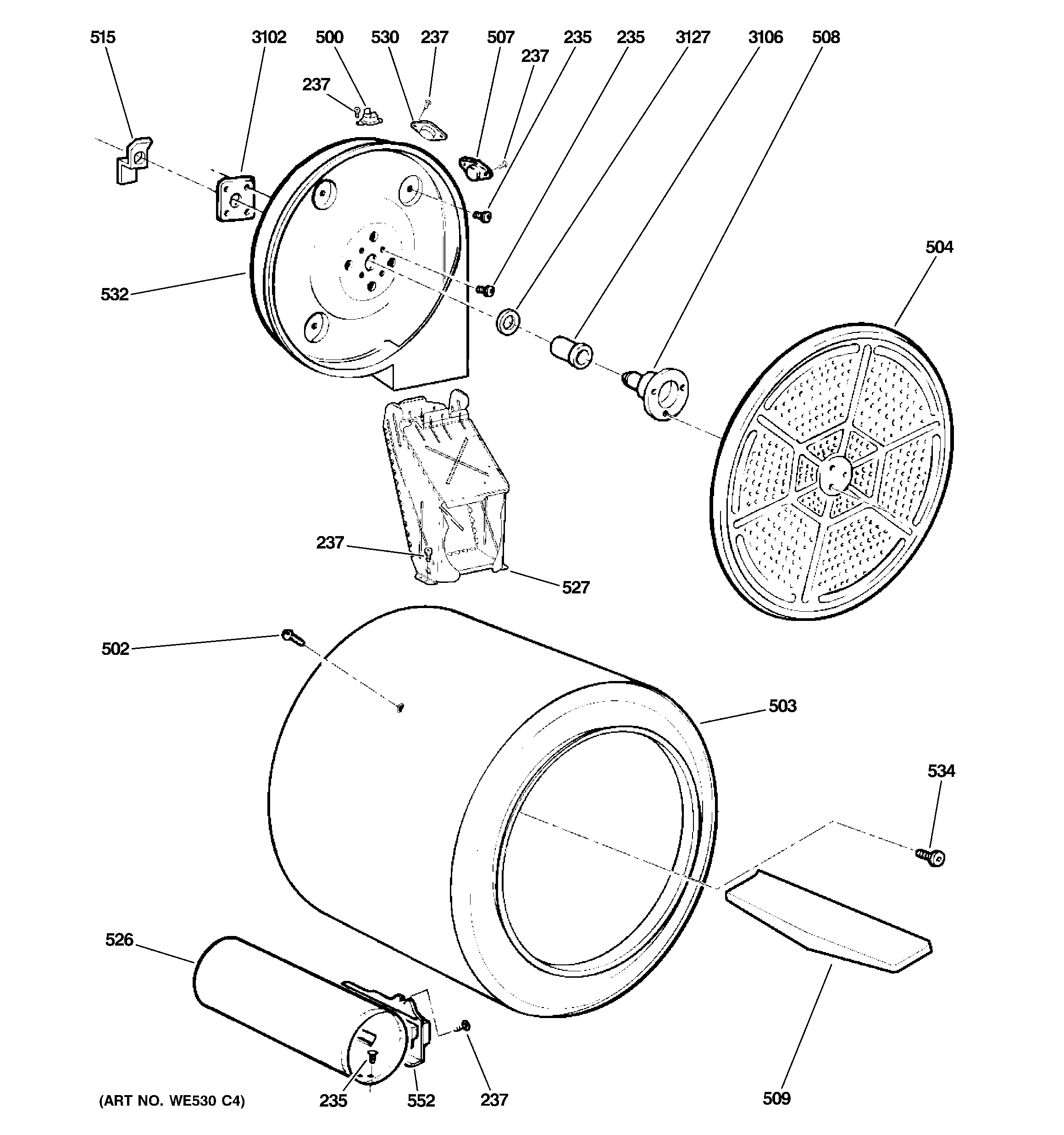

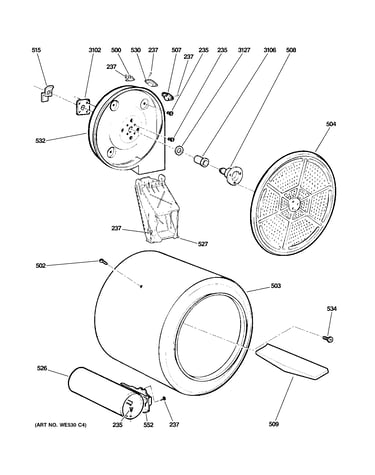

    Drum diagram

    Inlet control

    Part #WE4M333

    Replaced by #WE4M398

    ?
    Manufacturer substitution
    This part replaces WE4M333. Substitute parts can look different from the original.
    BEST SELLER
    $33.55
    15% OFF Phone Price : $39.55
    In Stock
  • Dryer Drum Front Glide Pad WE1M1067
    #316

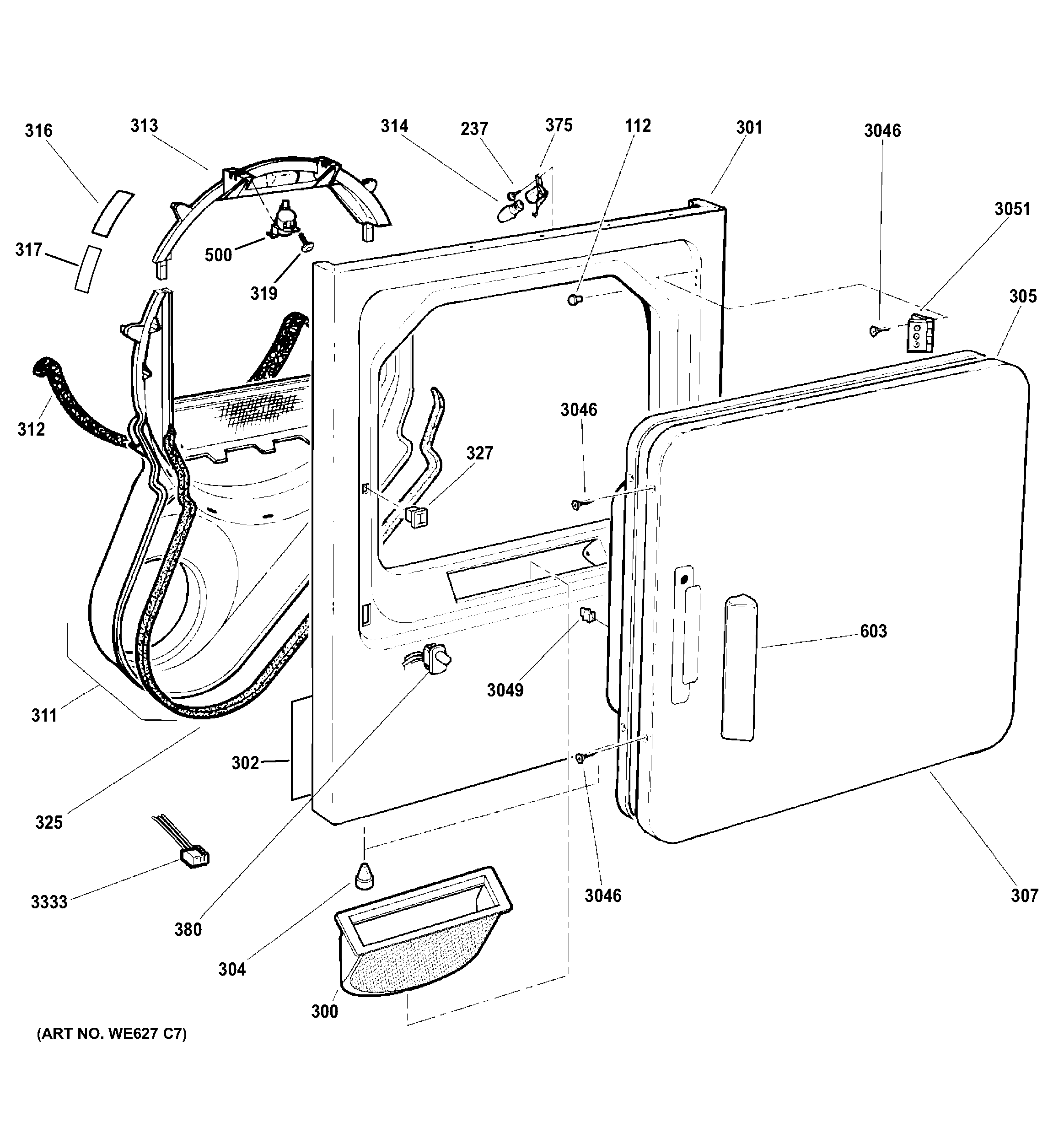

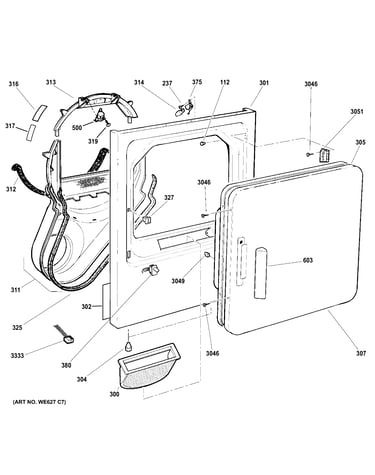

    Front panel & door diagram

    Dryer drum front glide pad

    Part #WE1M1067

    Replaced by #WE03X37317

    ?
    Manufacturer substitution
    This part replaces WE1M1067. Substitute parts can look different from the original.
    BEST SELLER
    $18.24
    10% OFF Phone Price : $20.24
    In Stock
  • Kenmore Dryer Rear Bearing WE1M462
    #3106

    Drum diagram

    Kenmore dryer rear bearing

    Part #WE1M462

    BEST SELLER
    $23.82
    20% OFF Phone Price : $29.82
    In Stock
  • Dryer Drum Front Glide Pad WE1M504
    #317

    Front panel & door diagram

    Dryer drum front glide pad

    Part #WE1M504

    Replaced by #WE03X37318

    ?
    Manufacturer substitution
    This part replaces WE1M504. Substitute parts can look different from the original.
    BEST SELLER
    $10.69
    16% OFF Phone Price : $12.69
    In Stock
  • Air Duct Assembly WE14M92
    #311

    Front panel & door diagram

    Air duct assembly

    Part #WE14M92

    Replaced by #WE14X25080

    ?
    Manufacturer substitution
    This part replaces WE14M92. Substitute parts can look different from the original.
    BEST SELLER
    $74.73
    7% OFF Phone Price : $80.73
    In Stock
  • Outlet Control WE4M391
    #241

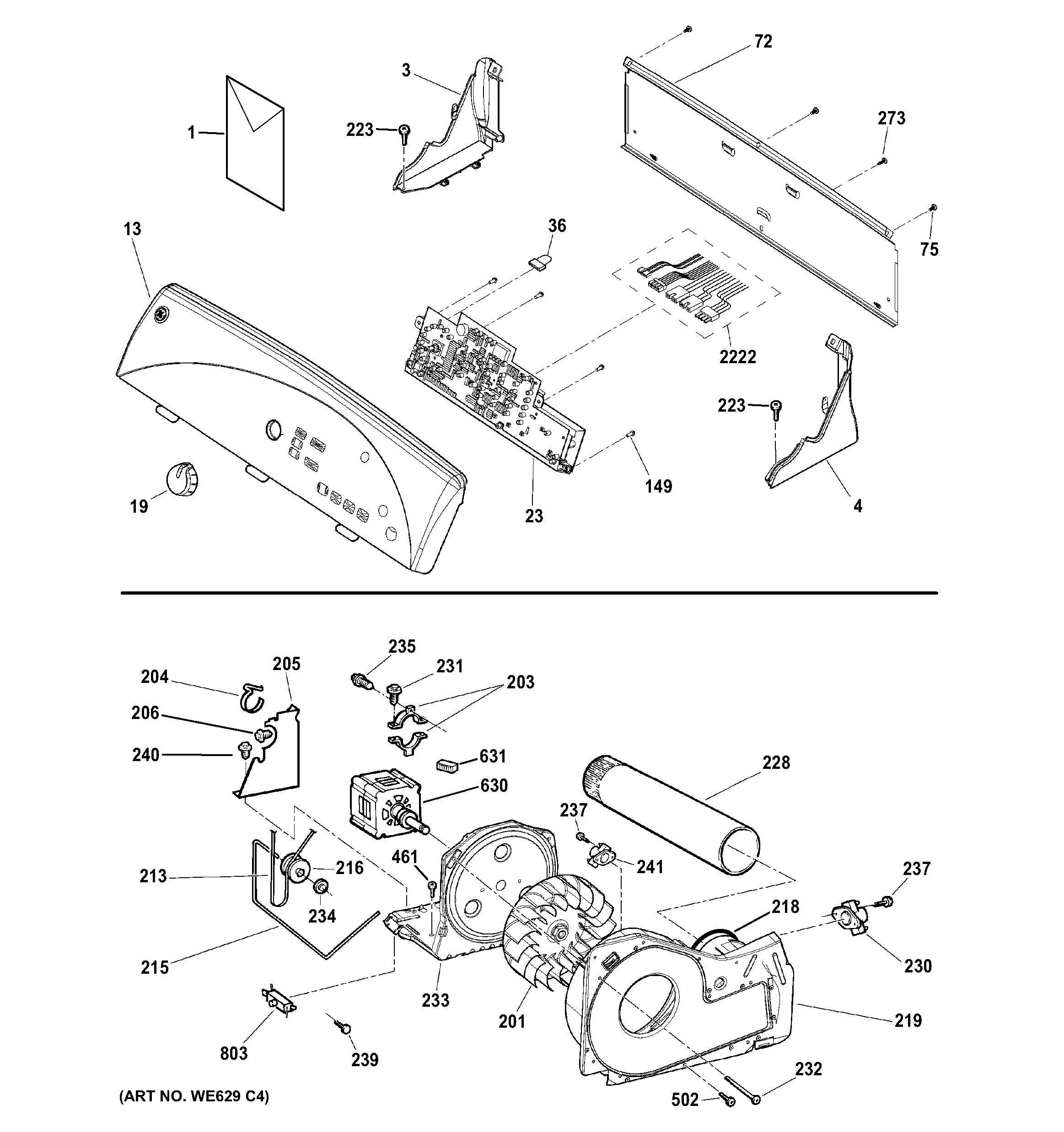

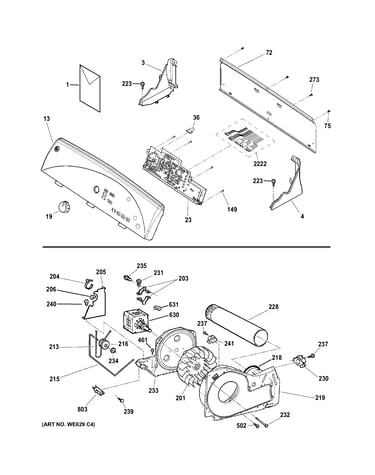

    Backsplash, blower & drive assembly diagram

    Outlet control

    Part #WE4M391

    Replaced by #WE4M448

    ?
    Manufacturer substitution
    This part replaces WE4M391. Substitute parts can look different from the original.
    BEST SELLER
    $45.47
    12% OFF Phone Price : $51.47
    In Stock
  • Idler Pulley WE12M8
    #216

    Backsplash, blower & drive assembly diagram

    Idler pulley

    Part #WE12M8

    Replaced by #WE12X83

    ?
    Manufacturer substitution
    This part replaces WE12M8. Substitute parts can look different from the original.
    BEST SELLER
    $19.12
    9% OFF Phone Price : $21.12
    In Stock
  • Dryer High-limit Thermostat WE4M137
    Dryer high-limit thermostat

    Part #WE4M137

    BEST SELLER
    $90.19
    6% OFF Phone Price : $96.19
    In Stock
  • Dryer Drum Bearing Bracket WE1M300
    #3102

    Drum diagram

    Dryer drum bearing bracket

    Part #WE1M300

    BEST SELLER
    $30.07
    17% OFF Phone Price : $36.07
    In Stock
  • Kenmore Dryer Rear Bearing O-ring WE1M461
    #3127

    Drum diagram

    Kenmore dryer rear bearing o-ring

    Part #WE1M461

    BEST SELLER
    $9.70
    9% OFF Phone Price : $10.70
    In Stock
