Model # UVC9300SL2SS Official GE range hood

Here are the diagrams and repair parts for Official GE UVC9300SL2SS range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

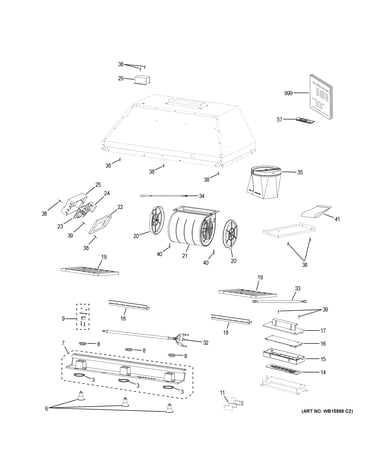

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Board Wifi Cat Module WB27X29798
#11

Range hood diagram

Board wifi cat module

Part #WB27X29798

Replaced by #WB27X33353

?
Manufacturer substitution
This part replaces WB27X29798. Substitute parts can look different from the original.
$46.78 |
11% OFF Phone Price : $52.78
In Stock
Screw St3.5 WH02X27219
#39

Range hood diagram

Screw st3.5

Part #WH02X27219

This item is not returnable
$7.14
In Stock
Lamp Harness WB18X30545
#32

Range hood diagram

Lamp harness

Part #WB18X30545

$60.20
In Stock
Rubber Ring WB02X30564
#8

Range hood diagram

Rubber ring

Part #WB02X30564

$6.51 |
13% OFF Phone Price : $7.51
In Stock
Ui Harness WB18X30565
#33

Range hood diagram

Ui harness

Part #WB18X30565

$19.80
In Stock
Heat Sensor WB24X30507
#34

Range hood diagram

Heat sensor

Part #WB24X30507

$15.28 |
12% OFF Phone Price : $17.28
In Stock
Junction Box WB02X30540
#29

Range hood diagram

Junction box

Part #WB02X30540

$29.33 |
17% OFF Phone Price : $35.33
In Stock
Led Lamp WB25X30548
#6

Range hood diagram

Led lamp

Part #WB25X30548

$55.59 |
10% OFF Phone Price : $61.59
In Stock
Capacitor WB27X30535
#24

Range hood diagram

Capacitor

Part #WB27X30535

$37.58
In Stock
Transition D WB34X30571
#35

Range hood diagram

Transition d

Part #WB34X30571

$50.40
In Stock
