Model # TCX22ZASBRAD Official GE refrigerator - s series

Here are the diagrams and repair parts for Official GE TCX22ZASBRAD refrigerator - s series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

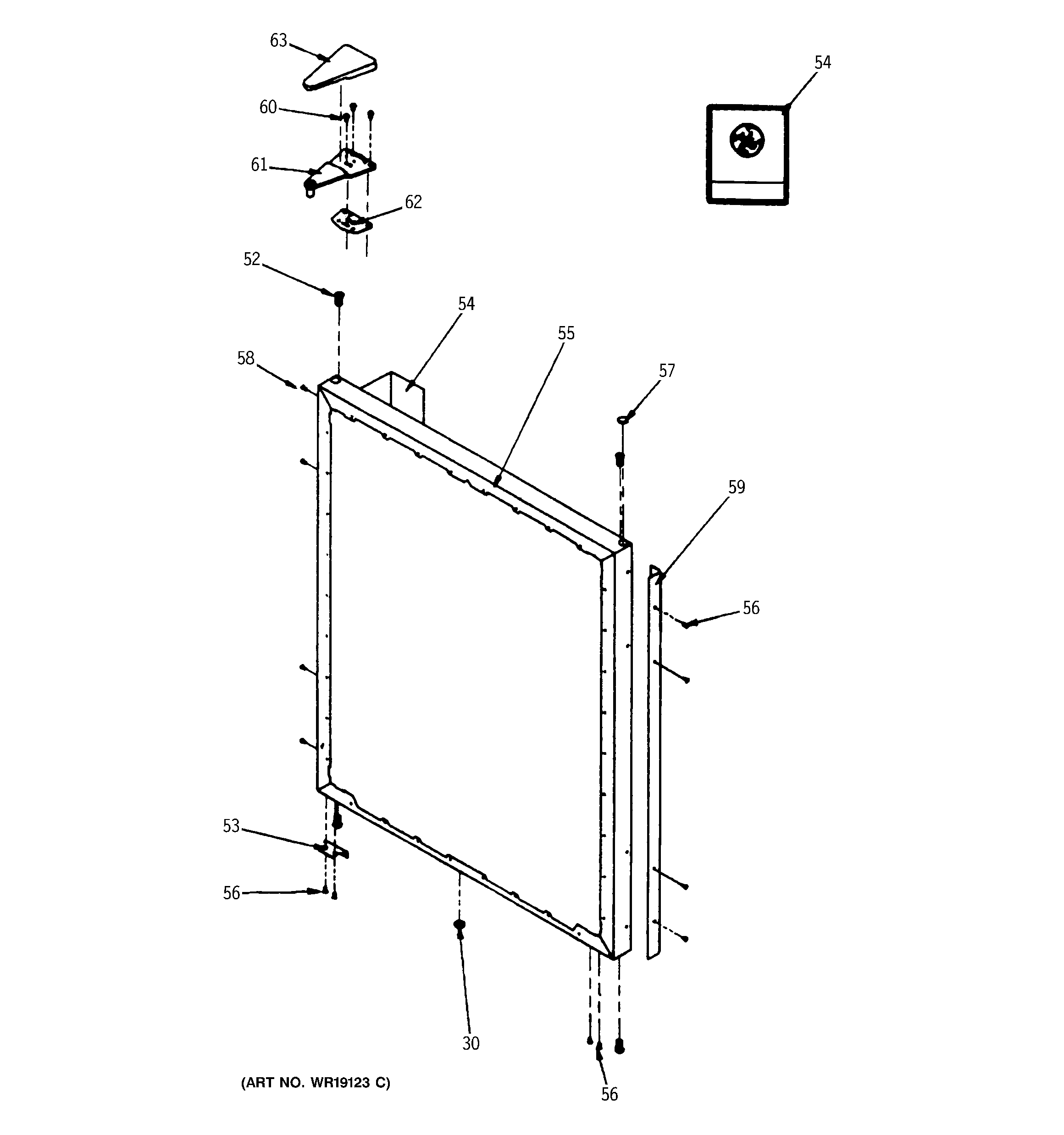

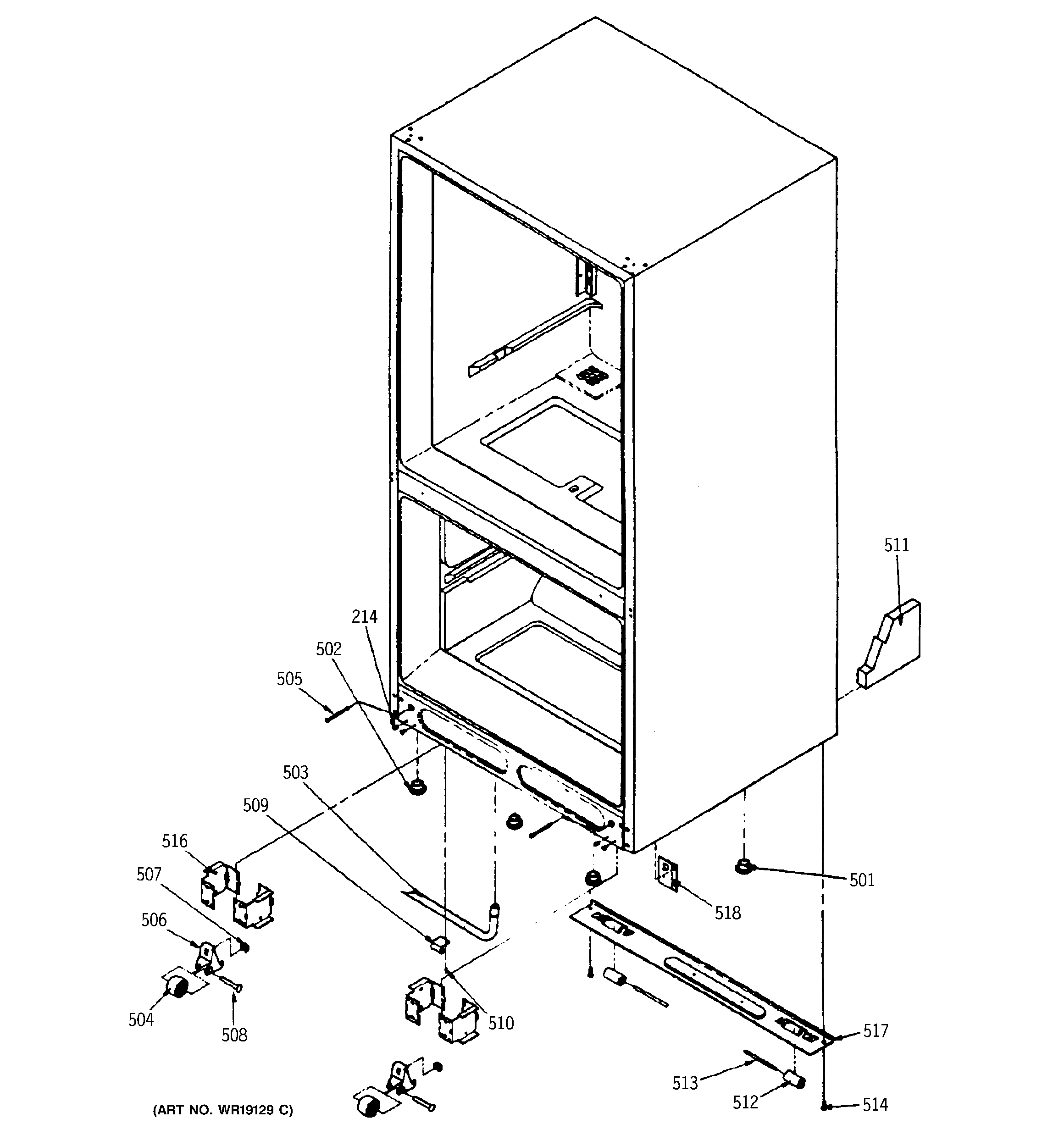

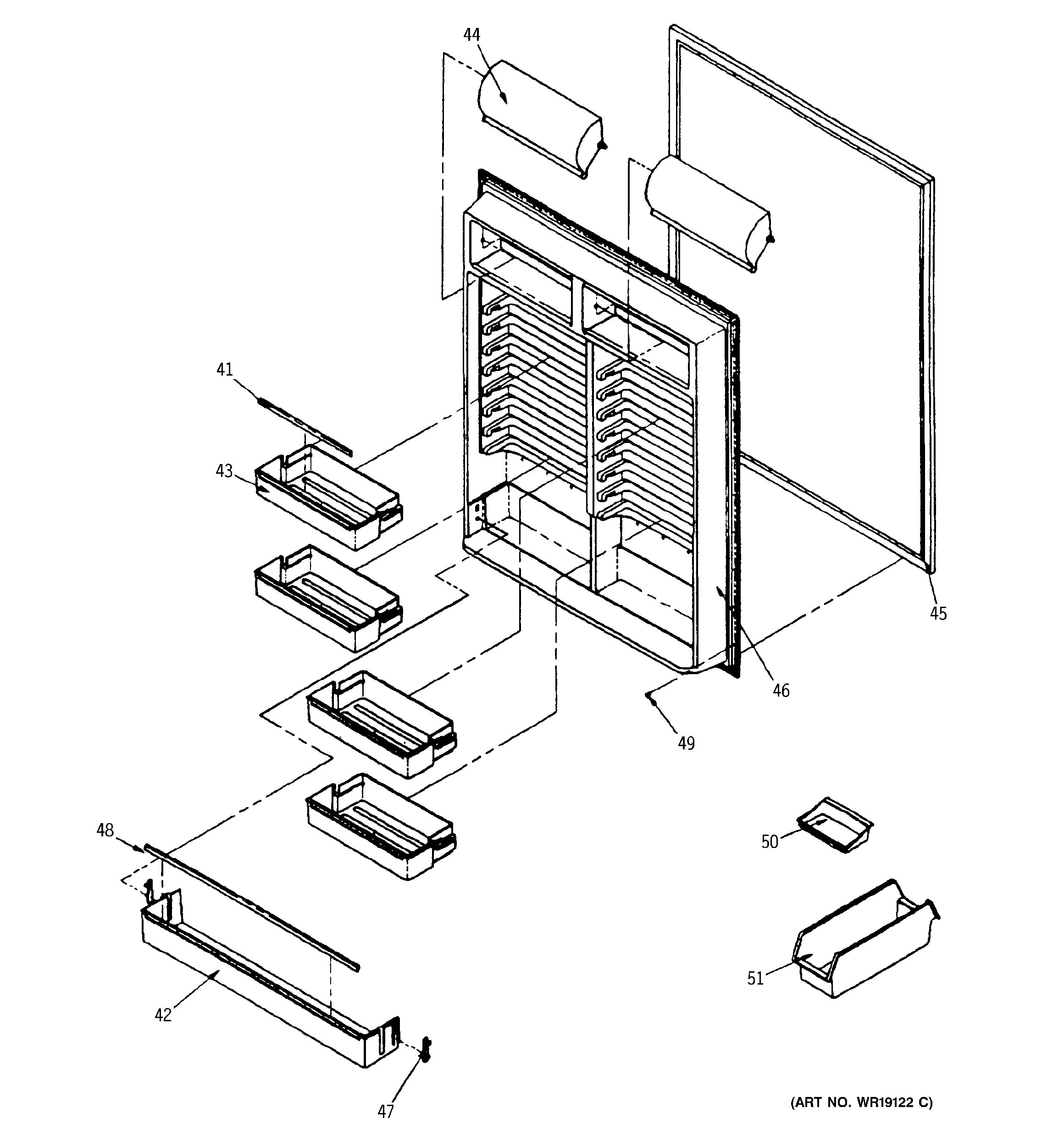

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 223 parts  |
Dryer Assembly WR86X0093
#740

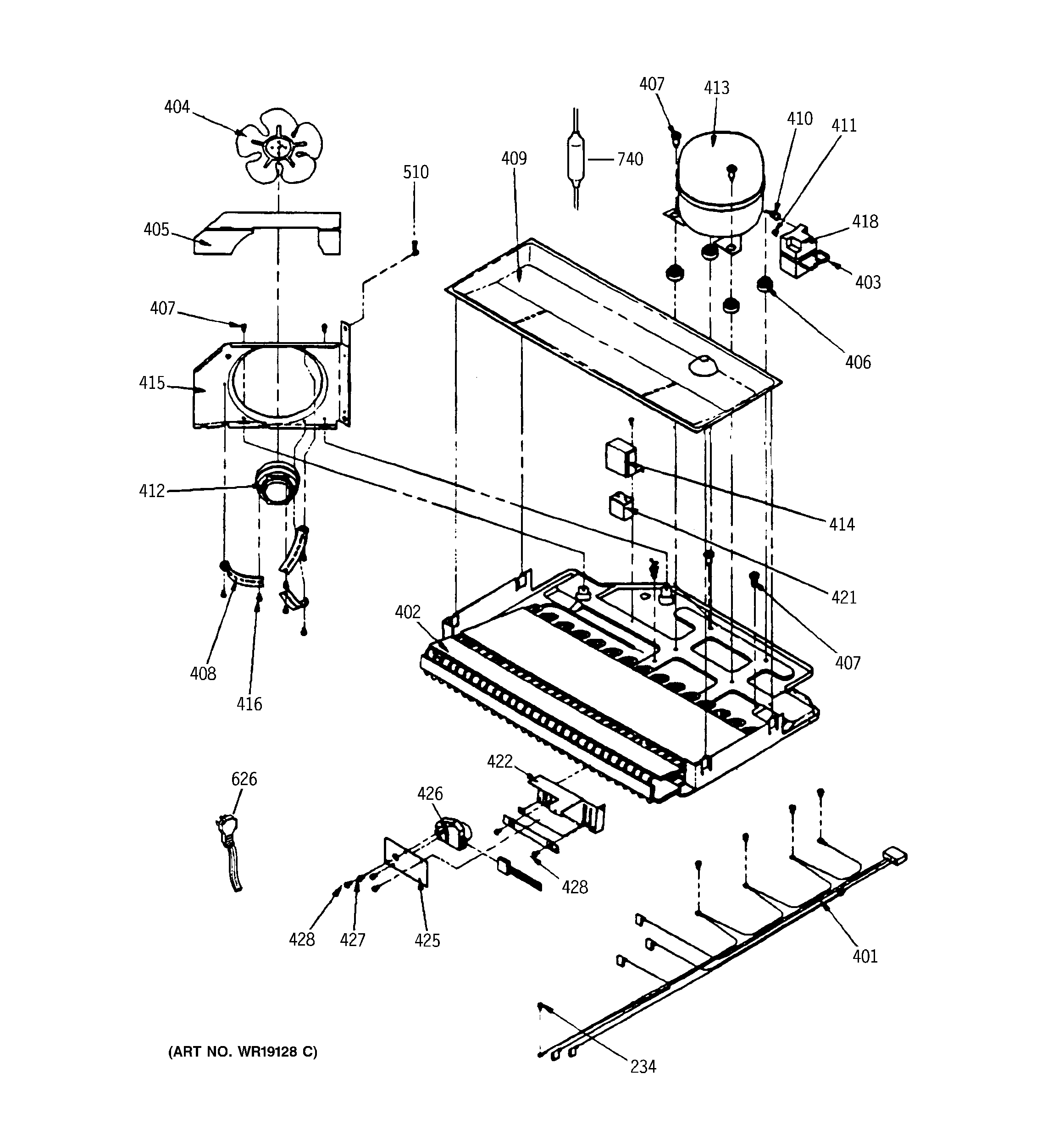

Compressor compartment diagram

Dryer assembly

Part #WR86X0093

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0093. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Appliance Light Bulb, 40-watt (replaces 40a15-2pk, 60a, 60a15rvl, Std398091, Wr02x12328, Wx12x1510) 40A15
#215

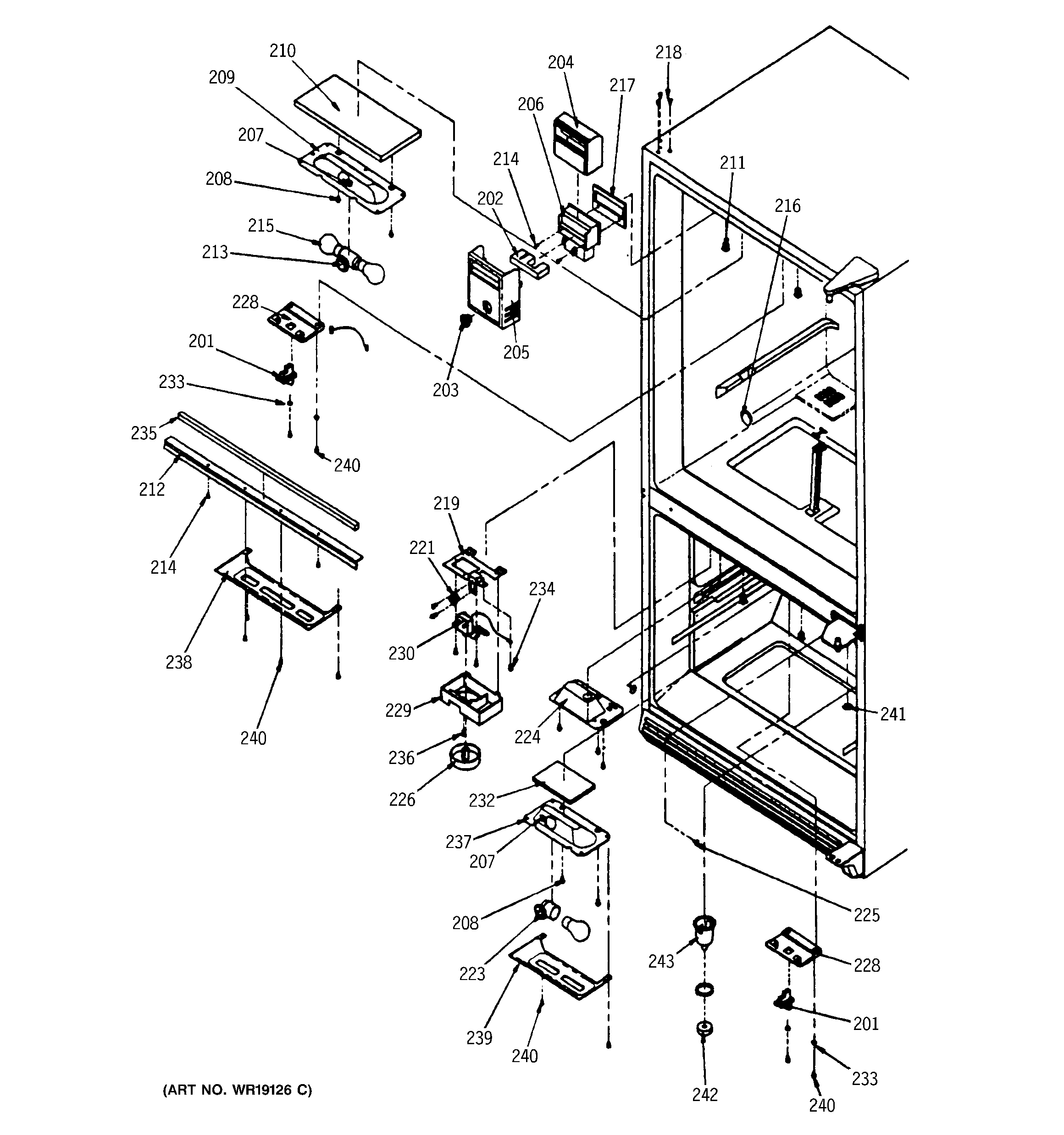

Controls, switches & lights diagram

Appliance light bulb, 40-watt (replaces 40a15-2pk, 60a, 60a15rvl, std398091, wr02x12328, wx12x1510)

Part #40A15

BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Tmr Def 8 Hr WR09X0576
#426

Compressor compartment diagram

Tmr def 8 hr

Part #WR09X0576

Replaced by #WR9X483

?
Manufacturer substitution
This part replaces WR09X0576. Substitute parts can look different from the original.
BEST SELLER
$42.02 |
12% OFF Phone Price : $48.02
In Stock
Refrigerator Light Switch WR23X5142
#201

Controls, switches & lights diagram

Refrigerator light switch

Part #WR23X5142

Replaced by #WR23X37285

?
Manufacturer substitution
This part replaces WR23X5142. Substitute parts can look different from the original.
$8.11
In Stock
Refrigerator Power Cord WR23X0381
#626

Compressor compartment diagram

Refrigerator power cord

Part #WR23X0381

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X0381. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Refrigerator Mullion WR17X3271
#318

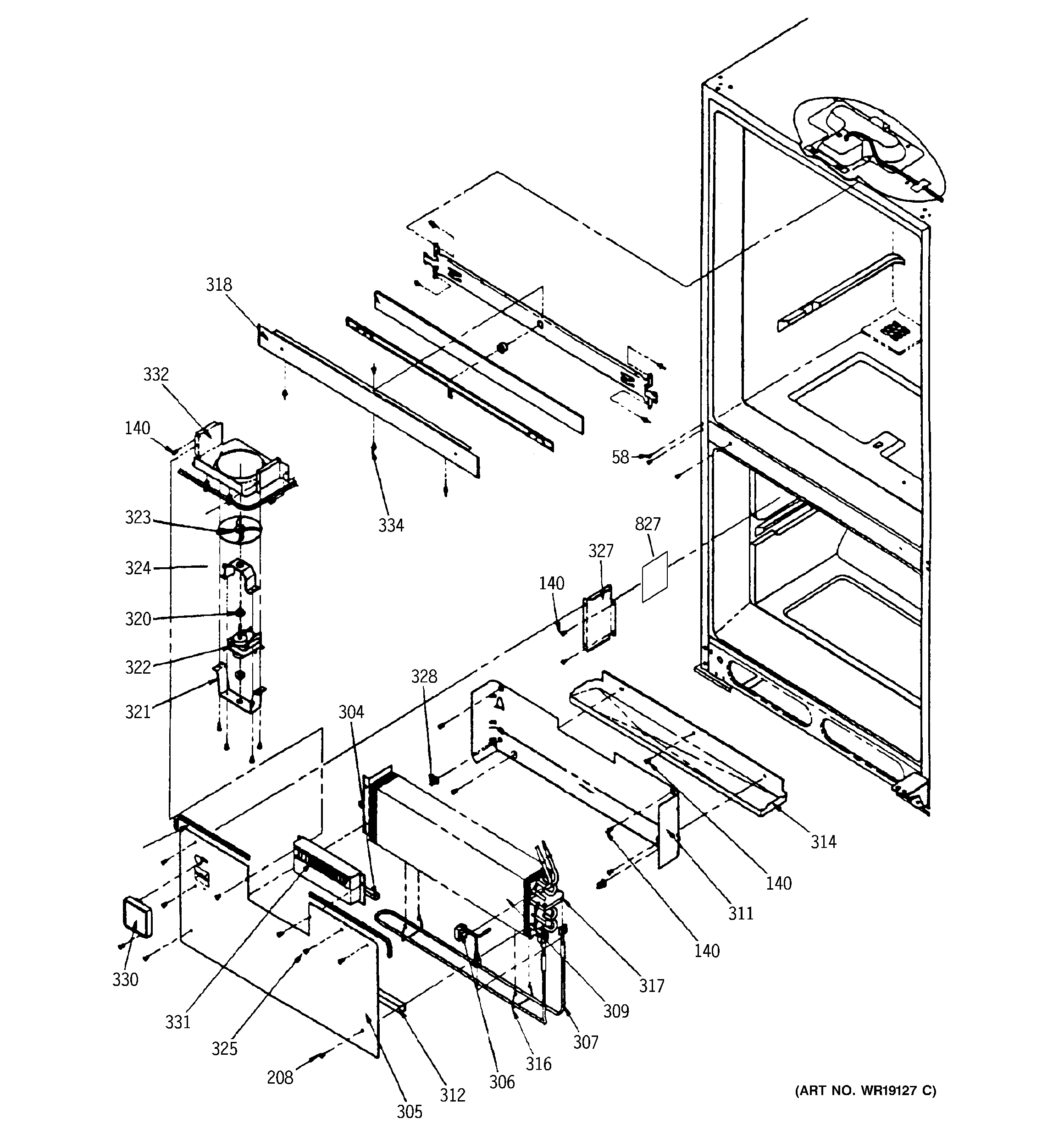

Evaporator area & divider block diagram

Refrigerator mullion

Part #WR17X3271

$23.99
In Stock
Technical Data Sheet 31-5848
#1

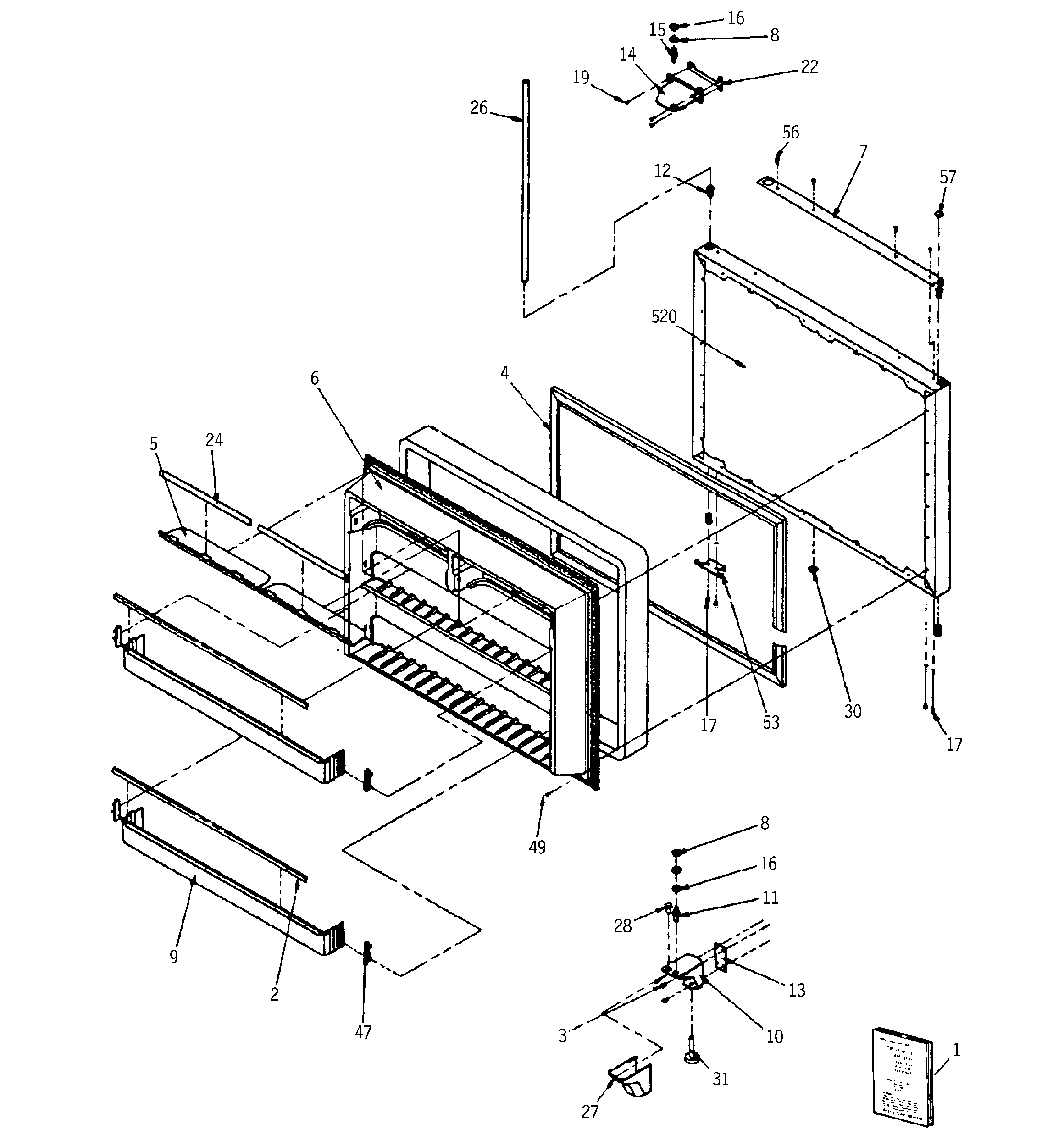

Freezer door diagram

Technical data sheet

Part #31-5848

Replaced by #31-5800-99

?
Manufacturer substitution
This part replaces 31-5848. Substitute parts can look different from the original.
$51.99
In Stock
Scw Mtg Brkt WR01X1886
#416

Compressor compartment diagram

Scw mtg brkt

Part #WR01X1886

Replaced by #WZ5X158D

?
Manufacturer substitution
This part replaces WR01X1886. Substitute parts can look different from the original.
$34.63 |
15% OFF Phone Price : $40.63
In Stock
Screw Hi-lo WR01X1870
#136

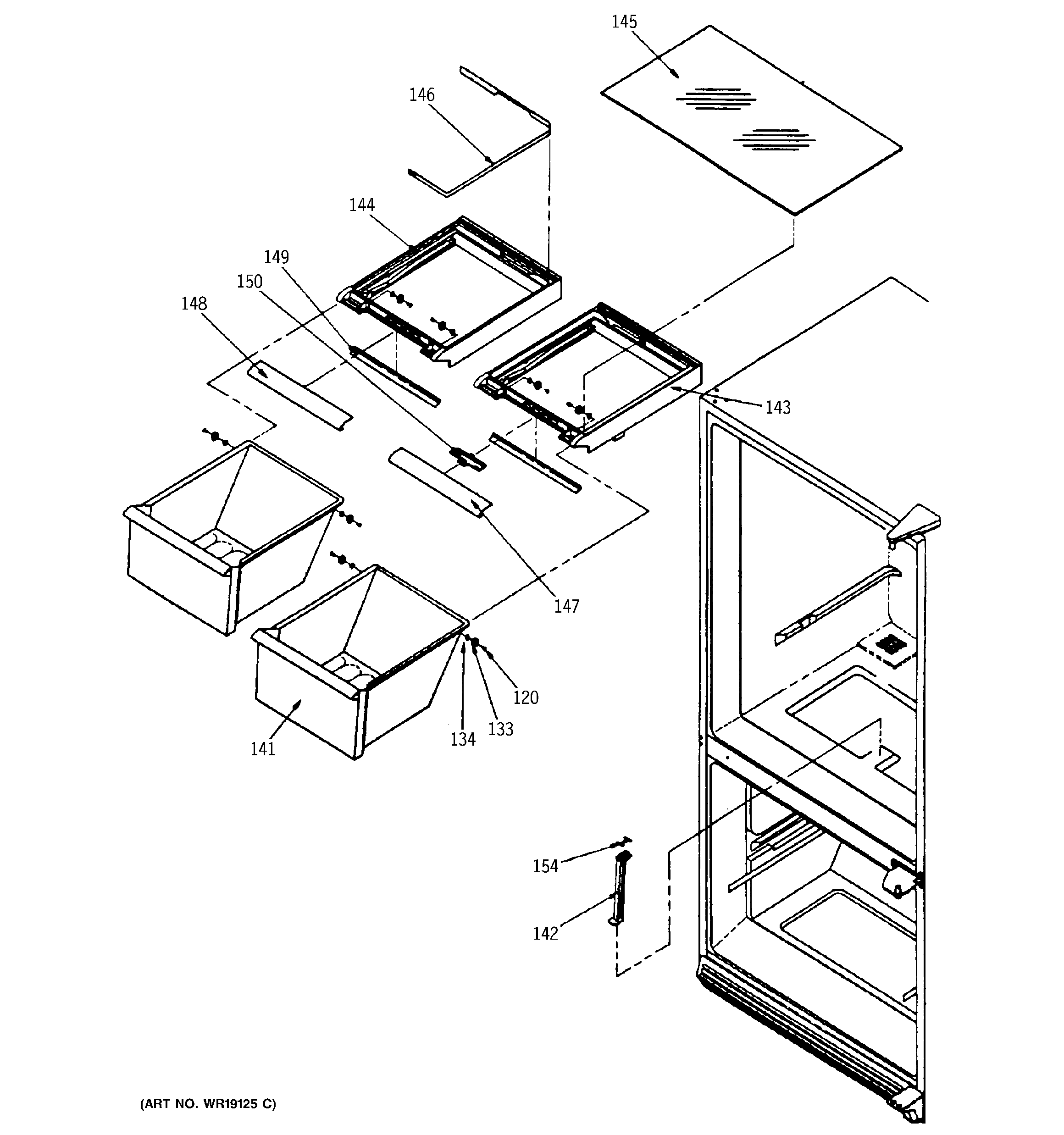

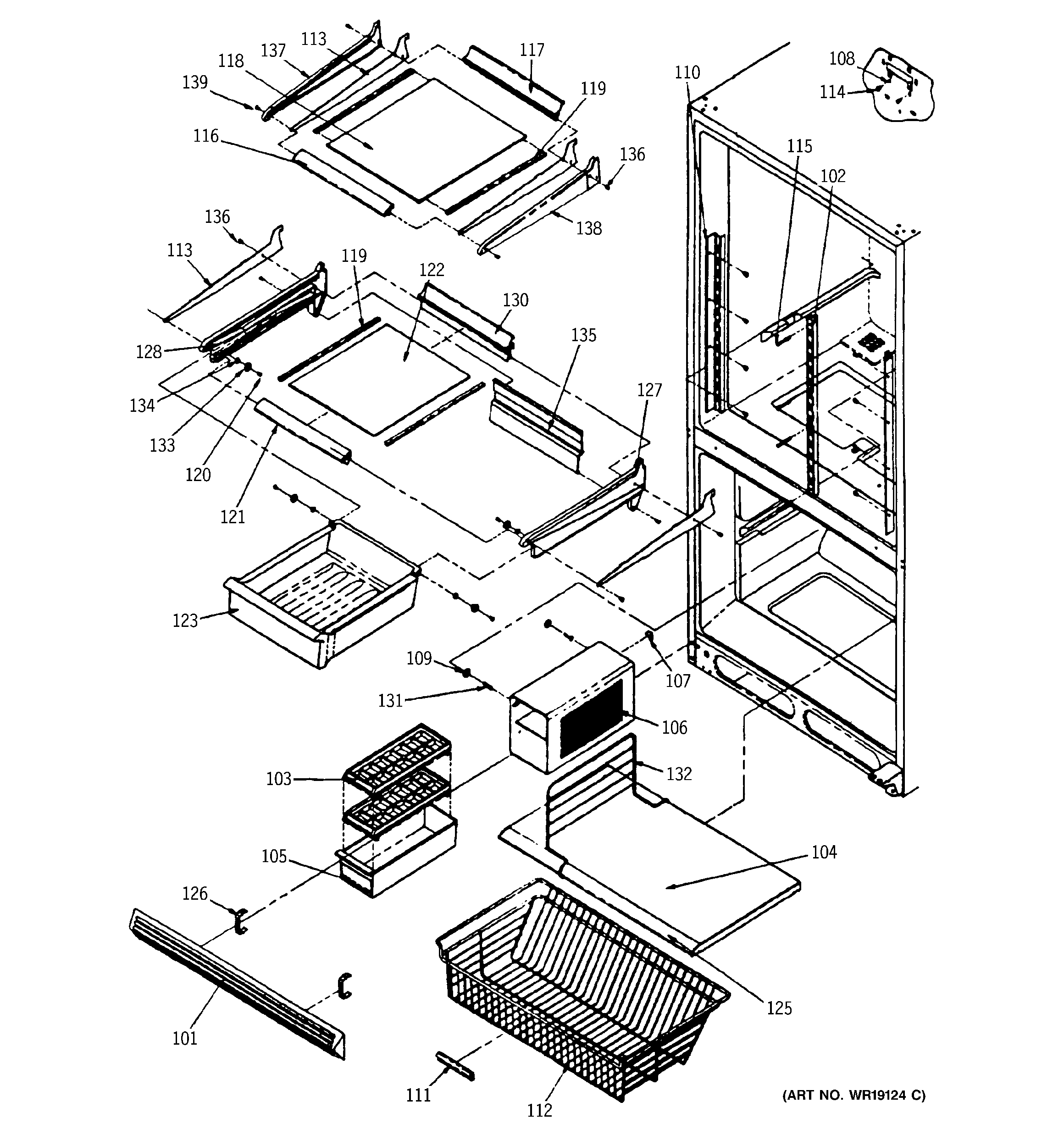

Cabinet shelving diagram

Screw hi-lo

Part #WR01X1870

Replaced by #WR01X10448

?
Manufacturer substitution
This part replaces WR01X1870. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Capacitor WR62X0052
#421

Compressor compartment diagram

Refrigerator capacitor

Part #WR62X0052

Replaced by #WR60X25785

?
Manufacturer substitution
This part replaces WR62X0052. Substitute parts can look different from the original.
This item is not returnable
$18.29 |
10% OFF Phone Price : $20.29
In Stock
