Craftsman
Gas Walk-Behind Mower

Model # 917373460 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917373460 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

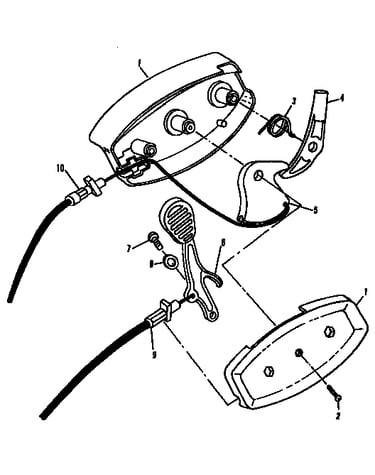

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |

Washer 61537
#14

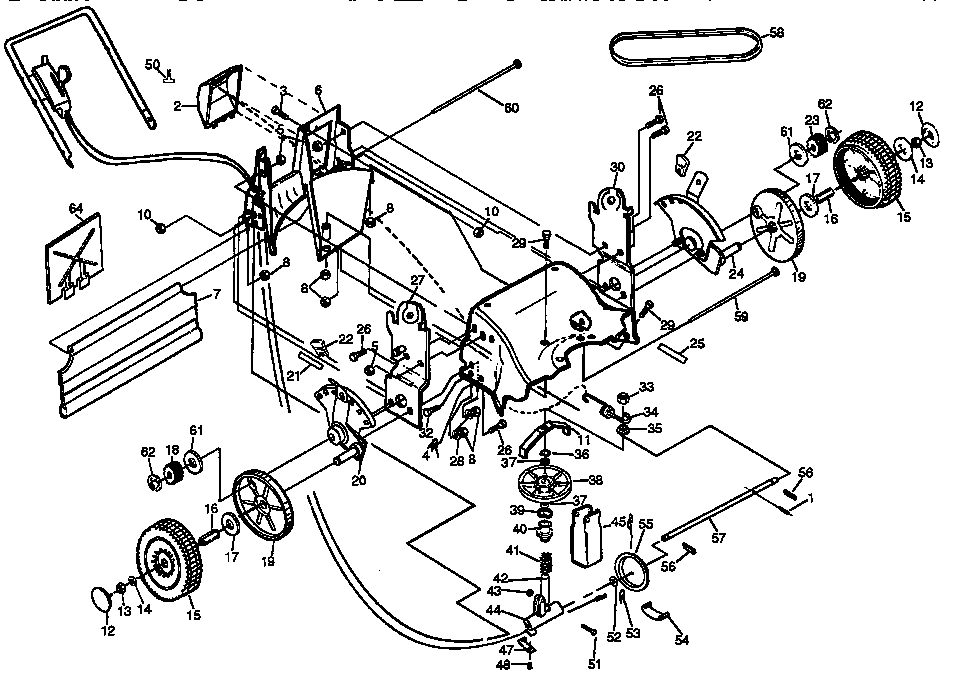

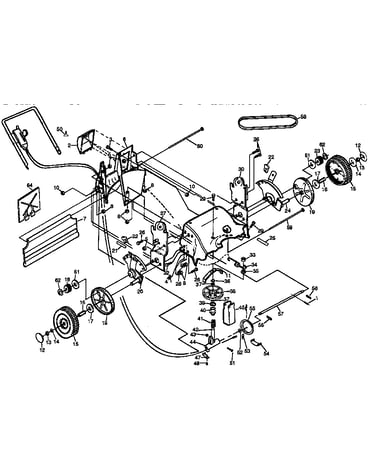

Drive assembly diagram

Washer

Part #61537

Replaced by #596134901

?
Manufacturer substitution
This part replaces 61537. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98
20% OFF Phone Price : $4.98
In Stock
Lawn Mower Height Adjuster Knob 701037
Lawn mower height adjuster knob

Part #701037

Replaced by #532701037

?
Manufacturer substitution
This part replaces 701037. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64
13% OFF Phone Price : $7.64
In Stock
Lawn Mower Blade Adapter 851514
#68

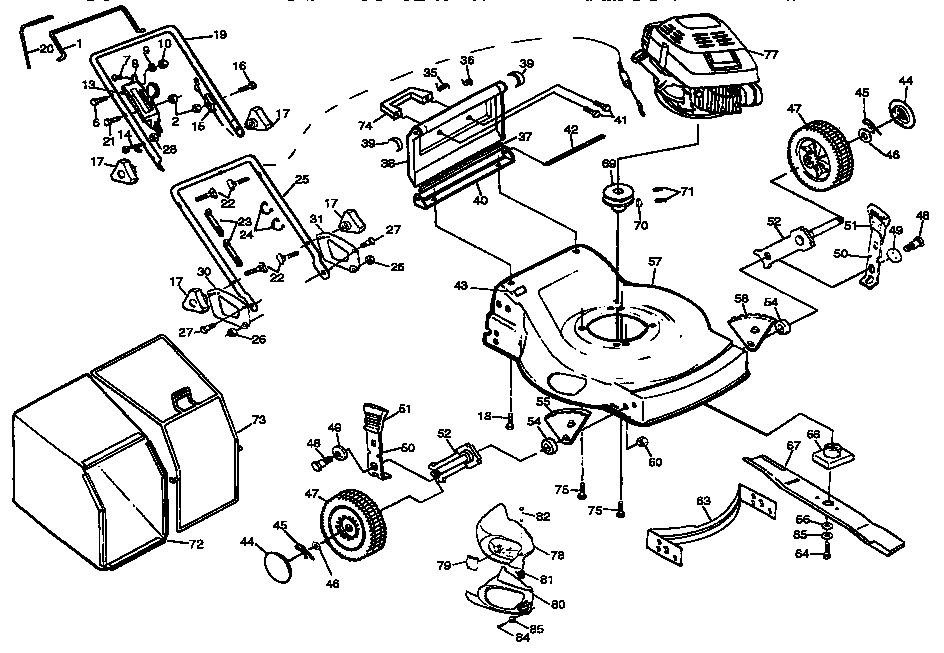

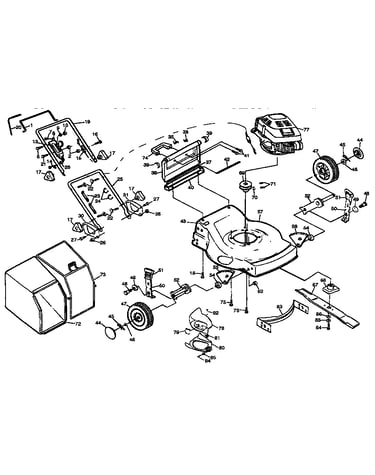

Main frame diagram

Lawn mower blade adapter

Part #851514

Replaced by #581547901

?
Manufacturer substitution
This part replaces 851514. Substitute parts can look different from the original.
BEST SELLER
$19.36
9% OFF Phone Price : $21.36
In Stock
Rope Guide 132001
#14

Main frame diagram

Rope guide

Part #132001

Replaced by #586122501

?
Manufacturer substitution
This part replaces 132001. Substitute parts can look different from the original.
This item is not returnable
$15.59
11% OFF Phone Price : $17.59
In Stock
Lawn Mower E-ring (replaces 12000057) 12000058
#62

Drive assembly diagram

Lawn mower e-ring (replaces 12000057)

Part #12000058

Replaced by #812000058

?
Manufacturer substitution
This part replaces 12000058. Substitute parts can look different from the original.
This item is not returnable
In Stock
Bolt 72140405
#29

Drive assembly diagram

Bolt

Part #72140405

Replaced by #872140405

?
Manufacturer substitution
This part replaces 72140405. Substitute parts can look different from the original.
This item is not returnable
$5.31
16% OFF Phone Price : $6.31
In Stock
Lock Nut 69180
#10

Drive assembly diagram

Lock nut

Part #69180

Replaced by #532069180

?
Manufacturer substitution
This part replaces 69180. Substitute parts can look different from the original.
This item is not returnable
In Stock
Lock Nut 88349
#8

Drive assembly diagram

Lock nut

Part #88349

Replaced by #532088349

?
Manufacturer substitution
This part replaces 88349. Substitute parts can look different from the original.
This item is not returnable
In Stock
Axle Arm 87886X004
#52

Main frame diagram

Axle arm

Part #87886X004

Replaced by #583168501

?
Manufacturer substitution
This part replaces 87886X004. Substitute parts can look different from the original.
In Stock
Hinge Spring 702808
#81

Main frame diagram

Hinge spring

Part #702808

Replaced by #583602601

?
Manufacturer substitution
This part replaces 702808. Substitute parts can look different from the original.
In Stock
