Tappan
Countertop Microwave

Model # 56-2787-10-01 Official Tappan microwave

Here are the diagrams and repair parts for Official Tappan 56-2787-10-01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

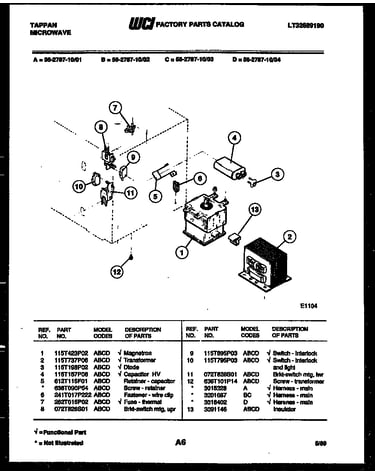

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |

Panel 3091015
#6

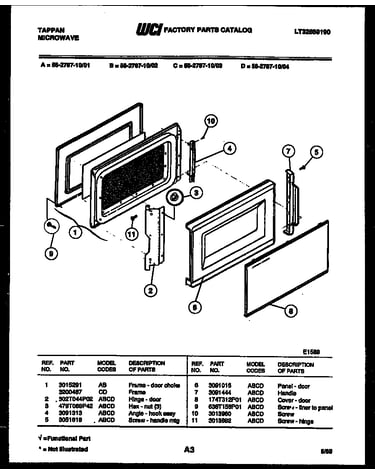

Door parts diagram

Panel

Part #3091015

In Stock
Door Hinge 302T044P02
#2

Door parts diagram

Door hinge

Part #302T044P02

In Stock
Button 3015217
#3

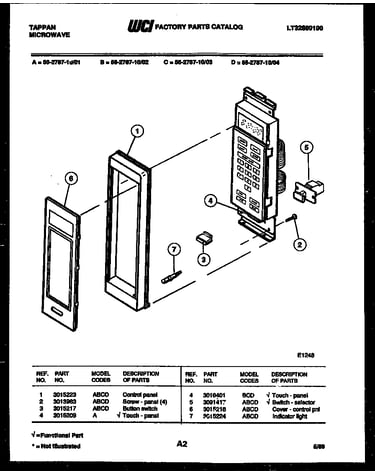

Control panel diagram

Button

Part #3015217

This item is not returnable
In Stock
Door Sheet 3200487
#1A

Door parts diagram

Door sheet

Part #3200487

In Stock
Spacer 665T144P02
#8

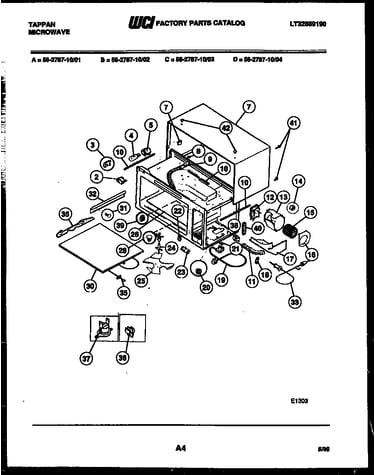

Body parts diagram

Spacer

Part #665T144P02

This item is not returnable
In Stock
Stirrer Fan 239T055F01
#25

Body parts diagram

Stirrer fan

Part #239T055F01

This item is not returnable
In Stock
Panel 3015223
#1

Control panel diagram

Panel

Part #3015223

In Stock
Stirrer Support 355T610S01
#24

Body parts diagram

Stirrer support

Part #355T610S01

In Stock
Wheel 799T009P01
#15

Body parts diagram

Wheel

Part #799T009P01

This item is not returnable
In Stock
Clip 241T017P235
#3

Body parts diagram

Clip

Part #241T017P235

Replaced by #3012323

?
Manufacturer substitution
This part replaces 241T017P235. Substitute parts can look different from the original.
This item is not returnable
In Stock
