Model # LWHD1500ER Official LG room air conditioner

Here are the diagrams and repair parts for Official LG LWHD1500ER room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Room Air Conditioner Fan Blade Clamp 3H02932C
#W486

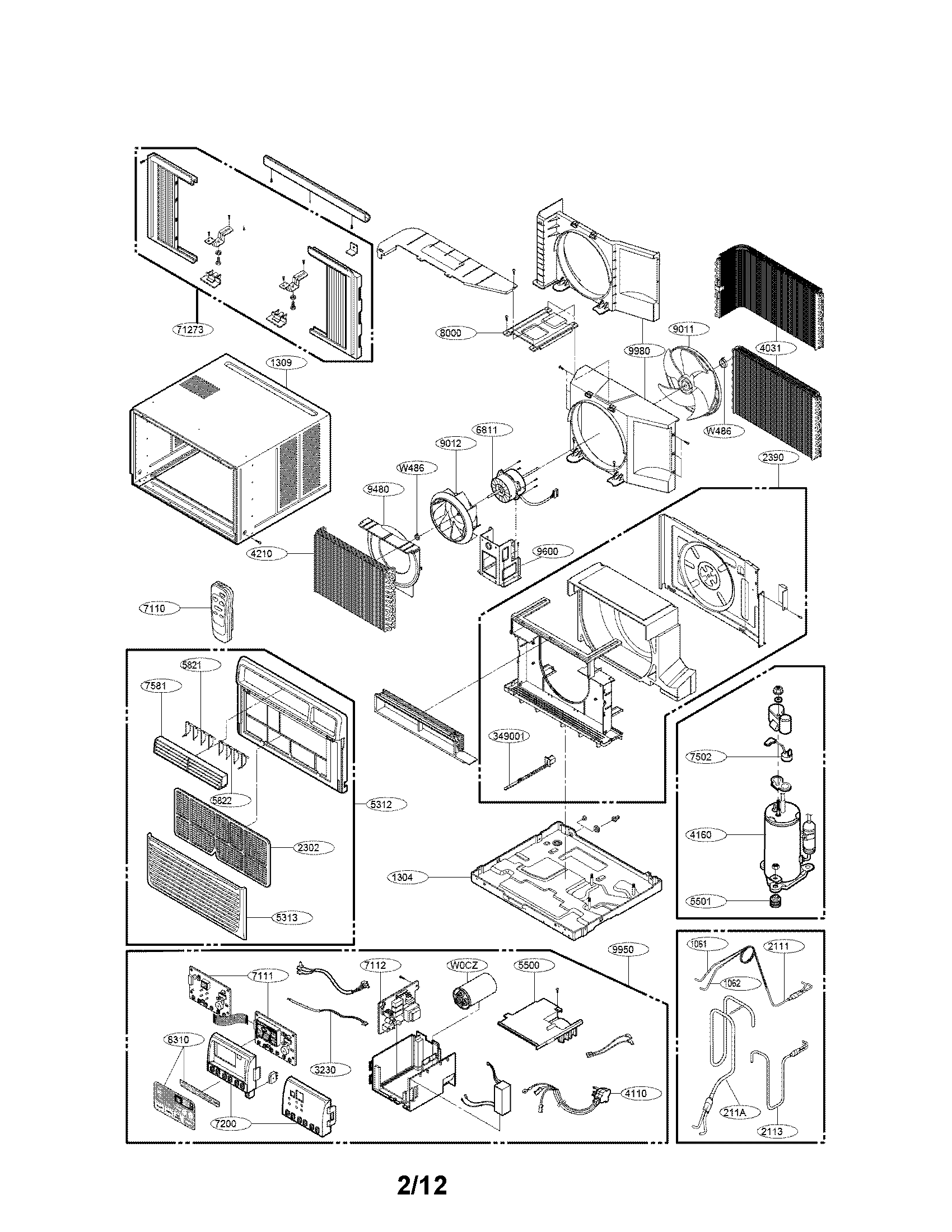

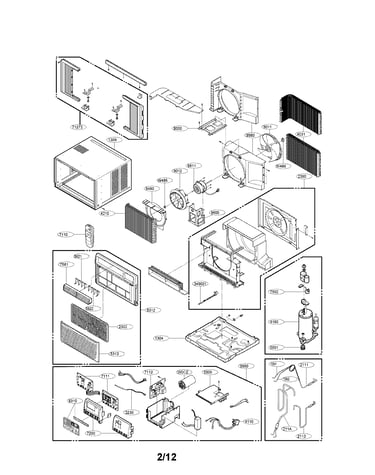

Exploded view parts diagram

Room air conditioner fan blade clamp

Part #3H02932C

Replaced by #MBU64446302

?
Manufacturer substitution
This part replaces 3H02932C. Substitute parts can look different from the original.
This item is not returnable
$4.51
In Stock
Room Air Conditioner Remote Control 6711A20034G
#7110

Exploded view parts diagram

Room air conditioner remote control

Part #6711A20034G

Replaced by #AKB73795706

?
Manufacturer substitution
This part replaces 6711A20034G. Substitute parts can look different from the original.
$31.05 |
16% OFF Phone Price : $37.05
In Stock
Room Air Conditioner Condenser Fan Blade (replaces 5900ar1330c, 5900ar1508a, 5901a20010a) 5900AR1508B
#9011

Exploded view parts diagram

Room air conditioner condenser fan blade (replaces 5900ar1330c, 5900ar1508a, 5901a20010a)

Part #5900AR1508B

Replaced by #5900AR1508G

?
Manufacturer substitution
This part replaces 5900AR1508B. Substitute parts can look different from the original.
$71.96
In Stock
Room Air Conditioner Evaporator Fan Blade 5901A20009A
#9012

Exploded view parts diagram

Room air conditioner evaporator fan blade

Part #5901A20009A

Replaced by #5901A20009E

?
Manufacturer substitution
This part replaces 5901A20009A. Substitute parts can look different from the original.
$40.89
In Stock
Room Air Conditioner Installation Kit 3127AR3403U
#1273

Exploded view parts diagram

Room air conditioner installation kit

Part #3127AR3403U

Replaced by #AET73371401

?
Manufacturer substitution
This part replaces 3127AR3403U. Substitute parts can look different from the original.
$64.66 |
8% OFF Phone Price : $70.66
In Stock
Room Air Conditioner Power Cord 6411A20056L
#4110

Exploded view parts diagram

Room air conditioner power cord

Part #6411A20056L

Replaced by #EAD63469504

?
Manufacturer substitution
This part replaces 6411A20056L. Substitute parts can look different from the original.
$65.39 |
8% OFF Phone Price : $71.39
In Stock
Icp Room Air Conditioner Fan Motor Capacitor 0CZZA20001L
#W0CZ

Exploded view parts diagram

Icp room air conditioner fan motor capacitor

Part #0CZZA20001L

$43.07 |
12% OFF Phone Price : $49.07
In Stock
Room Air Conditioner Compressor Grommet 4H00982C
#5501

Exploded view parts diagram

Room air conditioner compressor grommet

Part #4H00982C

Replaced by #4H00982E

?
Manufacturer substitution
This part replaces 4H00982C. Substitute parts can look different from the original.
This item is not returnable
$3.51 |
22% OFF Phone Price : $4.51
In Stock
Comfort-aire Tube 5211A20441K
#211A

Exploded view parts diagram

Comfort-aire tube

Part #5211A20441K

$71.93
In Stock
Comfort-aire Formed Tube 5210A23358B
#1062

Exploded view parts diagram

Comfort-aire formed tube

Part #5210A23358B

$24.09
In Stock
