Model # 315116141 Official Craftsman sander

Here are the diagrams and repair parts for Official Craftsman 315116141 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Actuator 999182-001
#21

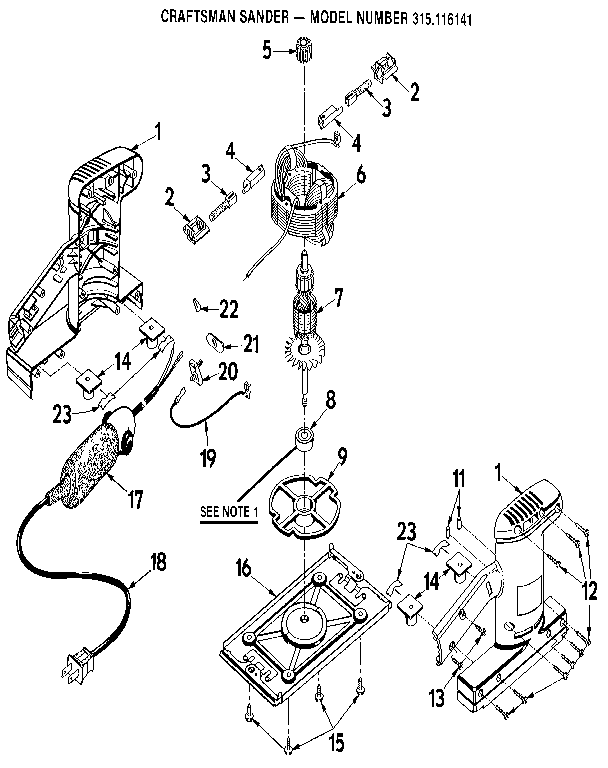

Field and armature assembly diagram

Actuator

Part #999182-001

The manufacturer no longer makes this part, and there's no substitute part

Handle Grip 999161-001
#17

Field and armature assembly diagram

Handle grip

Part #999161-001

The manufacturer no longer makes this part, and there's no substitute part

Field 999369-001
#6

Field and armature assembly diagram

Field

Part #999369-001

The manufacturer no longer makes this part, and there's no substitute part

Lead W/term 999371-002
#19

Field and armature assembly diagram

Lead w/term

Part #999371-002

The manufacturer no longer makes this part, and there's no substitute part

Screw 610120-004
#13

Field and armature assembly diagram

Screw

Part #610120-004

The manufacturer no longer makes this part, and there's no substitute part

1/2 In. Cutter (item No. 9-25413) (standard Hardware Item-may Be Purchased Locally) N/P
#3

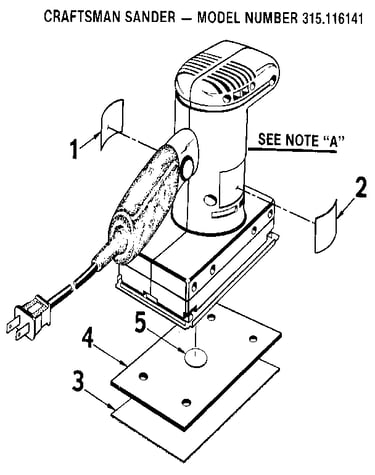

Cushion assembly diagram

1/2 in. cutter (item no. 9-25413) (standard hardware item-may be purchased locally)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 990353-001
#8

Field and armature assembly diagram

Ball bearing

Part #990353-001

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 968788-000
#1

Field and armature assembly diagram

Housing assembly

Part #968788-000

The manufacturer no longer makes this part, and there's no substitute part

Rubber Post 999158-003
#14

Field and armature assembly diagram

Rubber post

Part #999158-003

The manufacturer no longer makes this part, and there's no substitute part

Screw 990908-015
#12

Field and armature assembly diagram

Screw

Part #990908-015

The manufacturer no longer makes this part, and there's no substitute part
