Model # 306233811 Official Craftsman 6" planer/molder

Here are the diagrams and repair parts for Official Craftsman 306233811 6" planer/molder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

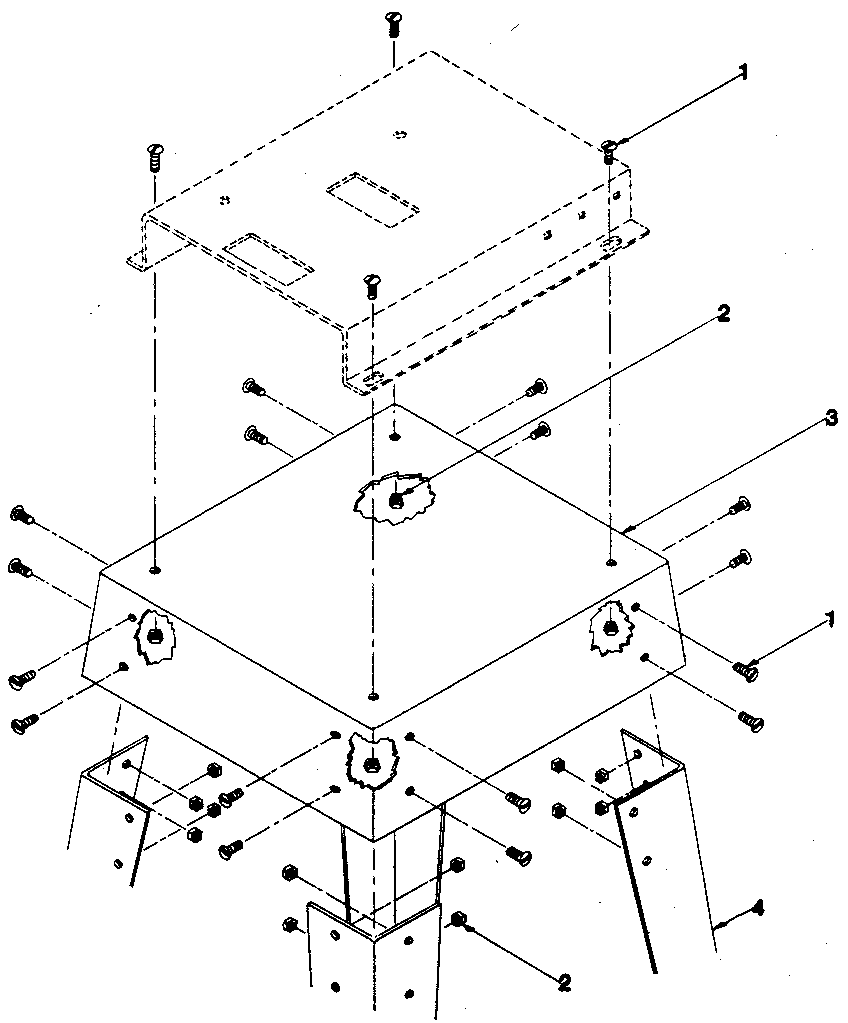

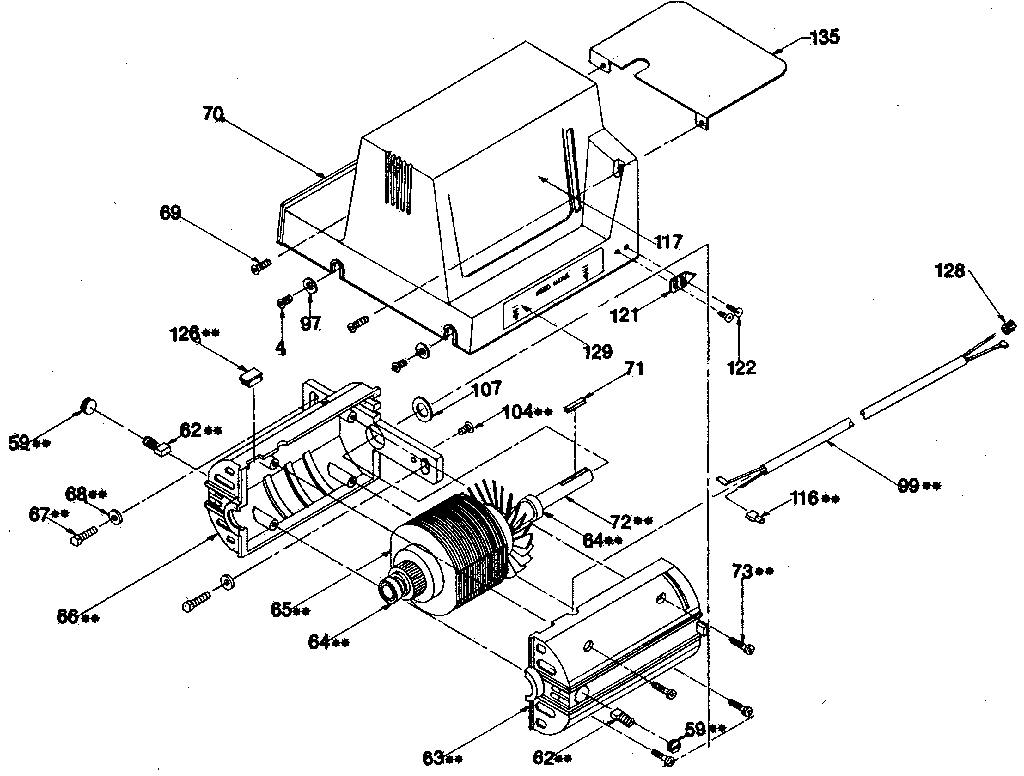

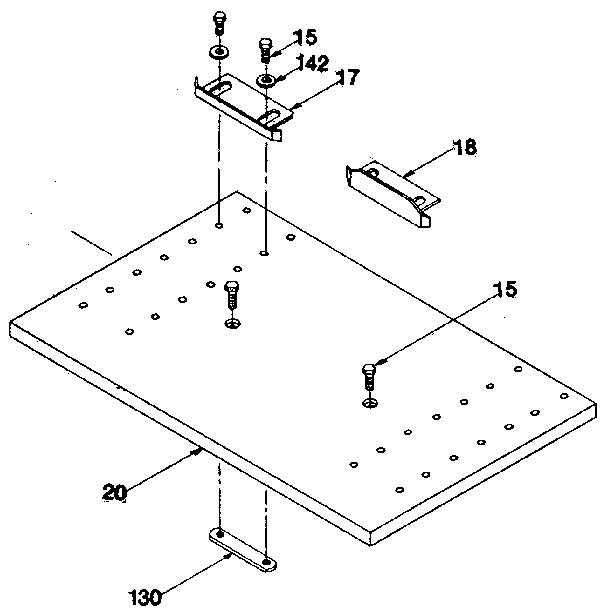

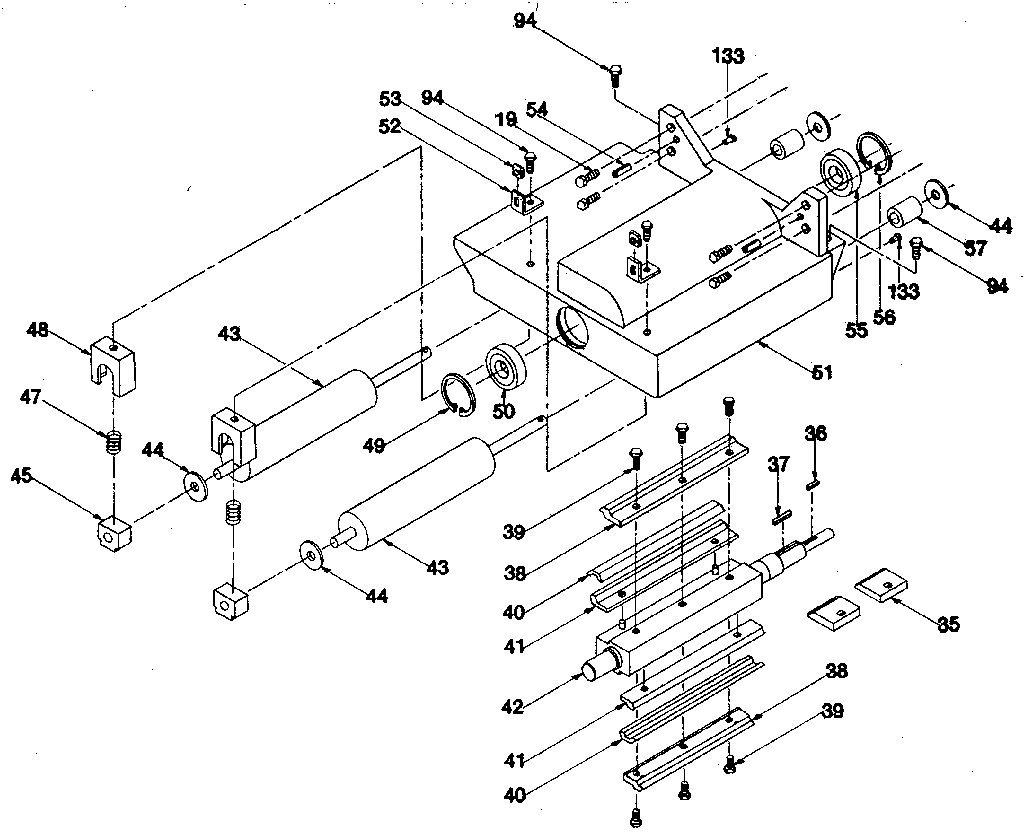

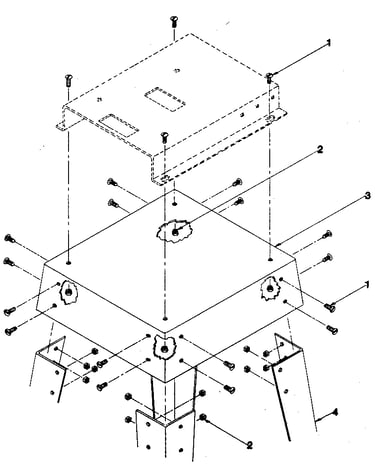

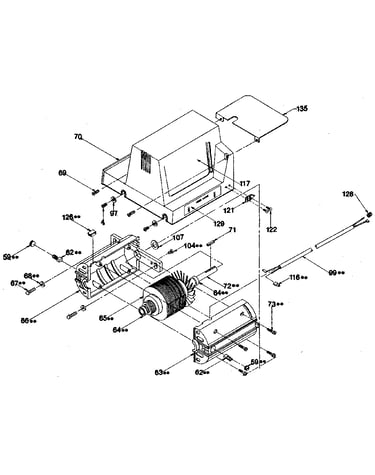

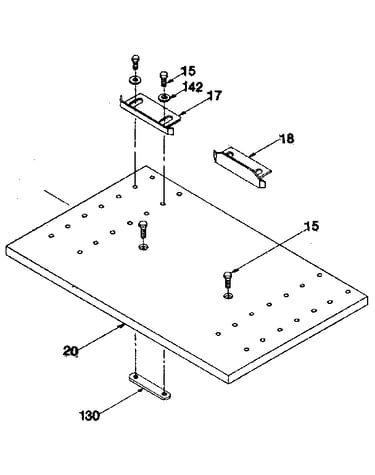

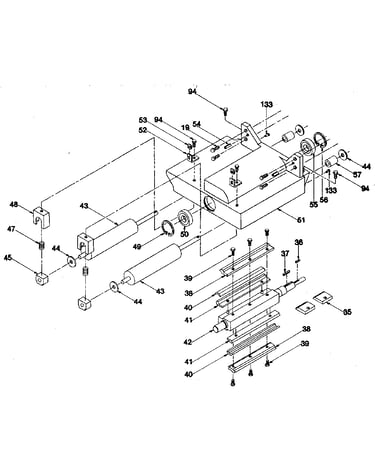

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 124 parts  |
Connector 1559088
#120

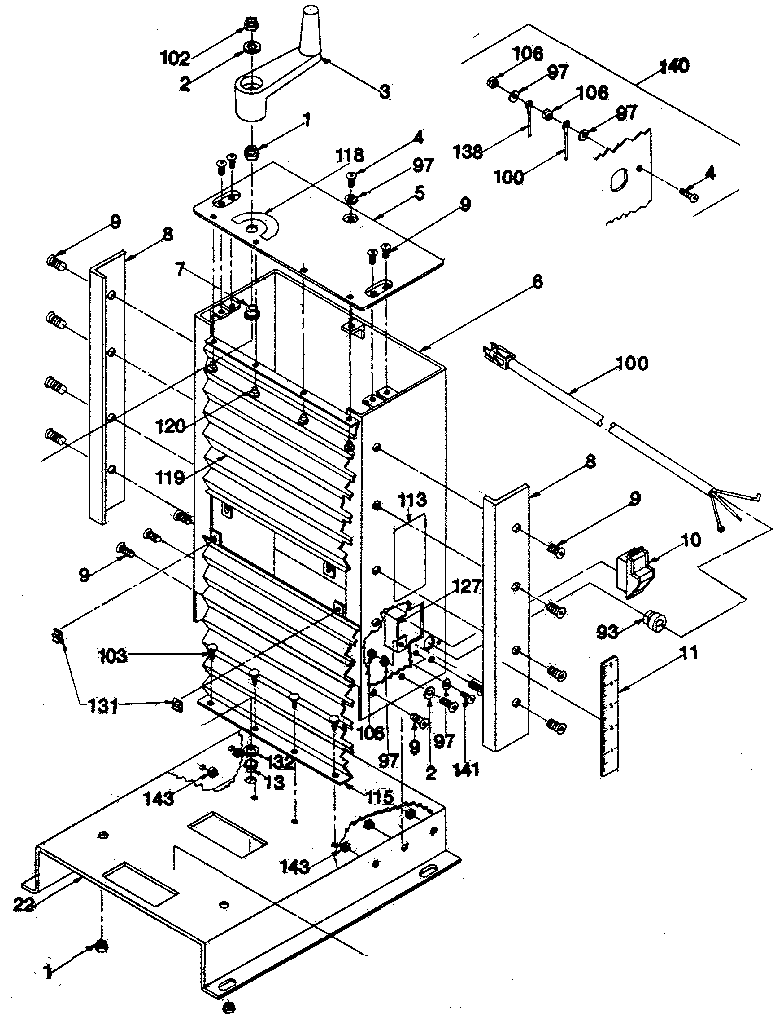

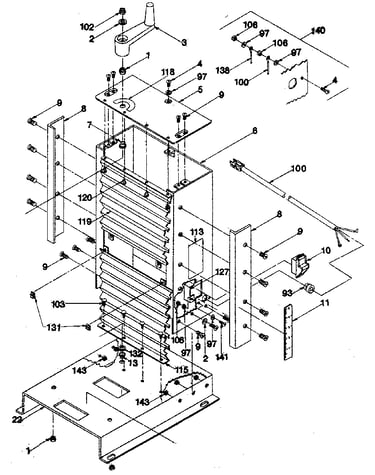

Frame, side rails & base plate diagram

Connector

Part #1559088

The manufacturer no longer makes this part, and there's no substitute part

Vent Plug 3708488
#23

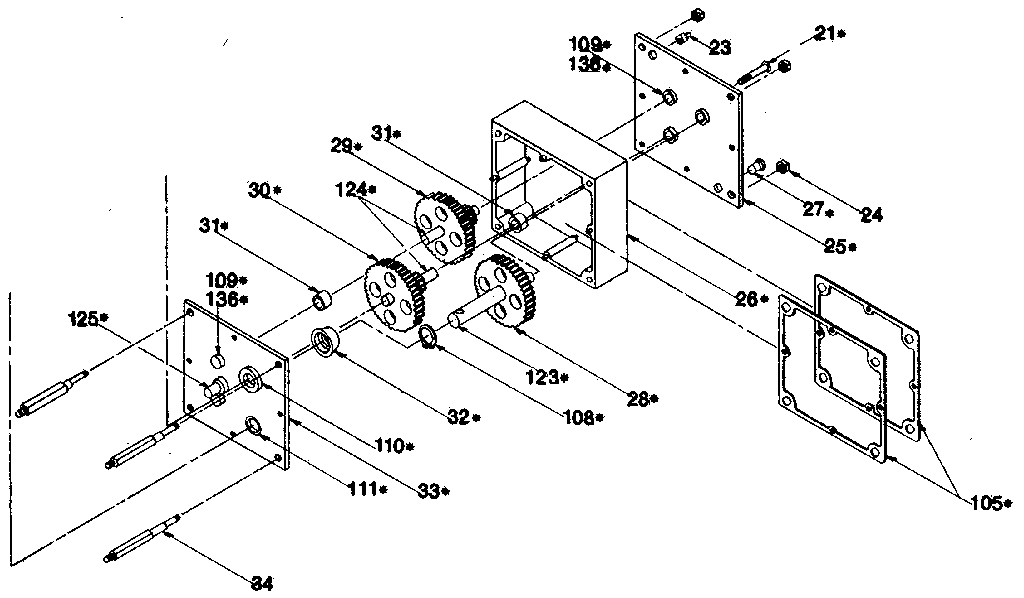

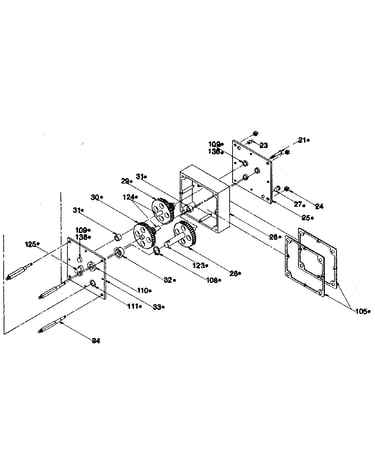

Gear box diagram

Vent plug

Part #3708488

The manufacturer no longer makes this part, and there's no substitute part

Spring 3708483
Spring

Part #3708483

The manufacturer no longer makes this part, and there's no substitute part

Fastener 3708476
#103

Frame, side rails & base plate diagram

Fastener

Part #3708476

The manufacturer no longer makes this part, and there's no substitute part

Thrust Brg 3708499
#92

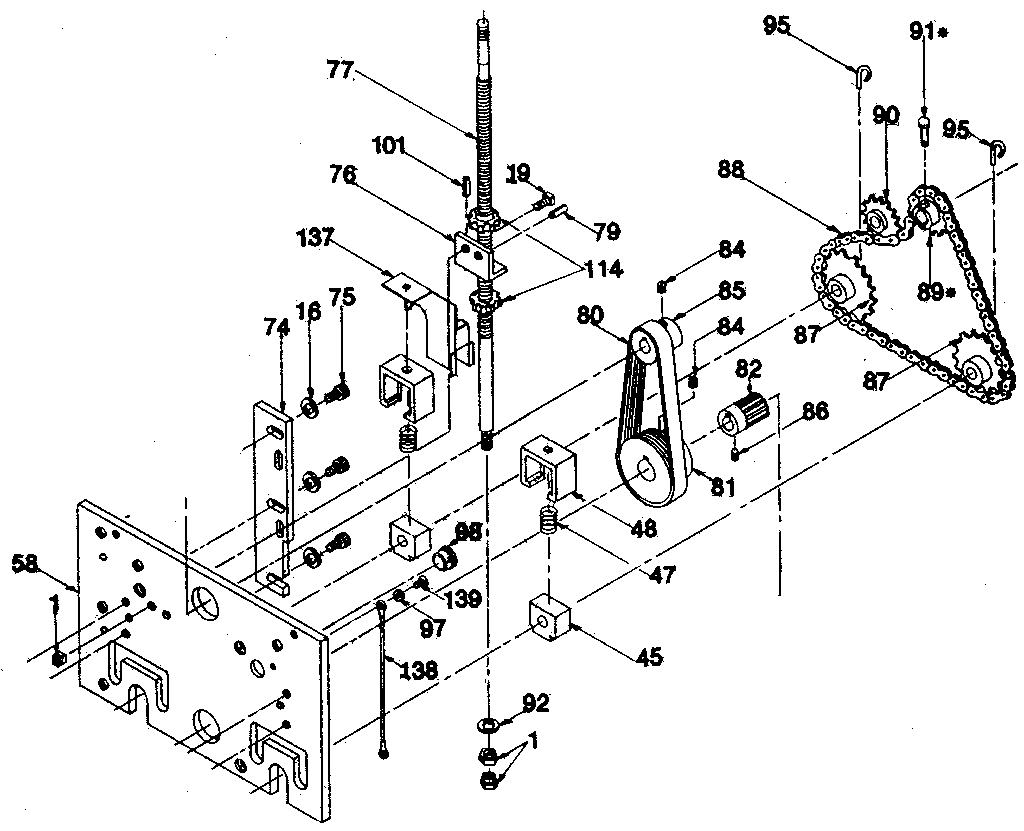

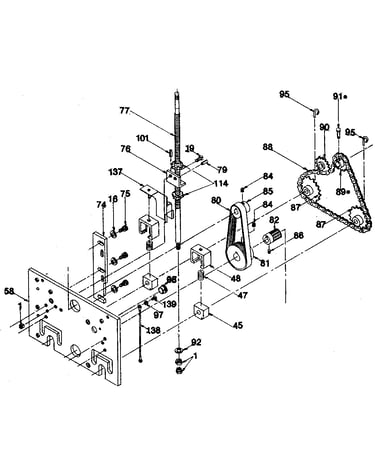

Adjuster screw & sprocket/chain diagram

Thrust brg

Part #3708499

The manufacturer no longer makes this part, and there's no substitute part

Shaft Seal 1559079
#32

Gear box diagram

Shaft seal

Part #1559079

The manufacturer no longer makes this part, and there's no substitute part

Gear Spacer 1559071
#31

Gear box diagram

Gear spacer

Part #1559071

The manufacturer no longer makes this part, and there's no substitute part

Washer 3249162
#16

Adjuster screw & sprocket/chain diagram

Washer

Part #3249162

The manufacturer no longer makes this part, and there's no substitute part

Screw B191213
Screw

Part #B191213

The manufacturer no longer makes this part, and there's no substitute part

Scale 1559046
#11

Frame, side rails & base plate diagram

Scale

Part #1559046

The manufacturer no longer makes this part, and there's no substitute part
