Model # H3110PPW Official Hardwick gas range

Here are the diagrams and repair parts for Official Hardwick H3110PPW gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

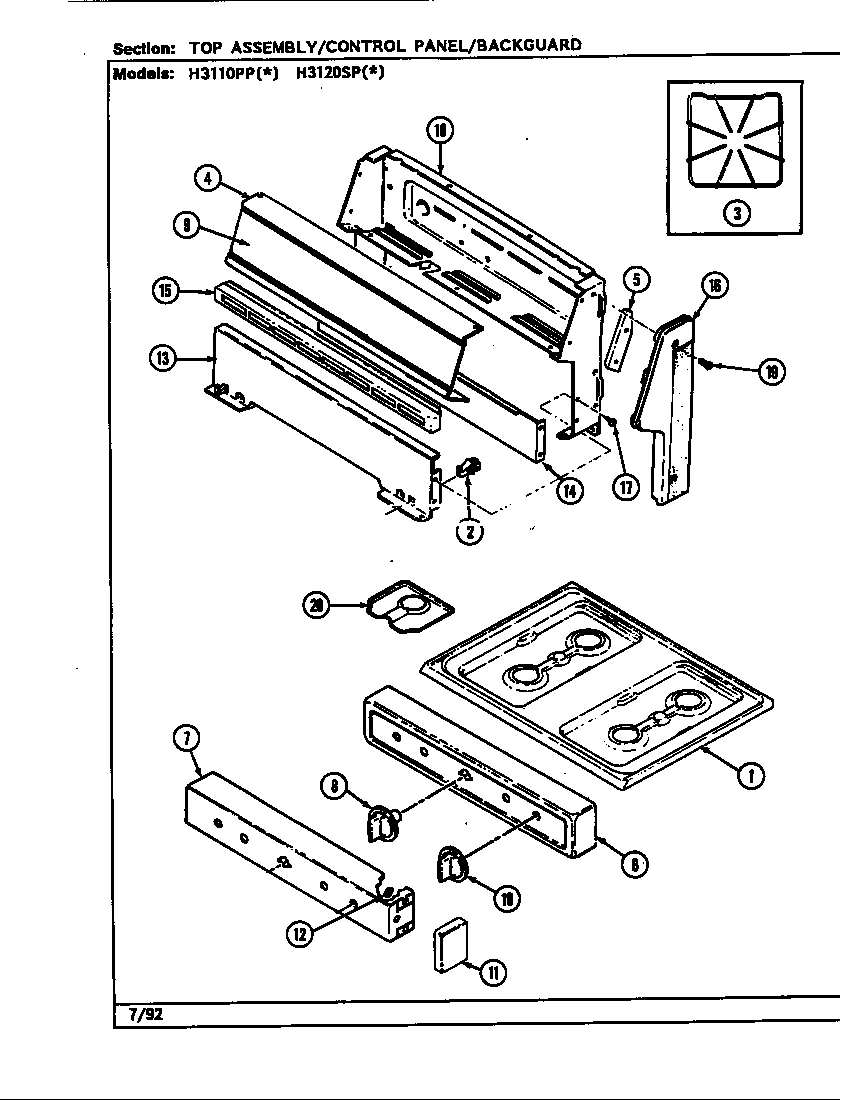

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Clamp Screw 7101P080-60
#13

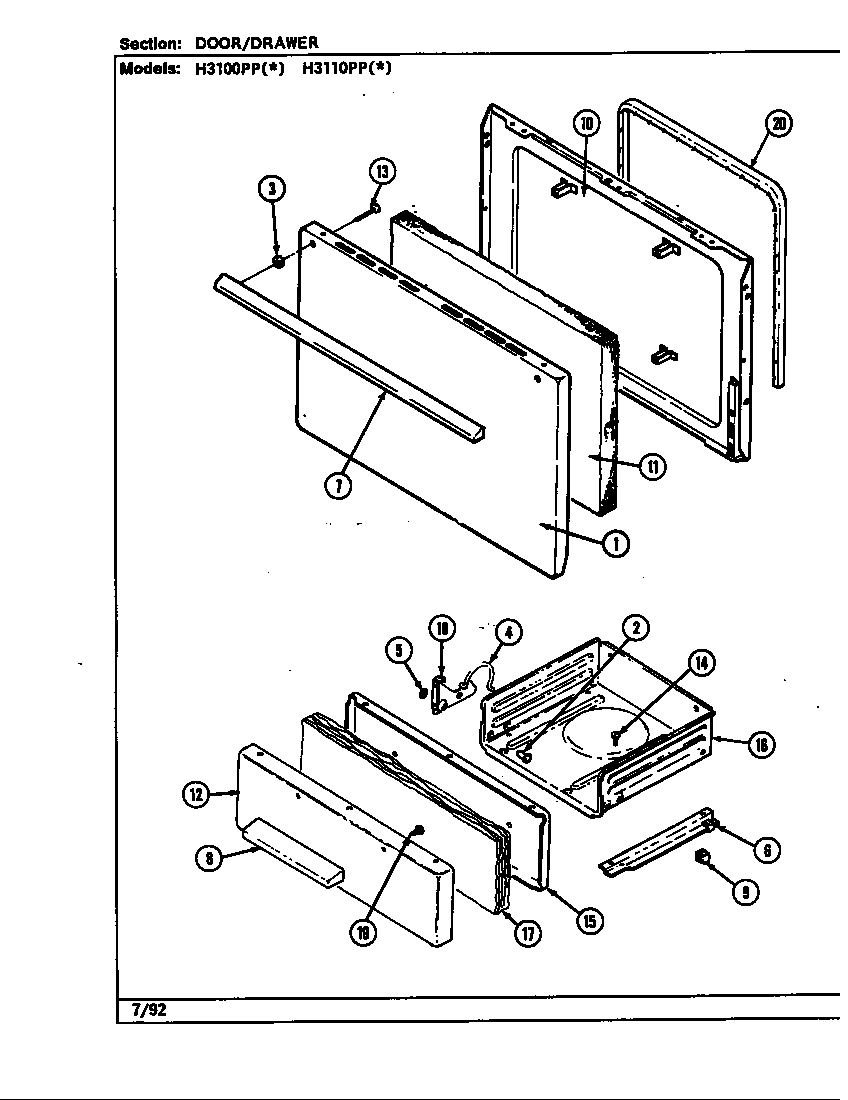

Door/drawer (h3110pp*) diagram

Clamp screw

Part #7101P080-60

Replaced by #WP3387230

?
Manufacturer substitution
This part replaces 7101P080-60. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 7101P290-60
Screw

Part #7101P290-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P290-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw, Housi 7118P015-60
Screw, housi

Part #7118P015-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7118P015-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Hinge Screw 7101P017-60
#22

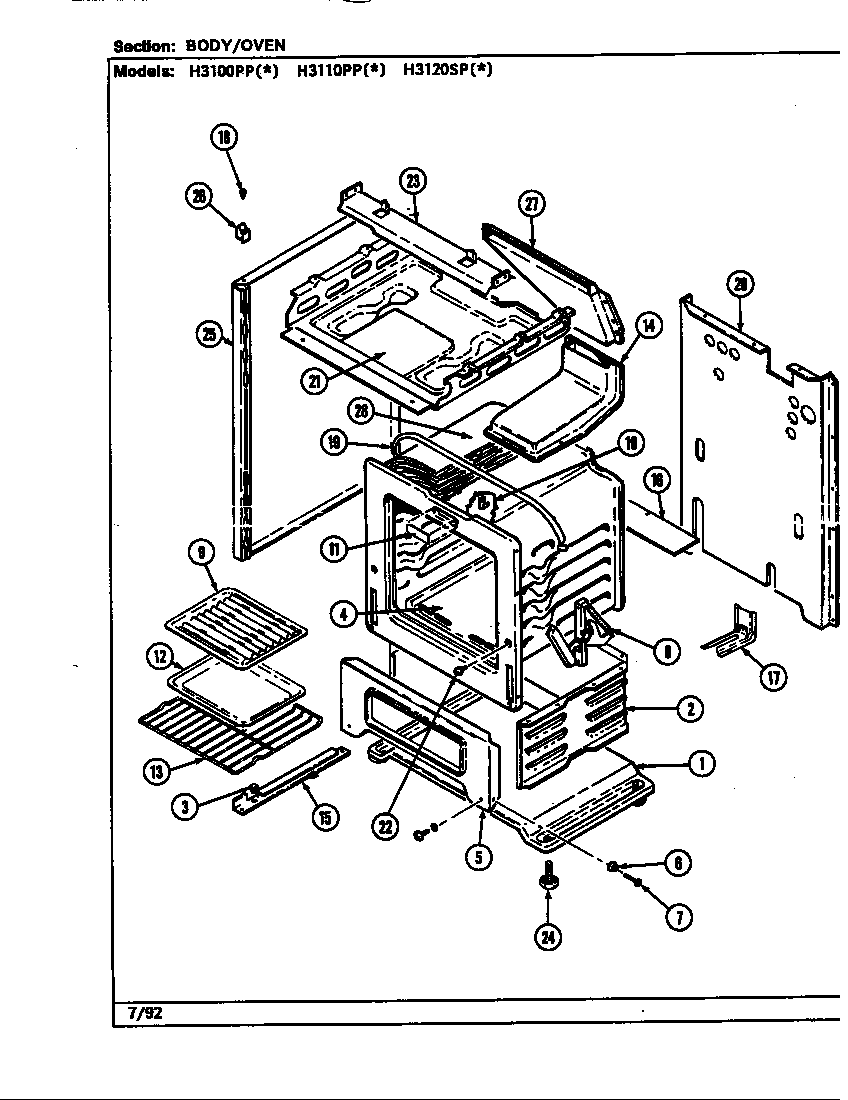

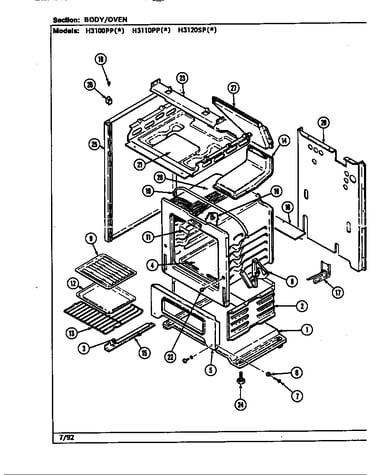

Body diagram

Hinge screw

Part #7101P017-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P017-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Screw 7101P112-60
#15

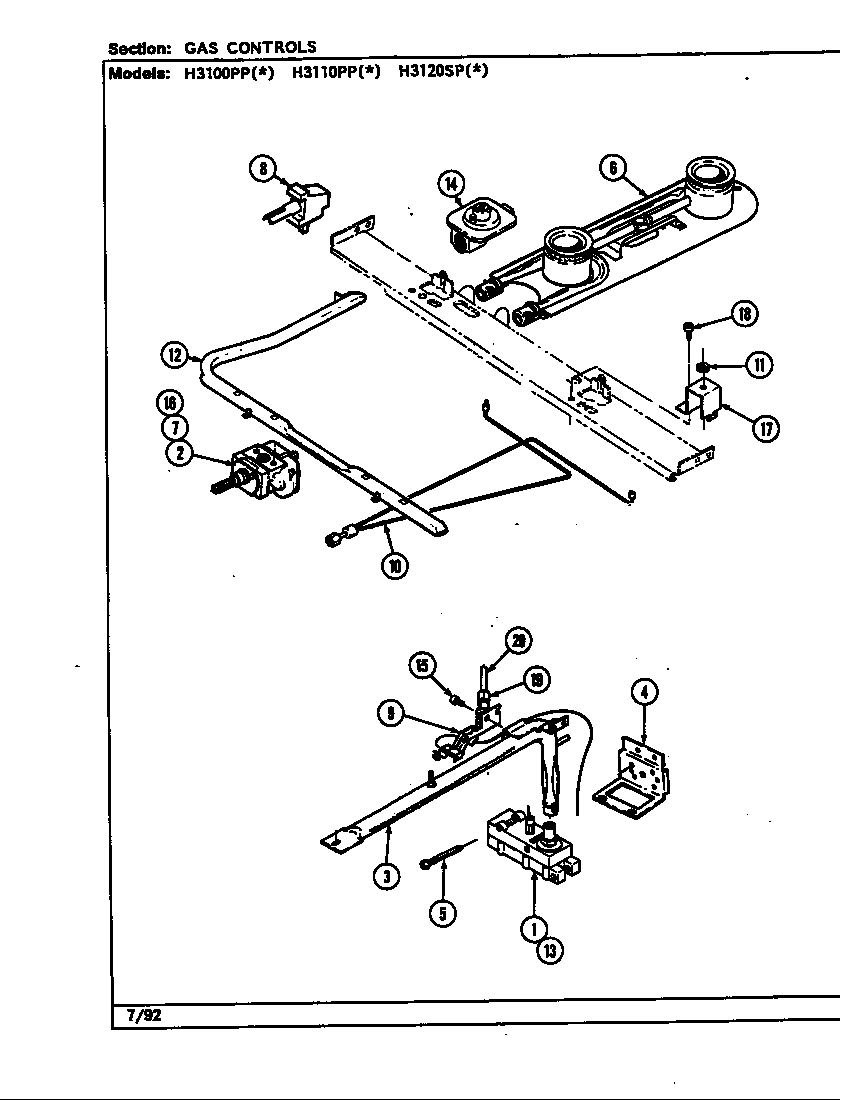

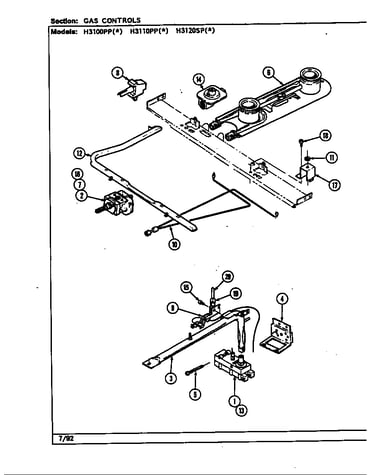

Gas controls diagram

Screw

Part #7101P112-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P112-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Oven Rack 7801P036-60
#13

Body diagram

Oven rack

Part #7801P036-60

Replaced by #WPW10282492

?
Manufacturer substitution
This part replaces 7801P036-60. Substitute parts can look different from the original.
$56.89 |
10% OFF Phone Price : $62.89
In Stock
Seal, Silico 7212P034-60
Seal, silico

Part #7212P034-60

Replaced by #WP7212P043-60

?
Manufacturer substitution
This part replaces 7212P034-60. Substitute parts can look different from the original.
$45.89 |
12% OFF Phone Price : $51.89
In Stock
Cooktop Washer Screw 7101P124-60
#14A

Body diagram

Cooktop washer screw

Part #7101P124-60

Replaced by #WP74003976

?
Manufacturer substitution
This part replaces 7101P124-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Hinge Drawer 3418F080-51
Hinge drawer

Part #3418F080-51

This item is not returnable
$3.29
In Stock
Bracket Screw 7101P040-60
#21

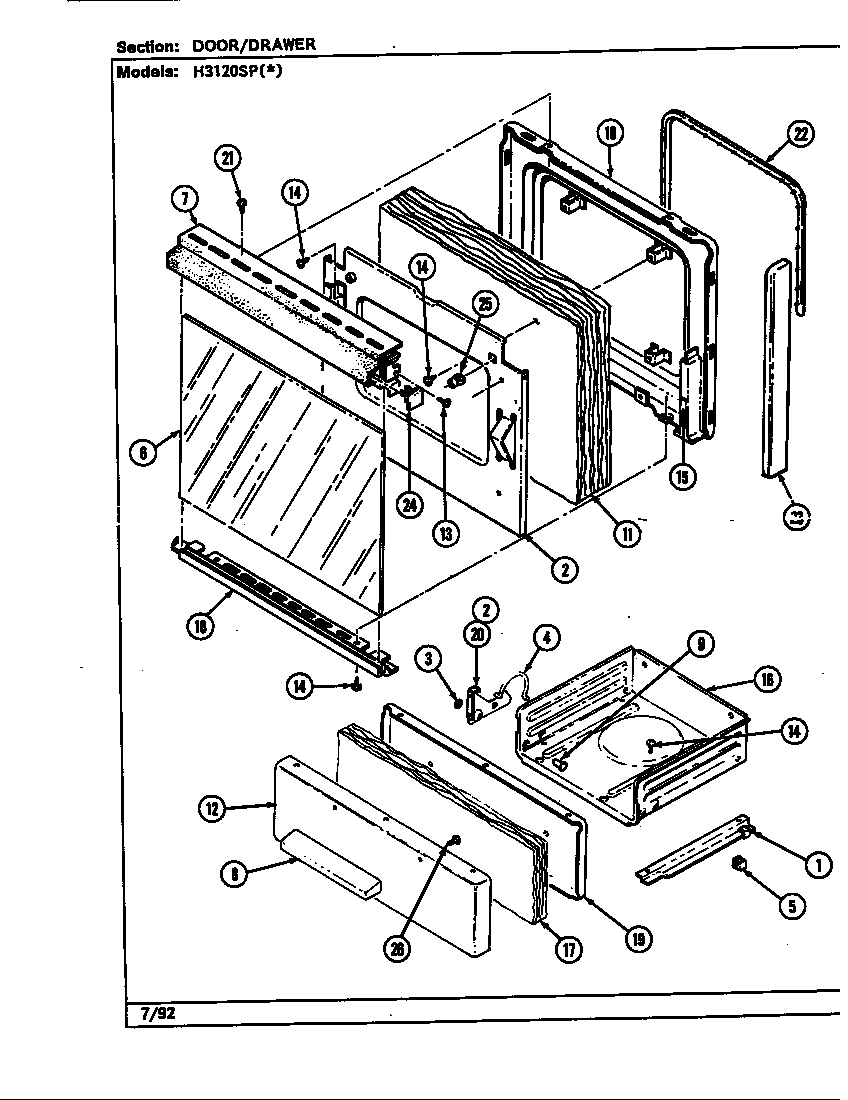

Door/drawer (h3120sp*) diagram

Bracket screw

Part #7101P040-60

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 7101P040-60. Substitute parts can look different from the original.
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
