Toro
Gas Walk-Behind Mower

Model # 20330 (311000001-311999999) Official Toro lawn mower - 2011

Here are the diagrams and repair parts for Official Toro 20330-311000001-311999999 lawn mower - 2011, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

  View engine

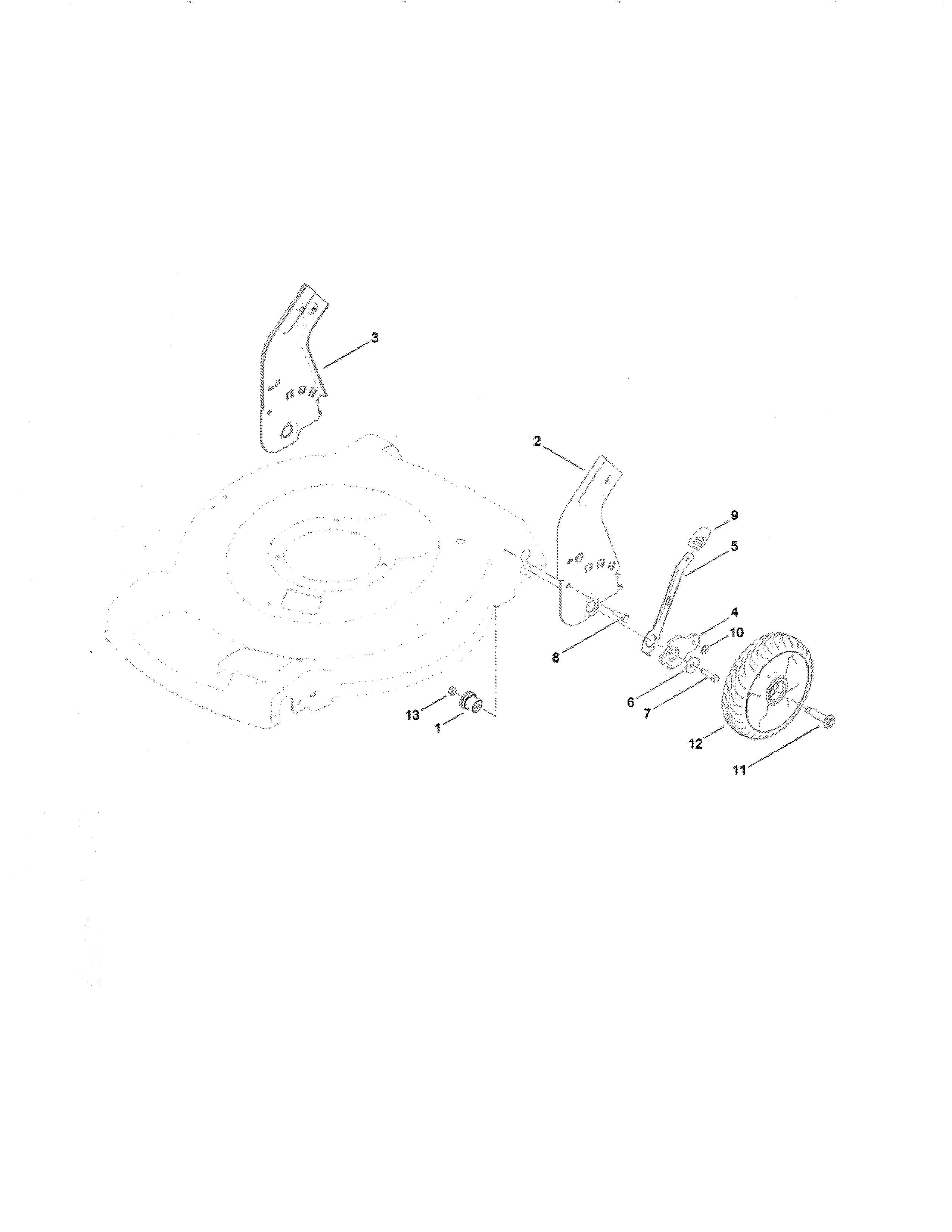

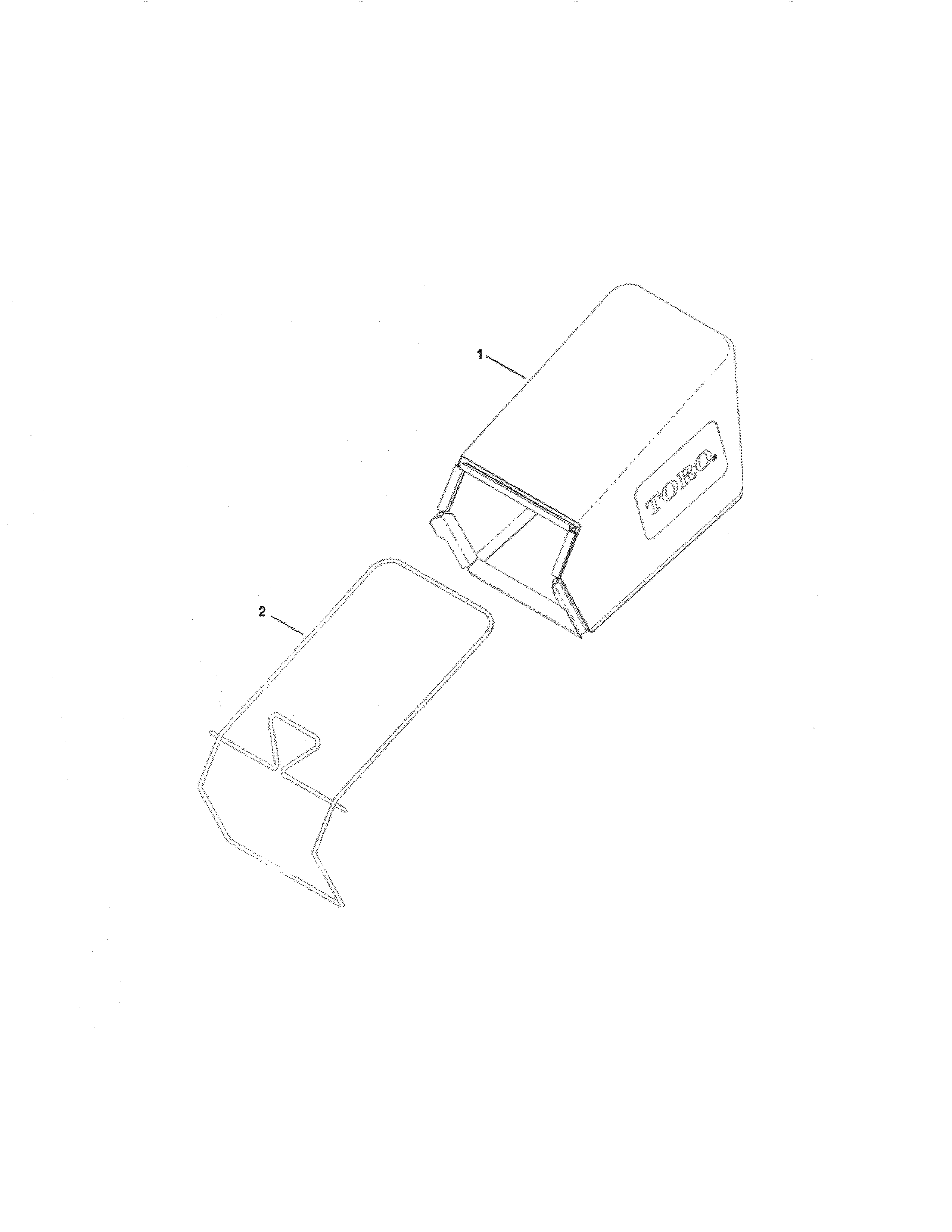

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 230 parts  |
Lawn Mower Recoil Starter Rope Guide (replaces 46-8080, 93-7383, 95-4457, 98-2684) 86-9671
#6

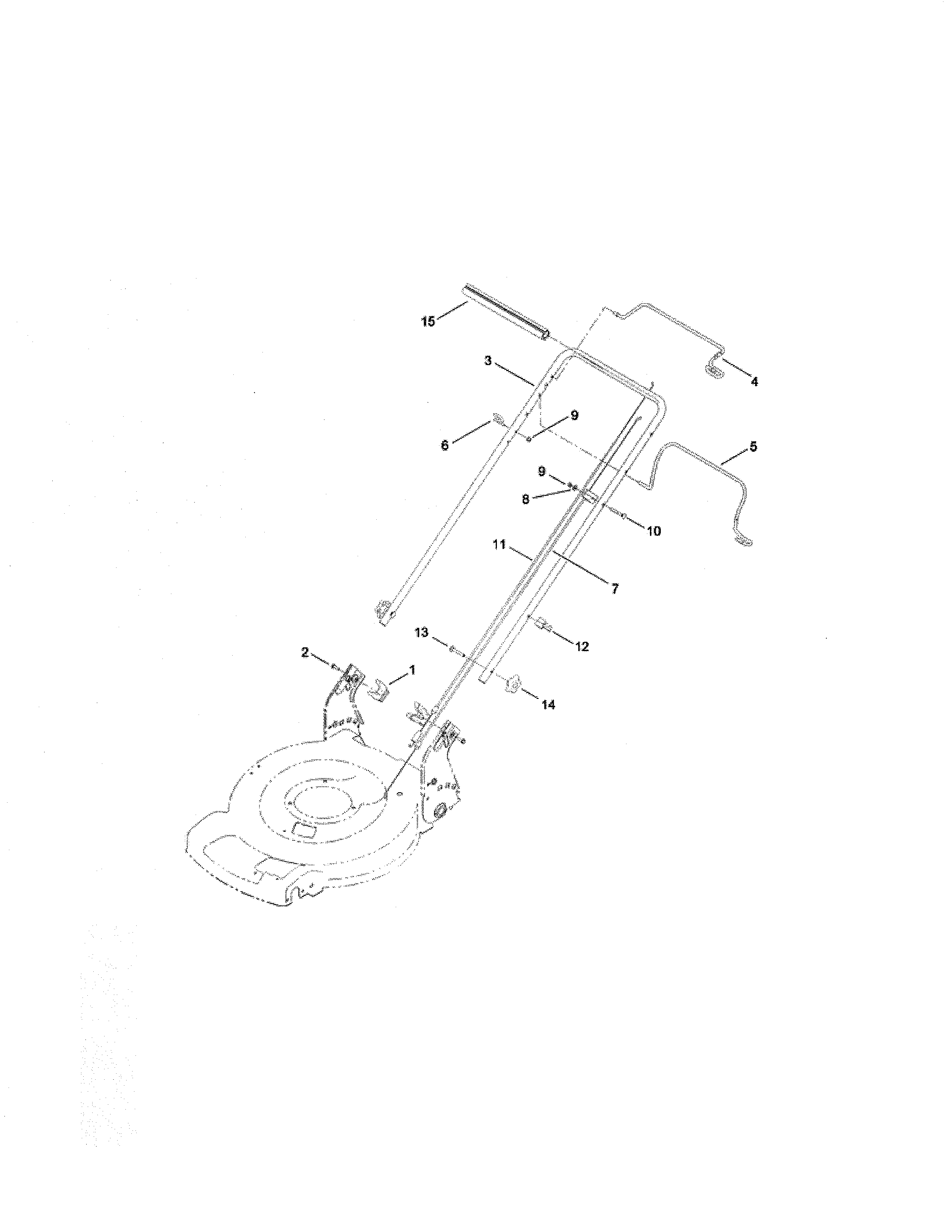

Handle diagram

Lawn mower recoil starter rope guide (replaces 46-8080, 93-7383, 95-4457, 98-2684)

Part #86-9671

This item is not returnable
$5.74 |
15% OFF Phone Price : $6.74
In Stock
Lawn-boy Lawn Mower Screw 95-1726
#8

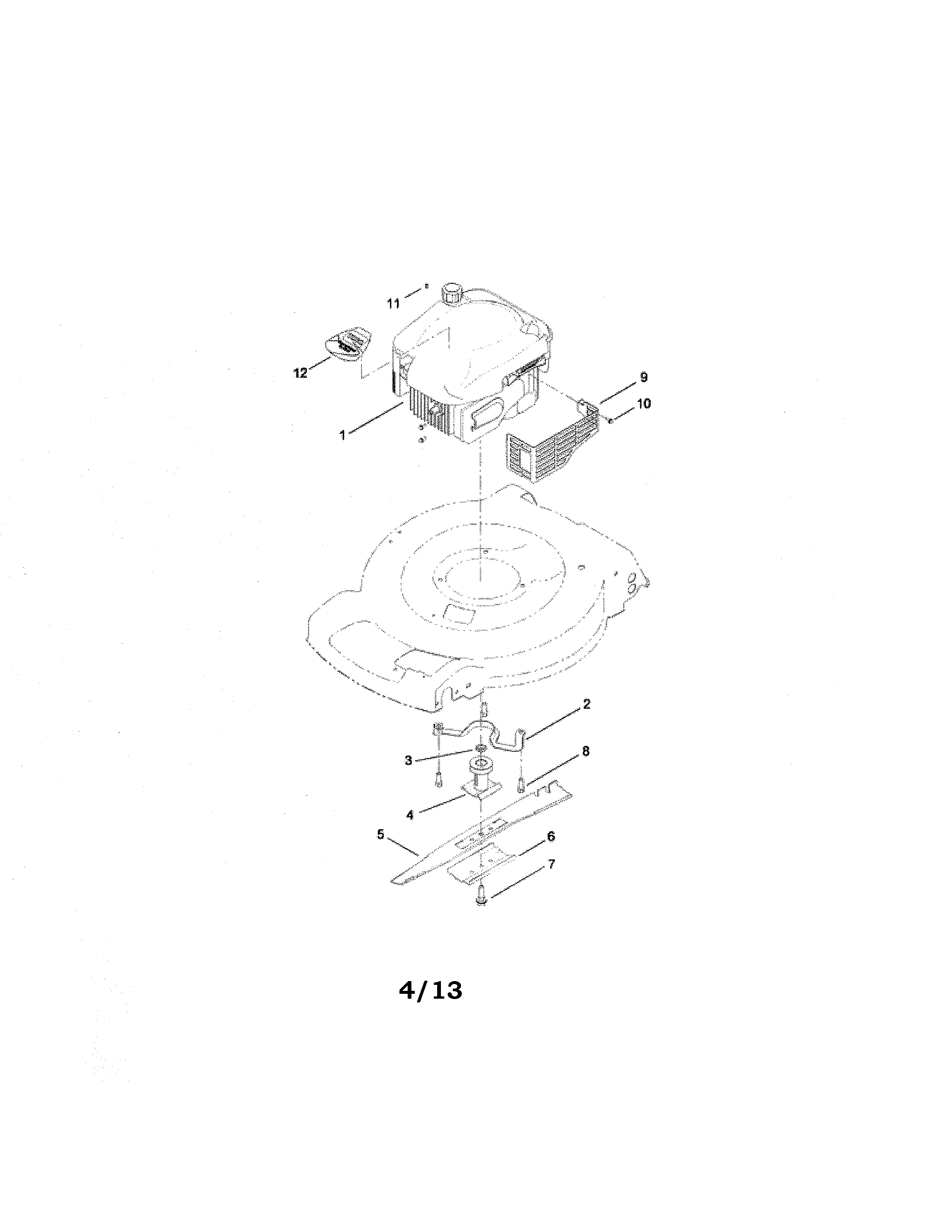

Engine & blade diagram

Lawn-boy lawn mower screw

Part #95-1726

This item is not returnable
$3.74
In Stock
Foam Seal 117-5924
#28

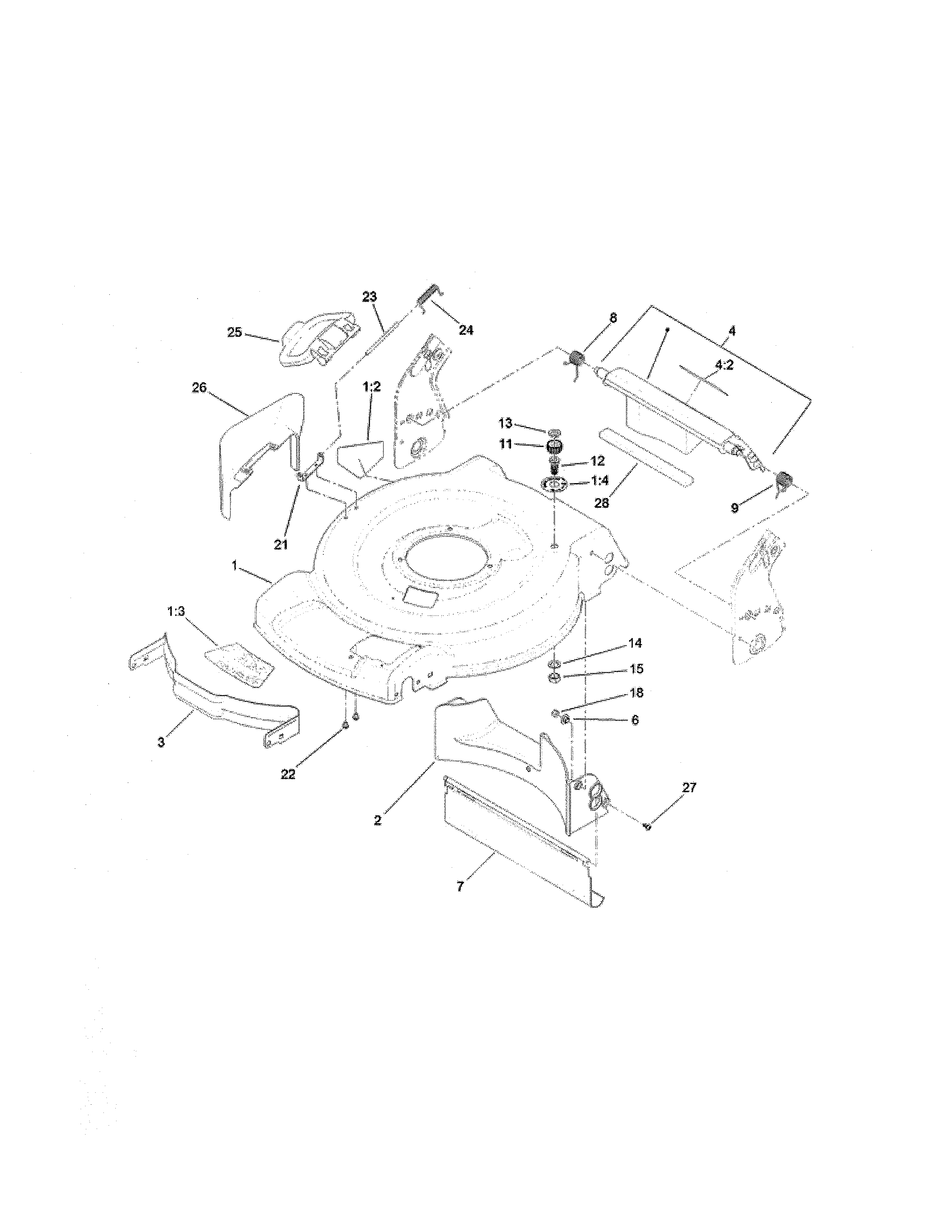

Housing & rear door diagram

Foam seal

Part #117-5924

This item is not returnable
$4.74
In Stock
Nut 3218-6
#15

Housing & rear door diagram

Nut

Part #3218-6

This item is not returnable
$2.16
In Stock
Trac Bail 119-2378-03
#4

Handle diagram

Trac bail

Part #119-2378-03

$41.29
In Stock
Knob Handle, Locking (2) 117-5976
#14

Handle diagram

Knob handle, locking (2)

Part #117-5976

This item is not returnable
$3.40
In Stock
Plate Hoc, Front (2) 115-1956-03
#3

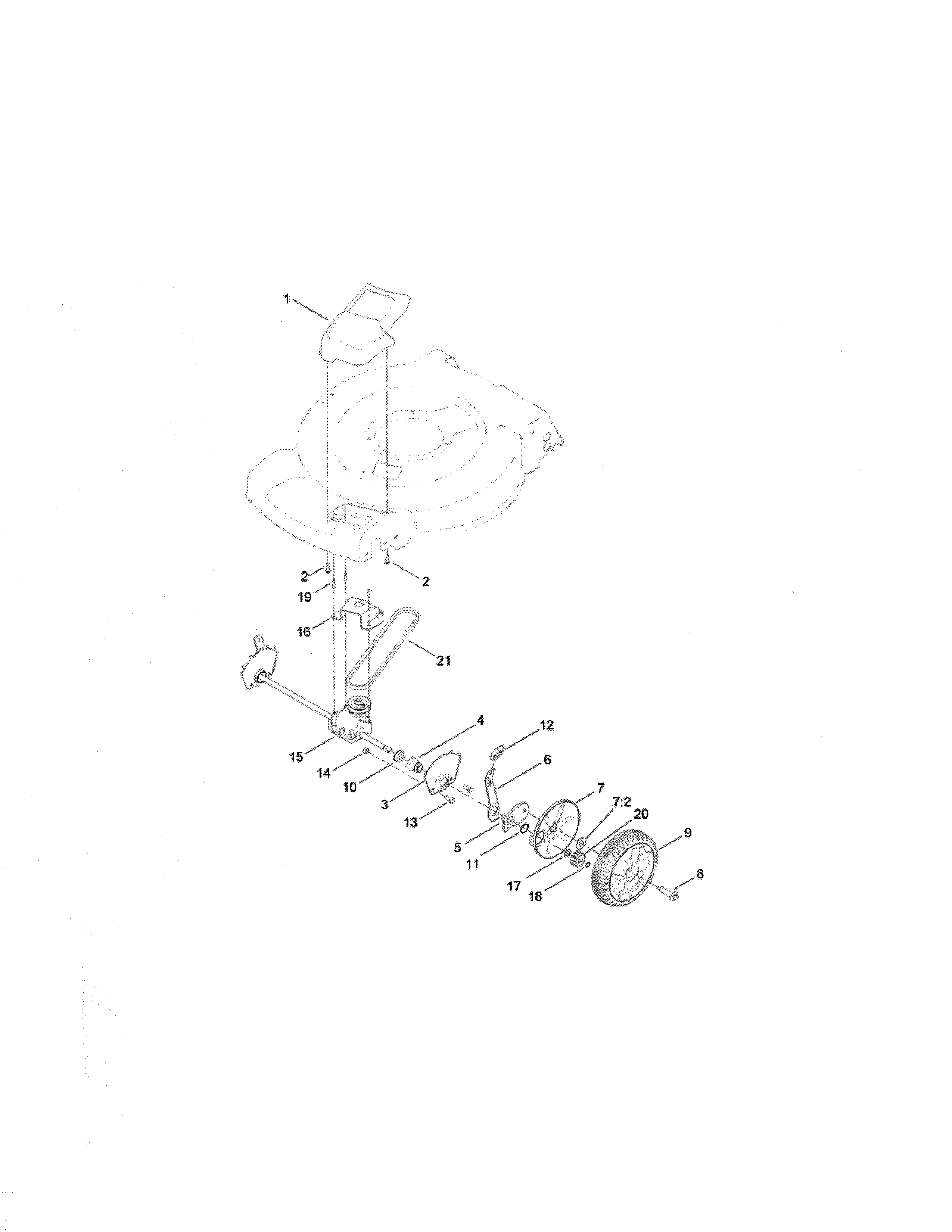

Transmission/front wheel drive diagram

Plate hoc, front (2)

Part #115-1956-03

$19.34
In Stock
Handle 119-3810-05
#3

Handle diagram

Handle

Part #119-3810-05

$106.44
In Stock
Decal Warning 114-7982
#4:2

Housing & rear door diagram

Decal warning

Part #114-7982

$9.34
In Stock
Transmission Bracket 114-7978-03
#16

Transmission/front wheel drive diagram

Transmission bracket

Part #114-7978-03

$21.03
In Stock
