Thermador
Gas Range

Model # PRL484ECG02 Official Thermador gas range

Here are the diagrams and repair parts for Official Thermador PRL484ECG02 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

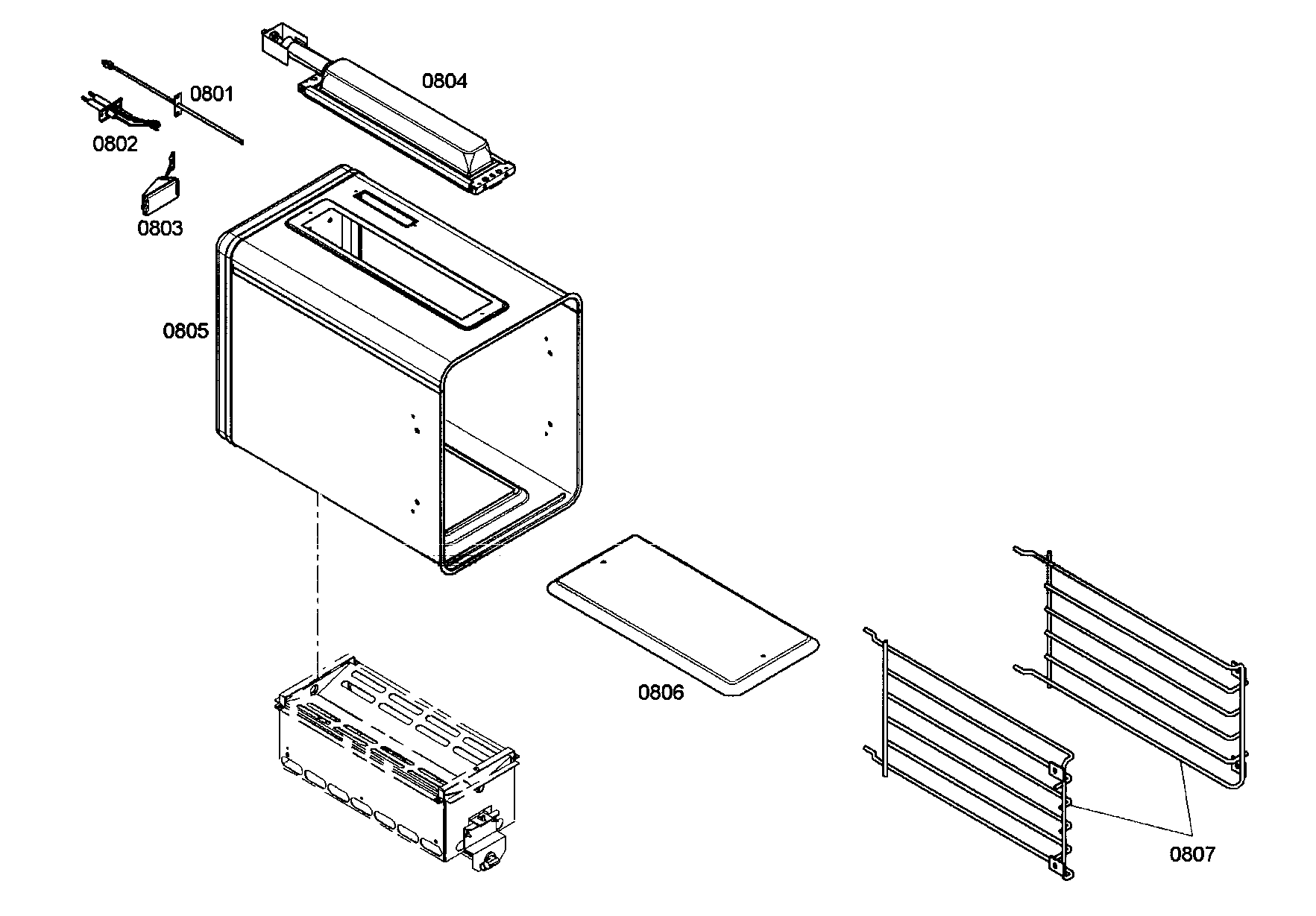

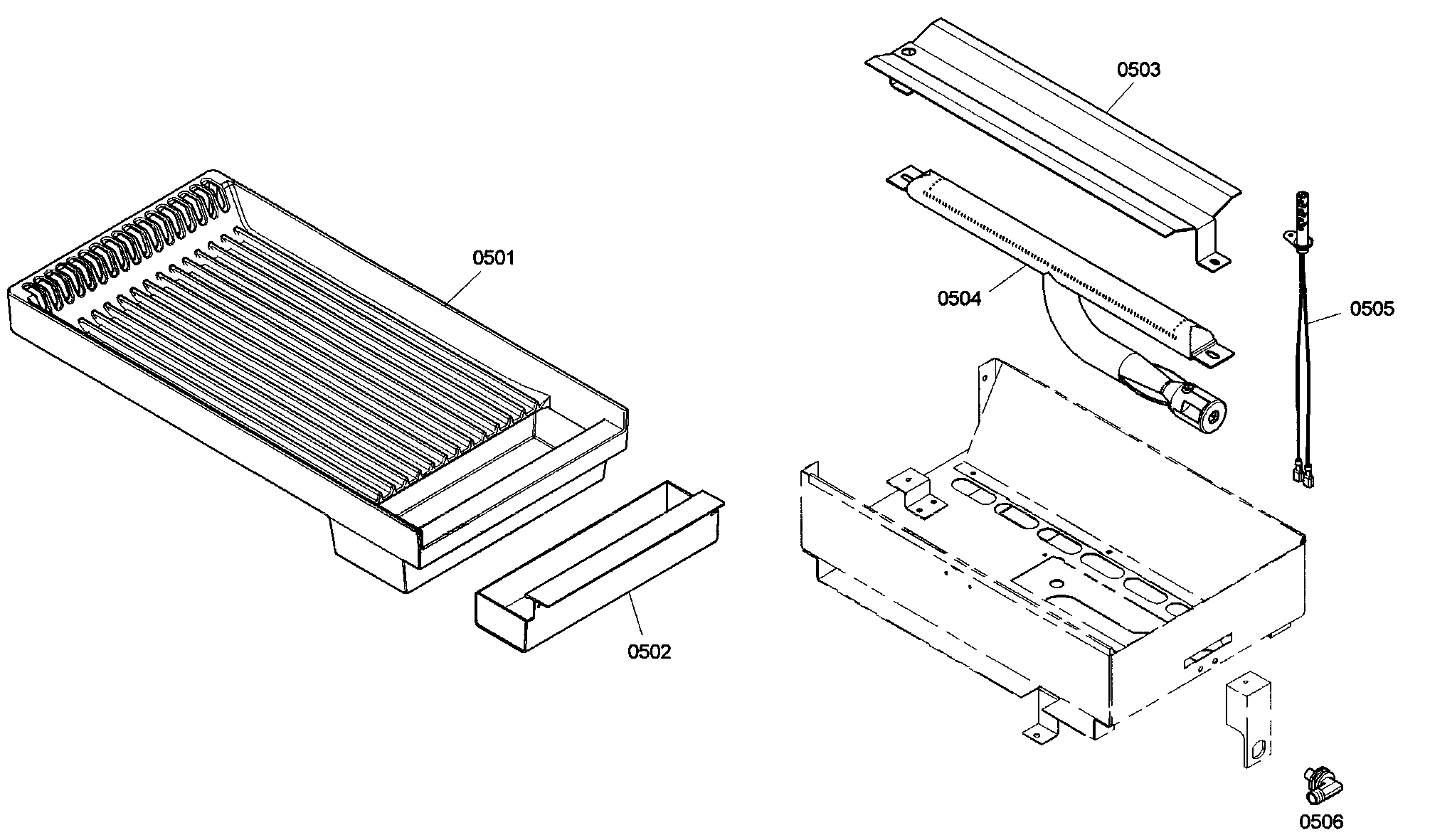

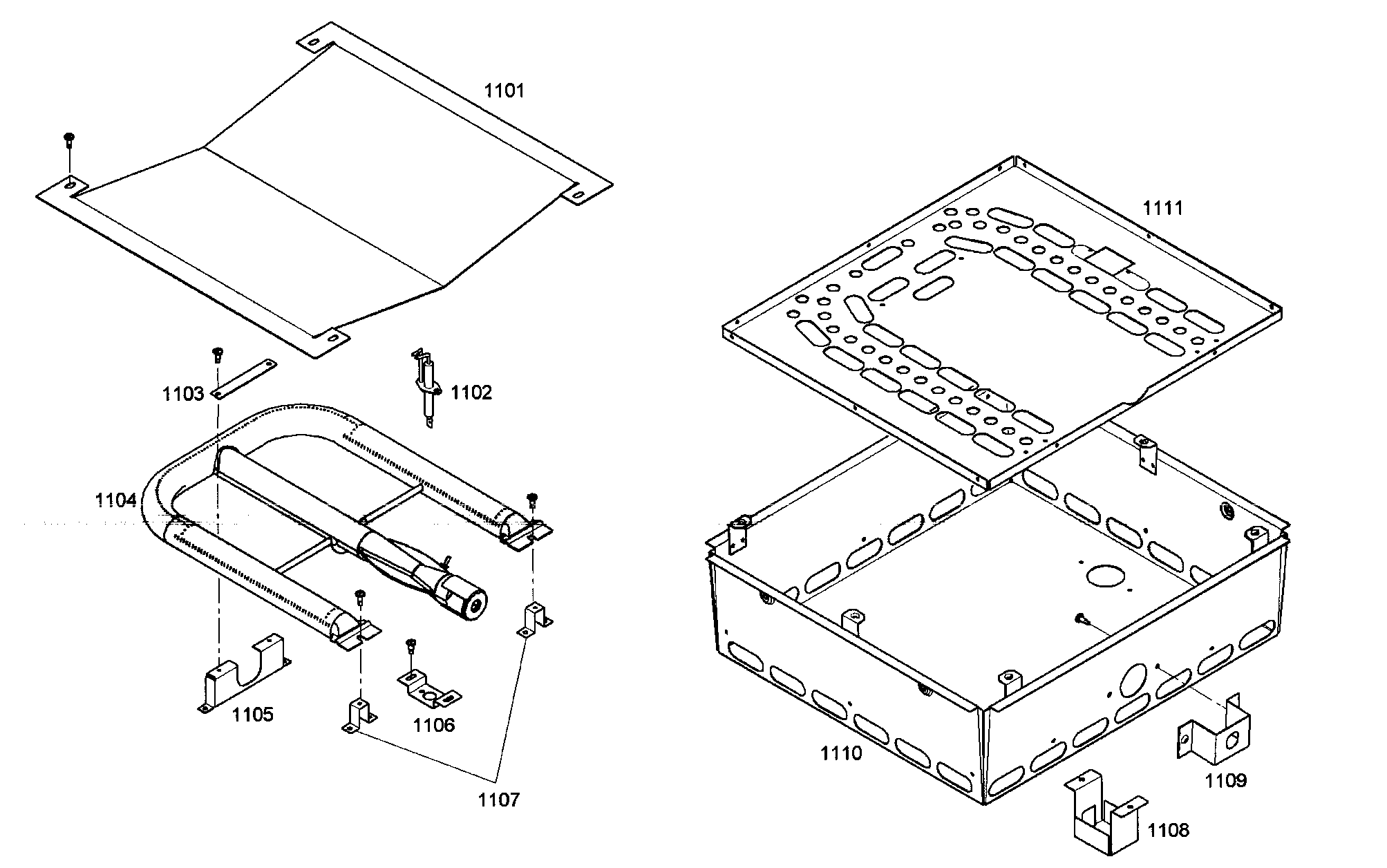

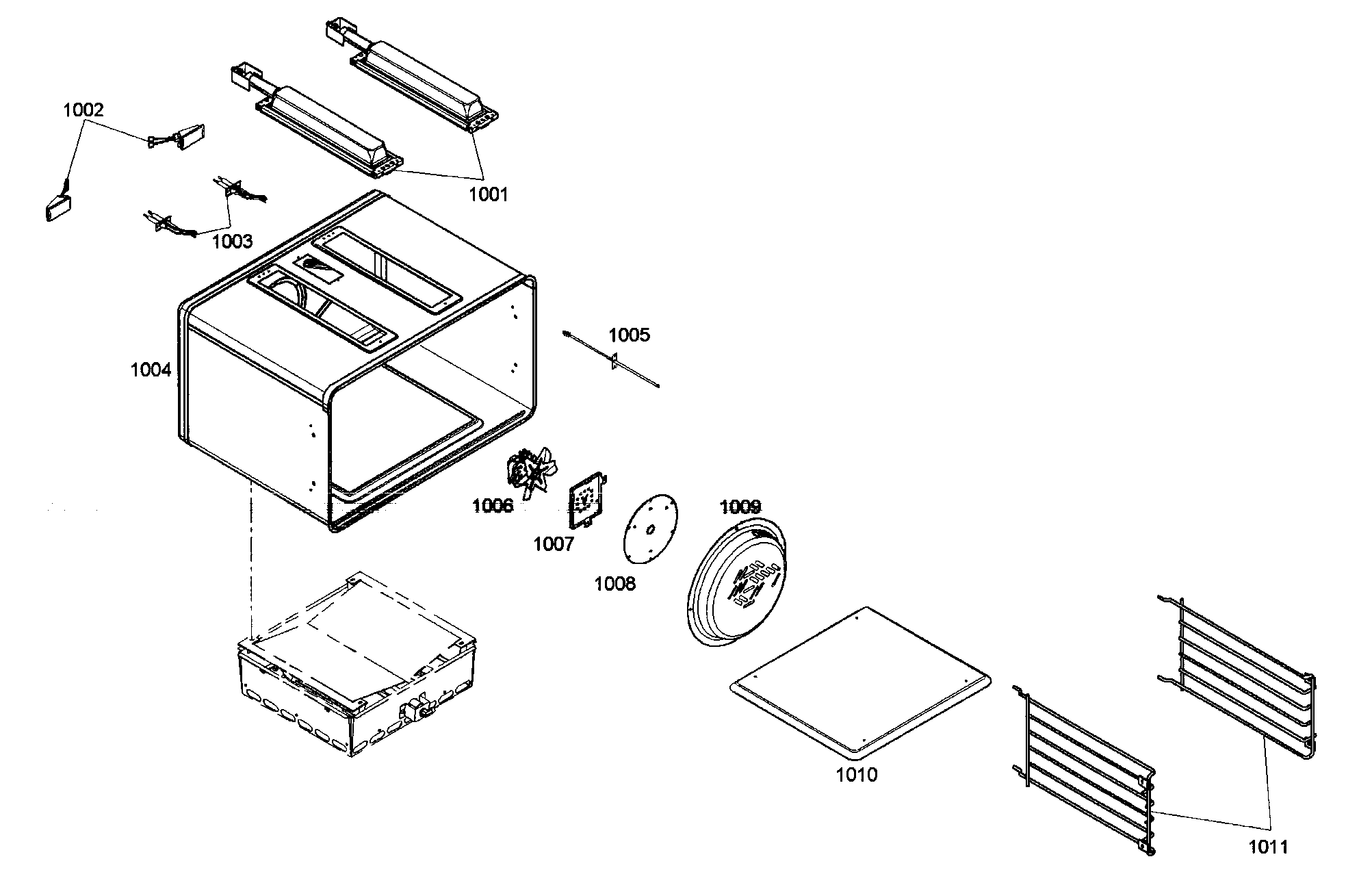

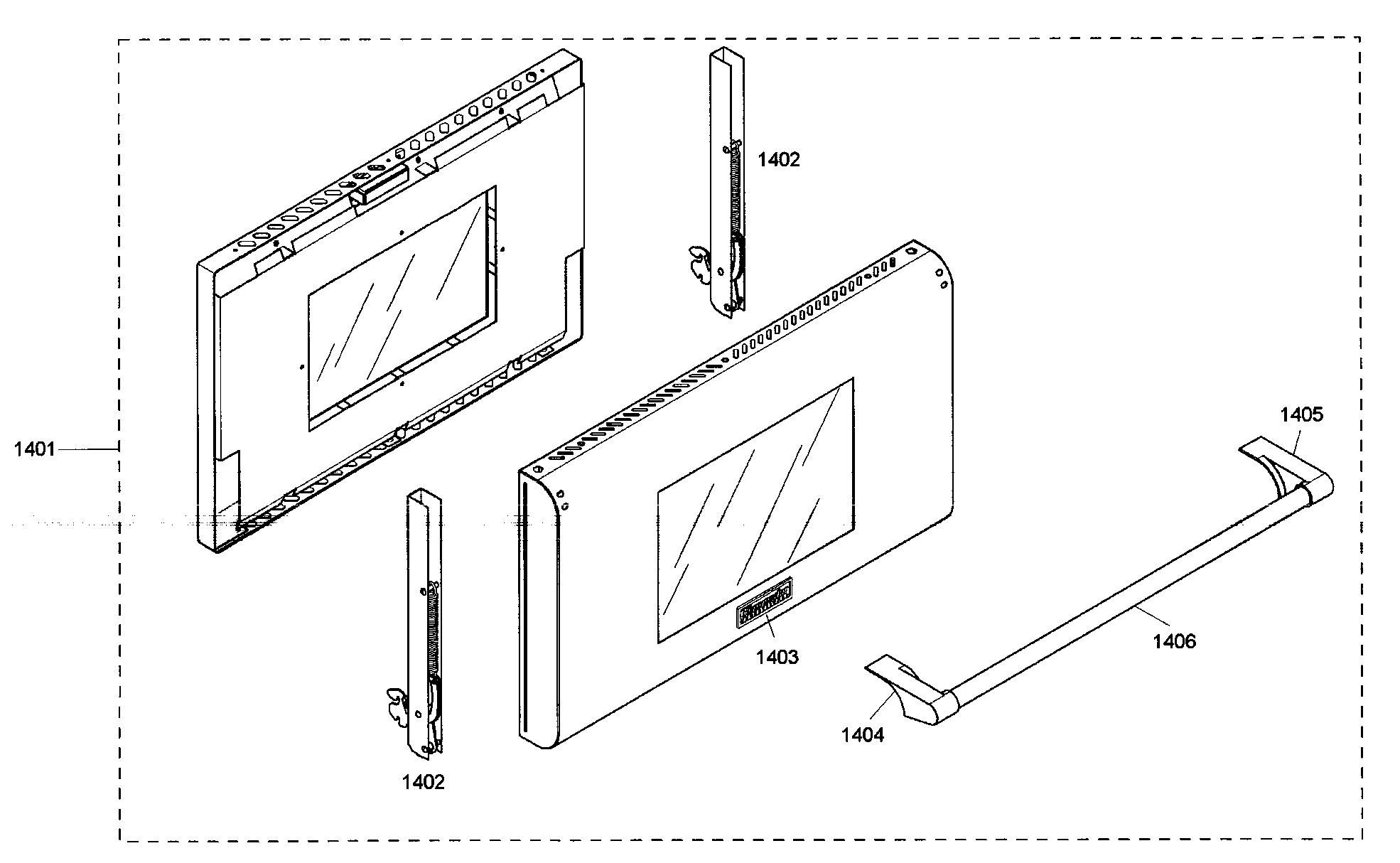

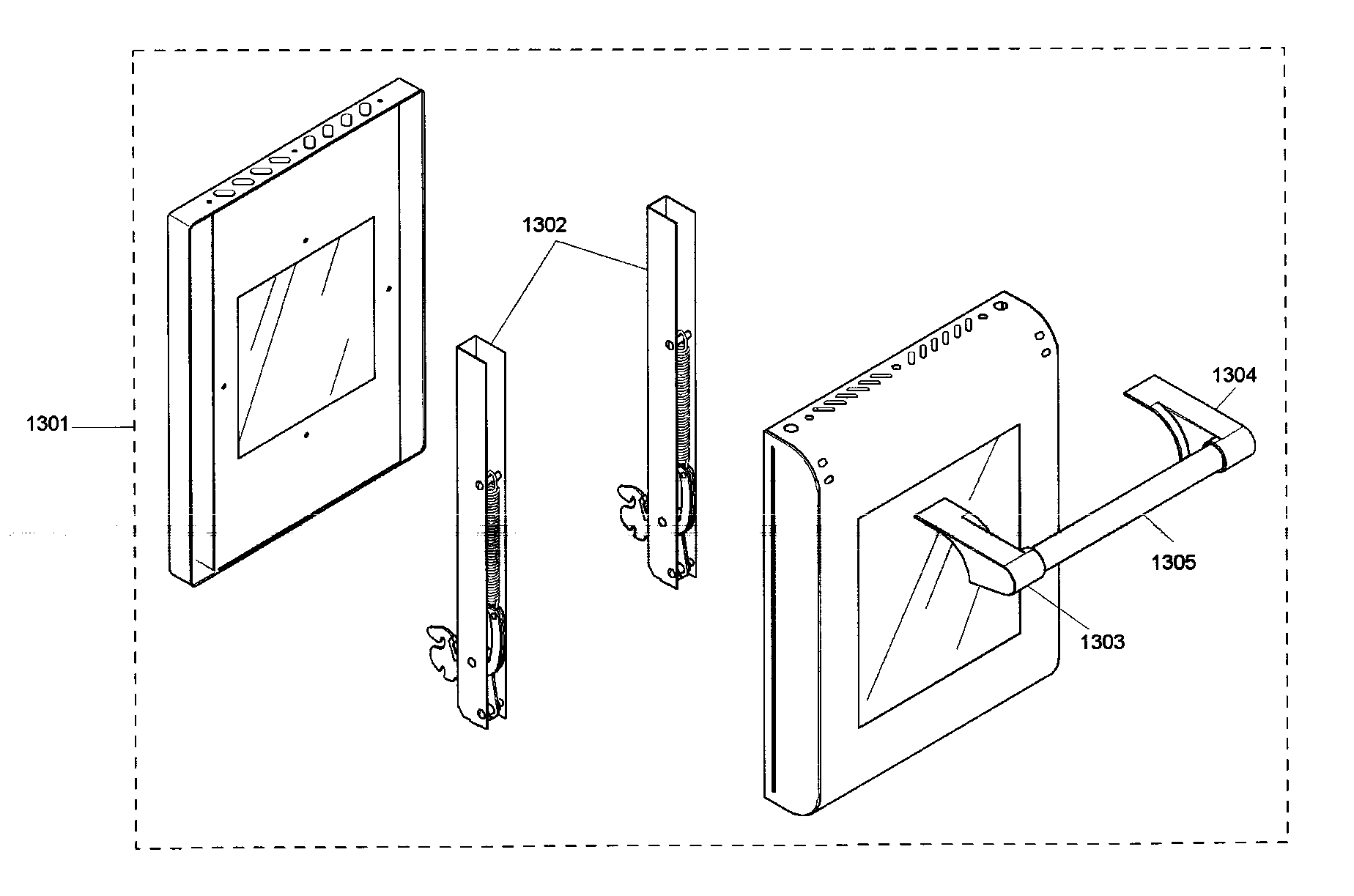

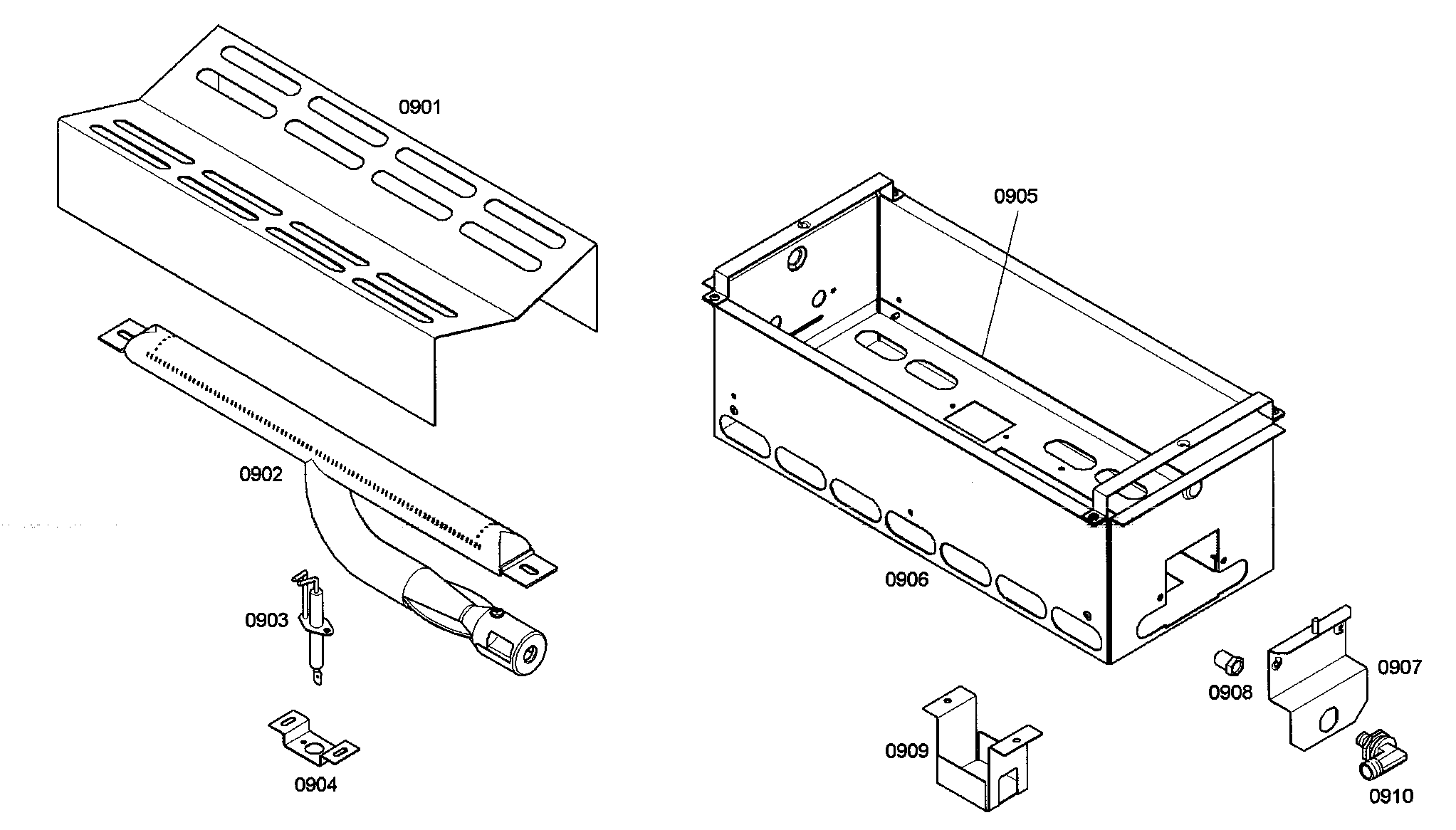

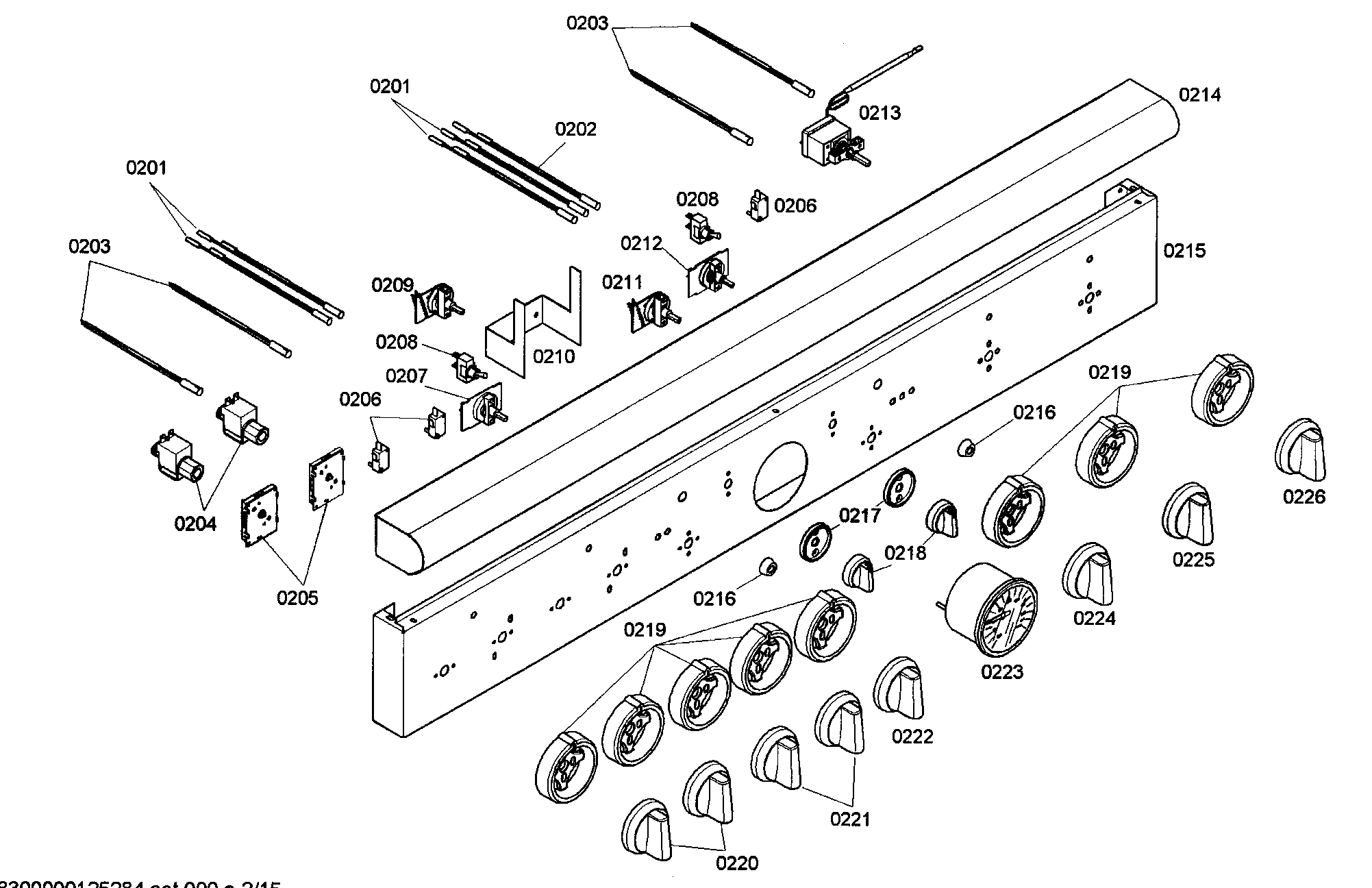

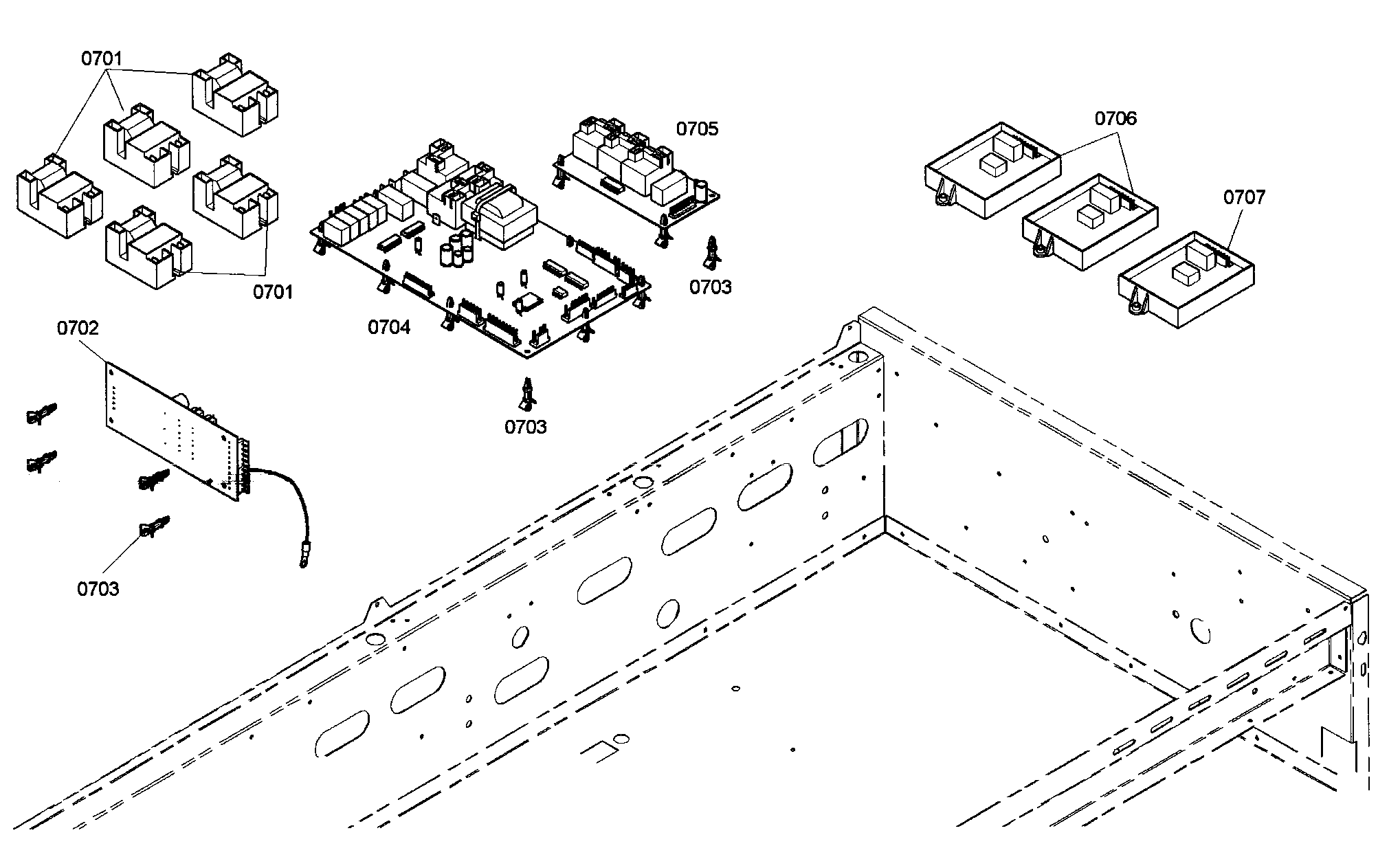

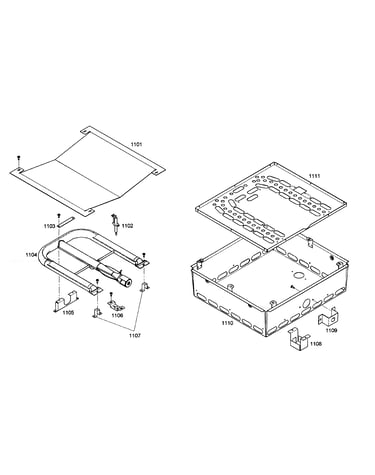

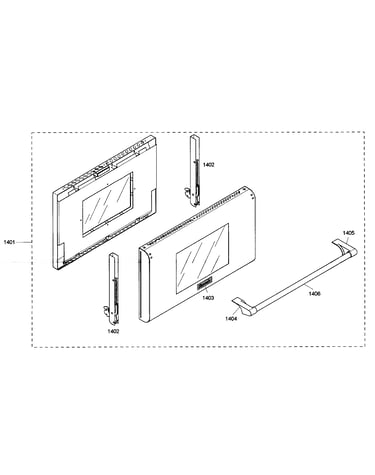

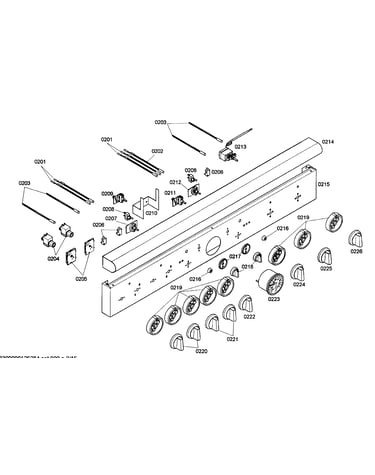

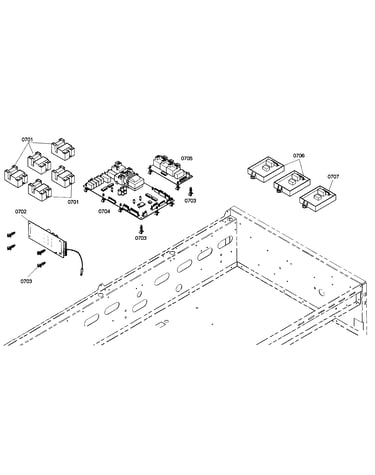

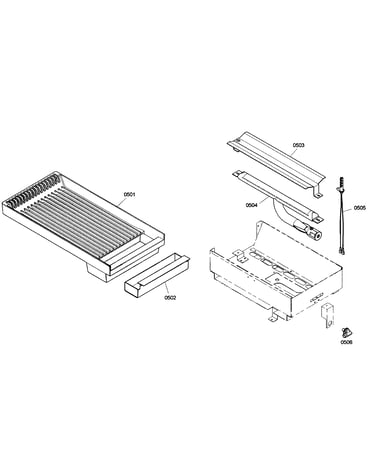

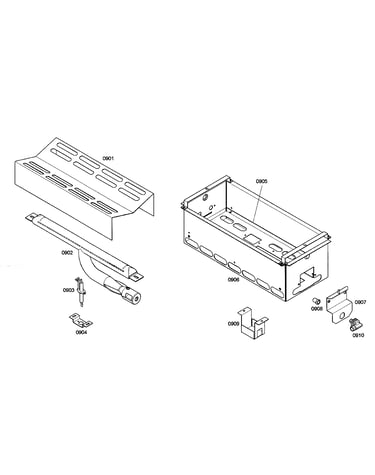

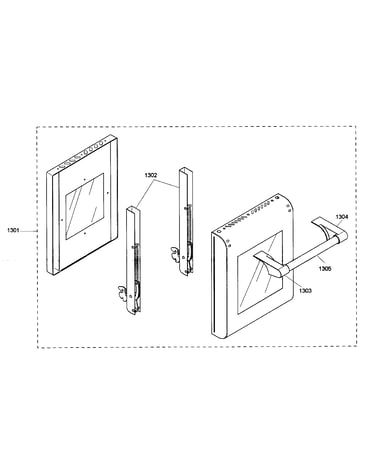

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 163 parts  |
Nut 188978
#308

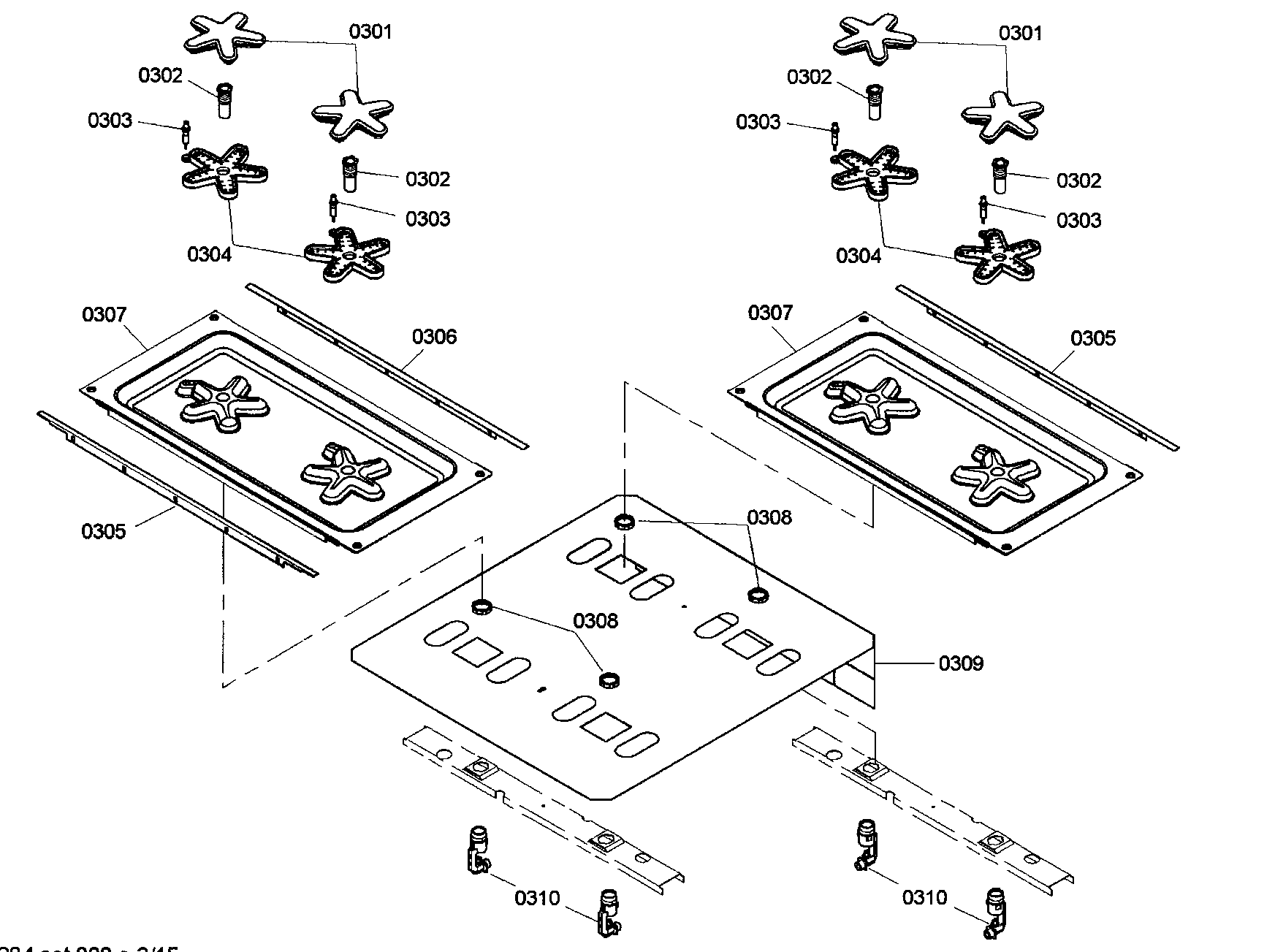

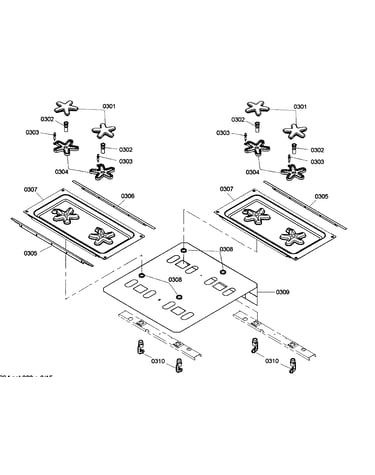

Burner assy diagram

Nut

Part #188978

Replaced by #00188978

?
Manufacturer substitution
This part replaces 188978. Substitute parts can look different from the original.
$20.59 |
23% OFF Phone Price : $26.59
In Stock
Tube 498909
#424

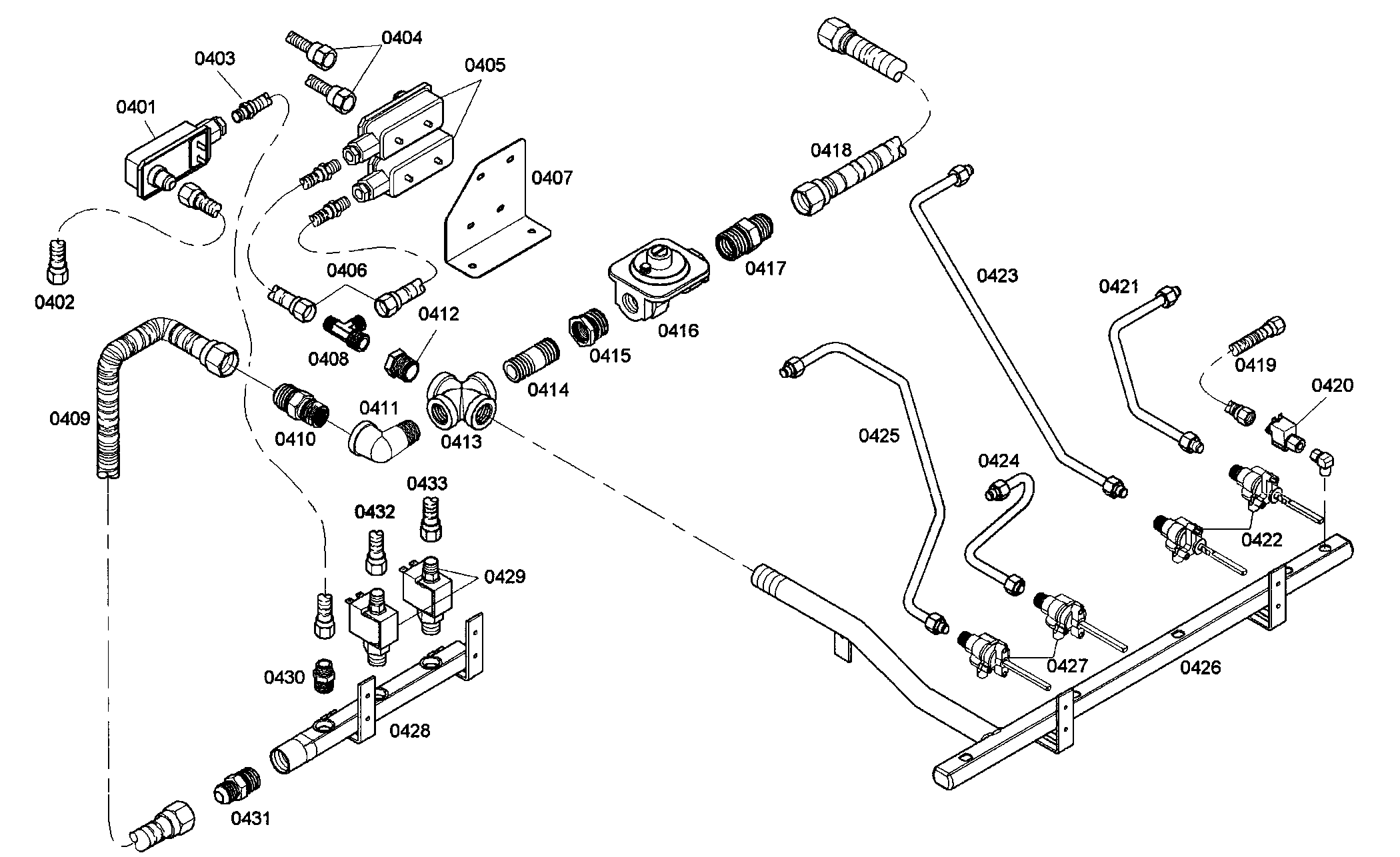

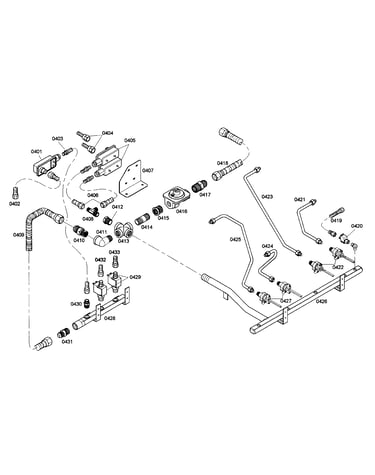

Valves assy diagram

Tube

Part #498909

Replaced by #00498909

?
Manufacturer substitution
This part replaces 498909. Substitute parts can look different from the original.
$40.62
In Stock
Door Switch 489370
#1207

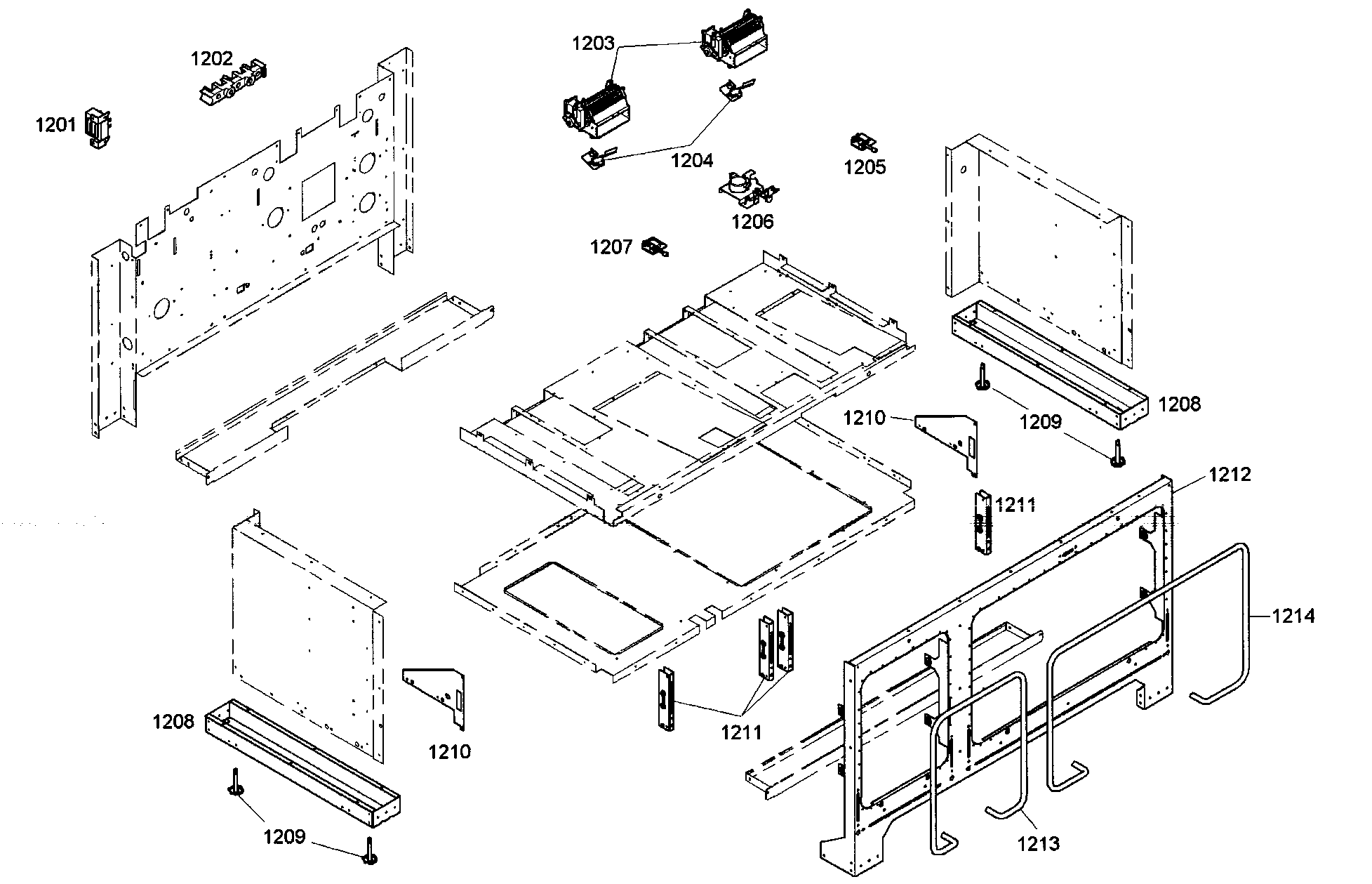

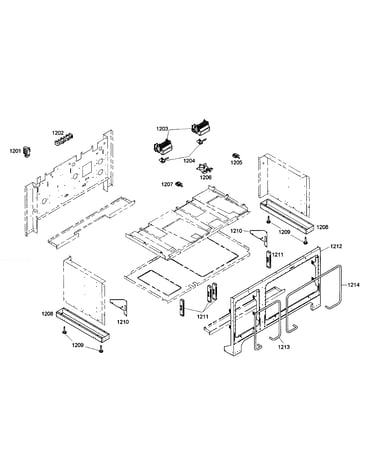

Cabinet parts diagram

Door switch

Part #489370

Replaced by #00489370

?
Manufacturer substitution
This part replaces 489370. Substitute parts can look different from the original.
$49.89
In Stock
Igniter Plug 603777
#303

Burner assy diagram

Igniter plug

Part #603777

Replaced by #00603777

?
Manufacturer substitution
This part replaces 603777. Substitute parts can look different from the original.
$27.36
In Stock
Cooktop Griddle 665616
#601

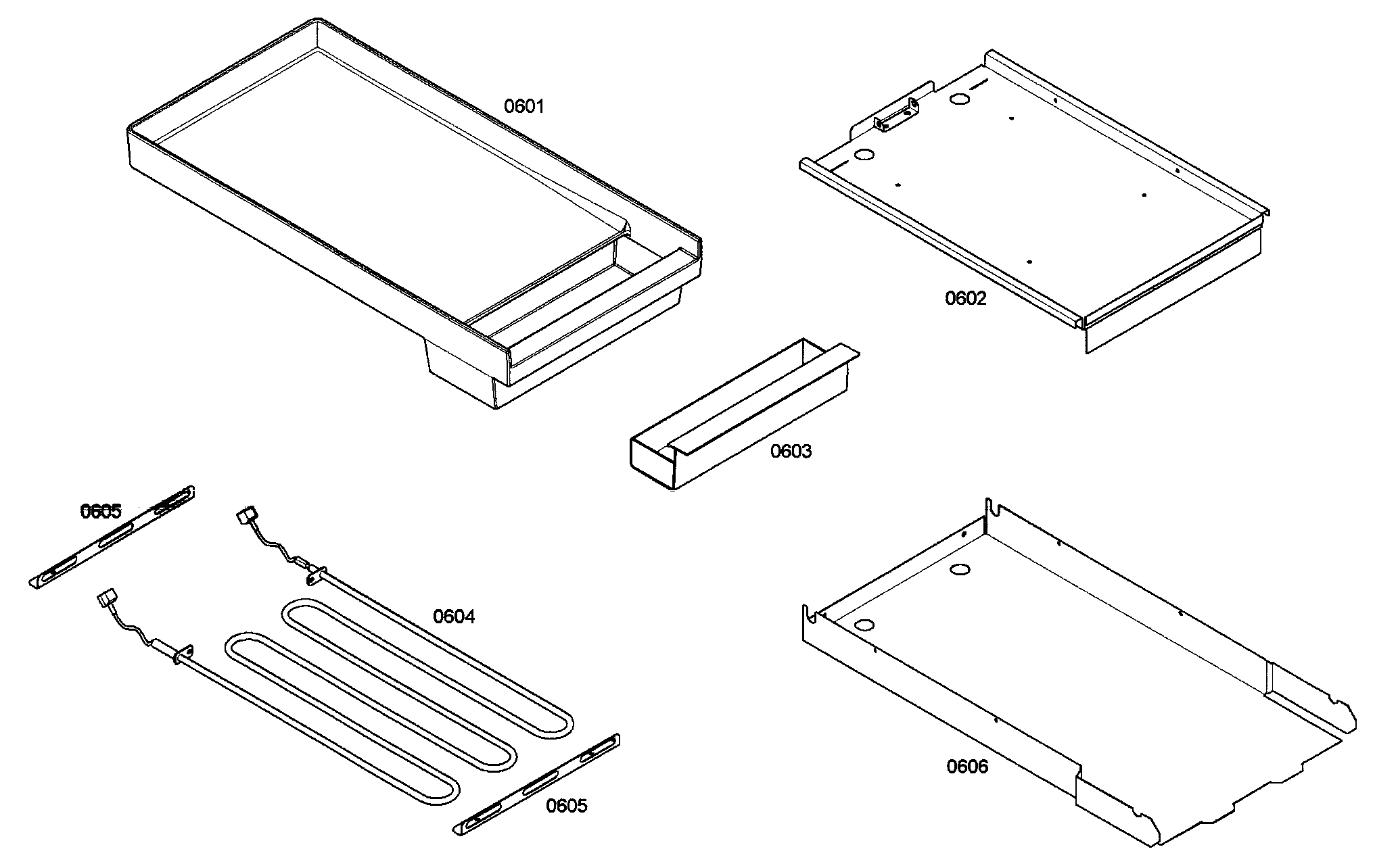

Griddle assy diagram

Cooktop griddle

Part #665616

Replaced by #00665616

?
Manufacturer substitution
This part replaces 665616. Substitute parts can look different from the original.
$626.01 |
$12.00 OFF Phone Price : $638.01
In Stock
Range Grille Grid 143673
#1505

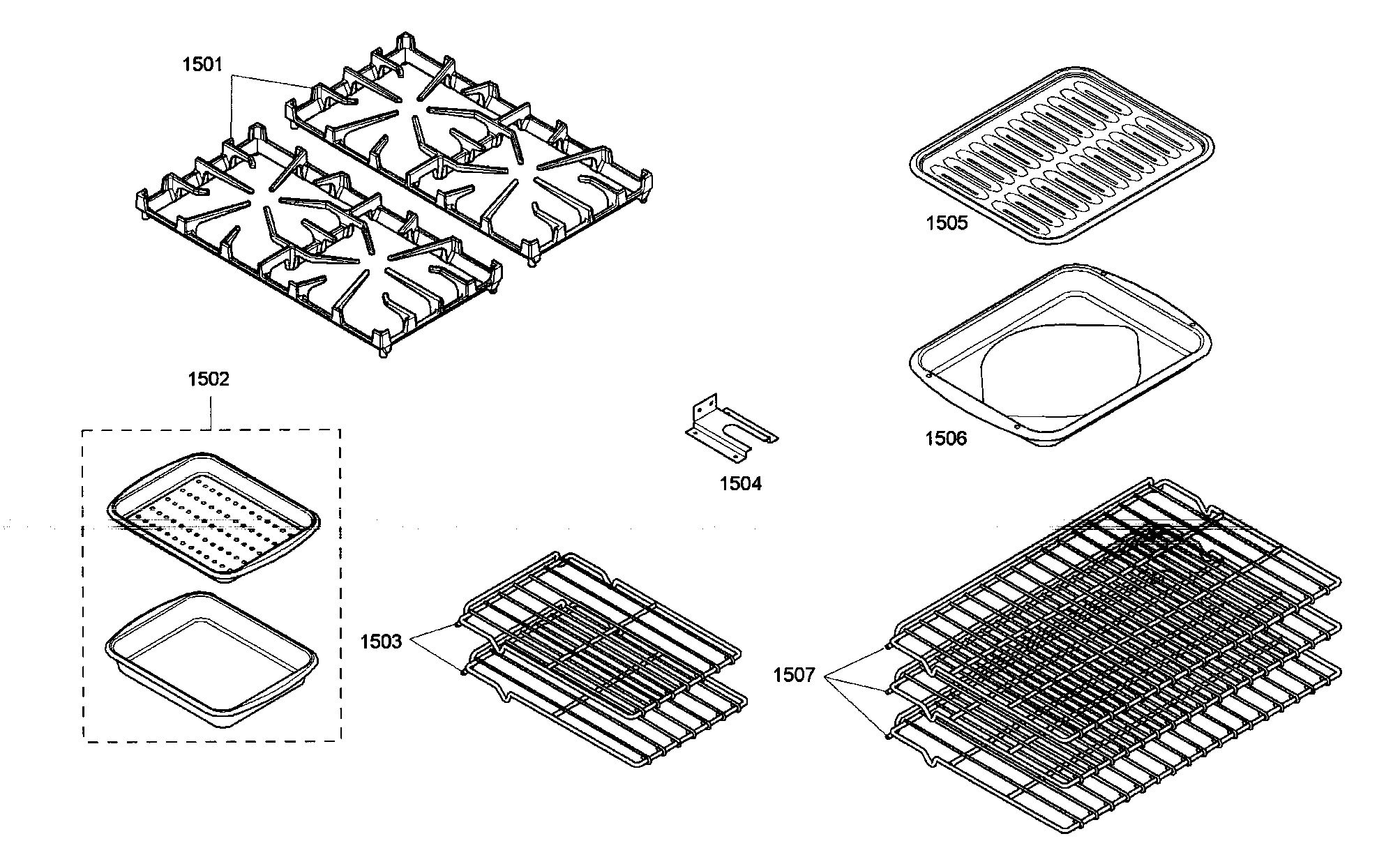

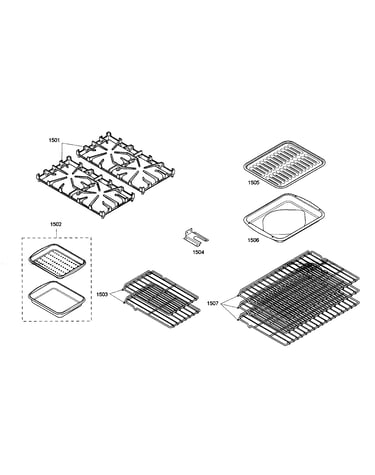

Pans/racks diagram

Range grille grid

Part #143673

Replaced by #00449756

?
Manufacturer substitution
This part replaces 143673. Substitute parts can look different from the original.
$57.89
In Stock
Panel Trim 369946
#305

Burner assy diagram

Panel trim

Part #369946

Replaced by #00369946

?
Manufacturer substitution
This part replaces 369946. Substitute parts can look different from the original.
$57.89
In Stock
Fan 641059
#1203

Cabinet parts diagram

Fan

Part #641059

Replaced by #00641059

?
Manufacturer substitution
This part replaces 641059. Substitute parts can look different from the original.
$168.89 |
7% OFF Phone Price : $180.89
In Stock
Harness 438796
#NI

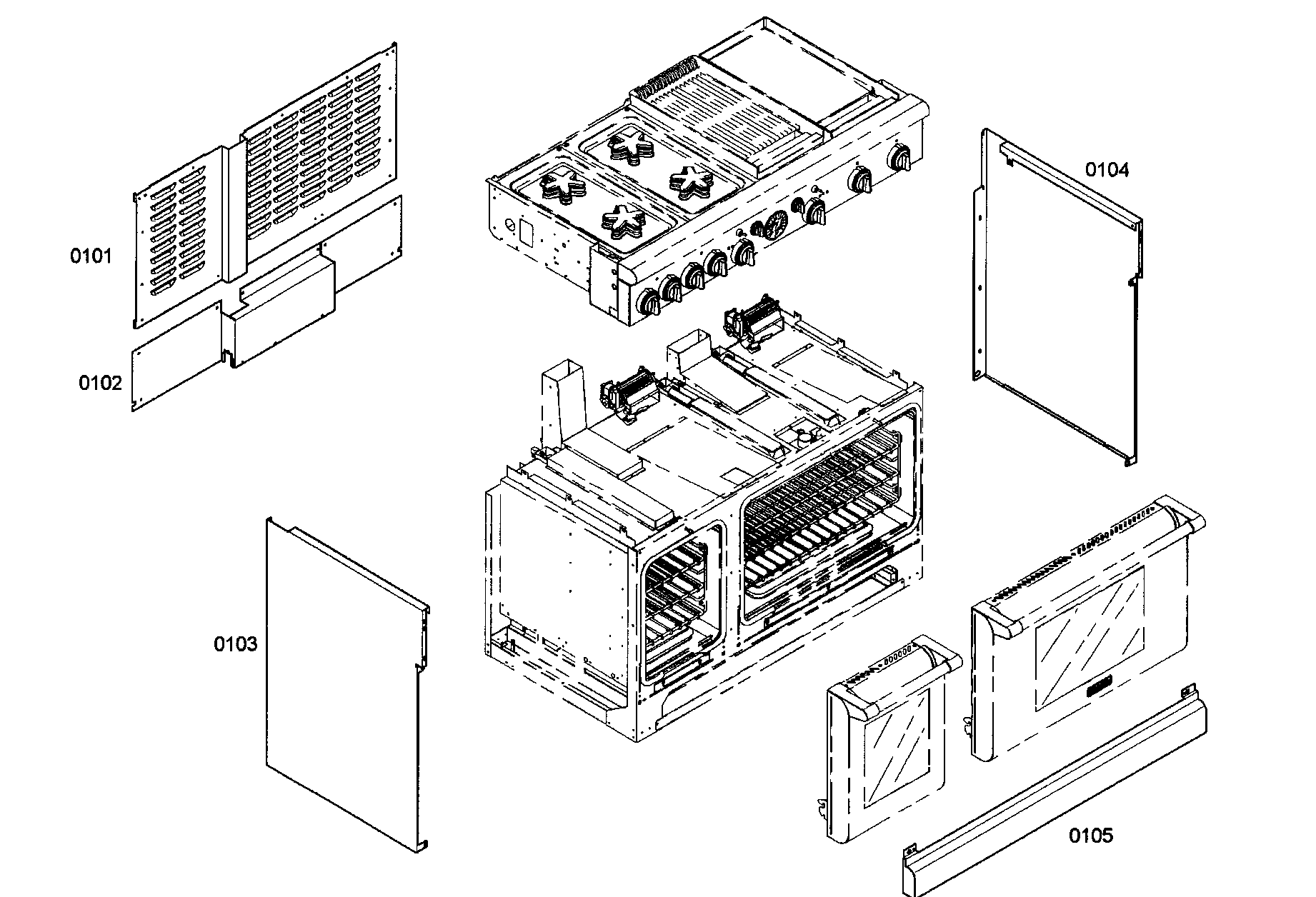

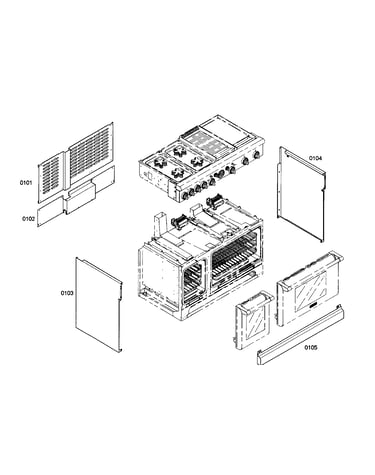

Outside cabinet diagram

Harness

Part #438796

Replaced by #00438796

?
Manufacturer substitution
This part replaces 438796. Substitute parts can look different from the original.
$26.29
In Stock
Cover 474782
#102

Outside cabinet diagram

Cover

Part #474782

Replaced by #00474782

?
Manufacturer substitution
This part replaces 474782. Substitute parts can look different from the original.
$211.20
In Stock
