Model # JB655DK6BB Official GE electric range

Here are the diagrams and repair parts for Official GE JB655DK6BB electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

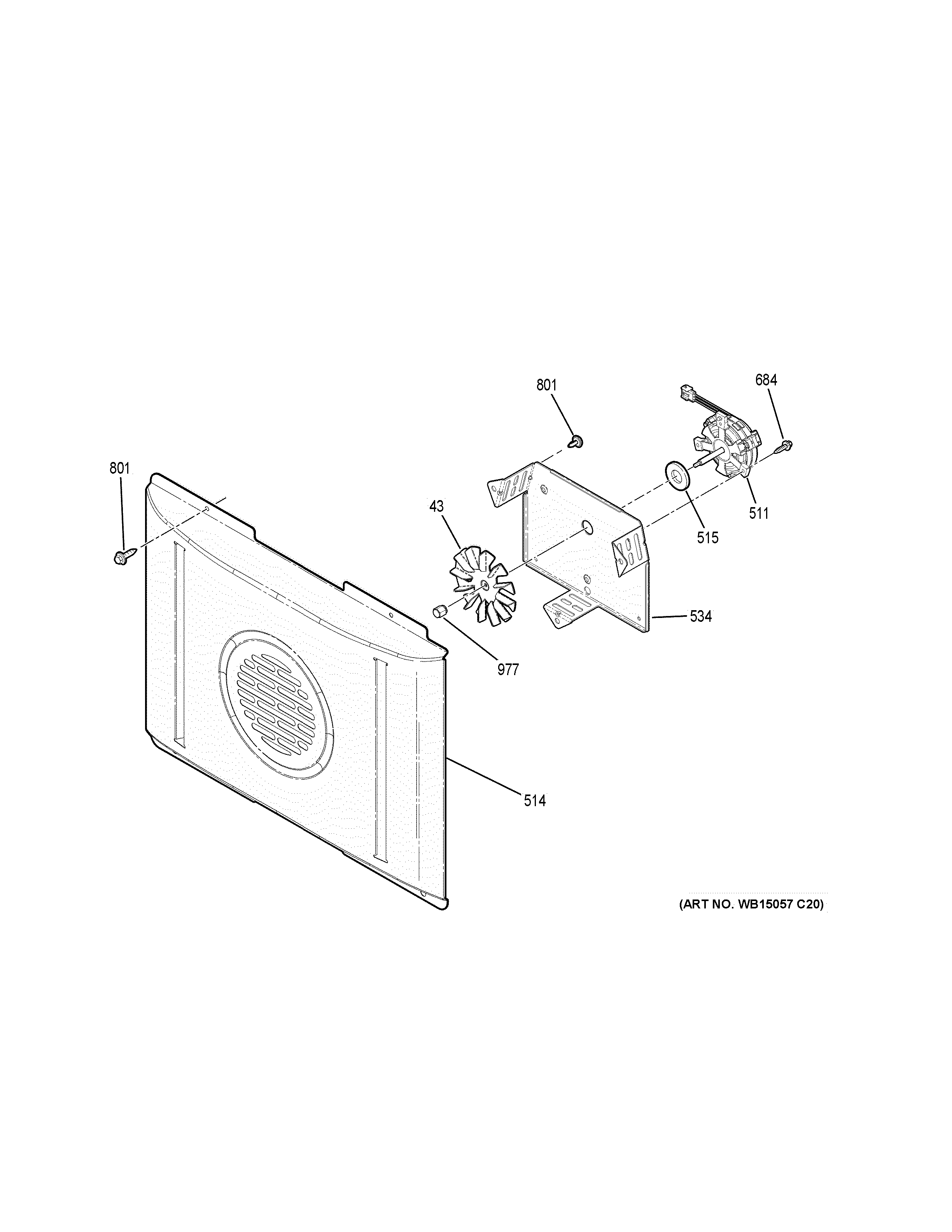

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |
Range Surface Element Control Switch WB24X25013
#24

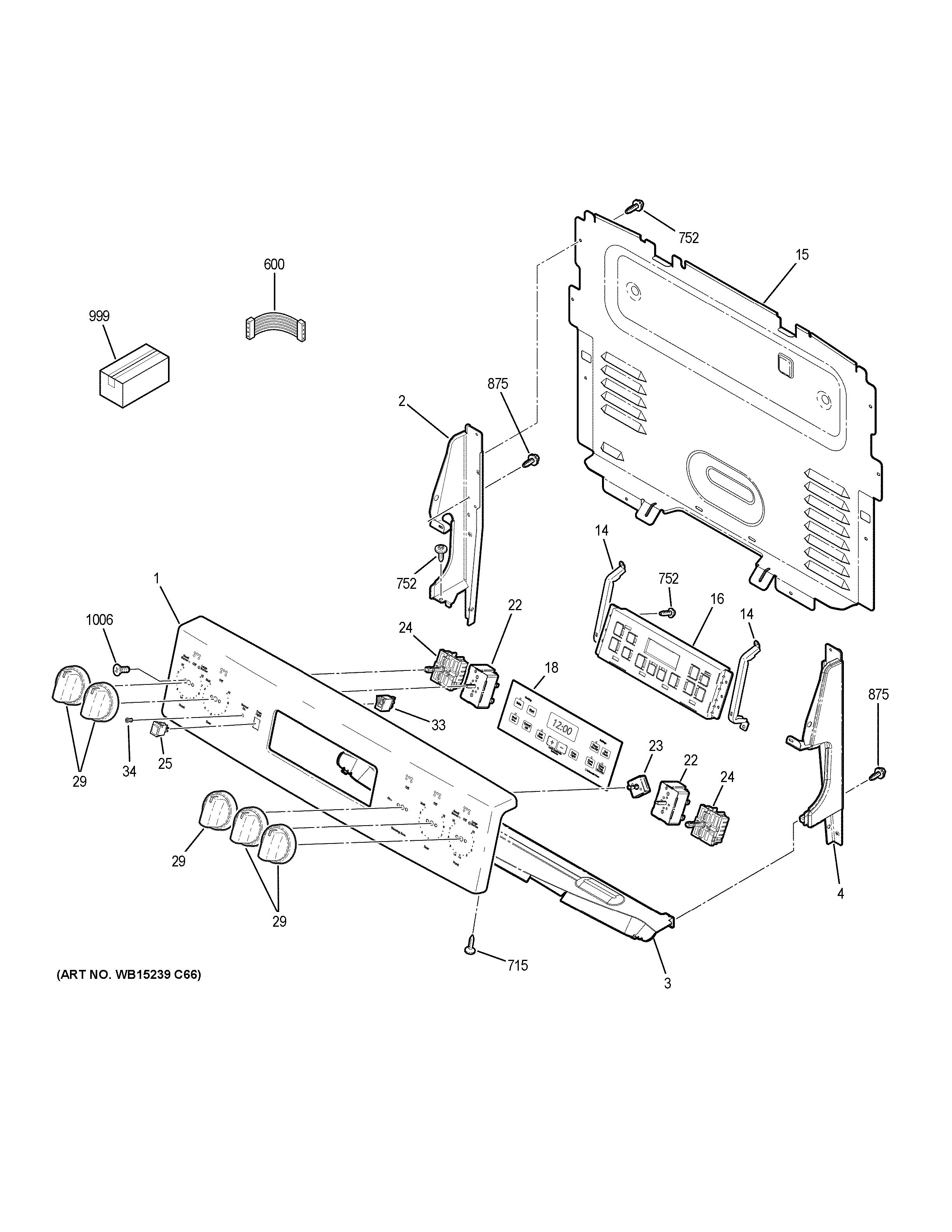

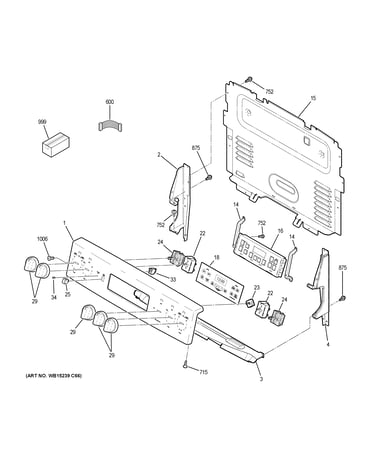

Control panel diagram

Range surface element control switch

Part #WB24X25013

BEST SELLER
$38.20 |
14% OFF Phone Price : $44.20
In Stock
Appliance Light Bulb, 40-watt 40A15
#257

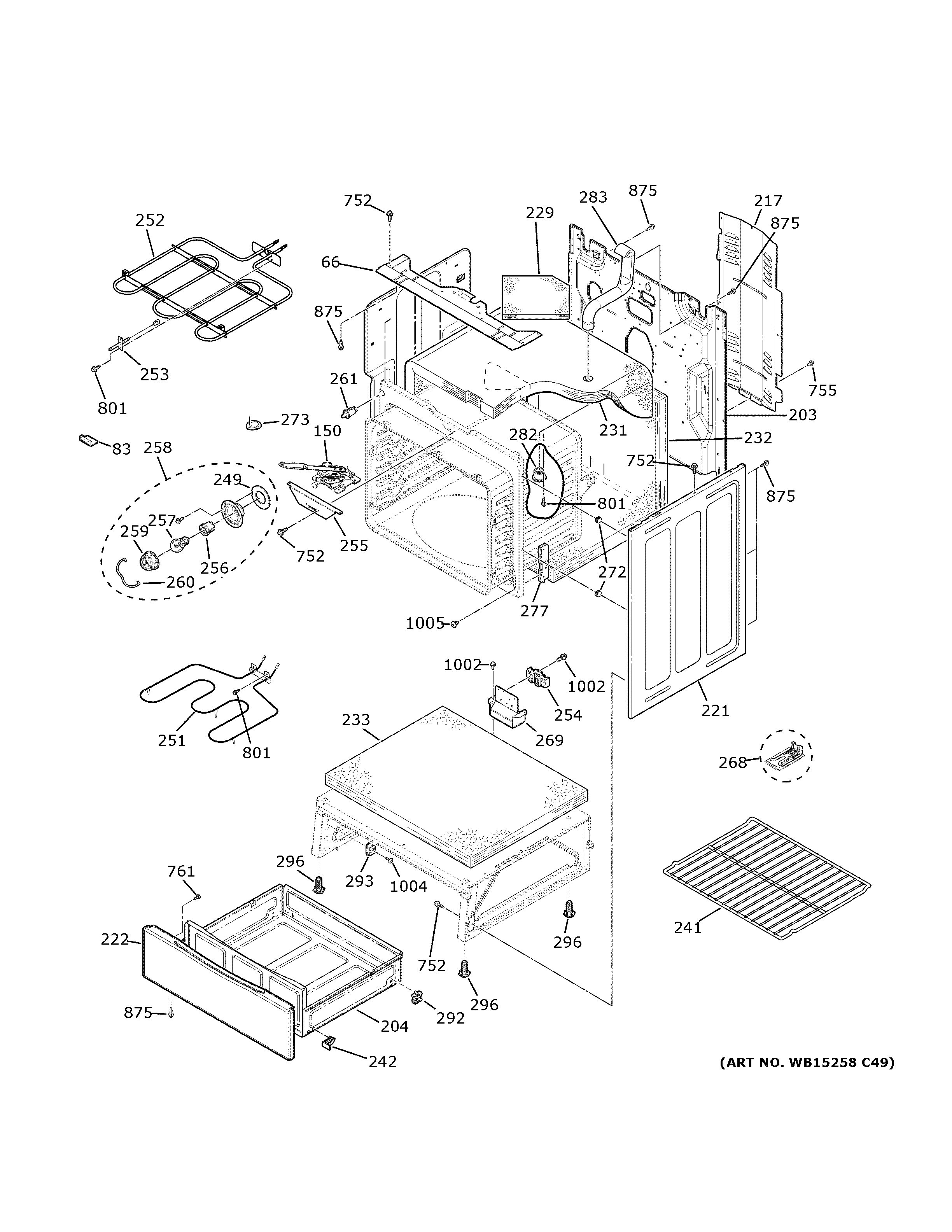

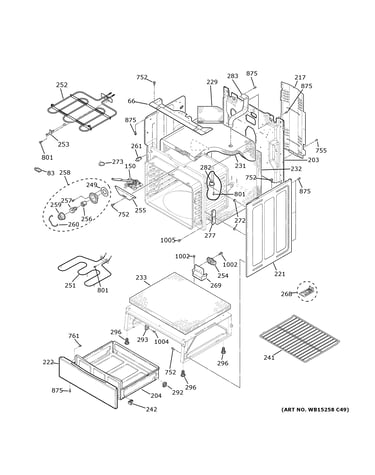

Body parts diagram

Appliance light bulb, 40-watt

Part #40A15

Replaced by #40A15

?
Manufacturer substitution
This part replaces 40A15. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Range Dual Radiant Surface Element, 6 To 9-in WB30X24111
#57

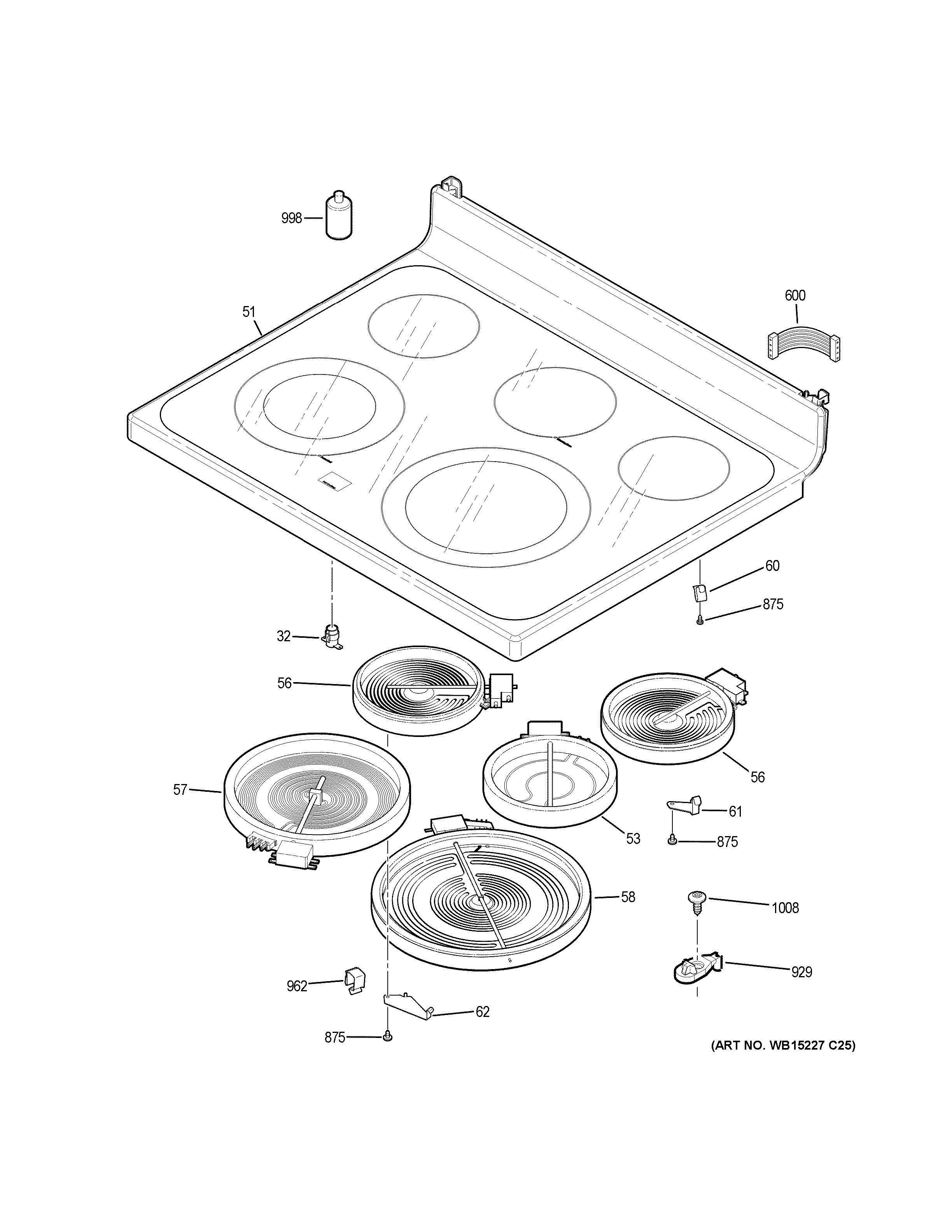

Cooktop diagram

Range dual radiant surface element, 6 to 9-in

Part #WB30X24111

BEST SELLER
$91.57 |
6% OFF Phone Price : $97.57
In Stock
Range Halogen Surface Element WB30T10130
#58

Cooktop diagram

Range halogen surface element

Part #WB30T10130

BEST SELLER
$133.06 |
8% OFF Phone Price : $145.06
In Stock
Kenmore Range Oven Temperature Sensor (replaces Wb21t10007) WB21X22134
#253

Body parts diagram

Kenmore range oven temperature sensor (replaces wb21t10007)

Part #WB21X22134

BEST SELLER
$24.05 |
20% OFF Phone Price : $30.05
In Stock
Range Radiant Surface Element, 5-1/2-in (replaces Wb30t10127) WB30T10145
#56

Cooktop diagram

Range radiant surface element, 5-1/2-in (replaces wb30t10127)

Part #WB30T10145

BEST SELLER
$89.97 |
6% OFF Phone Price : $95.97
In Stock
Range Oven Door Inner Glass (replaces Wb55t10154, Wb56t10152, Wb56x26391) WB56X22160
#338

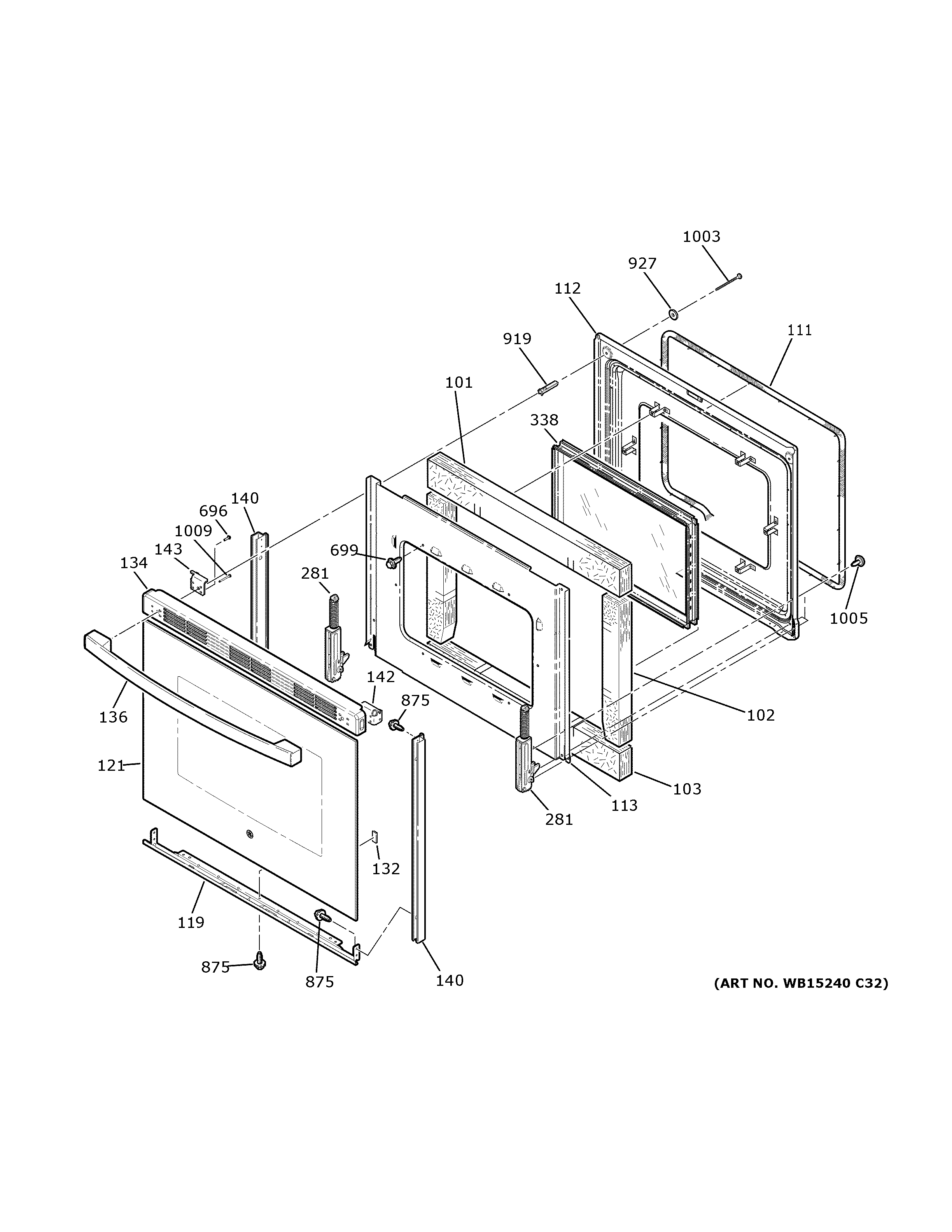

Door diagram

Range oven door inner glass (replaces wb55t10154, wb56t10152, wb56x26391)

Part #WB56X22160

BEST SELLER
$370.15 |
$12.00 OFF Phone Price : $382.15
In Stock
Cooktop Indicator Light WB27T10668
#32

Cooktop diagram

Cooktop indicator light

Part #WB27T10668

BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Bake Element WB44T10060
#251

Body parts diagram

Range bake element

Part #WB44T10060

Replaced by #WB44X45494

?
Manufacturer substitution
This part replaces WB44T10060. Substitute parts can look different from the original.
BEST SELLER
$66.58 |
8% OFF Phone Price : $72.58
In Stock
Range Oven Door Gasket (replaces Wb04t10001) WB04T10086
#111

Door diagram

Range oven door gasket (replaces wb04t10001)

Part #WB04T10086

$39.75 |
13% OFF Phone Price : $45.75
In Stock
