Wagner
Painting Power Tool

Model # 844 Official Wagner airless paint sprayer

Here are the diagrams and repair parts for Official Wagner 844 airless paint sprayer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Craftsman Paint Sprayer Pump Primer Knob 0288748
#3

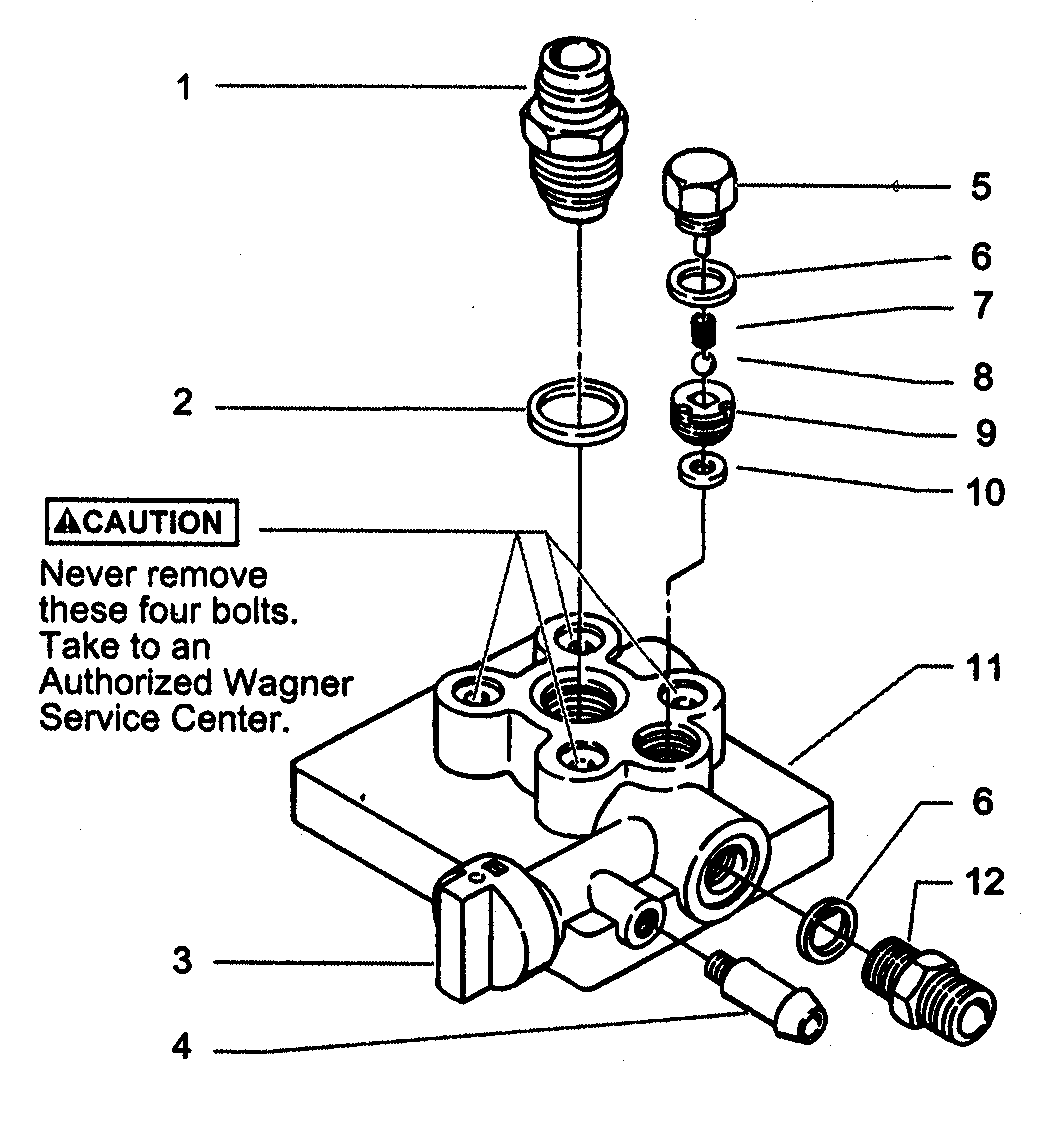

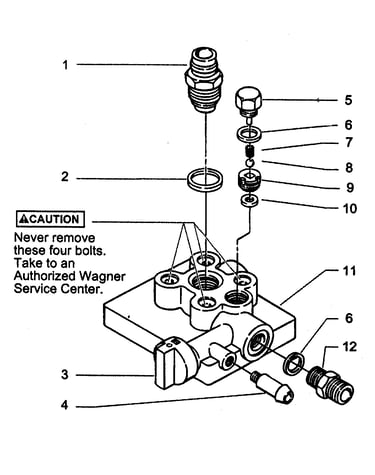

Paint pump assy diagram

Craftsman paint sprayer pump primer knob

Part #0288748

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Paint Sprayer Suction Filter 0270369
#8

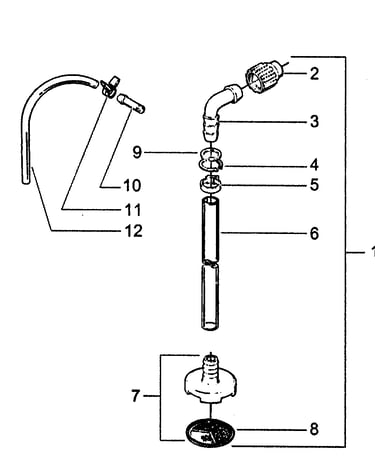

Suction set assy diagram

Craftsman paint sprayer suction filter

Part #0270369

The manufacturer no longer makes this part, and there's no substitute part

Paint Sprayer Pump Inlet Valve Washer 0089482
#2

Paint pump assy diagram

Paint sprayer pump inlet valve washer

Part #0089482

The manufacturer no longer makes this part, and there's no substitute part

Inlet Valve 0281113
#1

Paint pump assy diagram

Inlet valve

Part #0281113

The manufacturer no longer makes this part, and there's no substitute part

Housing 0270162
#7

Suction set assy diagram

Housing

Part #0270162

The manufacturer no longer makes this part, and there's no substitute part

Tube 0270133
#1

Suction set assy diagram

Tube

Part #0270133

The manufacturer no longer makes this part, and there's no substitute part

Tip 0154784
#10B

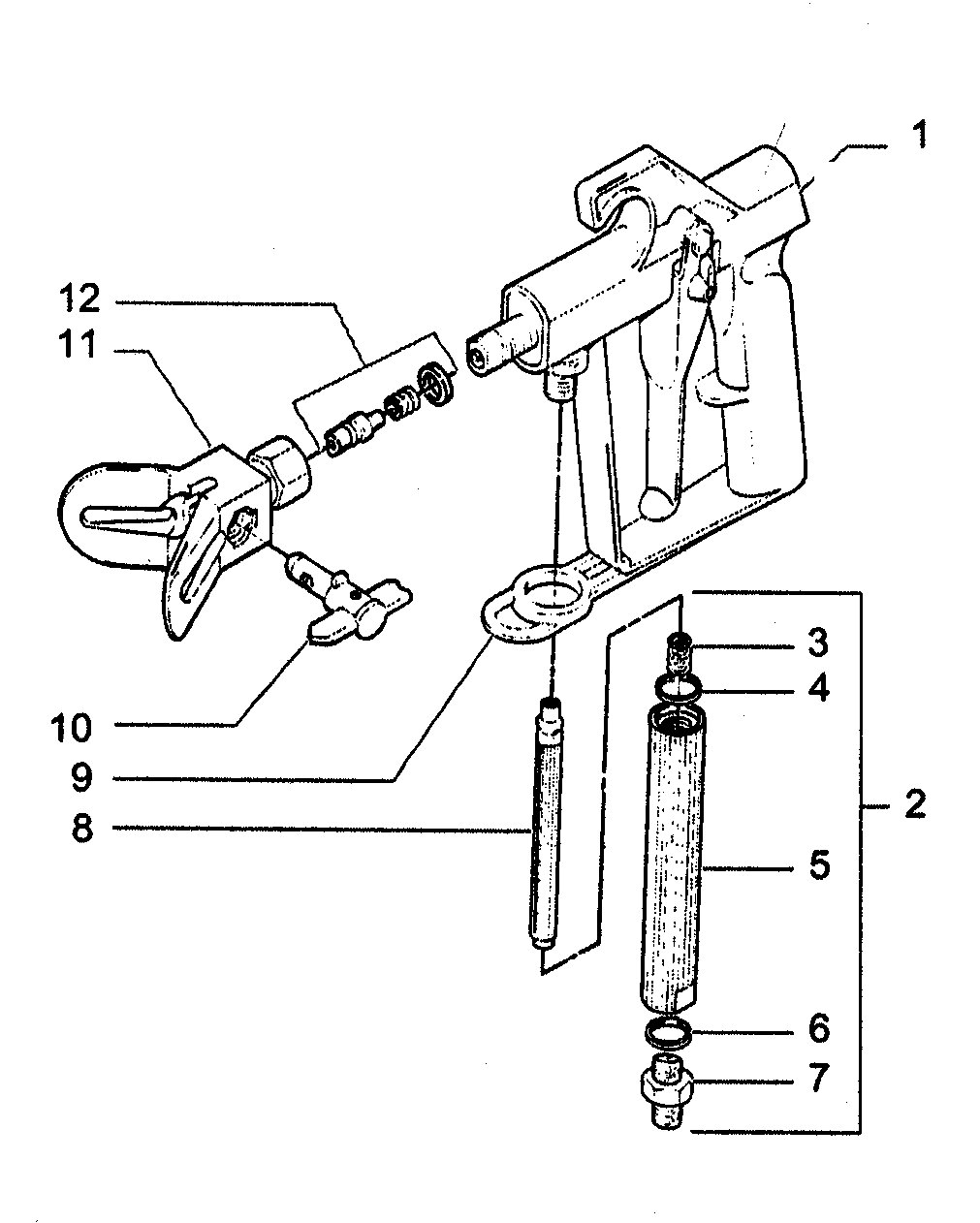

G-06 spray gun diagram

Tip

Part #0154784

The manufacturer no longer makes this part, and there's no substitute part

Bolt 9800108
#3

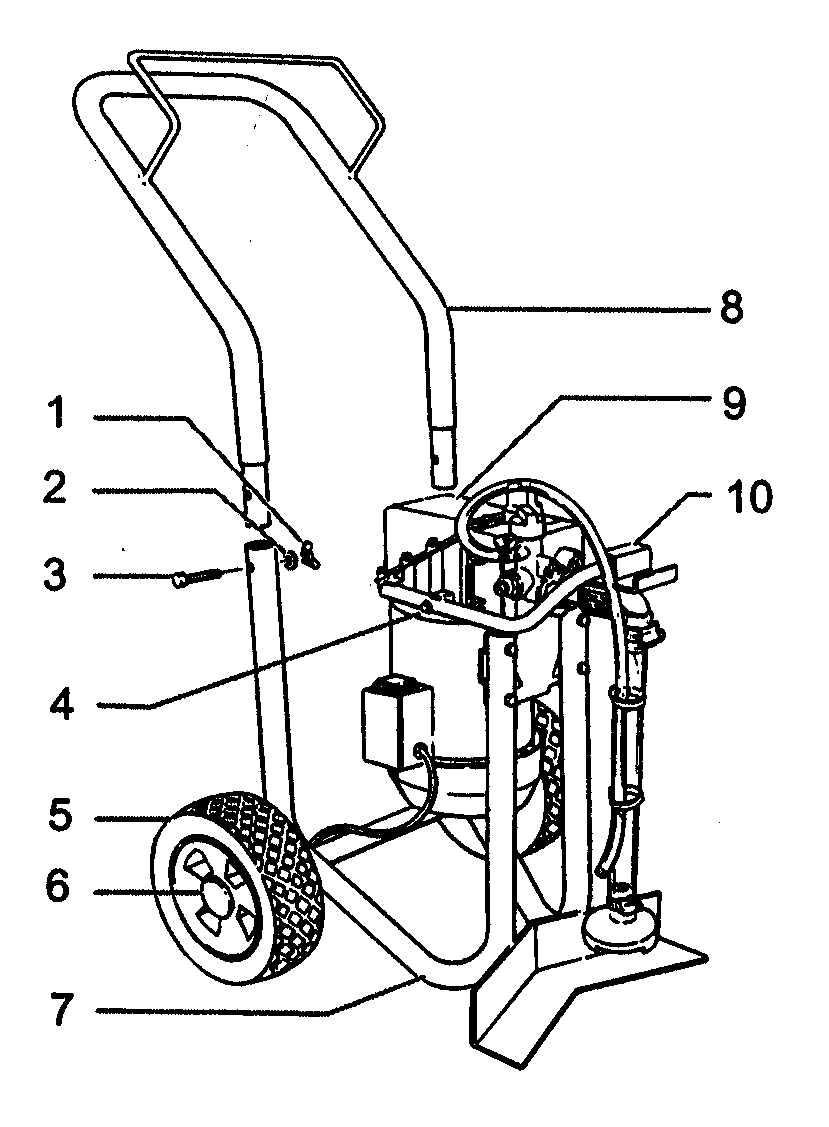

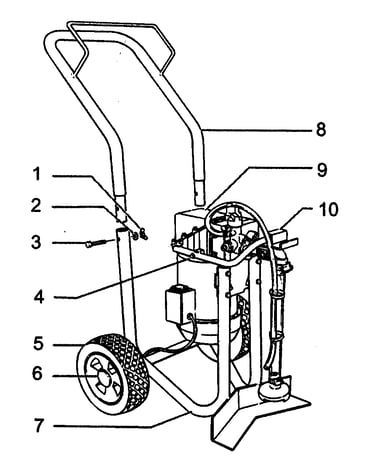

Final assy diagram

Bolt

Part #9800108

The manufacturer no longer makes this part, and there's no substitute part

Spray Valve 0288172
#NI

Paint pump assy diagram

Spray valve

Part #0288172

The manufacturer no longer makes this part, and there's no substitute part

Gun 0293004
#1

G-06 spray gun diagram

Gun

Part #0293004

The manufacturer no longer makes this part, and there's no substitute part
