Gibson
Laundry Center

Model # GLSE62RHS0 Official Gibson laundry center - p5995332151

Here are the diagrams and repair parts for Official Gibson GLSE62RHS0 laundry center - p5995332151, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

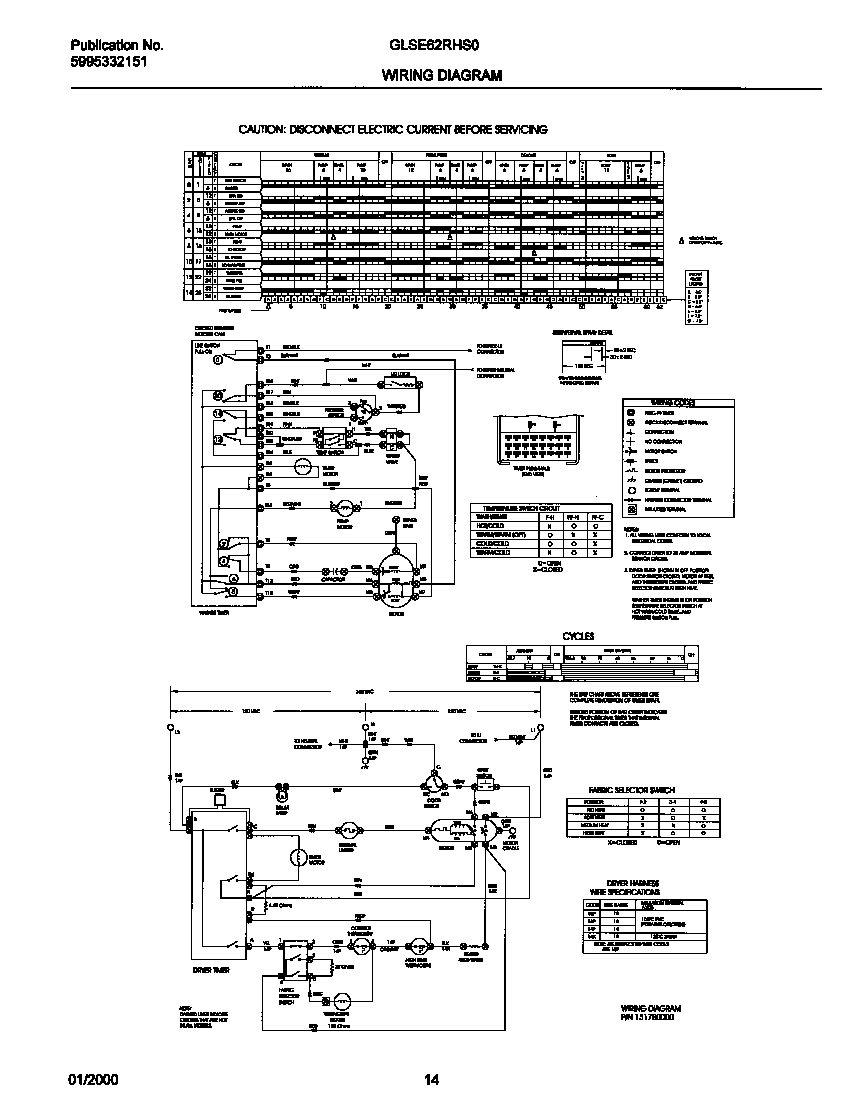

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 185 parts  |
Dryer Drum Bearing (replaces 5303281008, Q000143951, Wq143951) 131825900
#12

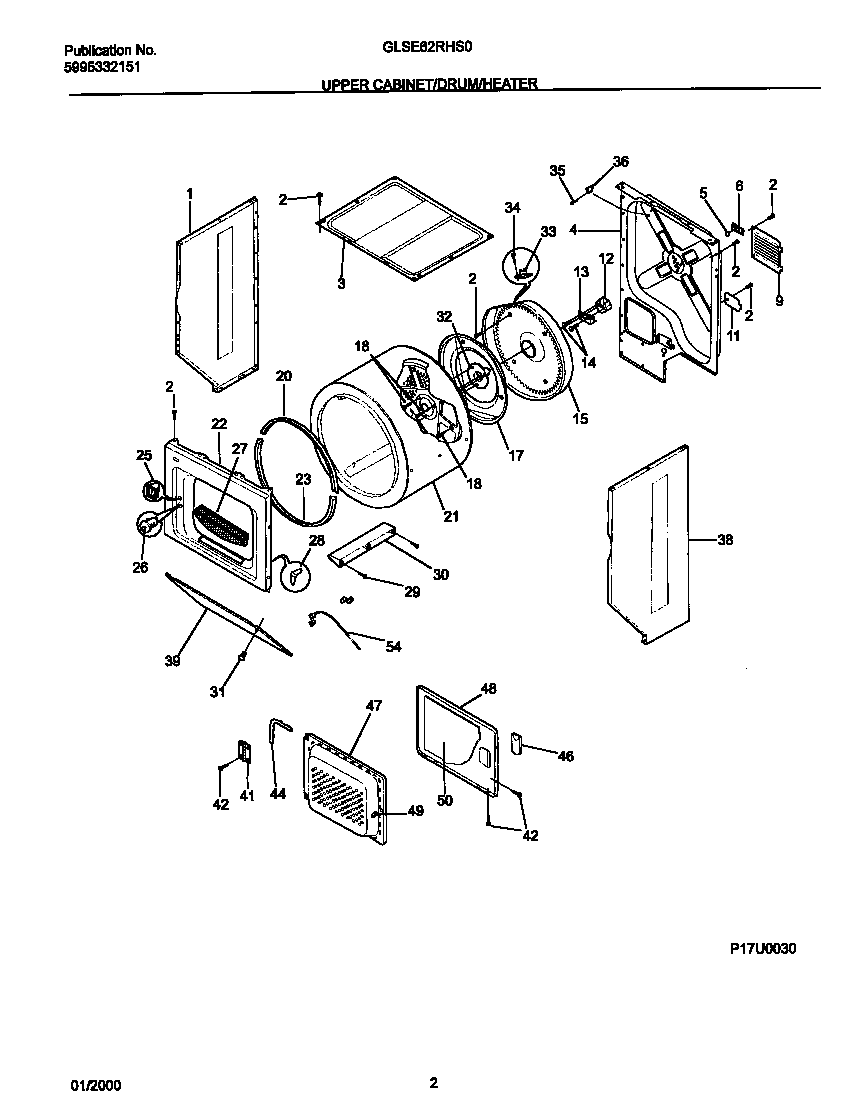

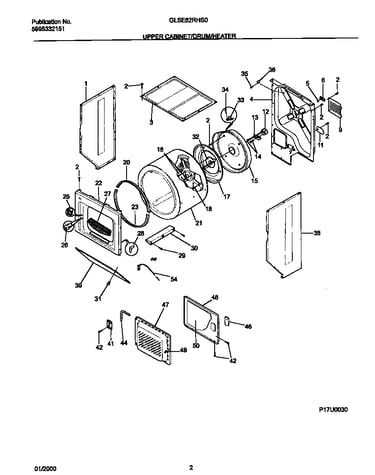

P17u0030 dry cab,drm,htr diagram

Dryer drum bearing (replaces 5303281008, q000143951, wq143951)

Part #131825900

BEST SELLER
$7.31 |
12% OFF Phone Price : $8.31
In Stock
Dryer Idler Assembly 131863100
#23

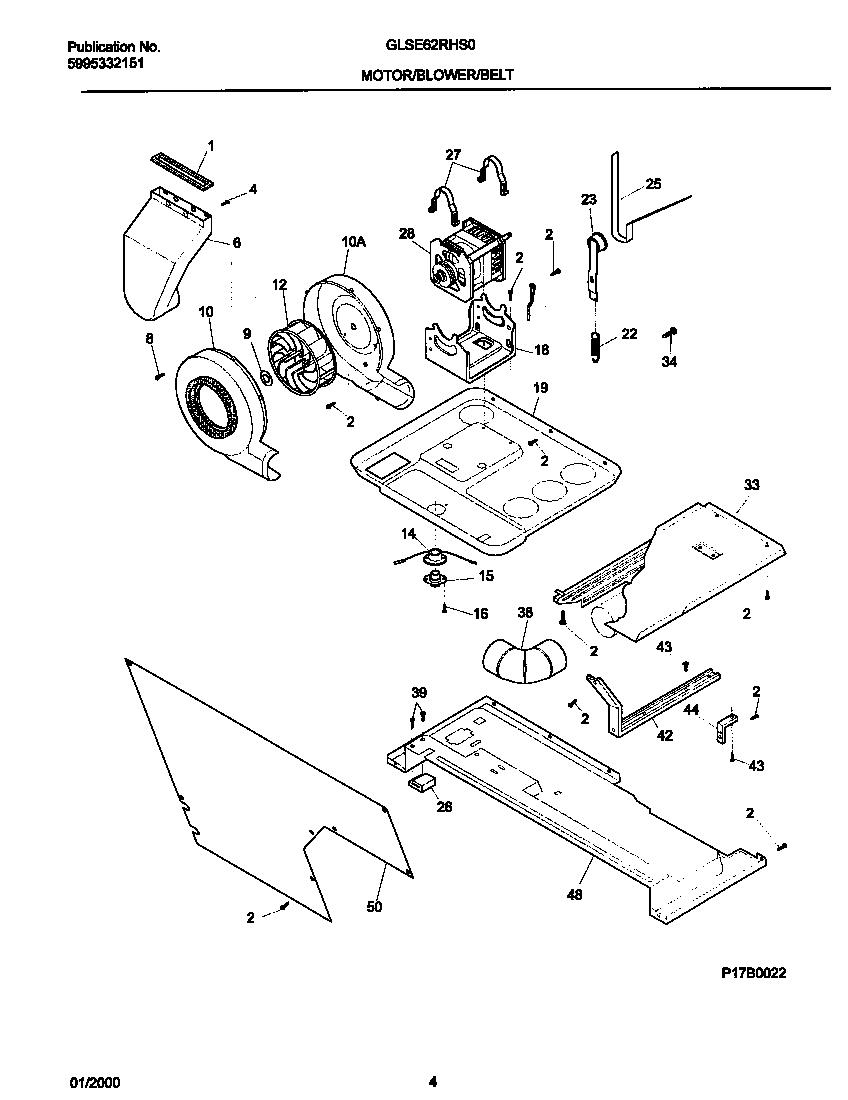

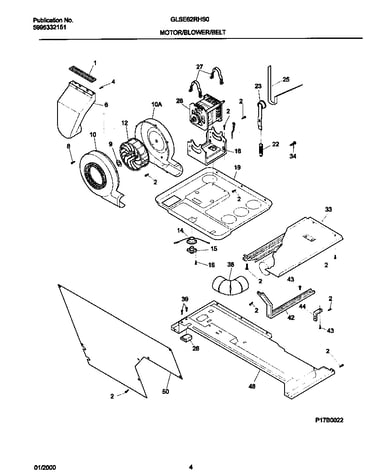

P17b0022 dry mtr,belt diagram

Dryer idler assembly

Part #131863100

Replaced by #5304507499

?
Manufacturer substitution
This part replaces 131863100. Substitute parts can look different from the original.
BEST SELLER
$30.58 |
16% OFF Phone Price : $36.58
In Stock
Pump 131724000
#43

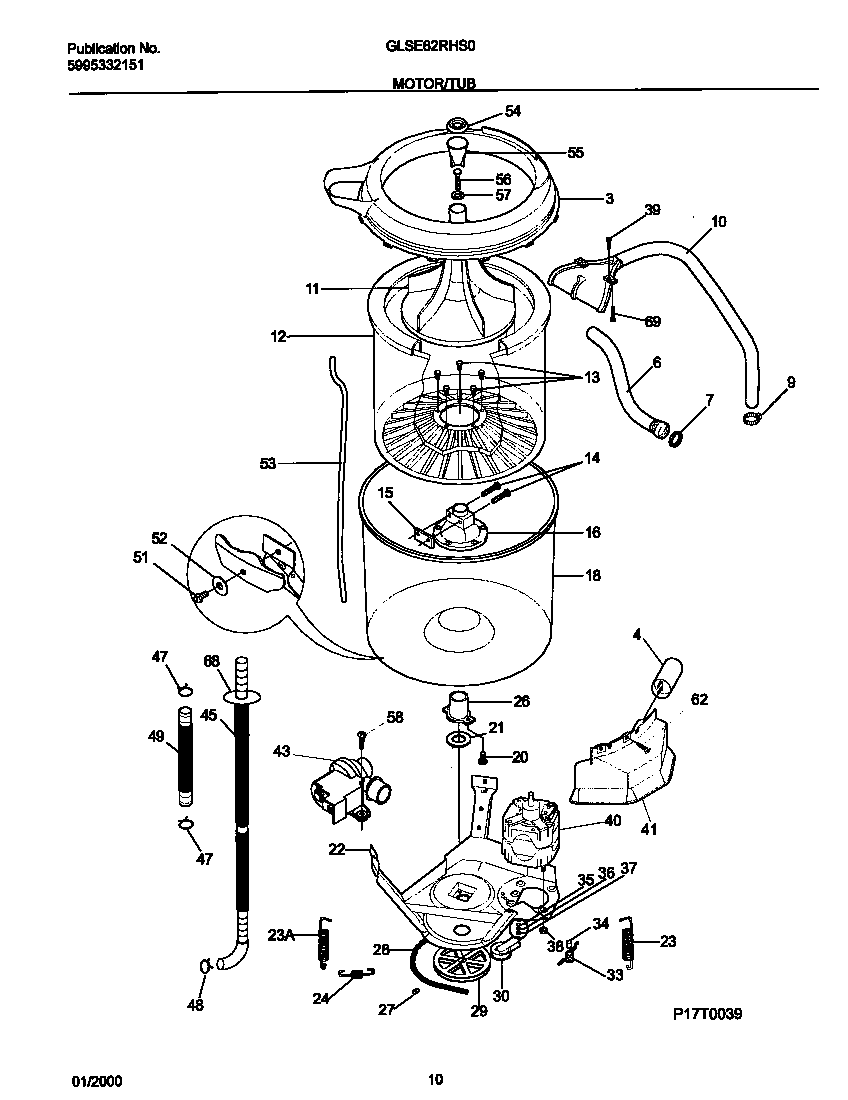

P17t0039 wshr mtr,hose diagram

Pump

Part #131724000

Replaced by #137221600

?
Manufacturer substitution
This part replaces 131724000. Substitute parts can look different from the original.
BEST SELLER
$134.72 |
8% OFF Phone Price : $146.72
In Stock
Dryer Drum Support Shaft (replaces 137088600) 131777700
#32

P17u0030 dry cab,drm,htr diagram

Dryer drum support shaft (replaces 137088600)

Part #131777700

BEST SELLER
$58.75 |
9% OFF Phone Price : $64.75
In Stock
Washer Belt 131686100
#28

P17t0039 wshr mtr,hose diagram

Washer belt

Part #131686100

The manufacturer no longer makes this part, and there's no substitute part

Dryer Lint Filter 131359600
#27

P17u0030 dry cab,drm,htr diagram

Dryer lint filter

Part #131359600

Replaced by #5304516871

?
Manufacturer substitution
This part replaces 131359600. Substitute parts can look different from the original.
BEST SELLER
$39.98 |
13% OFF Phone Price : $45.98
In Stock
Dryer Door Catch (replaces 134548000, 5307521419, F141735000, F141735-000, F62661-4, K1300884, K1301594, K1308079, K1309301, Q000504551, Q000504553, Wq504551, Wq504553) 131658800
#25

P17u0030 dry cab,drm,htr diagram

Dryer door catch (replaces 134548000, 5307521419, f141735000, f141735-000, f62661-4, k1300884, k1301594, k1308079, k1309301, q000504551, q000504553, wq504551, wq504553)

Part #131658800

BEST SELLER
$47.61 |
11% OFF Phone Price : $53.61
In Stock
Dryer Felt And Glide Kit (replaces 131154800, 5303211431, 5303293943, 5303912549, 5303937123, F141811-000) 5303937139
#20

P17u0030 dry cab,drm,htr diagram

Dryer felt and glide kit (replaces 131154800, 5303211431, 5303293943, 5303912549, 5303937123, f141811-000)

Part #5303937139

BEST SELLER
$35.84 |
14% OFF Phone Price : $41.84
In Stock
Electrolux Dryer Blower Wheel (replaces 5303212513) 131476300
#12

P17b0022 dry mtr,belt diagram

Electrolux dryer blower wheel (replaces 5303212513)

Part #131476300

BEST SELLER
$46.20 |
11% OFF Phone Price : $52.20
In Stock
Heater Housing 131475300
#15

P17u0030 dry cab,drm,htr diagram

Heater housing

Part #131475300

Replaced by #131475320

?
Manufacturer substitution
This part replaces 131475300. Substitute parts can look different from the original.
BEST SELLER
$139.24 |
8% OFF Phone Price : $151.24
In Stock

Most common symptoms to help you fix your laundry centers

Choose a symptom to see related laundry center repairs.

View all

Why won't my laundry center washer fill?

Main causes: lack of water supply, failed lid switch or lid lock, bad water level pressure switch, control system failur…

Read more

Why doesn't my laundry center washer drain?

Main causes: clogged drain system, blocked drain hose, bad drain pump…

Read more

Why won't my laundry center washer spin?

Main causes: broken lid switch or lid lock, faulty drive motor, drain system problem, broken drive system components…

Read more

Why does my laundry center washer bang loudly?

Main causes: unbalanced load, broken suspension springs or shocks, worn snubber ring…

Read more

Why won't my laundry center dryer heat?

Main causes: control system failure, broken heating element, bad gas valve coils, gas supply failure, voltage supply pro…

Read more

Why does my laundry'center dryer leaves clothes damp?

Main causes: blocked exhaust vent, clogged lint screen, bad timer, moisture sensing problems, weak gas valve coils, bad …

Read more

Why won't my laundry center dryer start?

Main causes: door not fully shut, bad door switch, faulty push-to-start switch, wiring failure, bad drive motor, blown f…

Read more

Why won't my laundry center dryer tumble?

Main causes: broken dryer drive belt, weak drive motor, binding drum seals…

Read more

Why won't my laundry center's washer agitate or spin?

Main causes: bad lid switch or lid lock, drive motor failure, broken motor coupler, bad timer, faulty electronic control…

Read more
