Model # 502451633 Official Sears 20" bmx bicycle

Here are the diagrams and repair parts for Official Sears 502451633 20" bmx bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Seat Post 39934Z
#26

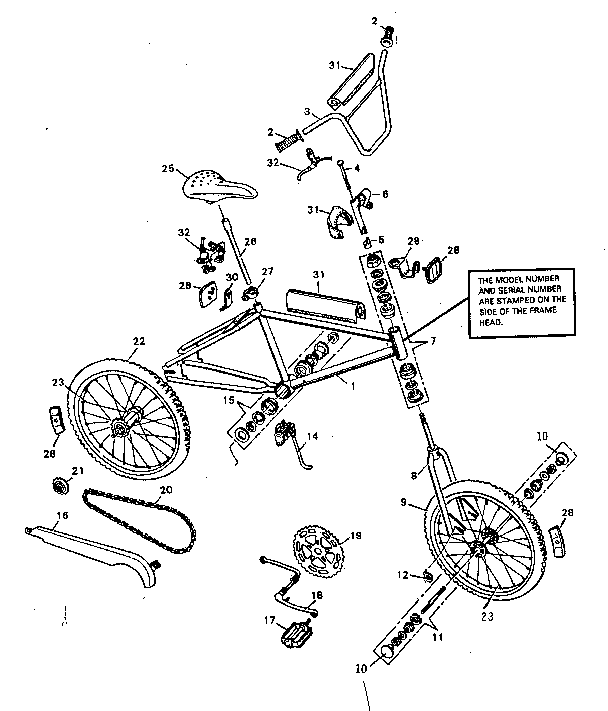

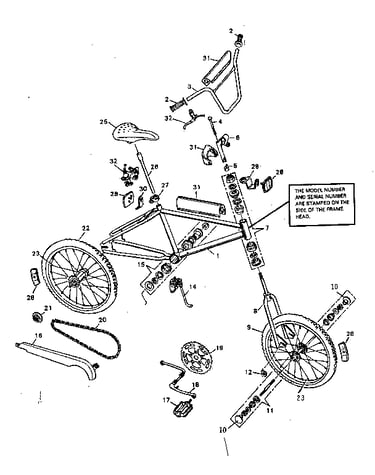

Unit parts diagram

Seat post

Part #39934Z

The manufacturer no longer makes this part, and there's no substitute part

F Axle Set 303518
#11

Unit parts diagram

F axle set

Part #303518

The manufacturer no longer makes this part, and there's no substitute part

Inner Tube 041003

#NI

All parts diagram

Inner tube

Part #041003

The manufacturer no longer makes this part, and there's no substitute part

Tire 040003

#NI

All parts diagram

Tire

Part #040003

The manufacturer no longer makes this part, and there's no substitute part

Rrwhl Asm 36219C
#22

Unit parts diagram

Rrwhl asm

Part #36219C

The manufacturer no longer makes this part, and there's no substitute part

F Wheel Asm 32801C
#9

Unit parts diagram

F wheel asm

Part #32801C

The manufacturer no longer makes this part, and there's no substitute part

Frt Sprocket 36067C
#19

Unit parts diagram

Frt sprocket

Part #36067C

The manufacturer no longer makes this part, and there's no substitute part

Spk 7-9/16 303155
#23

Unit parts diagram

Spk 7-9/16

Part #303155

The manufacturer no longer makes this part, and there's no substitute part

Bracket 36176Z
#30

Unit parts diagram

Bracket

Part #36176Z

The manufacturer no longer makes this part, and there's no substitute part

Pedal Set 35068
#17

Unit parts diagram

Pedal set

Part #35068

The manufacturer no longer makes this part, and there's no substitute part
