Model # GC818 TYPE 1 Official Black & Decker cultivator

Here are the diagrams and repair parts for Official Black & Decker GC818-TYPE-1 cultivator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Lawn & Garden Equipment Nut 5104148-00
#14

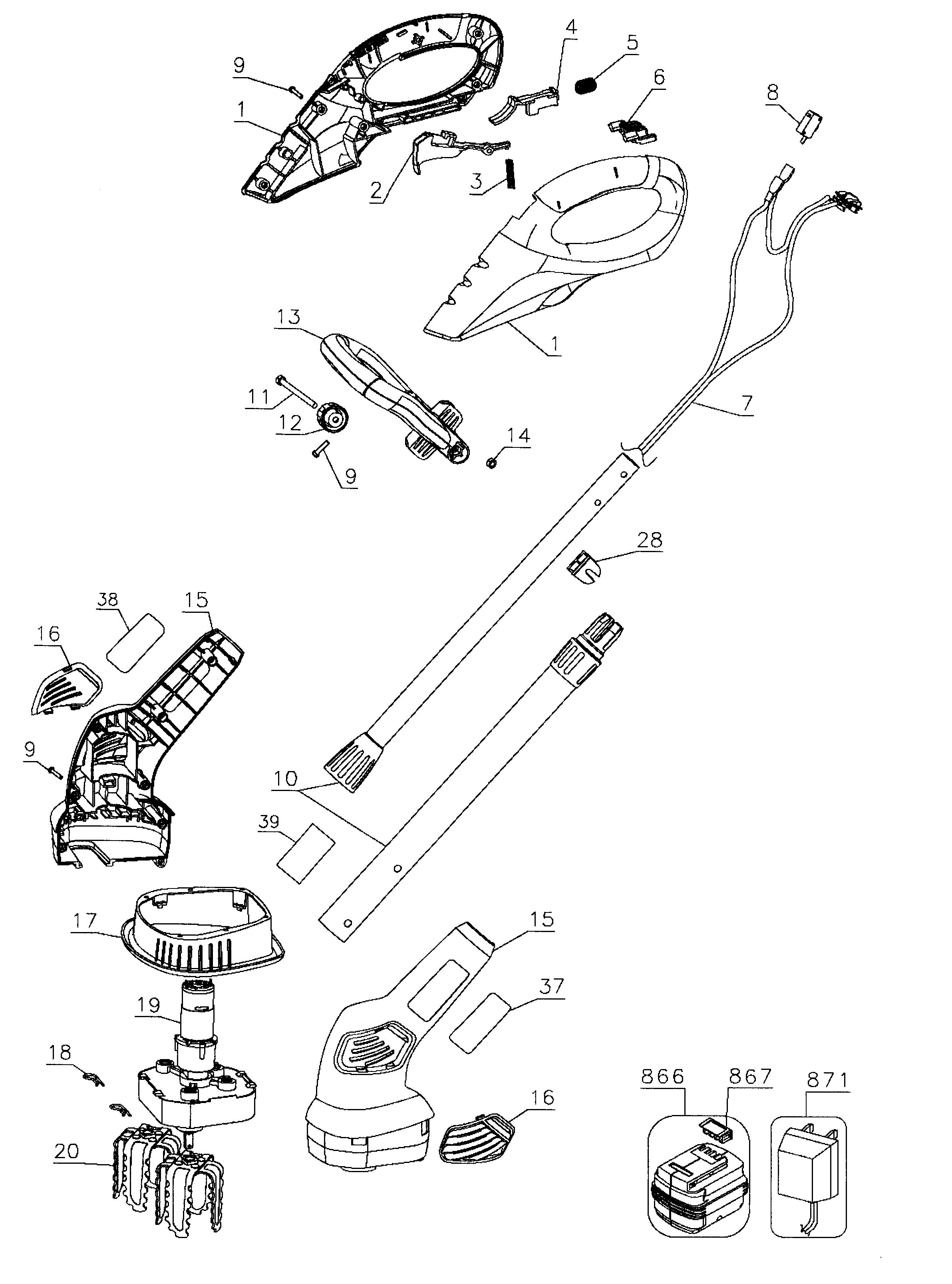

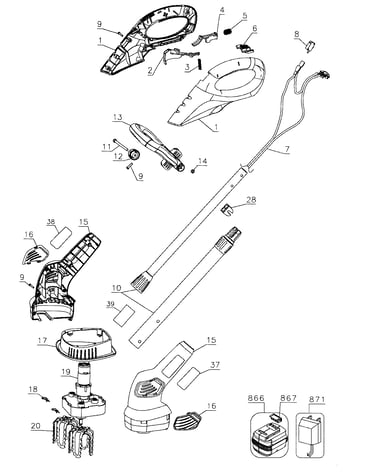

Trimmer assy diagram

Lawn & garden equipment nut

Part #5104148-00

The manufacturer no longer makes this part, and there's no substitute part

Trigger 5104135-03
#2

Trimmer assy diagram

Trigger

Part #5104135-03

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Screw 5103541-00
#9

Trimmer assy diagram

Lawn & garden equipment screw

Part #5103541-00

The manufacturer no longer makes this part, and there's no substitute part

Knob 5104152-00
#12

Trimmer assy diagram

Knob

Part #5104152-00

The manufacturer no longer makes this part, and there's no substitute part

Cap 5102026-00
#867

Trimmer assy diagram

Cap

Part #5102026-00

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 90505583
#39

Trimmer assy diagram

Nameplate

Part #90505583

The manufacturer no longer makes this part, and there's no substitute part

Spring 5104136-00
#3

Trimmer assy diagram

Spring

Part #5104136-00

The manufacturer no longer makes this part, and there's no substitute part

Clamshell Set 90507213-02
#15

Trimmer assy diagram

Clamshell set

Part #90507213-02

The manufacturer no longer makes this part, and there's no substitute part

Bolt 5104151-00
#11

Trimmer assy diagram

Bolt

Part #5104151-00

The manufacturer no longer makes this part, and there's no substitute part

Tine 90505847
#20

Trimmer assy diagram

Tine

Part #90505847

The manufacturer no longer makes this part, and there's no substitute part
