GE
Trash Compactor

Model # GCG1000-02 Official GE compactor

Here are the diagrams and repair parts for Official GE GCG1000-02 compactor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Drive Screw WC22X5023

#116

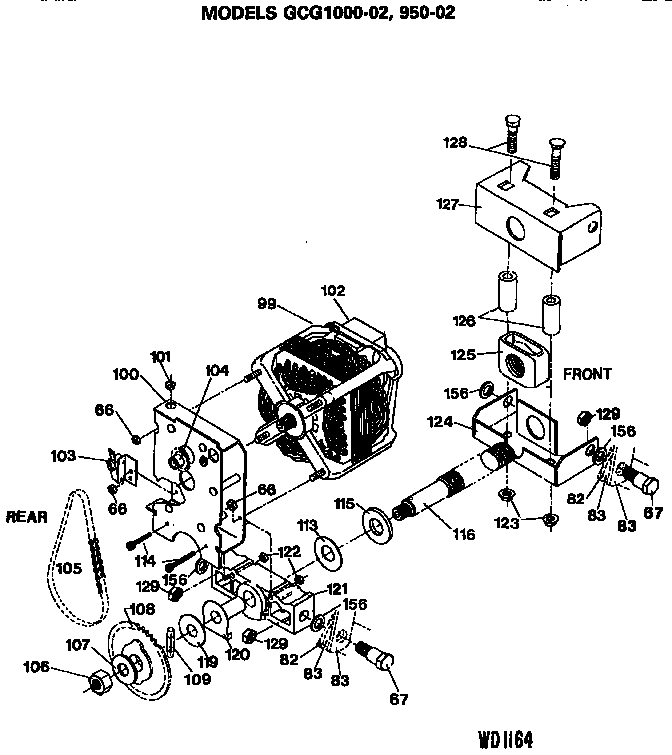

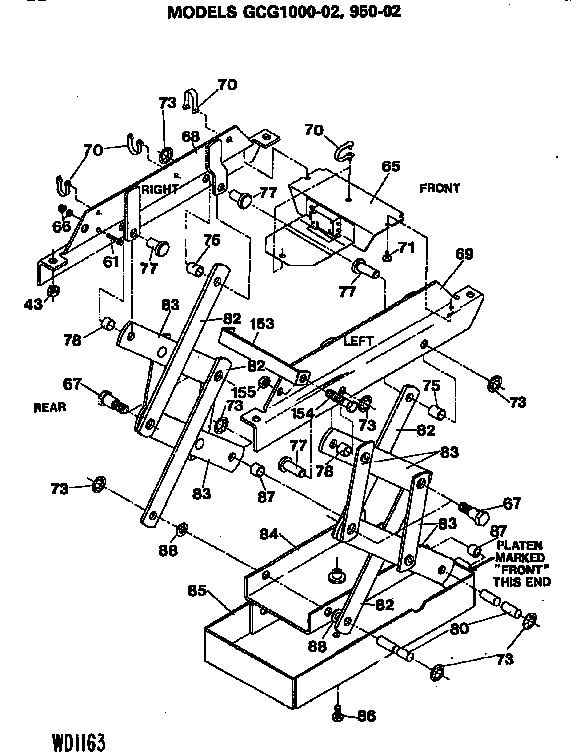

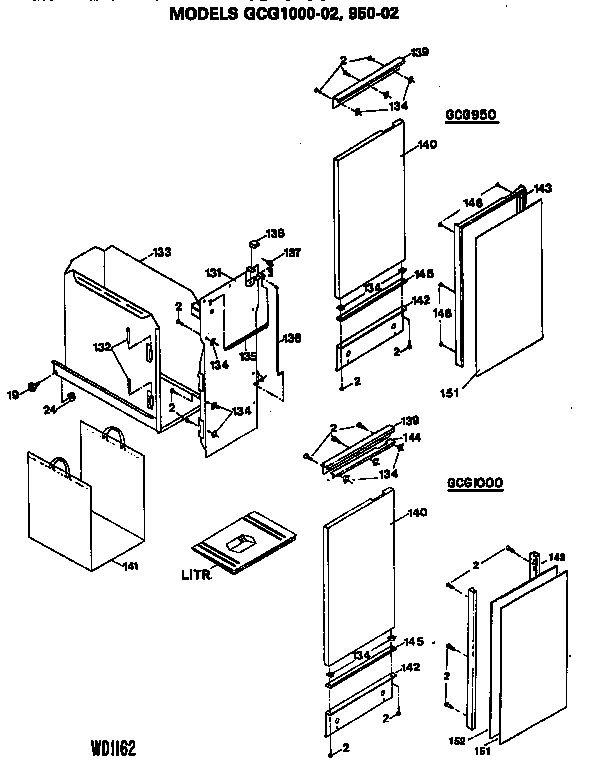

All parts diagram

Drive screw

Part #WC22X5023

Replaced by #WC22X5023

?
Manufacturer substitution
This part replaces WC22X5023. Substitute parts can look different from the original.
$110.99
In Stock
Door WC25X5061

#140

All parts diagram

Door

Part #WC25X5061

$58.99
In Stock
Nut Clip WC1X5134

#134

All parts diagram

Nut clip

Part #WC1X5134

$7.69 |
12% OFF Phone Price : $8.69
In Stock
Motor Switch WC21X5048

#102

All parts diagram

Motor switch

Part #WC21X5048

Replaced by #WC21X5048

?
Manufacturer substitution
This part replaces WC21X5048. Substitute parts can look different from the original.
$49.99
In Stock
Compact Bag WC60X5015

#160

All parts diagram

Compact bag

Part #WC60X5015

Replaced by #WC60X5015

?
Manufacturer substitution
This part replaces WC60X5015. Substitute parts can look different from the original.
$27.13 |
18% OFF Phone Price : $33.13
In Stock
Gcg1000 Use 49-5383

#LITR

All parts diagram

Gcg1000 use

Part #49-5383

Replaced by #49-5589

?
Manufacturer substitution
This part replaces 49-5383. Substitute parts can look different from the original.
$8.49
In Stock
Screw NOT STOCKD

#2008

All parts diagram

Screw

Part #NOT STOCKD

The manufacturer no longer makes this part, and there's no substitute part

Trash Compactor Power Nut WC1X5131

#125

All parts diagram

Trash compactor power nut

Part #WC1X5131

The manufacturer no longer makes this part, and there's no substitute part

Hinge Pin WC2X5157

#132

All parts diagram

Hinge pin

Part #WC2X5157

The manufacturer no longer makes this part, and there's no substitute part

Nut 5/16- WC1X5138

#24

All parts diagram

Nut 5/16-

Part #WC1X5138

The manufacturer no longer makes this part, and there's no substitute part
