Troybilt
Gas Walk-Behind Mower

Model # 11A-542Q711 Official Troybilt lawn mower

Here are the diagrams and repair parts for Official Troybilt 11A-542Q711 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Blade-21" Mu 742-0741
#16

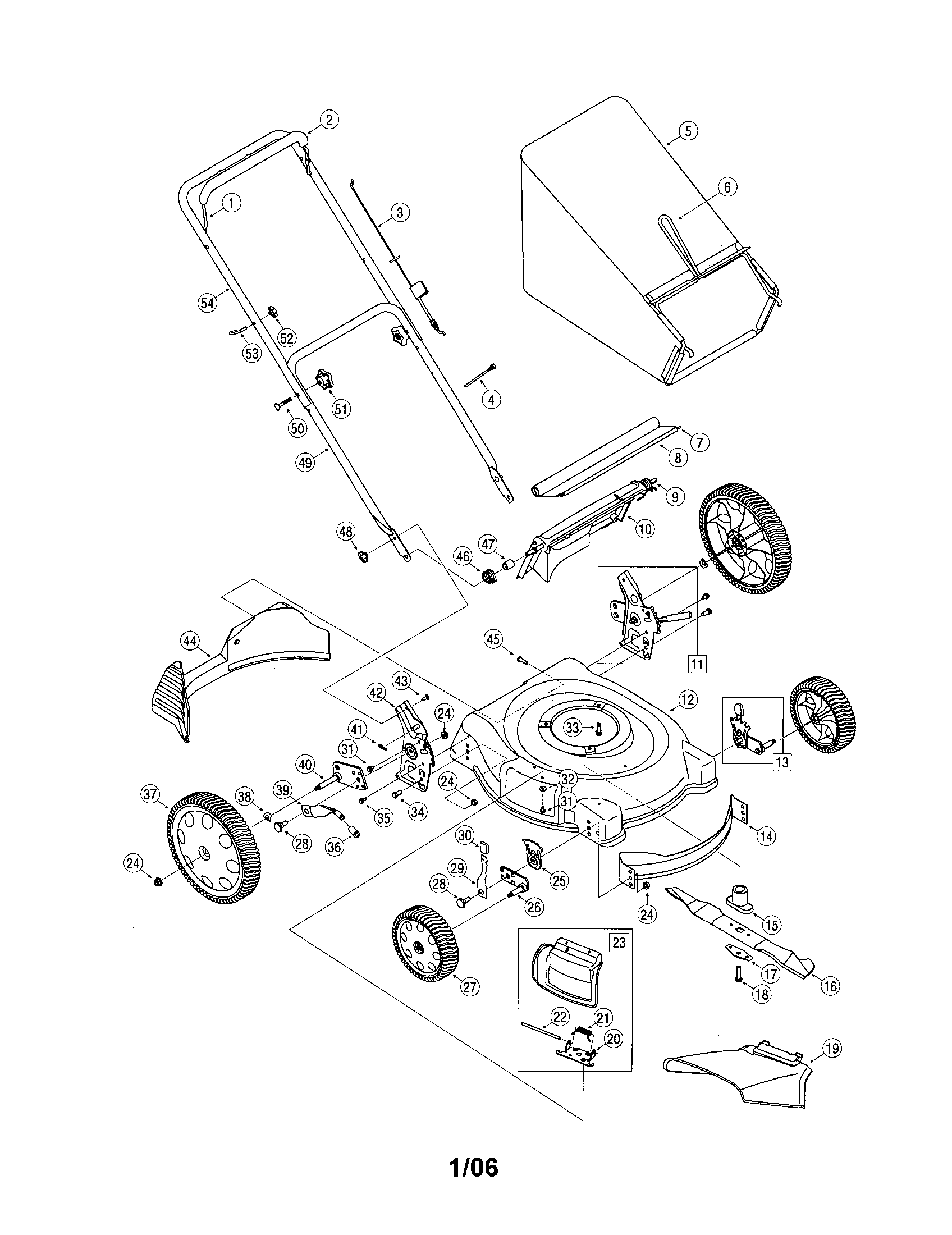

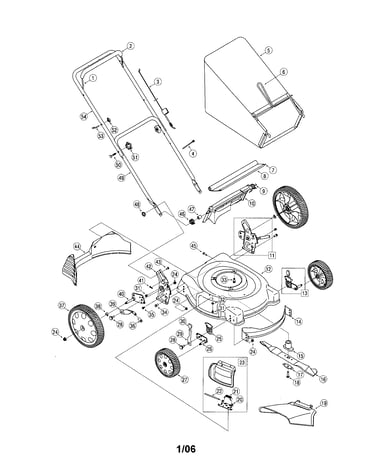

Rotary mower diagram

Blade-21" mu

Part #742-0741

Replaced by #942-0741A

?
Manufacturer substitution
This part replaces 742-0741. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$27.71 |
18% OFF Phone Price : $33.71
In Stock
Yard Machines Lawn Tractor Flange Nut (replaces 00012173, Wd-129-103) 712-04065
#24

Rotary mower diagram

Yard machines lawn tractor flange nut (replaces 00012173, wd-129-103)

Part #712-04065

BEST SELLER
This item is not returnable
$5.27 |
16% OFF Phone Price : $6.27
In Stock
Lawn Tractor Screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599) 710-0599
#31

Rotary mower diagram

Lawn tractor screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599)

Part #710-0599

BEST SELLER
This item is not returnable
$4.91 |
17% OFF Phone Price : $5.91
In Stock
Knob 720-04072
#51

Rotary mower diagram

Knob

Part #720-04072

Replaced by #720-04072A

?
Manufacturer substitution
This part replaces 720-04072. Substitute parts can look different from the original.
BEST SELLER
$9.33 |
10% OFF Phone Price : $10.33
In Stock
Hinge Pin 747-0710
#22

Rotary mower diagram

Hinge pin

Part #747-0710

Replaced by #747-0710A

?
Manufacturer substitution
This part replaces 747-0710. Substitute parts can look different from the original.
This item is not returnable
$4.76 |
17% OFF Phone Price : $5.76
In Stock
Wing Nut 712-0397
#48

Rotary mower diagram

Wing nut

Part #712-0397

Replaced by #712-0397A

?
Manufacturer substitution
This part replaces 712-0397. Substitute parts can look different from the original.
This item is not returnable
$5.22 |
16% OFF Phone Price : $6.22
In Stock
Lawn & Garden Equipment Carriage Bolt (replaces 1186069, 583108, 706-101080, 706-10602-12, 791-182213) 710-0703
#43

Rotary mower diagram

Lawn & garden equipment carriage bolt (replaces 1186069, 583108, 706-101080, 706-10602-12, 791-182213)

Part #710-0703

This item is not returnable
$6.46 |
13% OFF Phone Price : $7.46
In Stock
Cable Tie 726-0240
#4

Rotary mower diagram

Cable tie

Part #726-0240

Replaced by #726-0178

?
Manufacturer substitution
This part replaces 726-0240. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Yard Machines Lawn & Garden Equipment Cupped Washer 736-0270
#32

Rotary mower diagram

Yard machines lawn & garden equipment cupped washer

Part #736-0270

This item is not returnable
$5.10 |
16% OFF Phone Price : $6.10
In Stock
Lawn Mower Deflector Shield (replaces 931-04177) 731-04177
#19

Rotary mower diagram

Lawn mower deflector shield (replaces 931-04177)

Part #731-04177

This item is not returnable
$25.96 |
19% OFF Phone Price : $31.96
In Stock
