Model # 13167806 Official Craftsman transmission

Here are the diagrams and repair parts for Official Craftsman 13167806 transmission, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Bearing 58320
#21

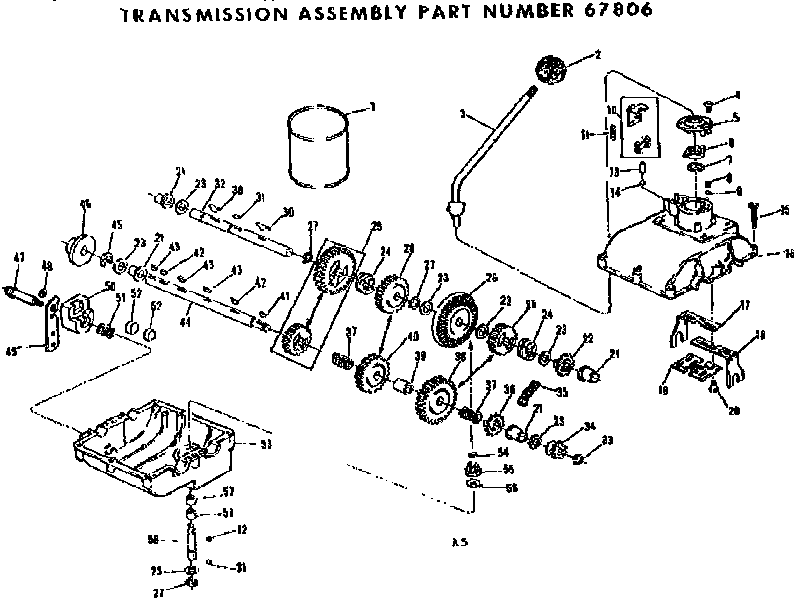

Transmission assembly diagram

Bearing

Part #58320

The manufacturer no longer makes this part, and there's no substitute part

Spring 68006
#11

Transmission assembly diagram

Spring

Part #68006

The manufacturer no longer makes this part, and there's no substitute part

Up Housing 68001
#16

Transmission assembly diagram

Up housing

Part #68001

The manufacturer no longer makes this part, and there's no substitute part

Key 124543
#42

Transmission assembly diagram

Key

Part #124543

The manufacturer no longer makes this part, and there's no substitute part

Sprocket 58339
#36

Transmission assembly diagram

Sprocket

Part #58339

The manufacturer no longer makes this part, and there's no substitute part

Washer 64881
#56

Transmission assembly diagram

Washer

Part #64881

The manufacturer no longer makes this part, and there's no substitute part

Key 58342
#30

Transmission assembly diagram

Key

Part #58342

The manufacturer no longer makes this part, and there's no substitute part

Spring 64258
#51

Transmission assembly diagram

Spring

Part #64258

The manufacturer no longer makes this part, and there's no substitute part

Fork Shftr-r 68004
#17

Transmission assembly diagram

Fork shftr-r

Part #68004

The manufacturer no longer makes this part, and there's no substitute part

E-ring 52364
#45

Transmission assembly diagram

E-ring

Part #52364

The manufacturer no longer makes this part, and there's no substitute part
