Poulan
Gas Walk-Behind Mower

Model # PM4TN20RA Official Poulan rotary lawn mower

Here are the diagrams and repair parts for Official Poulan PM4TN20RA rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Lock Nut 83923
#38

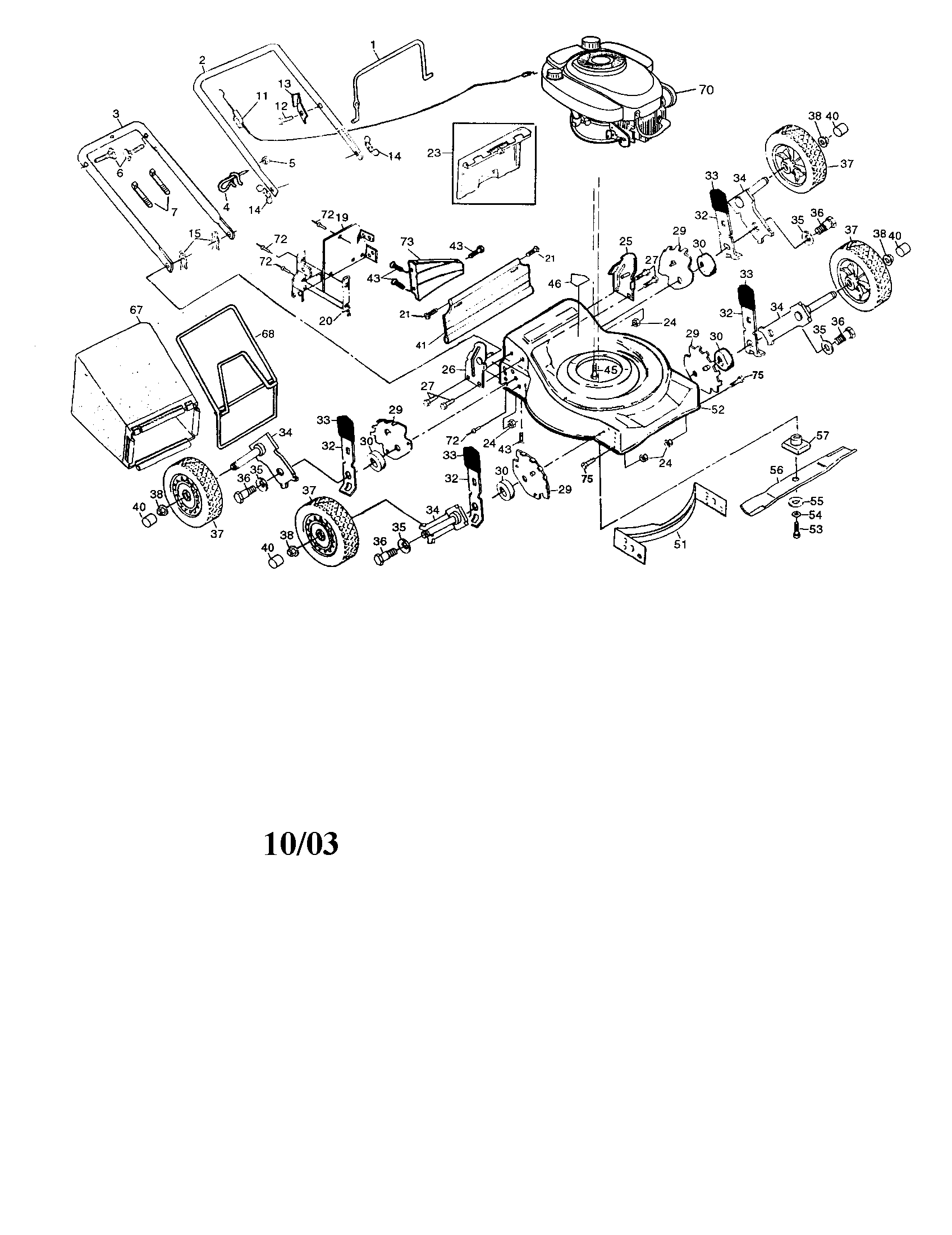

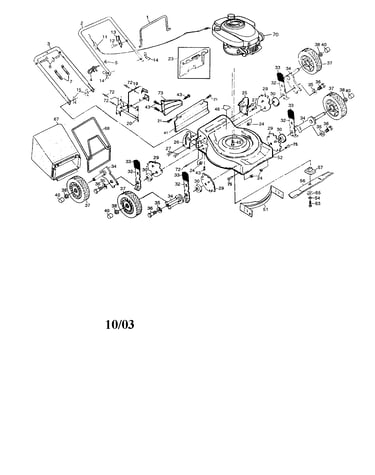

Engine/housing/bag/wheels/handle diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Handle Bolt 131959
#6

Engine/housing/bag/wheels/handle diagram

Handle bolt

Part #131959

Replaced by #532191574

?
Manufacturer substitution
This part replaces 131959. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn Mower Blade Adapter 850977
#57

Engine/housing/bag/wheels/handle diagram

Lawn mower blade adapter

Part #850977

Replaced by #581547901

?
Manufacturer substitution
This part replaces 850977. Substitute parts can look different from the original.
BEST SELLER
$18.44 |
10% OFF Phone Price : $20.44
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#21

Engine/housing/bag/wheels/handle diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Rope Guide 179585
#4

Engine/housing/bag/wheels/handle diagram

Rope guide

Part #179585

Replaced by #586122501

?
Manufacturer substitution
This part replaces 179585. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
Walk-behind Lawn Mower Selector Knob 87877
#33

Engine/housing/bag/wheels/handle diagram

Walk-behind lawn mower selector knob

Part #87877

Replaced by #532087877

?
Manufacturer substitution
This part replaces 87877. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Spring 700331X004
#32

Engine/housing/bag/wheels/handle diagram

Spring

Part #700331X004

Replaced by #532401621

?
Manufacturer substitution
This part replaces 700331X004. Substitute parts can look different from the original.
$8.54
In Stock
Lock Nut 751592
#24

Engine/housing/bag/wheels/handle diagram

Lock nut

Part #751592

Replaced by #596322601

?
Manufacturer substitution
This part replaces 751592. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Hairpin 51793
#15

Engine/housing/bag/wheels/handle diagram

Hairpin

Part #51793

Replaced by #532051793

?
Manufacturer substitution
This part replaces 51793. Substitute parts can look different from the original.
This item is not returnable
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn & Garden Equipment Bolt (replaces 532150406, 532850998, 850998) 150406
#45

Engine/housing/bag/wheels/handle diagram

Lawn & garden equipment bolt (replaces 532150406, 532850998, 850998)

Part #150406

Replaced by #532150406

?
Manufacturer substitution
This part replaces 150406. Substitute parts can look different from the original.
$8.54
In Stock
