Hoover
Upright Vacuum

Model # U8173-900 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U8173-900 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |

Vacuum Screw 21447230
#34

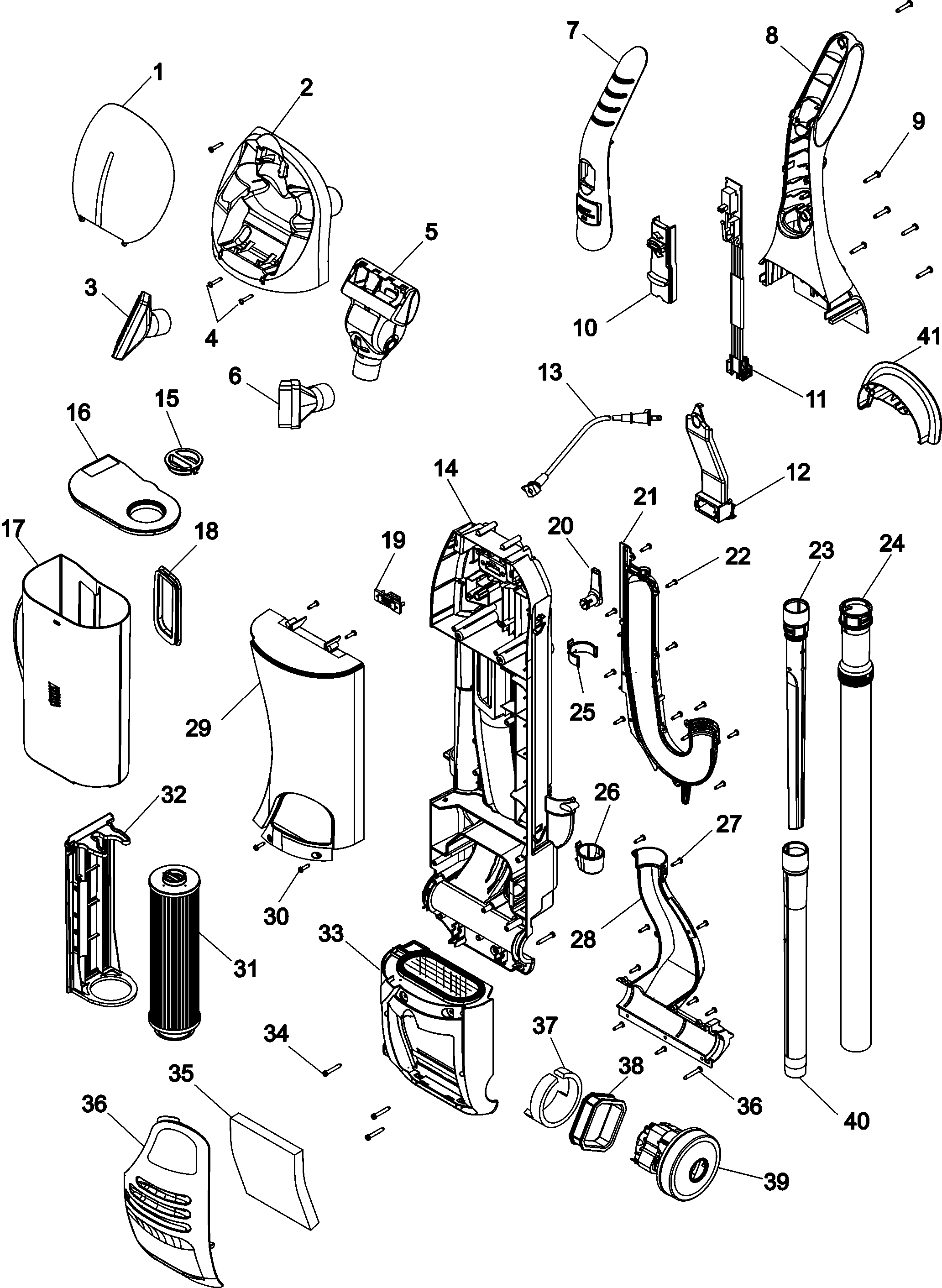

Upper assembly diagram

Vacuum screw

Part #21447230

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor 93001747
#39

Upper assembly diagram

Vacuum motor

Part #93001747

The manufacturer no longer makes this part, and there's no substitute part

Receptacle 91001034
#19

Upper assembly diagram

Receptacle

Part #91001034

The manufacturer no longer makes this part, and there's no substitute part

Guard Plate 92001039
#27

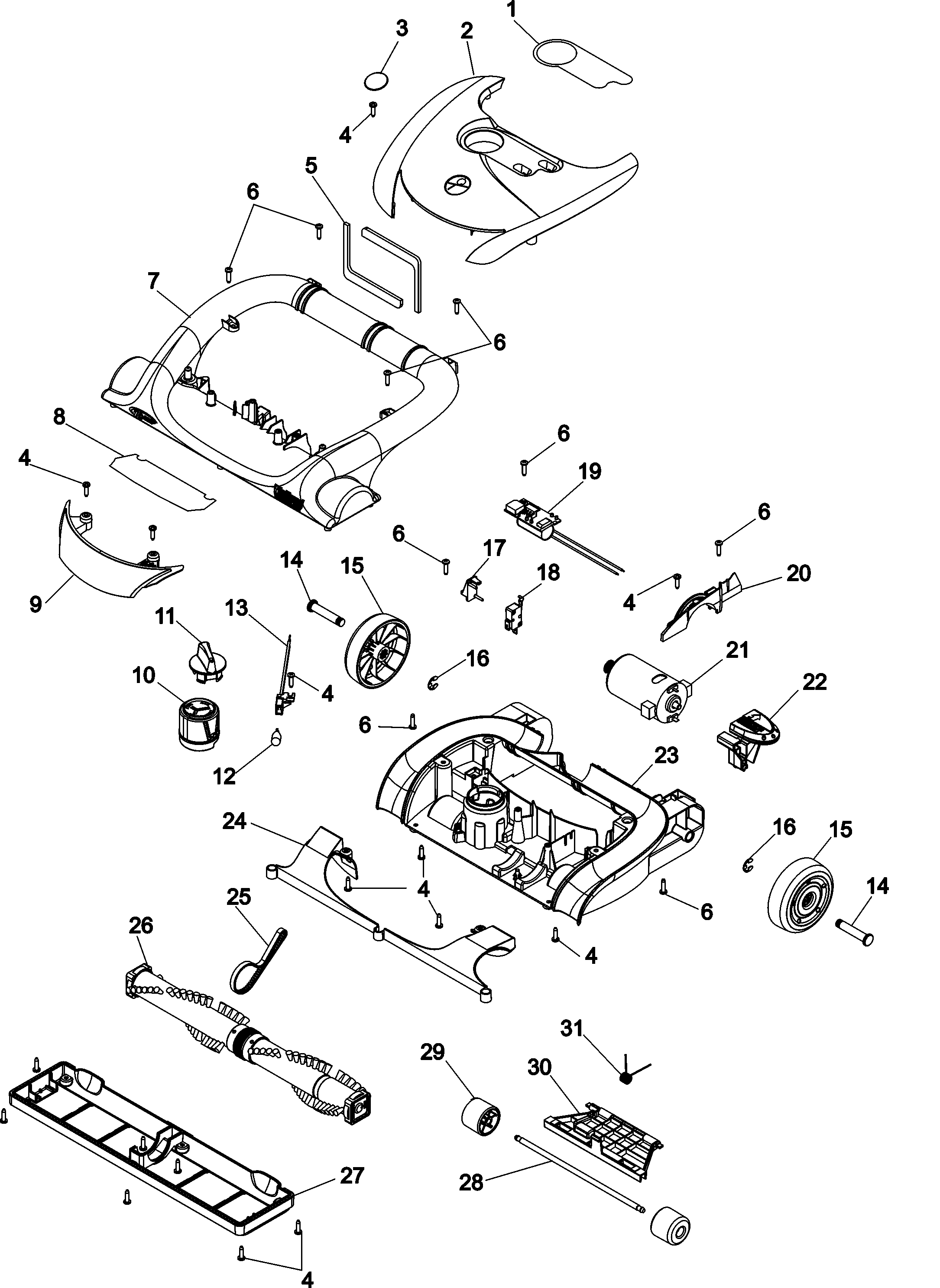

Foot assembly diagram

Guard plate

Part #92001039

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Light Bulb 27313107
#12

Foot assembly diagram

Vacuum light bulb

Part #27313107

The manufacturer no longer makes this part, and there's no substitute part

Cam 92001050
#11

Foot assembly diagram

Cam

Part #92001050

The manufacturer no longer makes this part, and there's no substitute part

Foam 34163016
#37

Upper assembly diagram

Foam

Part #34163016

The manufacturer no longer makes this part, and there's no substitute part

Final Filter 38769017
#36

Upper assembly diagram

Final filter

Part #38769017

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Front Roller Torsion Spring 38355010
#31

Foot assembly diagram

Vacuum front roller torsion spring

Part #38355010

The manufacturer no longer makes this part, and there's no substitute part

Inlet Seal 38783029
#18

Upper assembly diagram

Inlet seal

Part #38783029

The manufacturer no longer makes this part, and there's no substitute part
