Model # 580320080 Official Craftsman alternator

Here are the diagrams and repair parts for Official Craftsman 580320080 alternator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Cap Screw 22531
#14

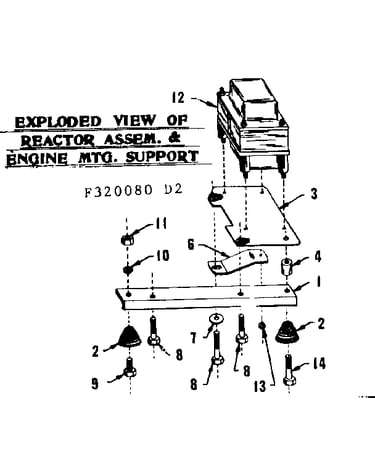

Reactor assembly & engine mounting support diagram

Cap screw

Part #22531

Replaced by #5025011X14SM

?
Manufacturer substitution
This part replaces 22531. Substitute parts can look different from the original.
This item is not returnable
$6.94
In Stock
Screw 24419
#20

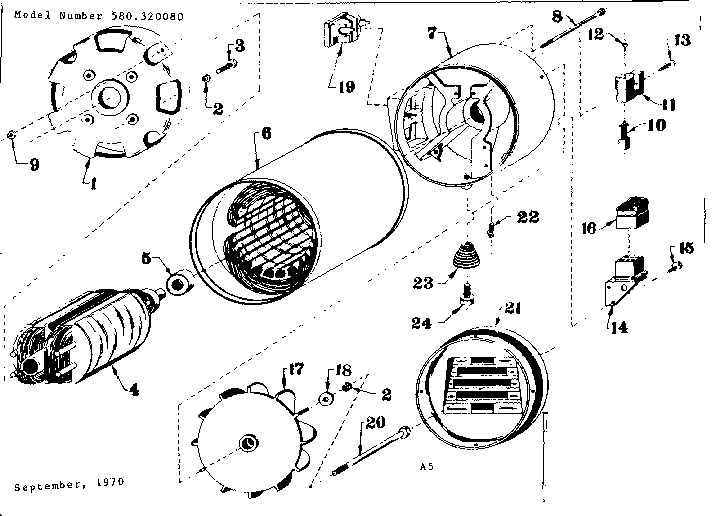

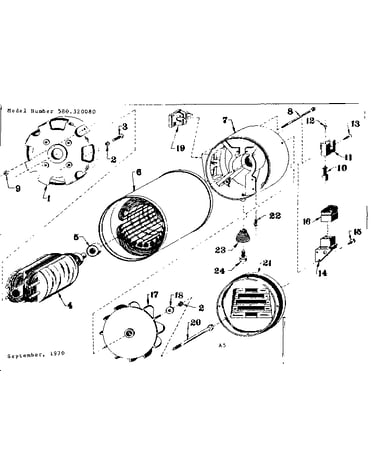

Stator assembly diagram

Screw

Part #24419

Replaced by #24419GS

?
Manufacturer substitution
This part replaces 24419. Substitute parts can look different from the original.
$24.27
In Stock
Wire Assembly 25835-85
#12

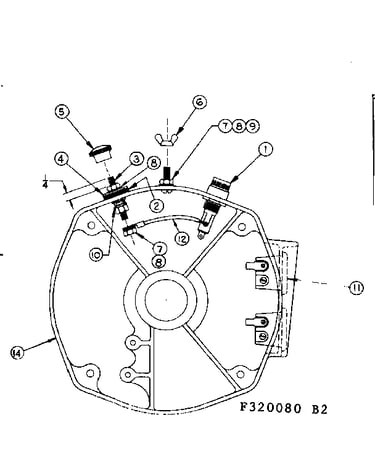

Rear bearing carrier asm w/battery charging terminals diagram

Wire assembly

Part #25835-85

The manufacturer no longer makes this part, and there's no substitute part

Screw 24489
#15

Stator assembly diagram

Screw

Part #24489

The manufacturer no longer makes this part, and there's no substitute part

Support 24216
#6

Reactor assembly & engine mounting support diagram

Support

Part #24216

The manufacturer no longer makes this part, and there's no substitute part

Wing Nut 26880
#6

Rear bearing carrier asm w/battery charging terminals diagram

Wing nut

Part #26880

The manufacturer no longer makes this part, and there's no substitute part

Screw 24488
#13

Stator assembly diagram

Screw

Part #24488

The manufacturer no longer makes this part, and there's no substitute part

Rectifier A-22695
#16

Stator assembly diagram

Rectifier

Part #A-22695

The manufacturer no longer makes this part, and there's no substitute part

Washer 23502
#4

Rear bearing carrier asm w/battery charging terminals diagram

Washer

Part #23502

The manufacturer no longer makes this part, and there's no substitute part

Handle 23877-C
#11

Stator assembly diagram

Handle

Part #23877-C

The manufacturer no longer makes this part, and there's no substitute part
