Model # GF420RXW3 Official White-Westinghouse gas range - 5995251617

Here are the diagrams and repair parts for Official White-Westinghouse GF420RXW3 gas range - 5995251617, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

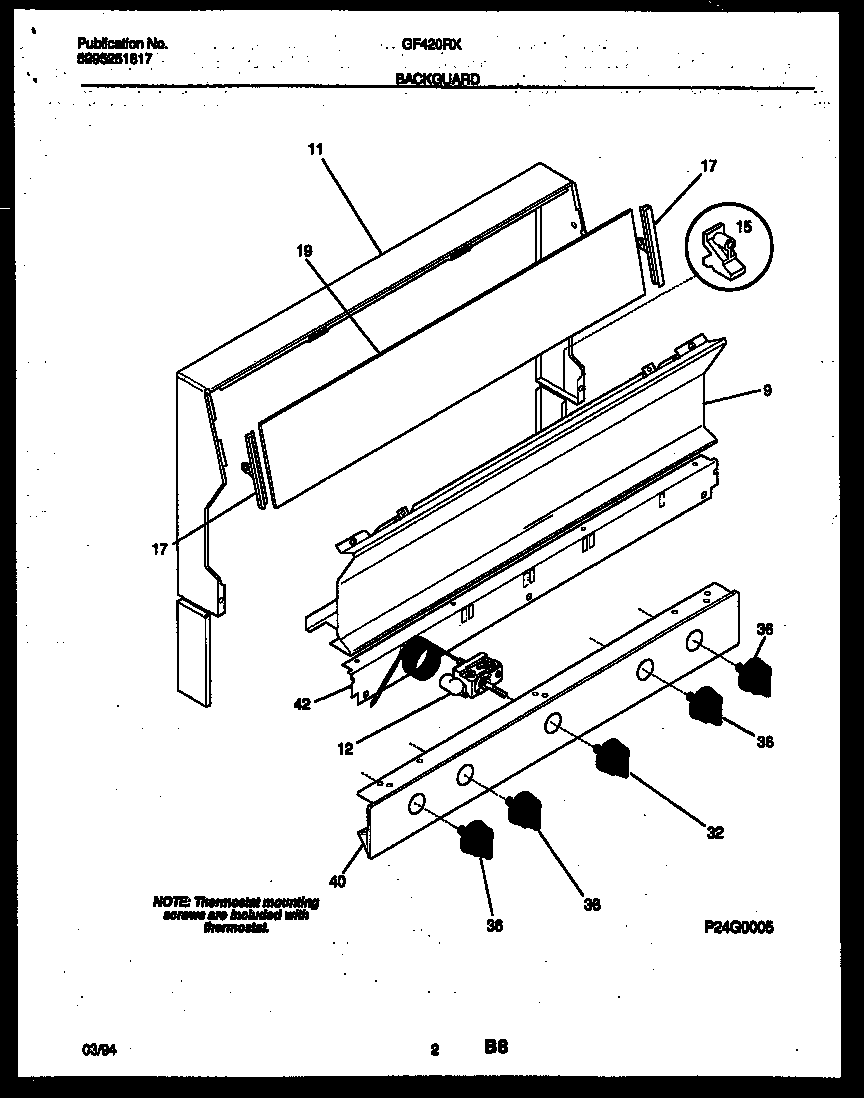

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Range Surface Burner Head, Front 316039002
#10

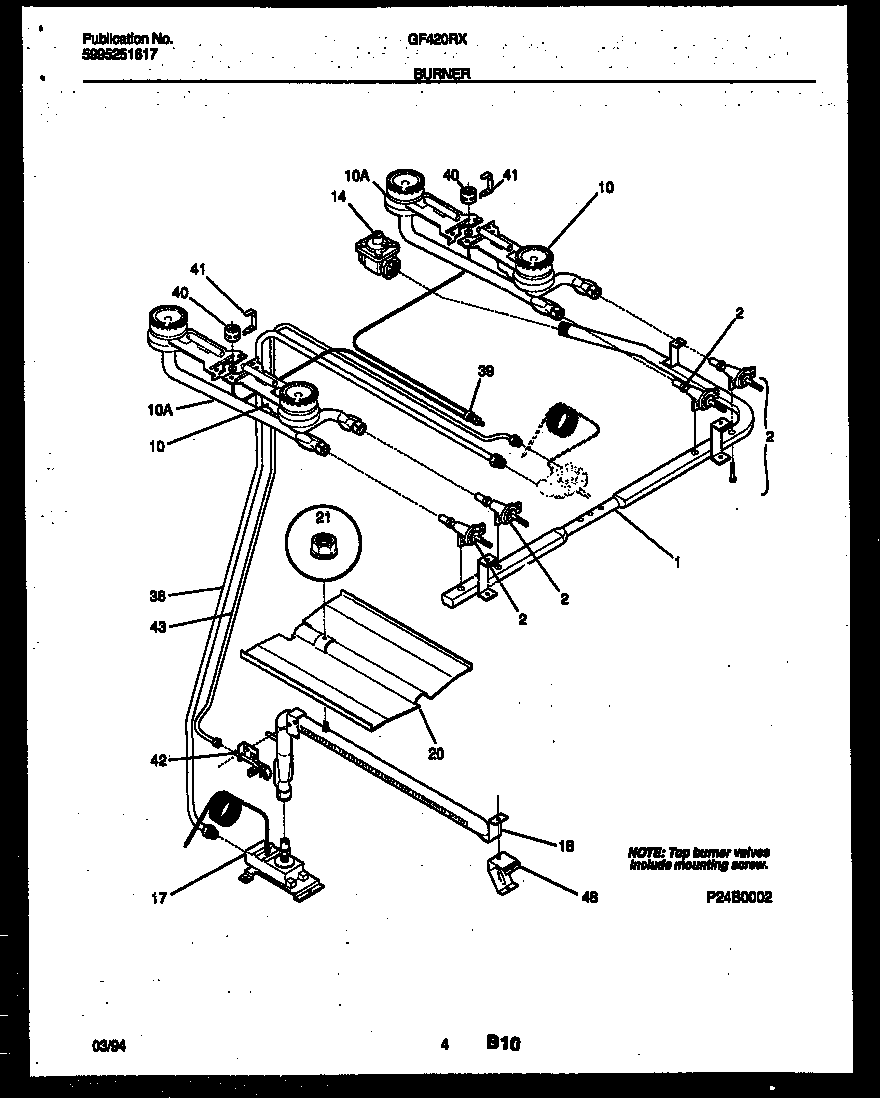

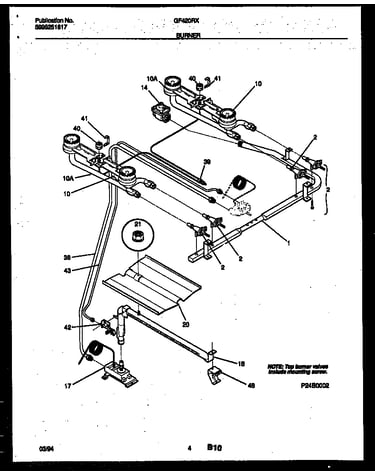

Burner, manifold and gas control diagram

Range surface burner head, front

Part #316039002

Replaced by #5304506427

?
Manufacturer substitution
This part replaces 316039002. Substitute parts can look different from the original.
$63.08 |
9% OFF Phone Price : $69.08
In Stock
Range Hex Nut 5303013272
#21

Burner, manifold and gas control diagram

Range hex nut

Part #5303013272

This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Oven Rack 5303281625
#6

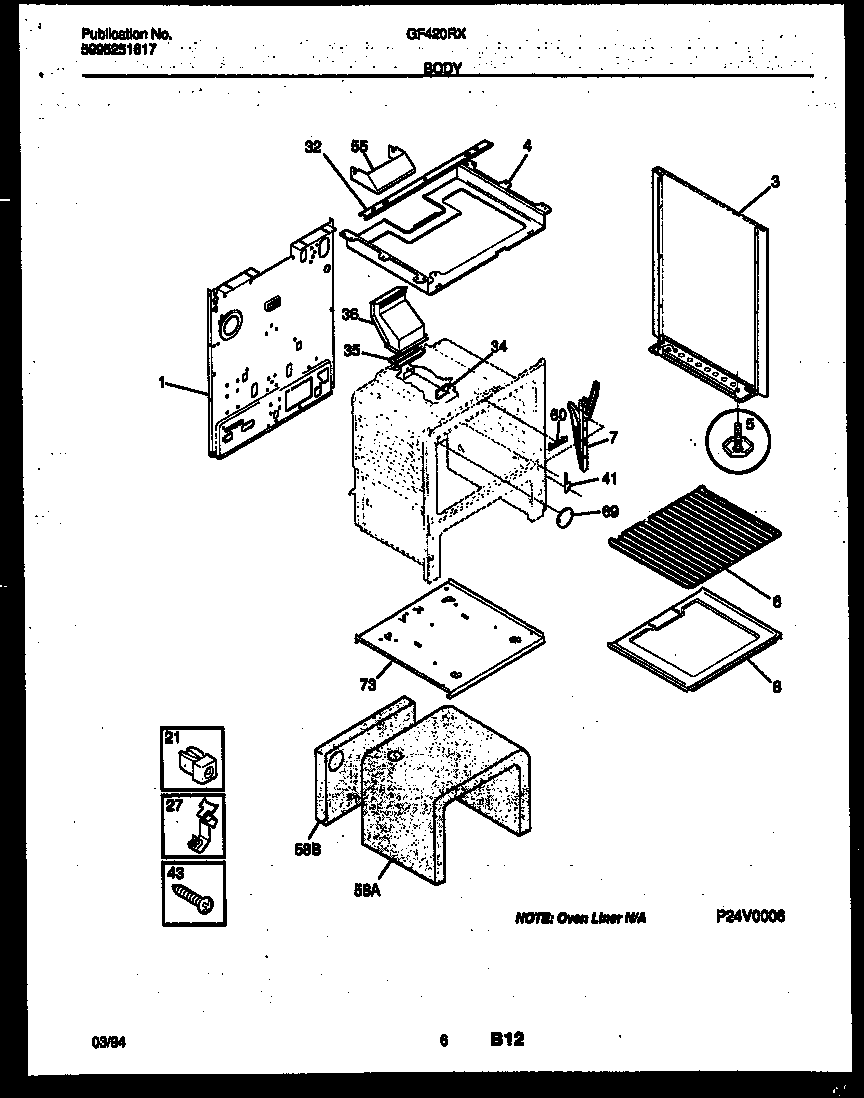

Body parts diagram

Oven rack

Part #5303281625

Replaced by #5304526378

?
Manufacturer substitution
This part replaces 5303281625. Substitute parts can look different from the original.
$36.71 |
14% OFF Phone Price : $42.71
In Stock
Range Screw 3131732
#43

Body parts diagram

Range screw

Part #3131732

Replaced by #316282700

?
Manufacturer substitution
This part replaces 3131732. Substitute parts can look different from the original.
This item is not returnable
$10.49 |
16% OFF Phone Price : $12.49
In Stock
Gasket 08067965
#35

Body parts diagram

Gasket

Part #08067965

Replaced by #316542102

?
Manufacturer substitution
This part replaces 08067965. Substitute parts can look different from the original.
$12.51 |
14% OFF Phone Price : $14.51
In Stock
Range Surface Burner Grate (replaces 000279885, 316040807, 5303012700, Q000279885) 316055800
#20

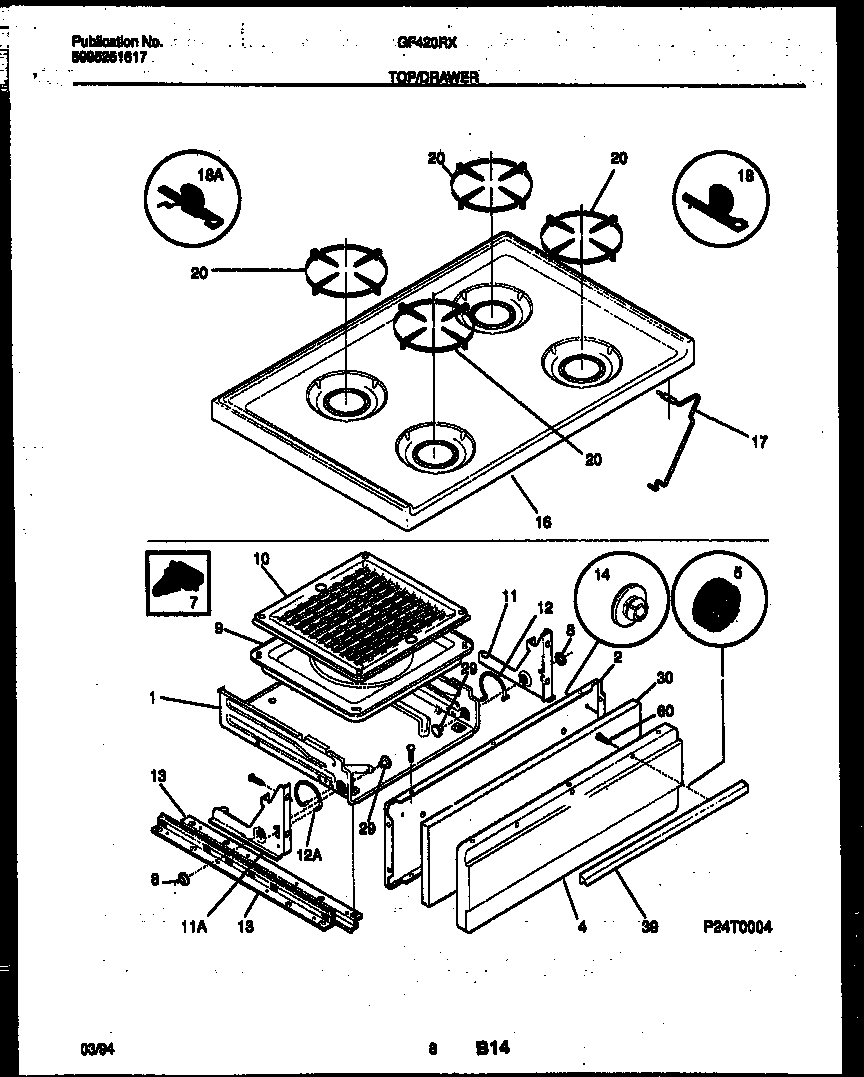

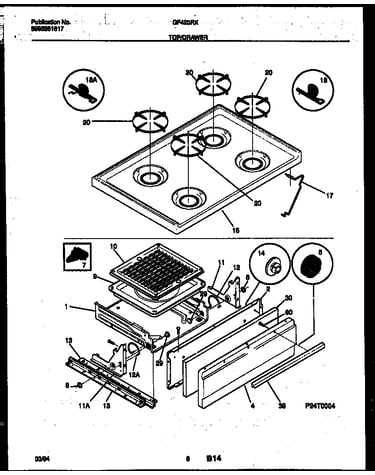

Cooktop and broiler drawer parts diagram

Range surface burner grate (replaces 000279885, 316040807, 5303012700, q000279885)

Part #316055800

$37.00 |
14% OFF Phone Price : $43.00
In Stock
Range Oven Burner Pilot Tube 3203398
#43

Burner, manifold and gas control diagram

Range oven burner pilot tube

Part #3203398

$103.82
In Stock
Plate-oven L 3051218
#69

Body parts diagram

Plate-oven l

Part #3051218

$54.42
In Stock
Range Oven Door Seal 5303202011
#12

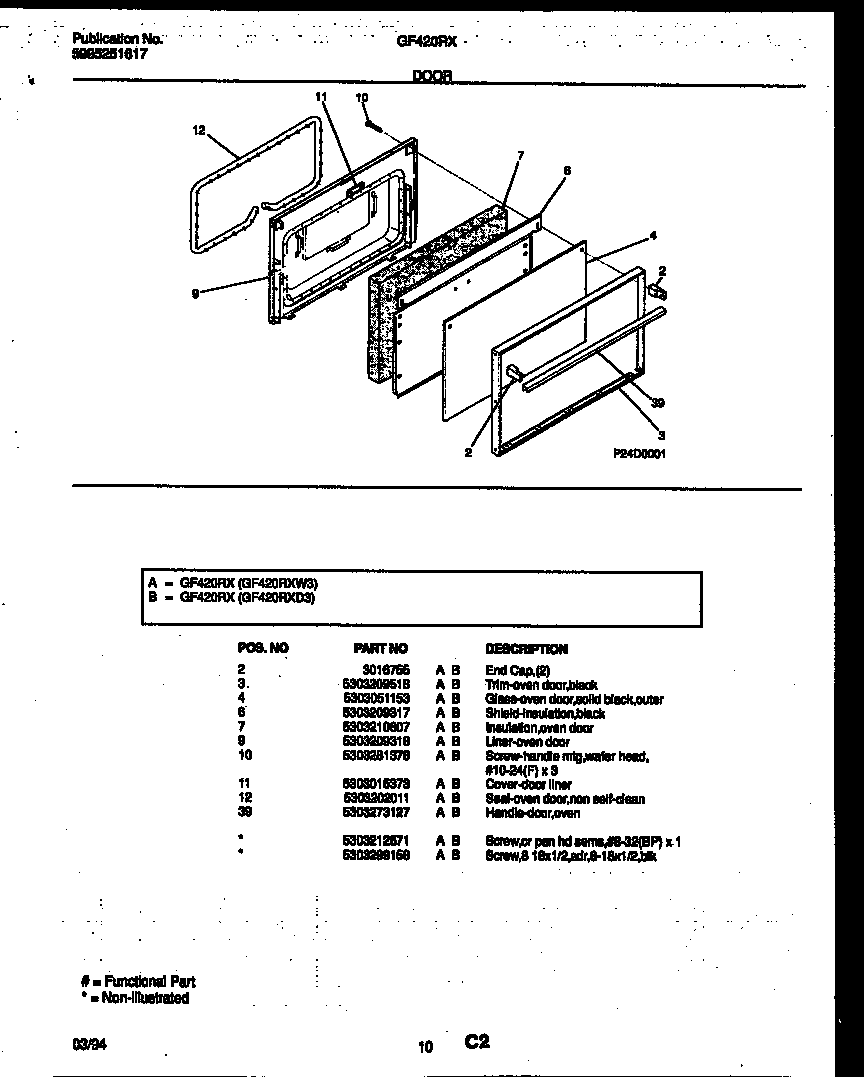

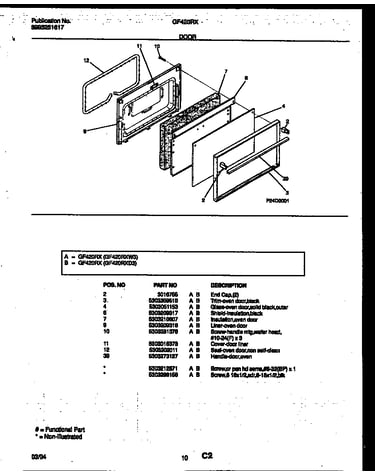

Door parts diagram

Range oven door seal

Part #5303202011

$91.55 |
6% OFF Phone Price : $97.55
In Stock
Range Oven Burner Pilot Assembly 5303280589
#42

Burner, manifold and gas control diagram

Range oven burner pilot assembly

Part #5303280589

$95.59
In Stock
