Model # IWL12-96154B Official Fisher & Paykel washer

Here are the diagrams and repair parts for Official Fisher & Paykel IWL12-96154B washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |
Fisher & Paykel Washer Agitator (replaces 478083p) 425025P
#6

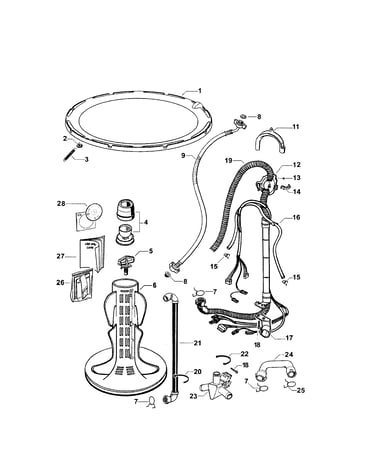

Agitator and hoses diagram

Fisher & paykel washer agitator (replaces 478083p)

Part #425025P

$137.24 |
8% OFF Phone Price : $149.24
In Stock
Susp. Assy 426750P
#13

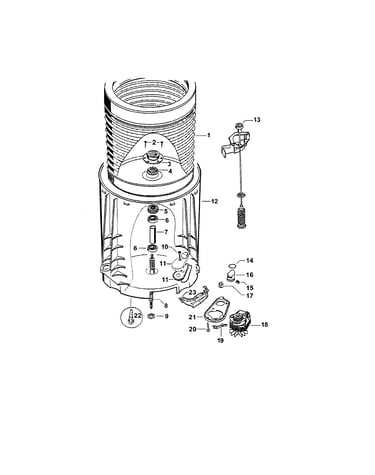

Inner & outer bowls/pump diagram

Susp. assy

Part #426750P

Replaced by #420952P

?
Manufacturer substitution
This part replaces 426750P. Substitute parts can look different from the original.
$152.47 |
7% OFF Phone Price : $164.47
In Stock
Fisher & Paykel Washer Drain Pump Bellows O-ring 425149
#14

Inner & outer bowls/pump diagram

Fisher & paykel washer drain pump bellows o-ring

Part #425149

$15.49 |
11% OFF Phone Price : $17.49
In Stock
Fisher & Paykel Washer Water Inlet Valve 420238P
#13

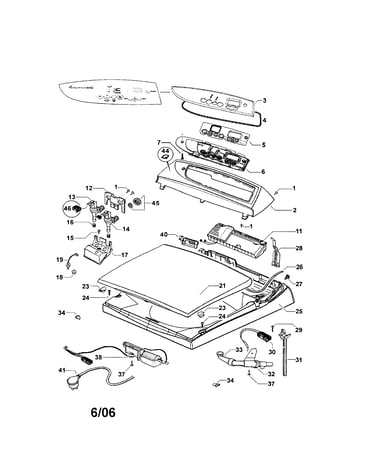

Top deck and electronics diagram

Fisher & paykel washer water inlet valve

Part #420238P

$190.19 |
6% OFF Phone Price : $202.19
In Stock
Dryer Leveling Leg 472969P
#6

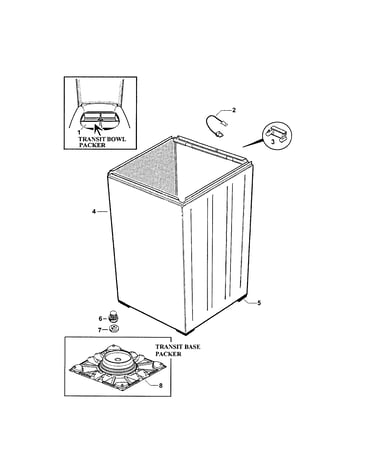

Wrapper diagram

Dryer leveling leg

Part #472969P

$11.99
In Stock
Washer Inlet Valve Seal 425251
Washer inlet valve seal

Part #425251

This item is not returnable
$6.99
In Stock
Fisher & Paykel Screw 425131P
#2

Inner & outer bowls/pump diagram

Fisher & paykel screw

Part #425131P

$11.82
In Stock
Fisher & Paykel Washer Electronic Control Board (replaces 420094p, 420377usp) 420094USP
#11

Top deck and electronics diagram

Fisher & paykel washer electronic control board (replaces 420094p, 420377usp)

Part #420094USP

$379.33 |
$12.00 OFF Phone Price : $391.33
In Stock
Foot 426153
#4B

Wrapper diagram

Foot

Part #426153

Replaced by #472969P

?
Manufacturer substitution
This part replaces 426153. Substitute parts can look different from the original.
$11.99
In Stock
Clip 425128
#19

Inner & outer bowls/pump diagram

Clip

Part #425128

Replaced by #425128P

?
Manufacturer substitution
This part replaces 425128. Substitute parts can look different from the original.
This item is not returnable
$7.15 |
12% OFF Phone Price : $8.15
In Stock
