Model # RD19F3WU3A Official Gibson top-mount refrigerator - lg30588190

Here are the diagrams and repair parts for Official Gibson RD19F3WU3A top-mount refrigerator - lg30588190, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 175 parts  |
Filter Drier G186717
#13

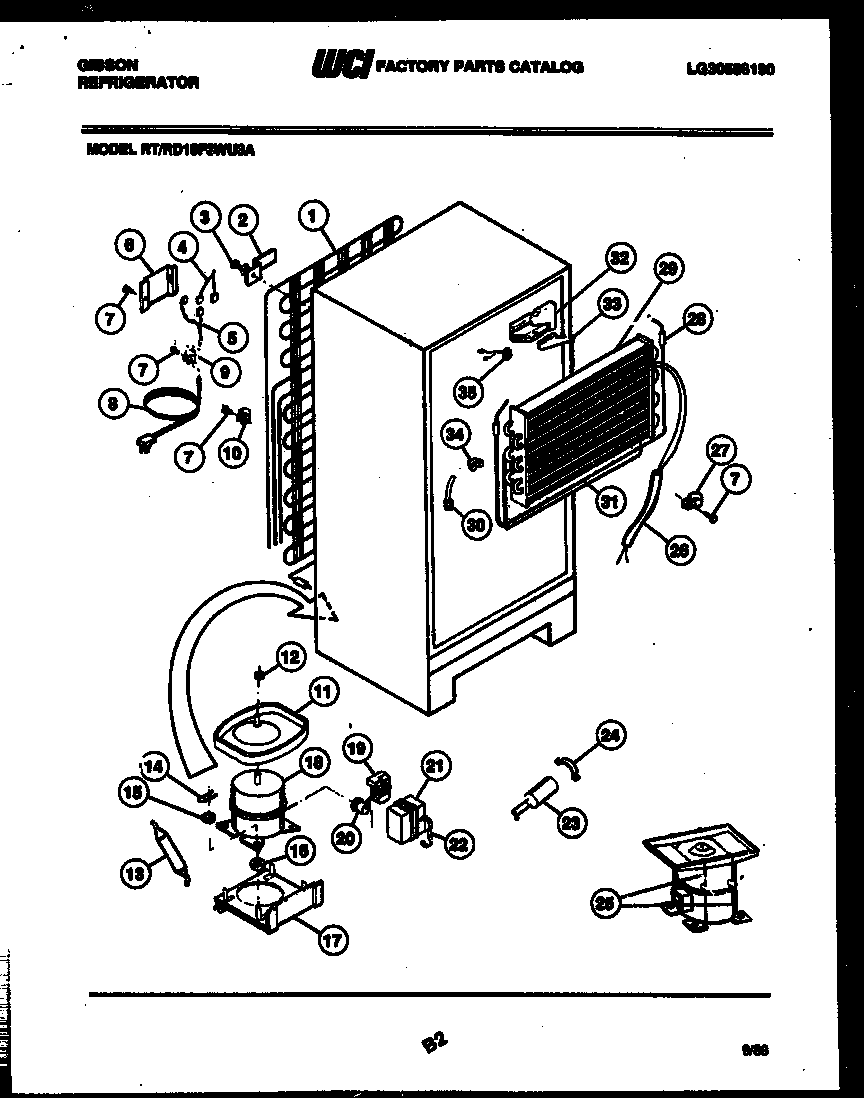

System and automatic defrost parts diagram

Filter drier

Part #G186717

Replaced by #5303305677

?
Manufacturer substitution
This part replaces G186717. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Fan Blade G174705
#5

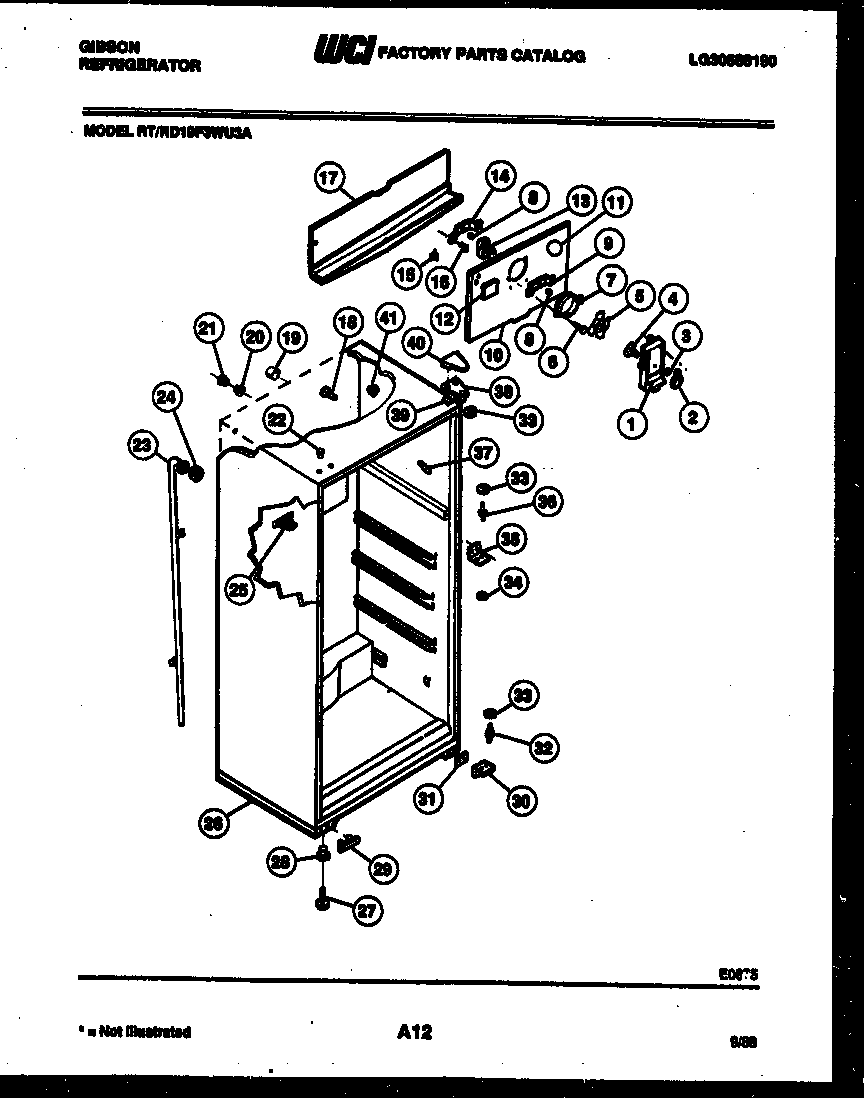

Cabinet parts diagram

Fan blade

Part #G174705

Replaced by #5308000010

?
Manufacturer substitution
This part replaces G174705. Substitute parts can look different from the original.
BEST SELLER
$41.13 |
13% OFF Phone Price : $47.13
In Stock
Defrost Thermostat G162690-01
#35

System and automatic defrost parts diagram

Defrost thermostat

Part #G162690-01

Replaced by #5303917954

?
Manufacturer substitution
This part replaces G162690-01. Substitute parts can look different from the original.
BEST SELLER
$24.36 |
20% OFF Phone Price : $30.36
In Stock
Tube G142176-11
#15

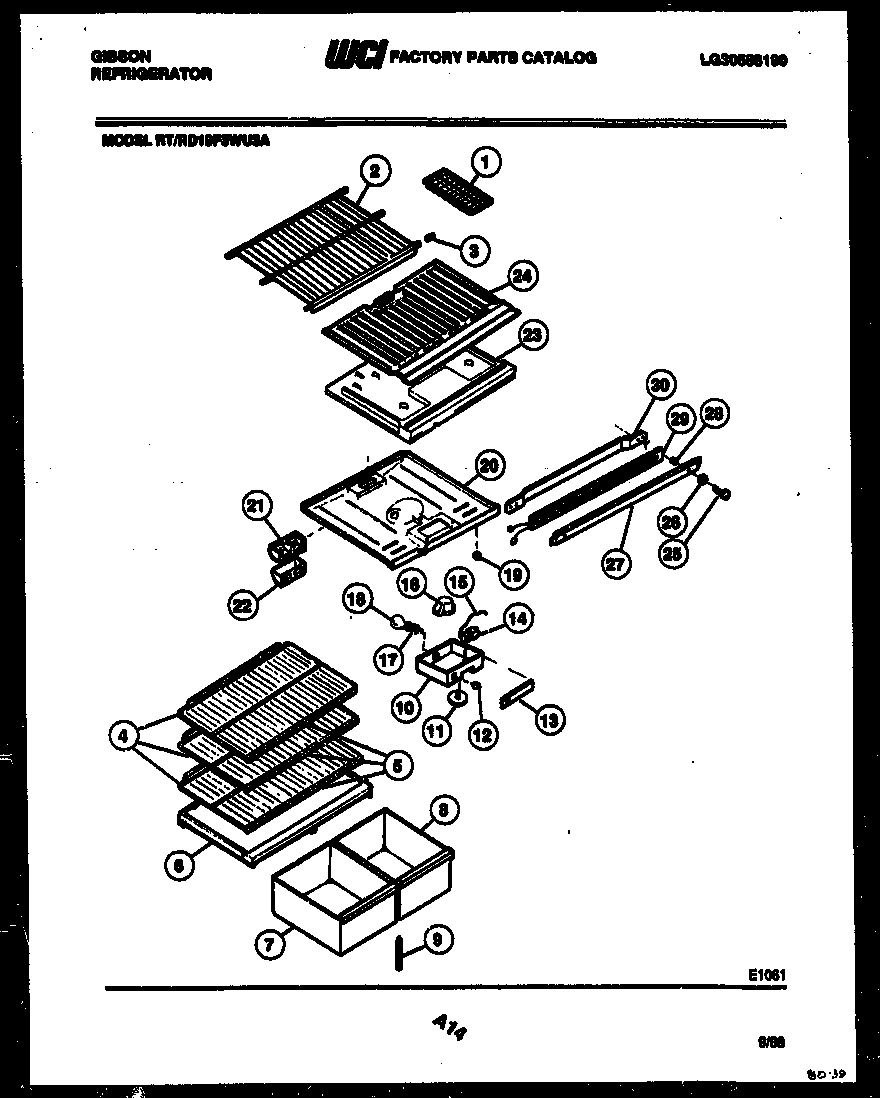

Shelves and supports diagram

Tube

Part #G142176-11

Replaced by #5303916855

?
Manufacturer substitution
This part replaces G142176-11. Substitute parts can look different from the original.
$47.89 |
11% OFF Phone Price : $53.89
In Stock
Refrigerator Gasket G186932-13
#2

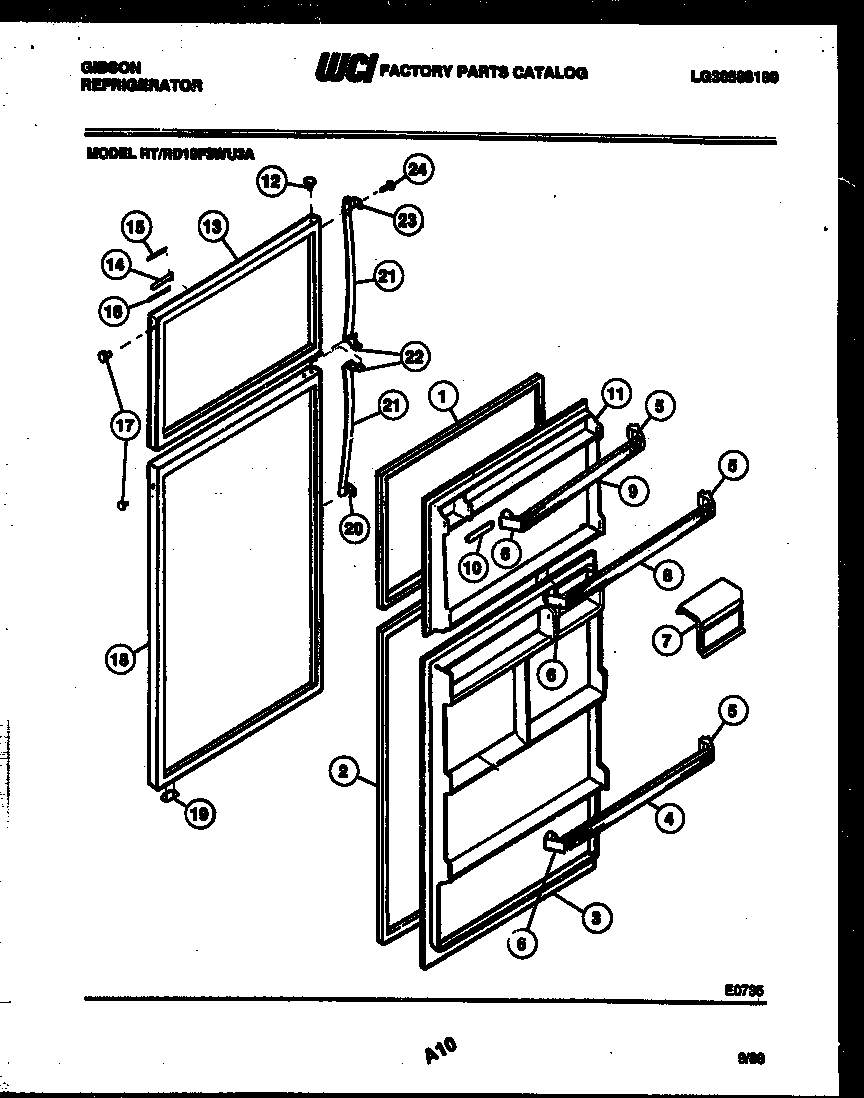

Door parts diagram

Refrigerator gasket

Part #G186932-13

Replaced by #218730609

?
Manufacturer substitution
This part replaces G186932-13. Substitute parts can look different from the original.
$107.82 |
10% OFF Phone Price : $119.82
In Stock
Ice Tray G156376-13
#1

Shelves and supports diagram

Ice tray

Part #G156376-13

Replaced by #215667501

?
Manufacturer substitution
This part replaces G156376-13. Substitute parts can look different from the original.
This item is not returnable
$4.30 |
19% OFF Phone Price : $5.30
In Stock
Light Switch G162672
#19

Shelves and supports diagram

Light switch

Part #G162672

Replaced by #5309918806

?
Manufacturer substitution
This part replaces G162672. Substitute parts can look different from the original.
This item is not returnable
$22.76 |
21% OFF Phone Price : $28.76
In Stock
Refrigerator Screw G187009
Refrigerator screw

Part #G187009

Replaced by #5304455651

?
Manufacturer substitution
This part replaces G187009. Substitute parts can look different from the original.
$13.26
In Stock
Screw G162585
Screw

Part #G162585

Replaced by #5304455651

?
Manufacturer substitution
This part replaces G162585. Substitute parts can look different from the original.
$13.26
In Stock
Refrigerator Button Plug G162977-01
#17

Door parts diagram

Refrigerator button plug

Part #G162977-01

Replaced by #240494001

?
Manufacturer substitution
This part replaces G162977-01. Substitute parts can look different from the original.
This item is not returnable
$19.78 |
9% OFF Phone Price : $21.78
In Stock
