Model # 11083170800 Official Kenmore electric washer
Here are the diagrams and repair parts for Official Kenmore 11083170800 electric washer, as well as links to manuals and error code tables, if available.
By Schematic
By Part

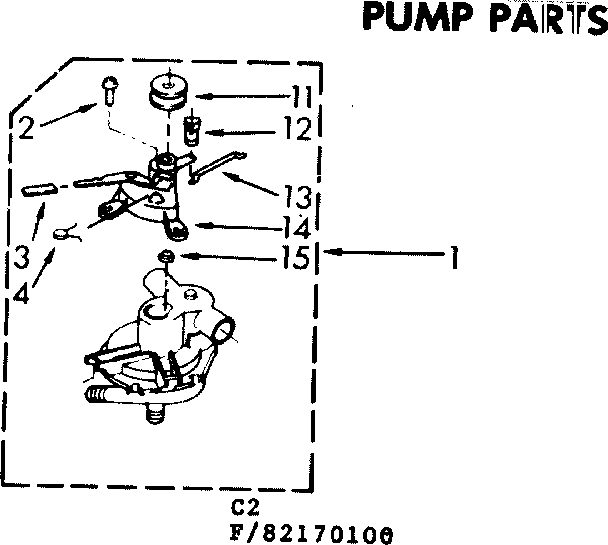

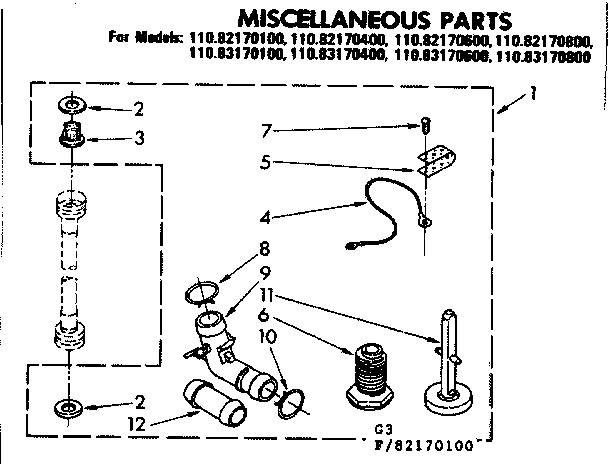

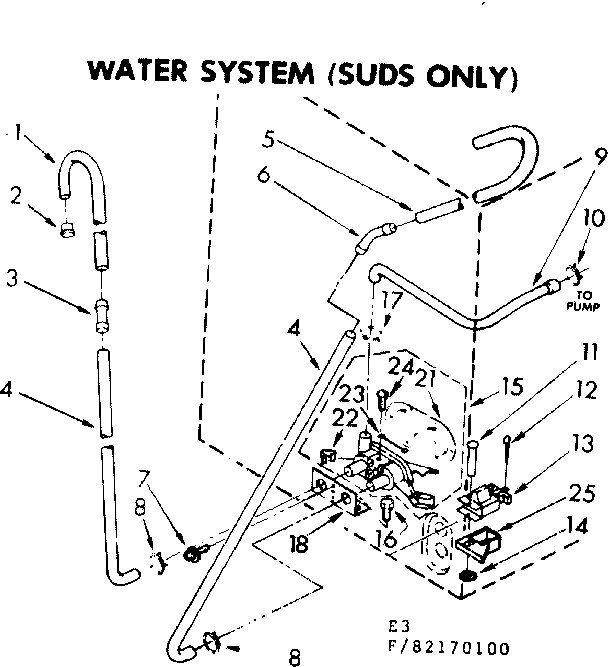

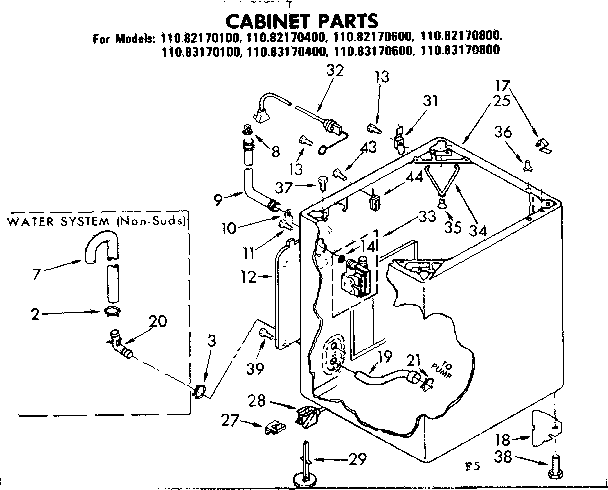

SELECT DIAGRAM
Browse Parts for11083170800 Electric Washer
- #11

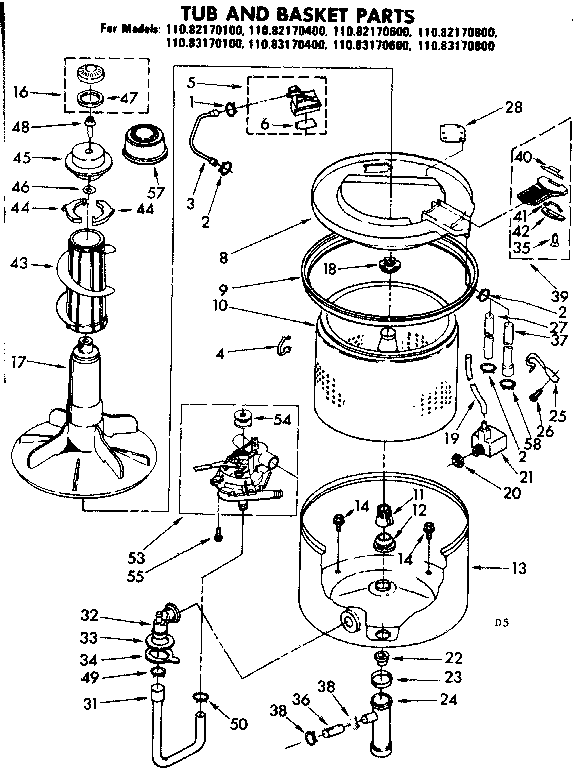

Tub and basket part diagram
BlockPart #357782
Replaced by #WP389140
?Manufacturer substitutionThis part replaces 357782. Substitute parts can look different from the original.$18.87 |10% OFF Phone Price : $20.87In Stock - #12
Tub and basket part diagram
GasketPart #96690
Replaced by #W10814296
?Manufacturer substitutionThis part replaces 96690. Substitute parts can look different from the original.This item is not returnable$3.69 |21% OFF Phone Price : $4.69In Stock - #69

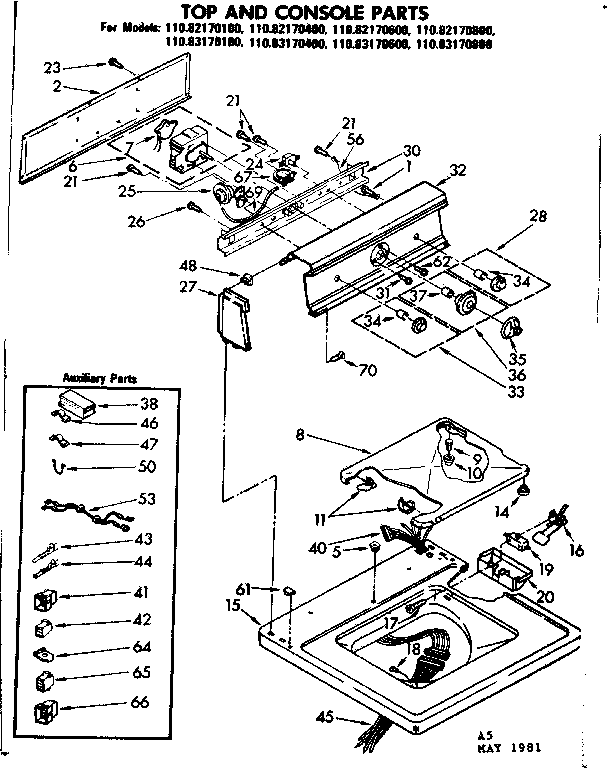

Top and console parts diagram
HosePart #358957
Replaced by #WP353244
?Manufacturer substitutionThis part replaces 358957. Substitute parts can look different from the original.$43.64 |12% OFF Phone Price : $49.64In Stock - #19B
Tub and basket part diagram
HosePart #353404
Replaced by #WP353244
?Manufacturer substitutionThis part replaces 353404. Substitute parts can look different from the original.$43.64 |12% OFF Phone Price : $49.64In Stock - #19A
Tub and basket part diagram
HosePart #379878
Replaced by #WP353244
?Manufacturer substitutionThis part replaces 379878. Substitute parts can look different from the original.$43.64 |12% OFF Phone Price : $49.64In Stock - #28

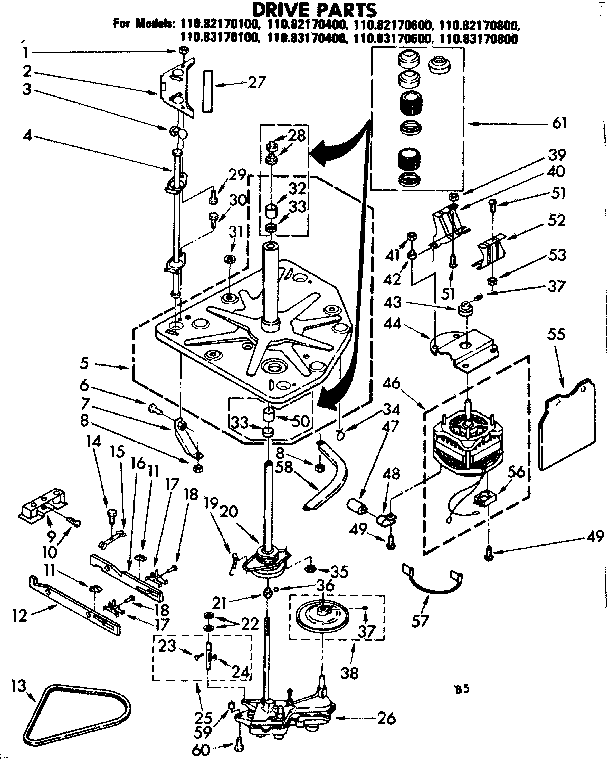

Drive parts diagram
Seal, center postPart #356934
Replaced by #WP8577376
?Manufacturer substitutionThis part replaces 356934. Substitute parts can look different from the original.$6.77 |28% OFF Was : $9.40In Stock - #47
Drive parts diagram
CapacitorPart #357021
Replaced by #WP8572717
?Manufacturer substitutionThis part replaces 357021. Substitute parts can look different from the original.$51.90 |10% OFF Phone Price : $57.90In Stock - Hose clamp
Part #272858
Replaced by #WP285655
?Manufacturer substitutionThis part replaces 272858. Substitute parts can look different from the original.This item is not returnable$6.36 |14% OFF Phone Price : $7.36In Stock - Clamp
Part #370445
Replaced by #WP285655
?Manufacturer substitutionThis part replaces 370445. Substitute parts can look different from the original.This item is not returnable$6.36 |14% OFF Phone Price : $7.36In Stock - #58
Tub and basket part diagram
Hose clampPart #272852
Replaced by #WP285655
?Manufacturer substitutionThis part replaces 272852. Substitute parts can look different from the original.This item is not returnable$6.36 |14% OFF Phone Price : $7.36In Stock
