Model # JT2504RC Official Craftsman table saw

Here are the diagrams and repair parts for Official Craftsman JT2504RC table saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

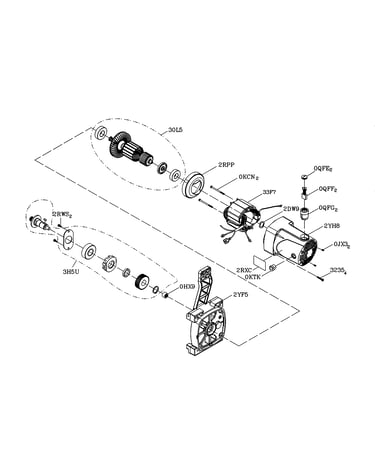

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 202 parts  |
Rip Fence Assembly 11493FAS
#3FAS

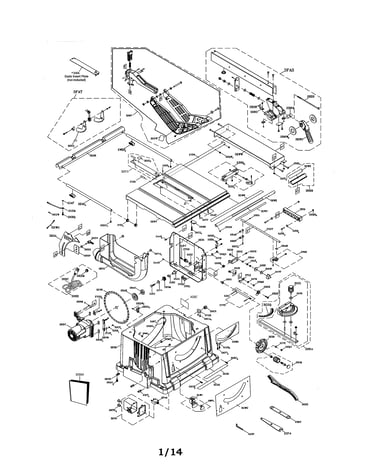

Table saw diagram

Rip fence assembly

Part #11493FAS

The manufacturer no longer makes this part, and there's no substitute part

Cr. Re. Truss Hd. Screw M6*1.0-8 2637BBDA37
#K74

Table saw diagram

Cr. re. truss hd. screw m6*1.0-8

Part #2637BBDA37

The manufacturer no longer makes this part, and there's no substitute part

Hex Hd. Bolt M6*1.0-40 2601BBDA45
#JPJ

Table saw diagram

Hex hd. bolt m6*1.0-40

Part #2601BBDA45

The manufacturer no longer makes this part, and there's no substitute part

Hex Hd. Bolt M10*1.5-90 26012JQM
#2JQM

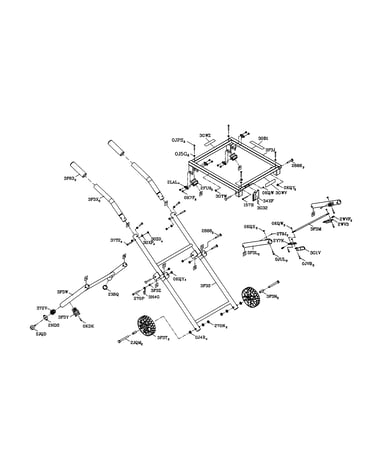

Stand diagram

Hex hd. bolt m10*1.5-90

Part #26012JQM

The manufacturer no longer makes this part, and there's no substitute part

Power Cable 2807308C
#308C

Table saw diagram

Power cable

Part #2807308C

The manufacturer no longer makes this part, and there's no substitute part

Hex Hd Screw And Washer M5*0.8-16 26152A48
#2A48

Table saw diagram

Hex hd screw and washer m5*0.8-16

Part #26152A48

The manufacturer no longer makes this part, and there's no substitute part

Worm 11352TDD
#2TDD

Table saw diagram

Worm

Part #11352TDD

The manufacturer no longer makes this part, and there's no substitute part

Label 11553G32
#3G32

Stand diagram

Label

Part #11553G32

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Table Insert Assembly 3GY5
#3GY5

Table saw diagram

Table saw table insert assembly

Part #3GY5

The manufacturer no longer makes this part, and there's no substitute part

Washer 2501MBDN26
#J4R

Stand diagram

Washer

Part #2501MBDN26

The manufacturer no longer makes this part, and there's no substitute part
