Countertop Microwave

Model # JEM5001 Official GE microwave

Here are the diagrams and repair parts for Official GE JEM5001 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Diode WB27X5333
#1439

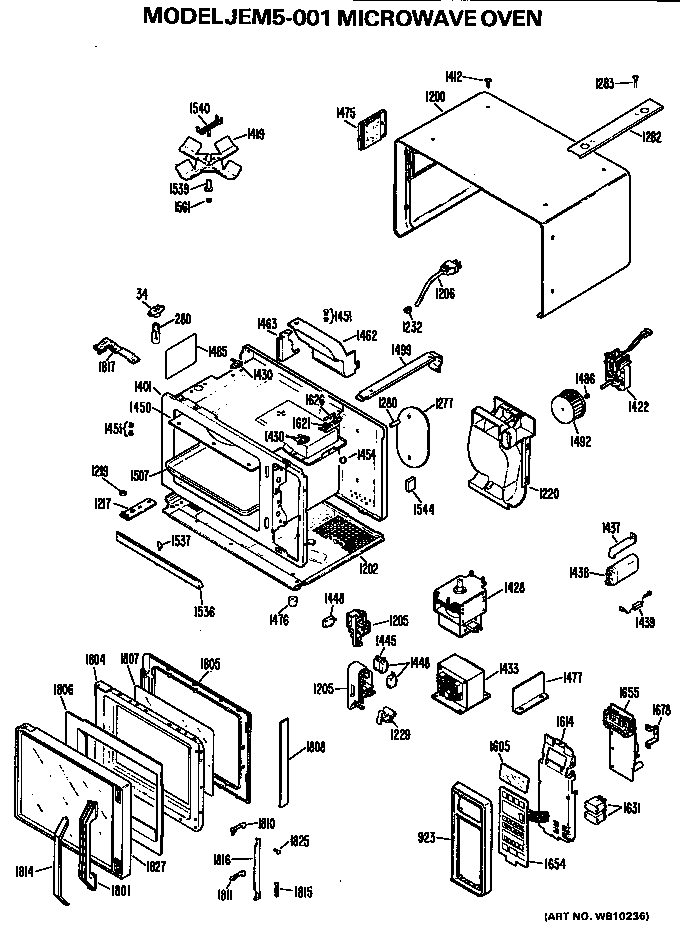

Microwave oven diagram

Diode

Part #WB27X5333

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X5333. Substitute parts can look different from the original.
BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Magnetron WB27X5334
#1428

Microwave oven diagram

Magnetron

Part #WB27X5334

The manufacturer no longer makes this part, and there's no substitute part

Bracket Mtg Transformer WB2X7557
#1678

Microwave oven diagram

Bracket mtg transformer

Part #WB2X7557

The manufacturer no longer makes this part, and there's no substitute part

Capacitor WB27X5332
#1438

Microwave oven diagram

Capacitor

Part #WB27X5332

The manufacturer no longer makes this part, and there's no substitute part

Bracket Lh WB2X7543
#1499A

Microwave oven diagram

Bracket lh

Part #WB2X7543

The manufacturer no longer makes this part, and there's no substitute part

Film WB2X7661
#1807

Microwave oven diagram

Film

Part #WB2X7661

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness WB18X192
#1648

Microwave oven diagram

Wire harness

Part #WB18X192

The manufacturer no longer makes this part, and there's no substitute part

Transformer H.v. Nut Ms WB1X5622

#NI

All parts diagram

Transformer h.v. nut ms

Part #WB1X5622

The manufacturer no longer makes this part, and there's no substitute part

Door Inner WB55X490
#1806

Microwave oven diagram

Door inner

Part #WB55X490

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire WB18X5081
#1650

Microwave oven diagram

Lead wire

Part #WB18X5081

The manufacturer no longer makes this part, and there's no substitute part
