GE
Countertop Microwave

Model # JEM5001 Official GE microwave

Here are the diagrams and repair parts for Official GE JEM5001 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

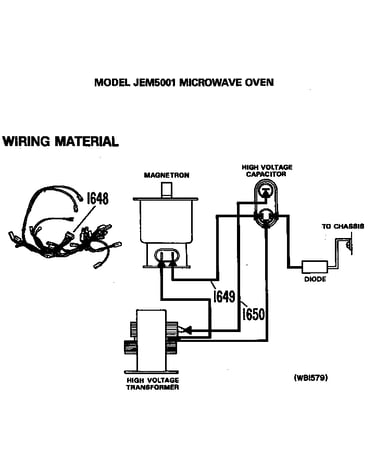

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Magnetron WB27X5334
#1428

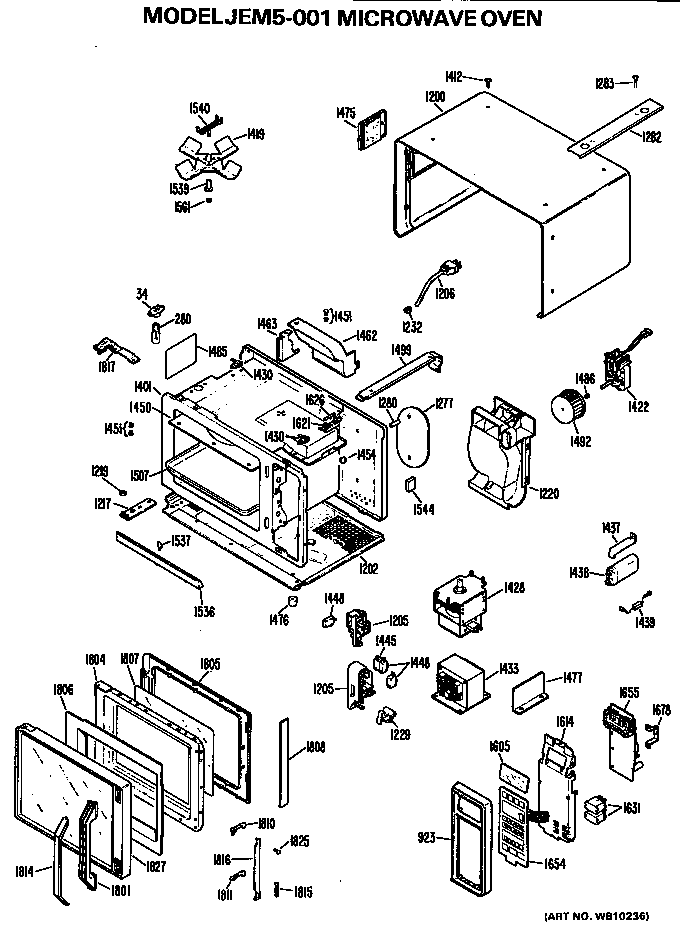

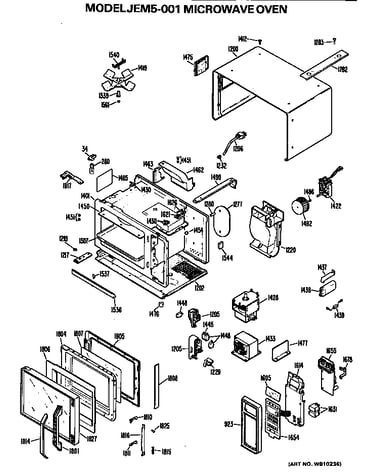

Microwave oven diagram

Magnetron

Part #WB27X5334

The manufacturer no longer makes this part, and there's no substitute part

Diode WB27X5333
#1439

Microwave oven diagram

Diode

Part #WB27X5333

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X5333. Substitute parts can look different from the original.
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Cord Bushing WB2X3931
#1232

Microwave oven diagram

Cord bushing

Part #WB2X3931

The manufacturer no longer makes this part, and there's no substitute part

Base WB49X489
#1202

Microwave oven diagram

Base

Part #WB49X489

The manufacturer no longer makes this part, and there's no substitute part

Screw WB1X5723

#NI

All parts diagram

Screw

Part #WB1X5723

The manufacturer no longer makes this part, and there's no substitute part

High-voltage Transformer WB27X5331
#1433

Microwave oven diagram

High-voltage transformer

Part #WB27X5331

The manufacturer no longer makes this part, and there's no substitute part

Film WB2X7661
#1807

Microwave oven diagram

Film

Part #WB2X7661

The manufacturer no longer makes this part, and there's no substitute part

Bracket Mtg Transformer WB2X7557
#1678

Microwave oven diagram

Bracket mtg transformer

Part #WB2X7557

The manufacturer no longer makes this part, and there's no substitute part

Capacitor Bracket WB2X7551
#1437

Microwave oven diagram

Capacitor bracket

Part #WB2X7551

The manufacturer no longer makes this part, and there's no substitute part

Air Guide WB2X3929
#1462

Microwave oven diagram

Air guide

Part #WB2X3929

The manufacturer no longer makes this part, and there's no substitute part
