Kenmore Elite
Bottom-Mount Refrigerator

Model # 79573165611 Official Kenmore Elite bottom-mount refrigerator

Here are the diagrams and repair parts for Official Kenmore Elite 79573165611 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

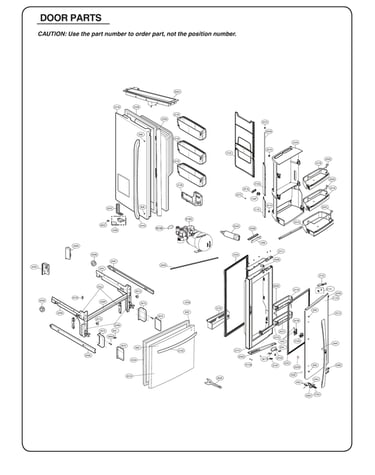

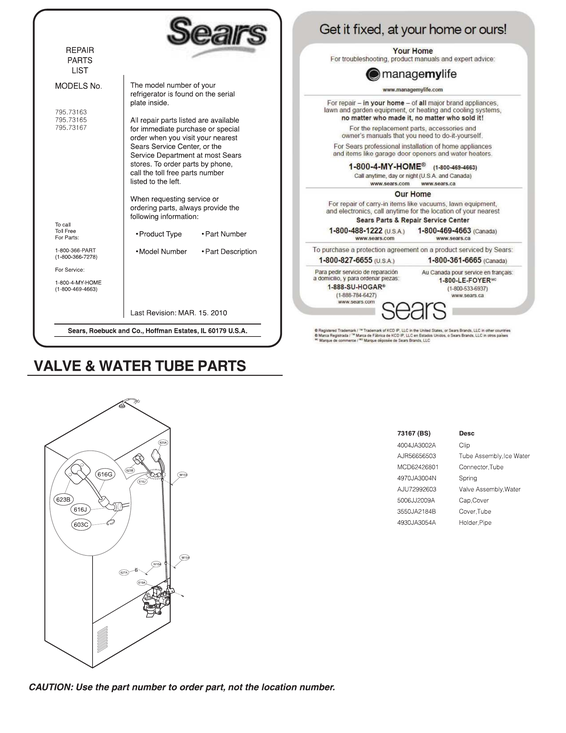

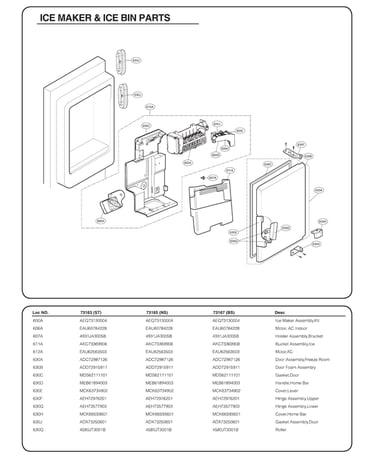

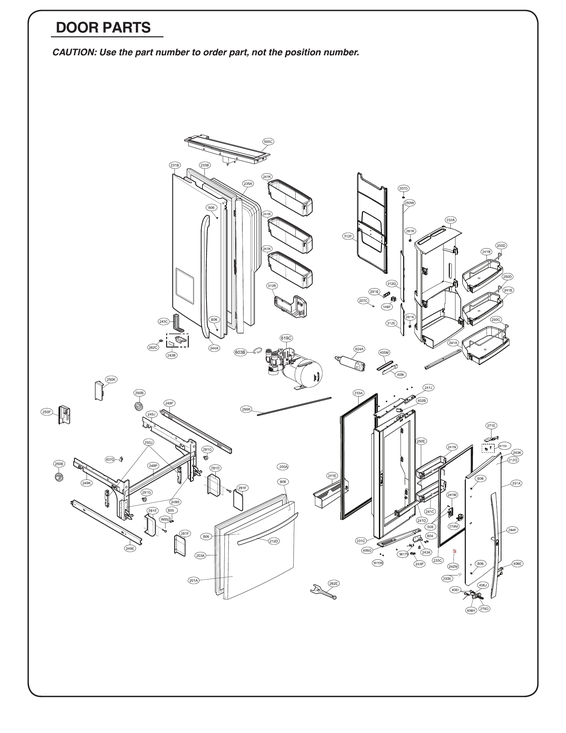

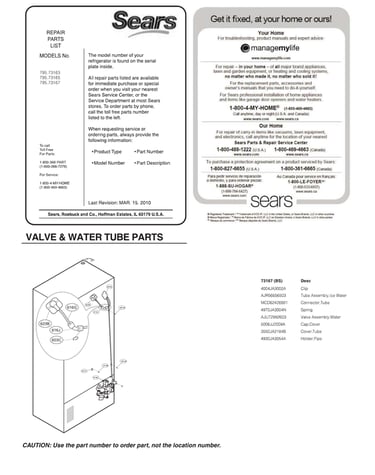

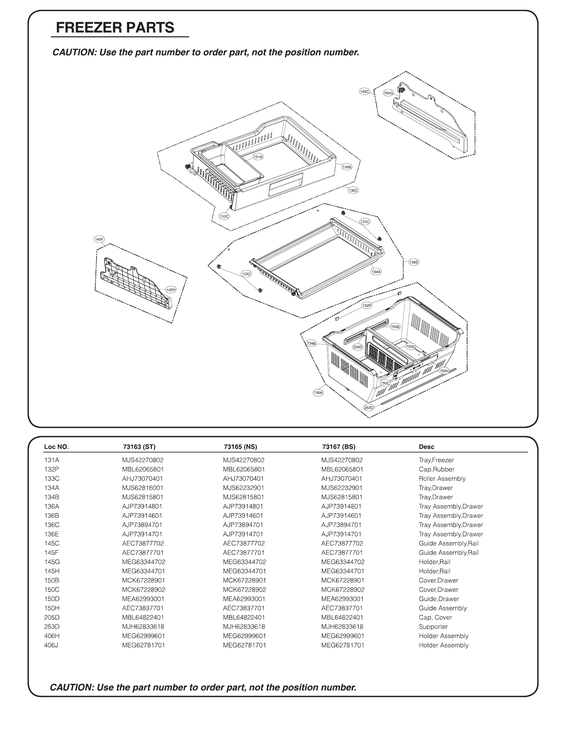

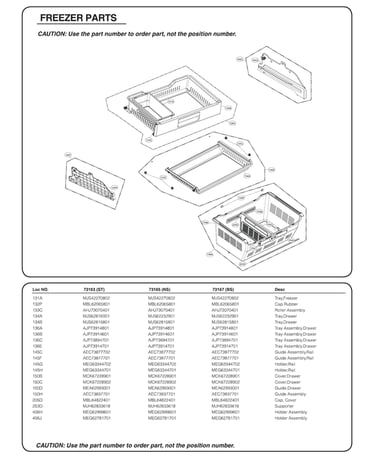

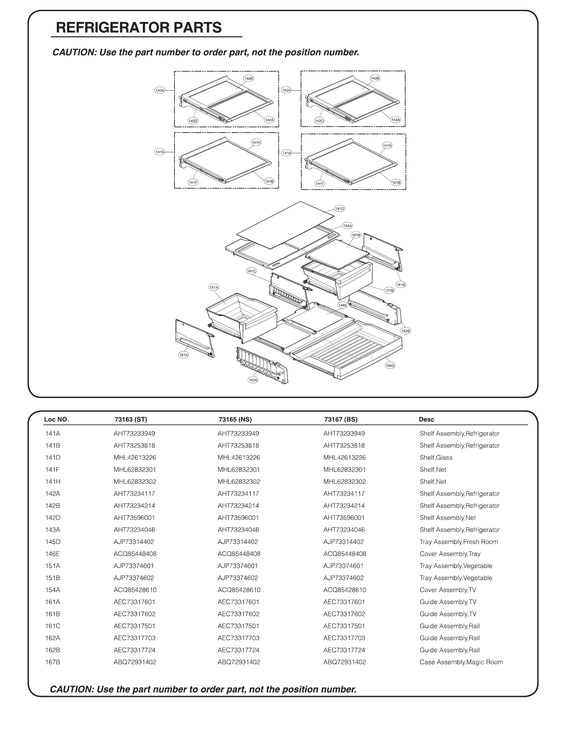

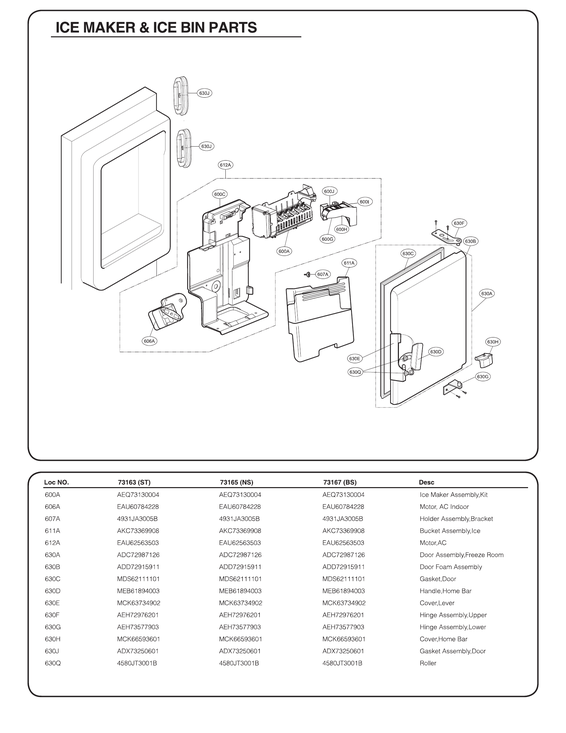

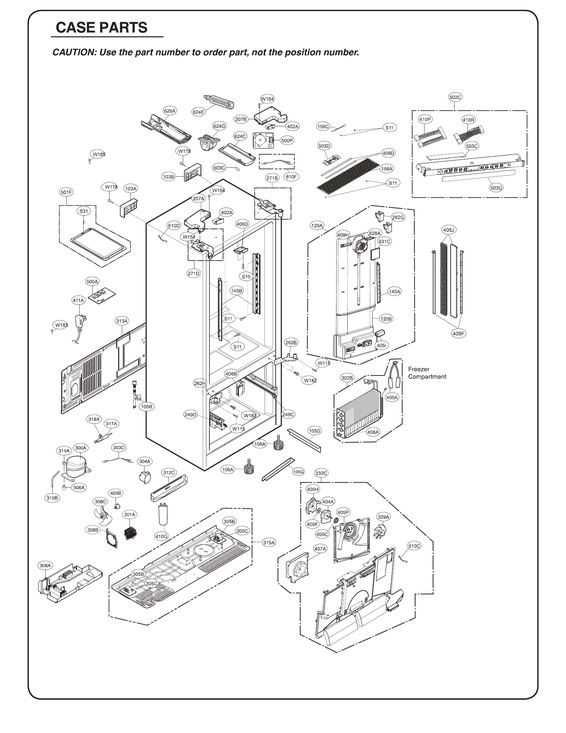

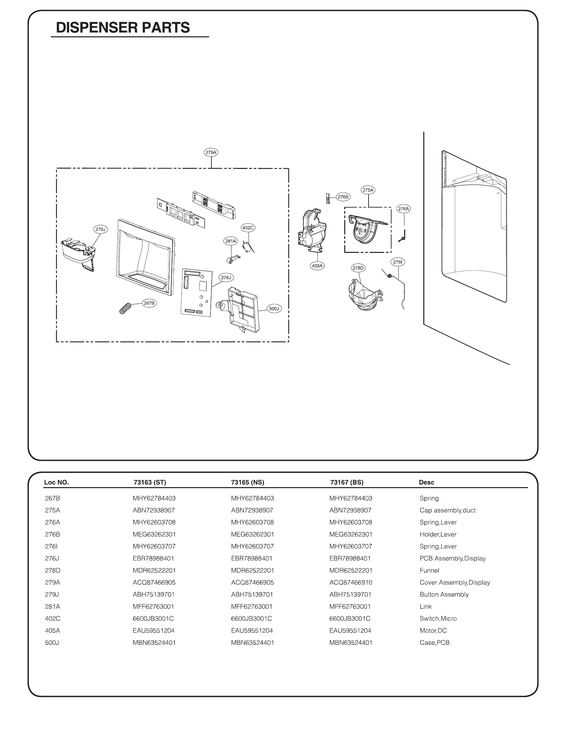

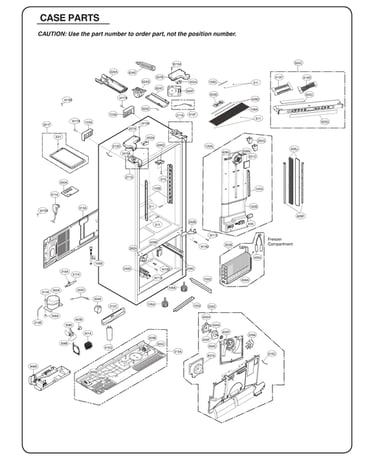

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 249 parts  |
Refrigerator Air Filter ADQ73214404

#631C

All parts diagram

Refrigerator air filter

Part #ADQ73214404

Replaced by #ADQ73214408

?
Manufacturer substitution
This part replaces ADQ73214404. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$31.91 |
16% OFF Phone Price : $37.91
In Stock
Kenmore Refrigerator Water Filter 9690 (adq36006114) ADQ36006114

#624A

All parts diagram

Kenmore refrigerator water filter 9690 (adq36006114)

Part #ADQ36006114

BEST SELLER

Get free shipping with Automatic Reorder

$67.95
In Stock
Refrigerator Condenser Coil ACG73645002

#301A

All parts diagram

Refrigerator condenser coil

Part #ACG73645002

Replaced by #ACG73645004

?
Manufacturer substitution
This part replaces ACG73645002. Substitute parts can look different from the original.
BEST SELLER
$112.29 |
10% OFF Phone Price : $124.29
In Stock
Refrigerator Ice Maker And Auger Motor Assembly EAU62563503

#612A

All parts diagram

Refrigerator ice maker and auger motor assembly

Part #EAU62563503

BEST SELLER
$212.96 |
5% OFF Phone Price : $224.96
In Stock
Refrigerator Door Gasket, Right ADX72930455

#233A

All parts diagram

Refrigerator door gasket, right

Part #ADX72930455

Replaced by #ADX72930461

?
Manufacturer substitution
This part replaces ADX72930455. Substitute parts can look different from the original.
BEST SELLER
$76.80 |
7% OFF Phone Price : $82.80
In Stock
Kenmore Refrigerator Door Bin (replaces Aap73252301, Aap73252305, Aap73252306, Aap73252308, Aap73252311) AAP73252302

#241K

All parts diagram

Kenmore refrigerator door bin (replaces aap73252301, aap73252305, aap73252306, aap73252308, aap73252311)

Part #AAP73252302

BEST SELLER
$42.65 |
12% OFF Phone Price : $48.65
In Stock
Refrigerator Filter Dryer ADH73590303

#317A

All parts diagram

Refrigerator filter dryer

Part #ADH73590303

BEST SELLER
$32.09 |
16% OFF Phone Price : $38.09
In Stock
Refrigerator Dispenser Switch (replaces 6600jb3001b, 6600jb3001h) 6600JB3001C

#402C

All parts diagram

Refrigerator dispenser switch (replaces 6600jb3001b, 6600jb3001h)

Part #6600JB3001C

BEST SELLER
$34.88 |
15% OFF Phone Price : $40.88
In Stock
Refrigerator Dispenser Ice Chute Door Motor (replaces Eau59551201, Eau59551202, Eau59551203, Eau59551205, Eau59551207) EAU59551204

#405A

All parts diagram

Refrigerator dispenser ice chute door motor (replaces eau59551201, eau59551202, eau59551203, eau59551205, eau59551207)

Part #EAU59551204

BEST SELLER
$52.52 |
10% OFF Phone Price : $58.52
In Stock
Refrigerator Door Gasket, Left ADX72930454

#233B

All parts diagram

Refrigerator door gasket, left

Part #ADX72930454

Replaced by #ADX72930460

?
Manufacturer substitution
This part replaces ADX72930454. Substitute parts can look different from the original.
BEST SELLER
$66.06 |
8% OFF Phone Price : $72.06
In Stock
