Model # DDE5211GAL Official GE electric dryer

Here are the diagrams and repair parts for Official GE DDE5211GAL electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 152 parts  |
Shft-brkt WE3X39

#508

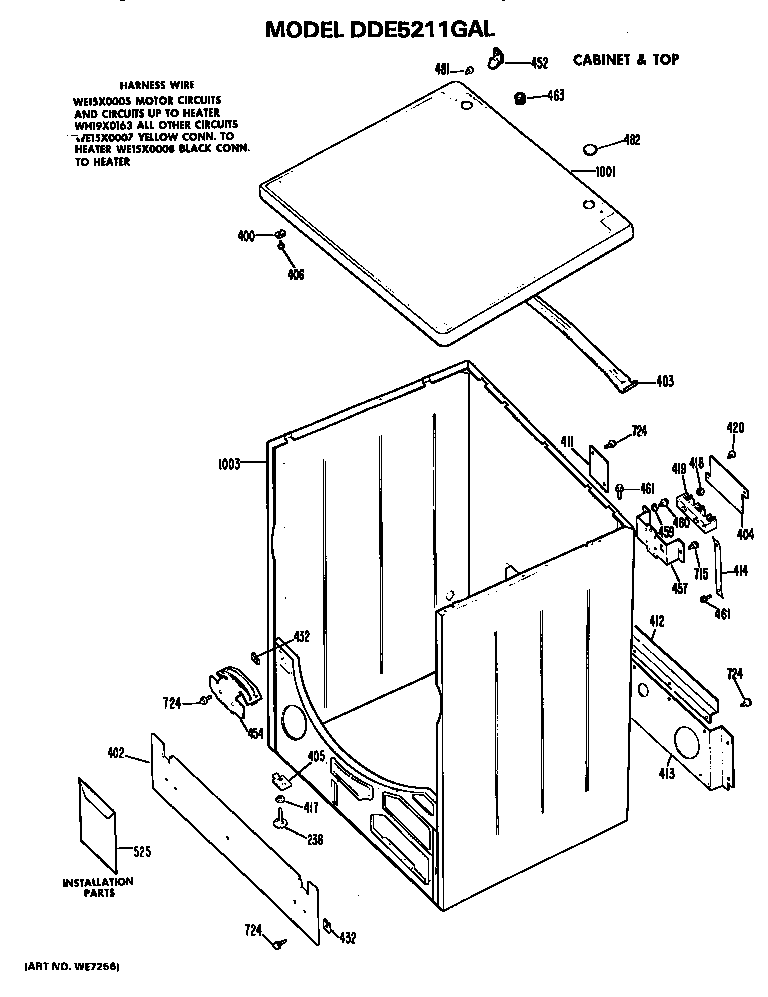

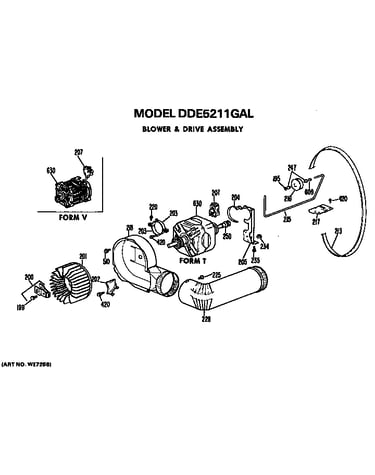

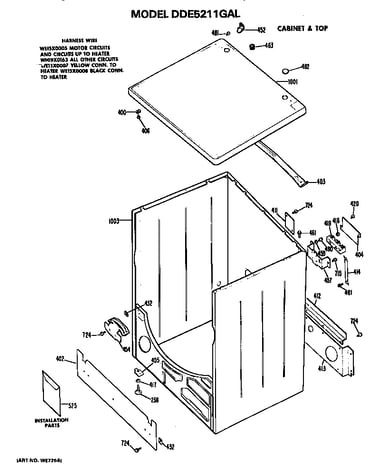

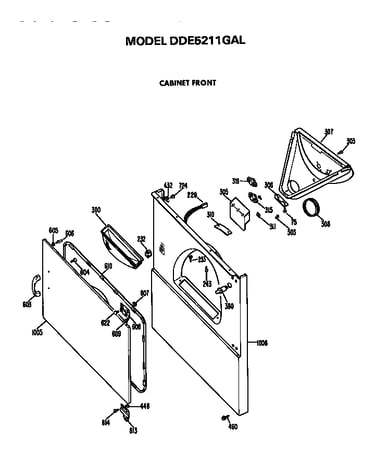

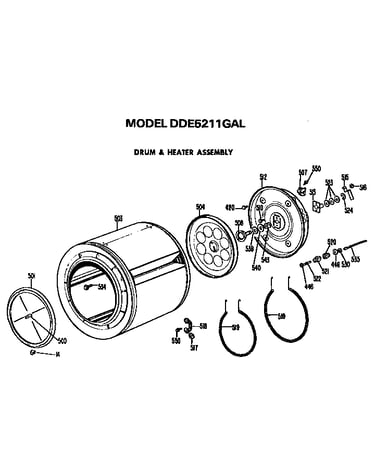

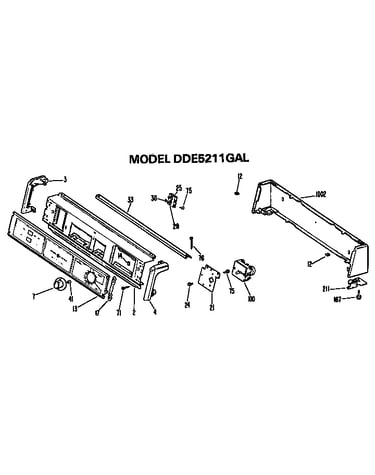

All parts diagram

Shft-brkt

Part #WE3X39

Replaced by #WE25M40

?
Manufacturer substitution
This part replaces WE3X39. Substitute parts can look different from the original.
BEST SELLER
$71.61 |
8% OFF Phone Price : $77.61
In Stock
Washer WE2X195

#3127

All parts diagram

Washer

Part #WE2X195

Replaced by #WE25M40

?
Manufacturer substitution
This part replaces WE2X195. Substitute parts can look different from the original.
BEST SELLER
$71.61 |
8% OFF Phone Price : $77.61
In Stock
Belt WE12X42

#213

All parts diagram

Belt

Part #WE12X42

Replaced by #WE12X10014

?
Manufacturer substitution
This part replaces WE12X42. Substitute parts can look different from the original.
BEST SELLER
$20.46 |
23% OFF Phone Price : $26.46
In Stock
Latch Clip WE1X1032

#232

All parts diagram

Latch clip

Part #WE1X1032

Replaced by #WE1M1011

?
Manufacturer substitution
This part replaces WE1X1032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$10.55 |
16% OFF Phone Price : $12.55
In Stock
Dryer High-limit Thermostat (replaces We04x0584, We4x162, We4x186, We4x543) WE4X584

#507

All parts diagram

Dryer high-limit thermostat (replaces we04x0584, we4x162, we4x186, we4x543)

Part #WE4X584

This item is not returnable
$18.44 |
10% OFF Phone Price : $20.44
In Stock
Dryer Screw WH2X930

#875

All parts diagram

Dryer screw

Part #WH2X930

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Bearing WE3X72

#543

All parts diagram

Bearing

Part #WE3X72

Replaced by #WE3X75

?
Manufacturer substitution
This part replaces WE3X72. Substitute parts can look different from the original.
This item is not returnable
$6.82 |
13% OFF Phone Price : $7.82
In Stock
Gr Strap Asm WE1X627

#3123

All parts diagram

Gr strap asm

Part #WE1X627

Replaced by #WE1X1172

?
Manufacturer substitution
This part replaces WE1X627. Substitute parts can look different from the original.
$21.46 |
22% OFF Phone Price : $27.46
In Stock
Berng-pkg 12 WE1X759

#247

All parts diagram

Berng-pkg 12

Part #WE1X759

Replaced by #WE12X81

?
Manufacturer substitution
This part replaces WE1X759. Substitute parts can look different from the original.
This item is not returnable
$15.26 |
12% OFF Phone Price : $17.26
In Stock
Idler Pulley WE12X47

#216

All parts diagram

Idler pulley

Part #WE12X47

Replaced by #WE12X81

?
Manufacturer substitution
This part replaces WE12X47. Substitute parts can look different from the original.
This item is not returnable
$15.26 |
12% OFF Phone Price : $17.26
In Stock
