Gibson
Electric Range

Model # CGEF312GSA Official Gibson electric range

Here are the diagrams and repair parts for Official Gibson CGEF312GSA electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

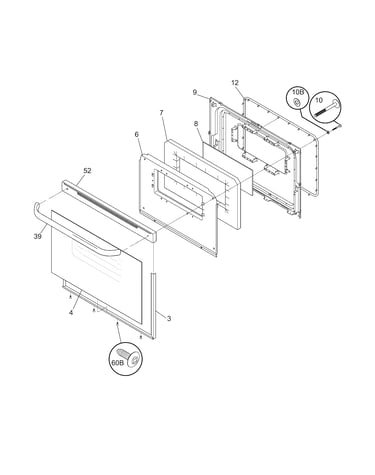

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Galaxy Range Bake Element (replaces 316075104) 316075103
#67

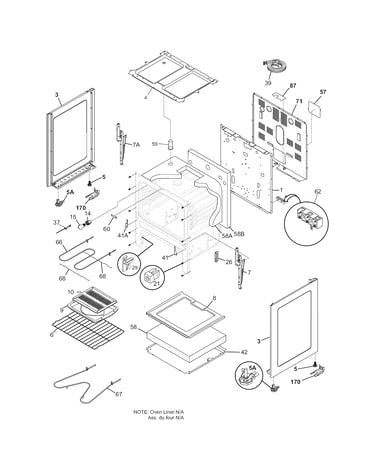

Body diagram

Galaxy range bake element (replaces 316075104)

Part #316075103

BEST SELLER
$27.06 |
18% OFF Phone Price : $33.06
In Stock
Universal/multiflex (frigidaire) Range Small Surface Element Control Switch (replaces 316021500, 5304506424) 316436000
#54

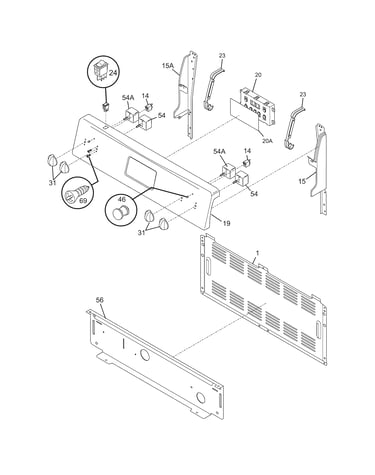

Backguard diagram

Universal/multiflex (frigidaire) range small surface element control switch (replaces 316021500, 5304506424)

Part #316436000

BEST SELLER
$55.76 |
10% OFF Phone Price : $61.76
In Stock
Range Oven Light Bulb 5303013071
#15

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Block 5303912666
#27

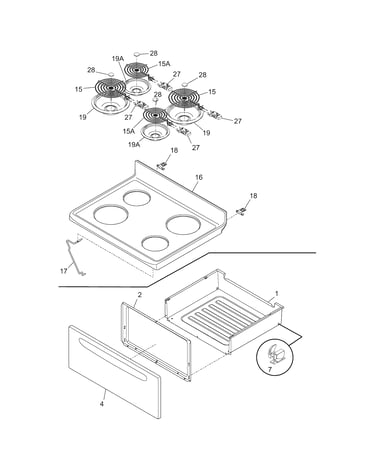

Top/drawer diagram

Block

Part #5303912666

Replaced by #5303935058

?
Manufacturer substitution
This part replaces 5303912666. Substitute parts can look different from the original.
BEST SELLER
$8.60 |
10% OFF Phone Price : $9.60
In Stock
Terminal Block 5303935061
#62

Body diagram

Terminal block

Part #5303935061

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303935061. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Range Indicator Light 316022500
#14

Backguard diagram

Range indicator light

Part #316022500

BEST SELLER
$40.21 |
13% OFF Phone Price : $46.21
In Stock
Indicator Light 316437800
#46

Backguard diagram

Indicator light

Part #316437800

Replaced by #316557300

?
Manufacturer substitution
This part replaces 316437800. Substitute parts can look different from the original.
BEST SELLER
$12.86 |
13% OFF Phone Price : $14.86
In Stock
Range Oven Control Board And Clock 316455400
#20

Backguard diagram

Range oven control board and clock

Part #316455400

Replaced by #5304518660

?
Manufacturer substitution
This part replaces 316455400. Substitute parts can look different from the original.
BEST SELLER
$129.39 |
8% OFF Phone Price : $141.39
In Stock
Range Broil Element (replaces 316199900) 316203200
#66

Body diagram

Range broil element (replaces 316199900)

Part #316203200

BEST SELLER
$122.39 |
9% OFF Phone Price : $134.39
In Stock
Range Surface Burner Drip Pan, 6-in 316048401
#19A

Top/drawer diagram

Range surface burner drip pan, 6-in

Part #316048401

Replaced by #A316222201

?
Manufacturer substitution
This part replaces 316048401. Substitute parts can look different from the original.
BEST SELLER
$11.15 |
15% OFF Phone Price : $13.15
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Most common symptoms to help you fix your ranges

Choose a symptom to see related range repairs.

View all

Why can't I unlock my range's oven door?

Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…

Read more

Why is my range's oven temperature wrong?

Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…

Read more

Why won't my range's oven heat?

Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…

Read more

How do I get rid of streaks on my range's oven window?

Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…

Read more

Why doesn't my range's oven broiler work?

Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…

Read more

Why won't my range's oven bake?

Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…

Read more

Why isn't my range working?

Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…
