Hotpoint
Washer

Model # WLW5900MNL Official Hotpoint washer

Here are the diagrams and repair parts for Official Hotpoint WLW5900MNL washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

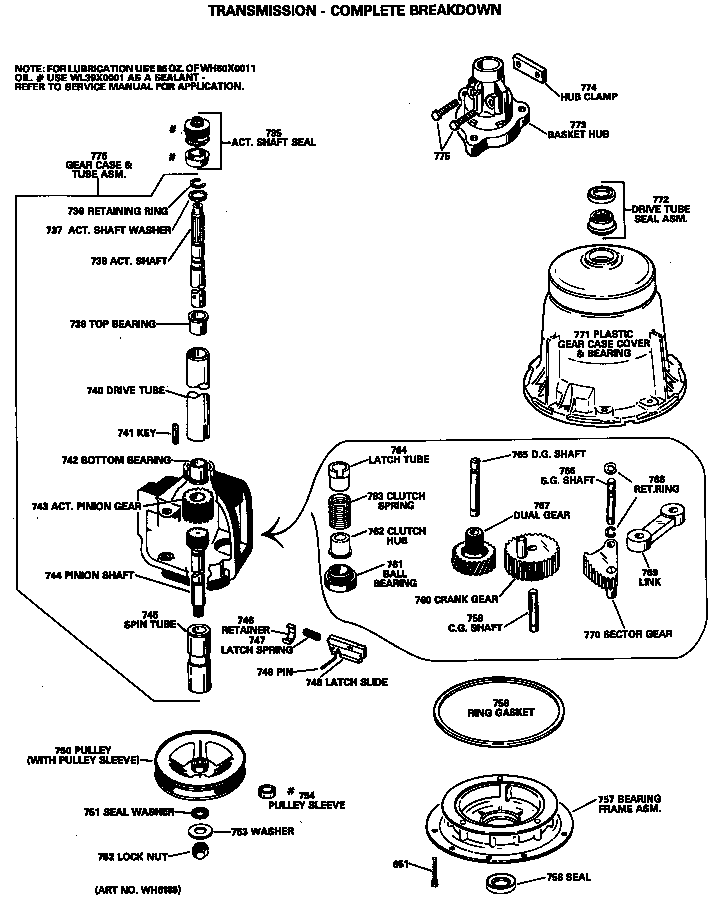

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 294 parts  |
Washer Timer Knob Clip (replaces Wh01x2117, Wh1x1499, Wh1x1610, Wh2x561) WH1X2117
#9

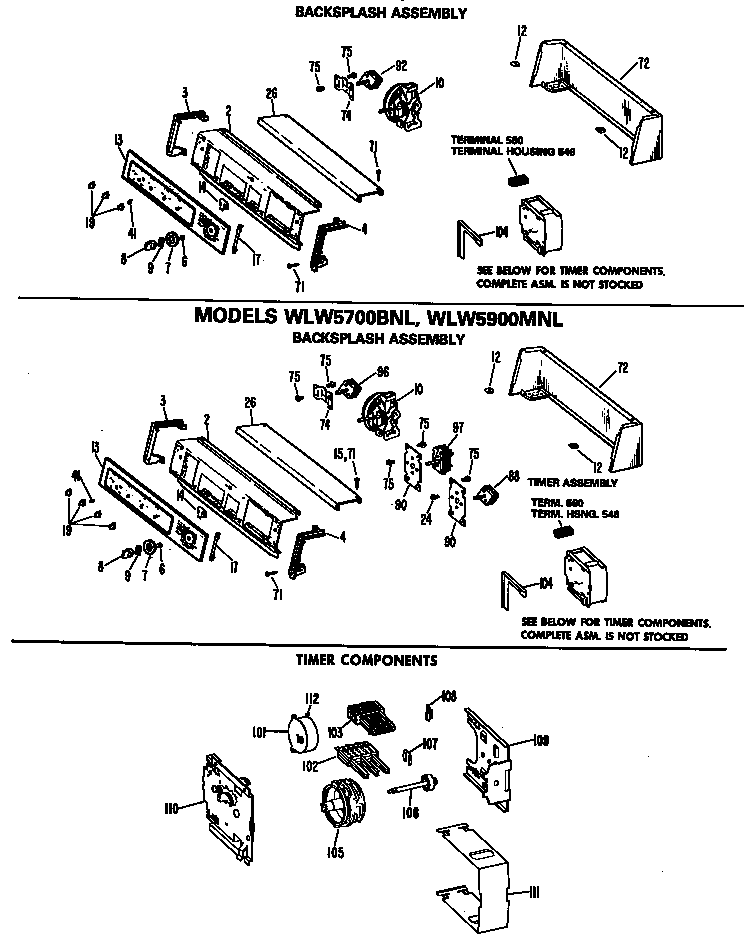

Backsplash assembly diagram

Washer timer knob clip (replaces wh01x2117, wh1x1499, wh1x1610, wh2x561)

Part #WH1X2117

BEST SELLER
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Washer Hose Clamp Kit WH1X2036
Washer hose clamp kit

Part #WH1X2036

$11.59 |
15% OFF Phone Price : $13.59
In Stock
Washer Drive Belt (replaces Wh01x2026, Wh1x1904) WH1X2026
#603

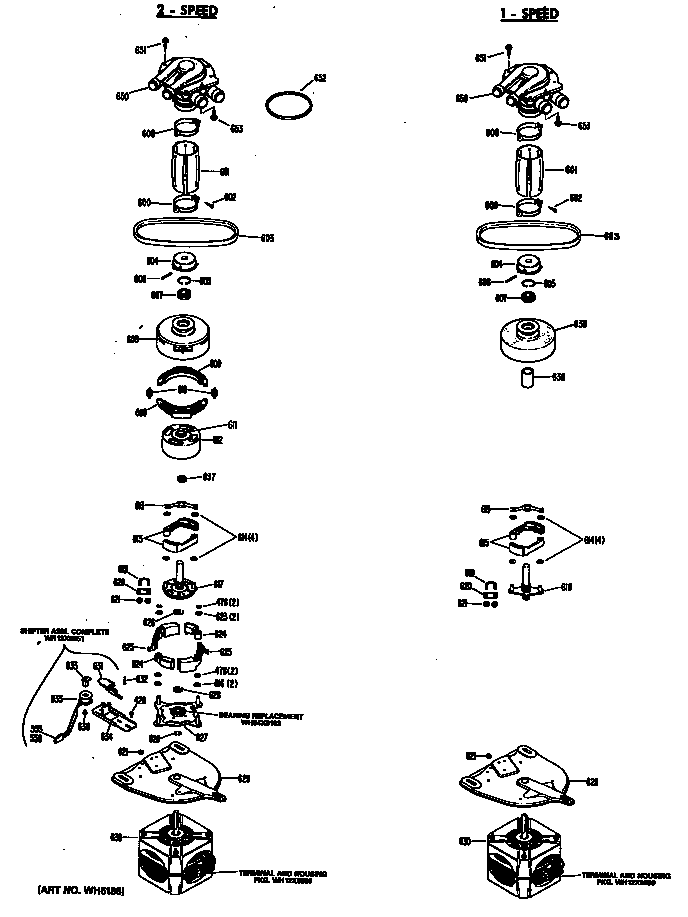

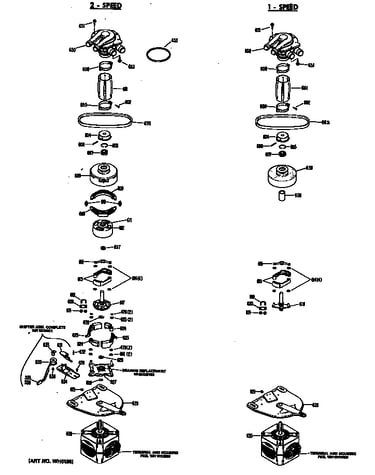

2 - speed diagram

Washer drive belt (replaces wh01x2026, wh1x1904)

Part #WH1X2026

$7.73 |
11% OFF Phone Price : $8.73
In Stock
Washer Drain Hose Retainer Strap WH1X2594
#835

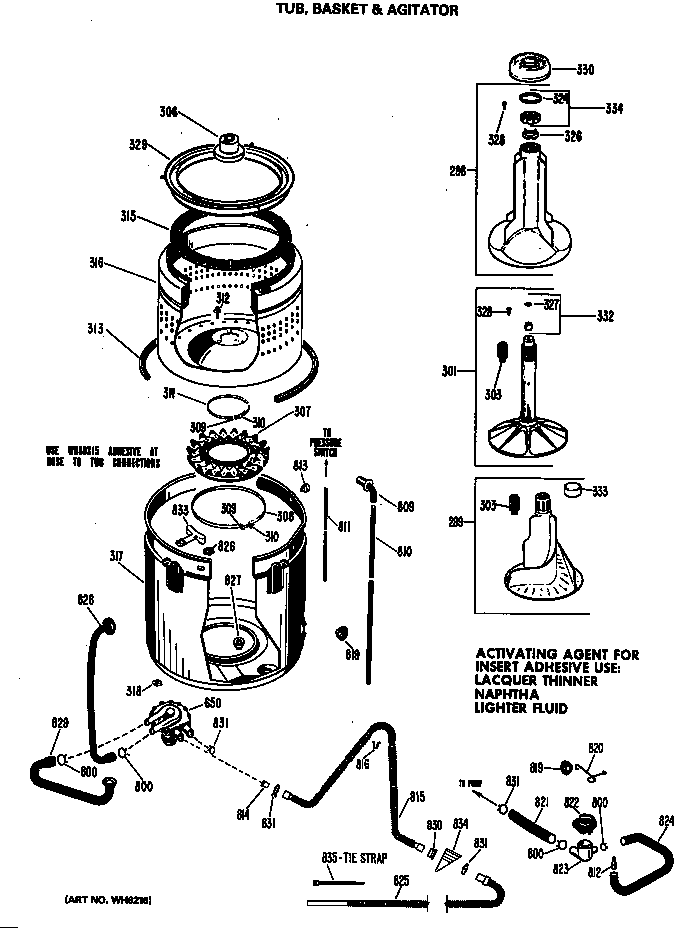

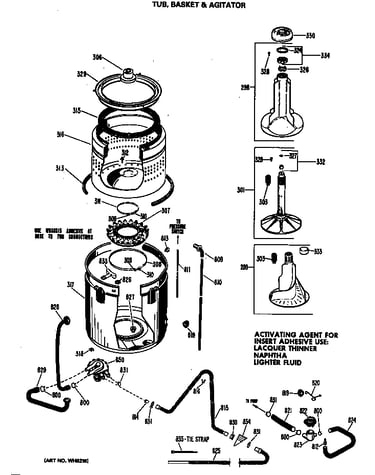

Tub, basket & agitator diagram

Washer drain hose retainer strap

Part #WH1X2594

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Washer Leveling Leg Rubber Pad WH1X484
#463

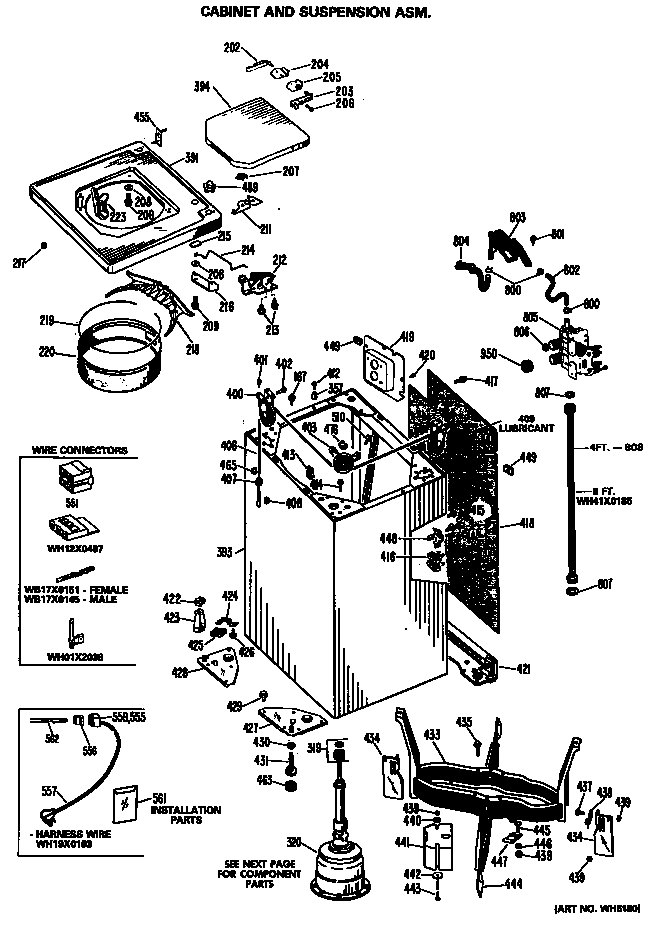

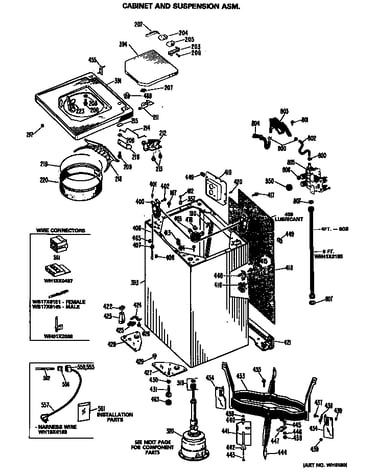

Cabinet and suspension asm. diagram
