Kenmore Elite
Bottom-Mount Refrigerator

Model # 79574307810 Official Kenmore Elite bottom-mount refrigerator

Here are the diagrams and repair parts for Official Kenmore Elite 79574307810 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

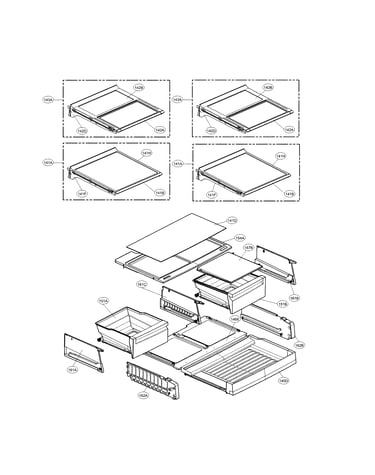

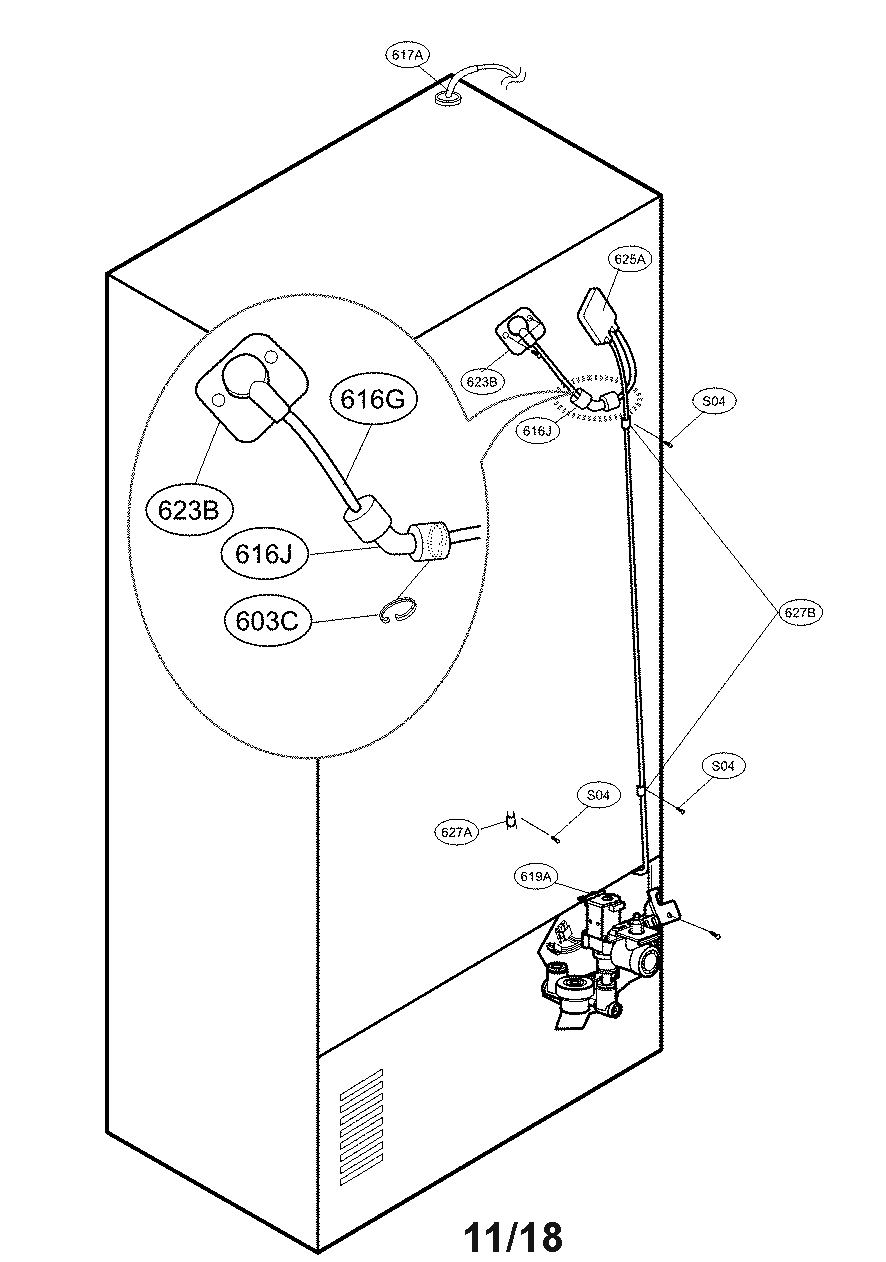

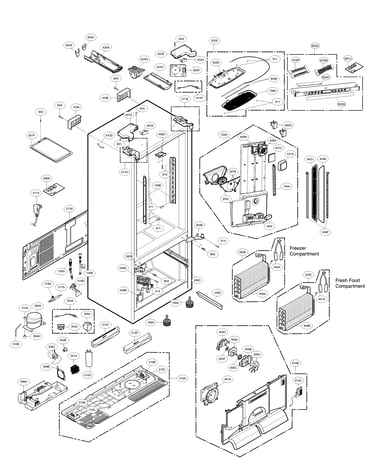

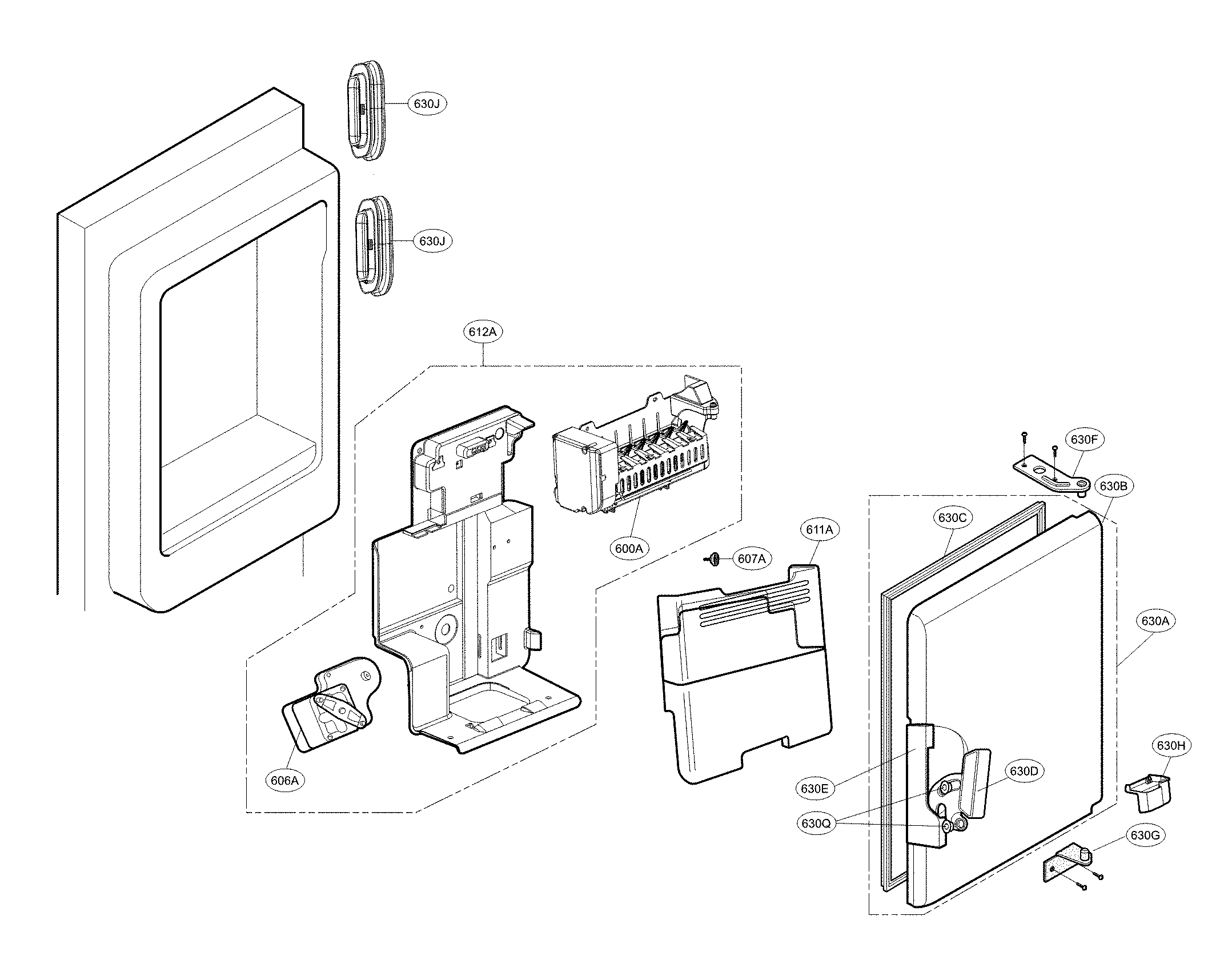

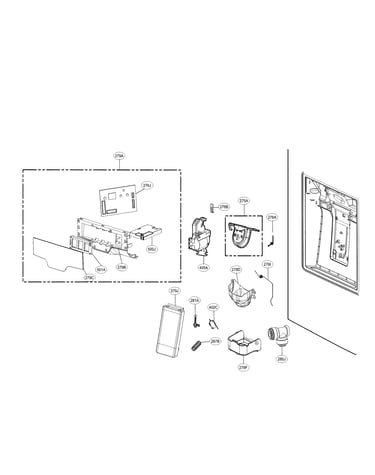

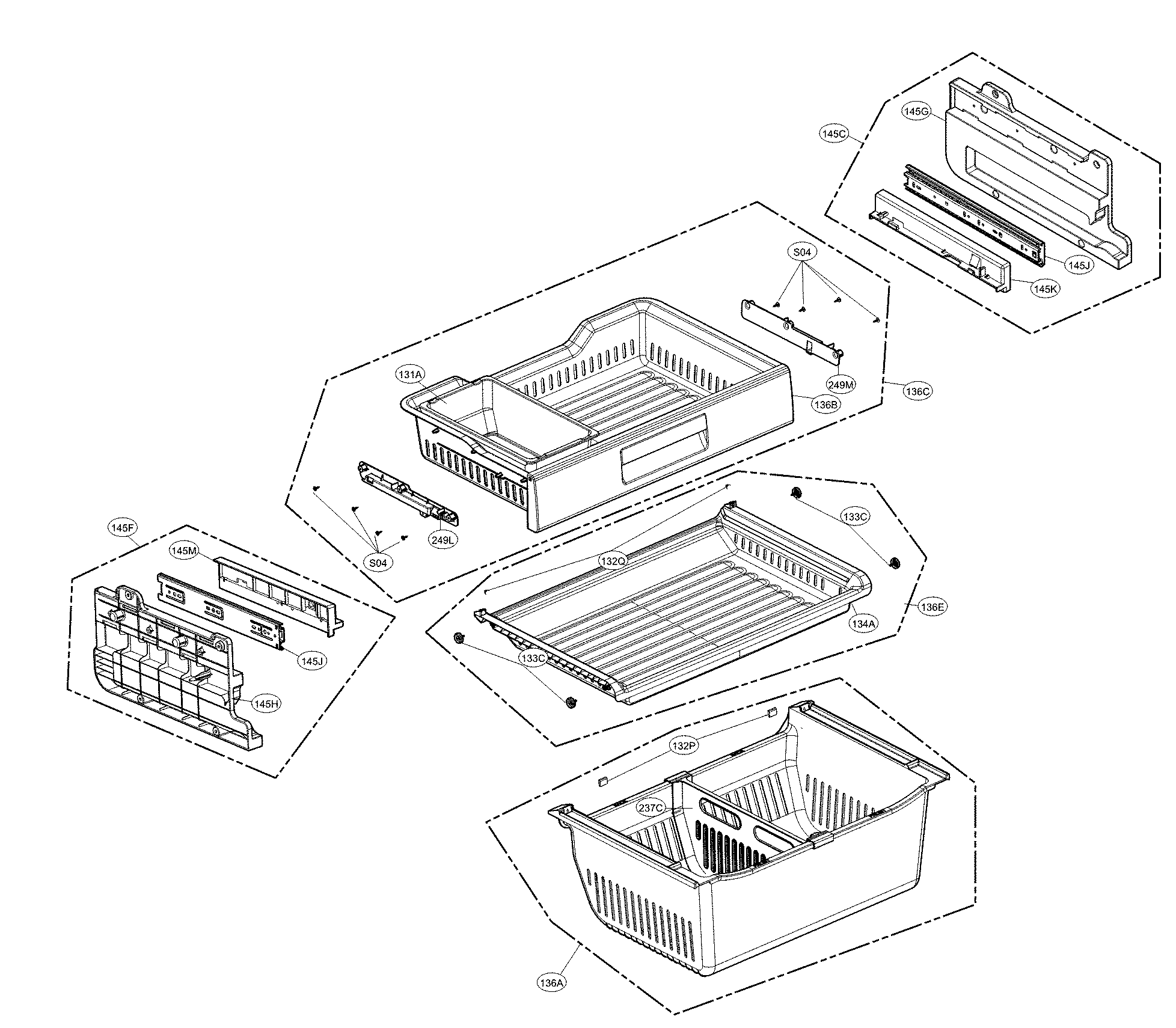

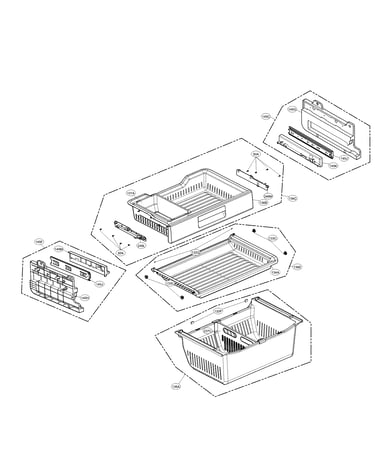

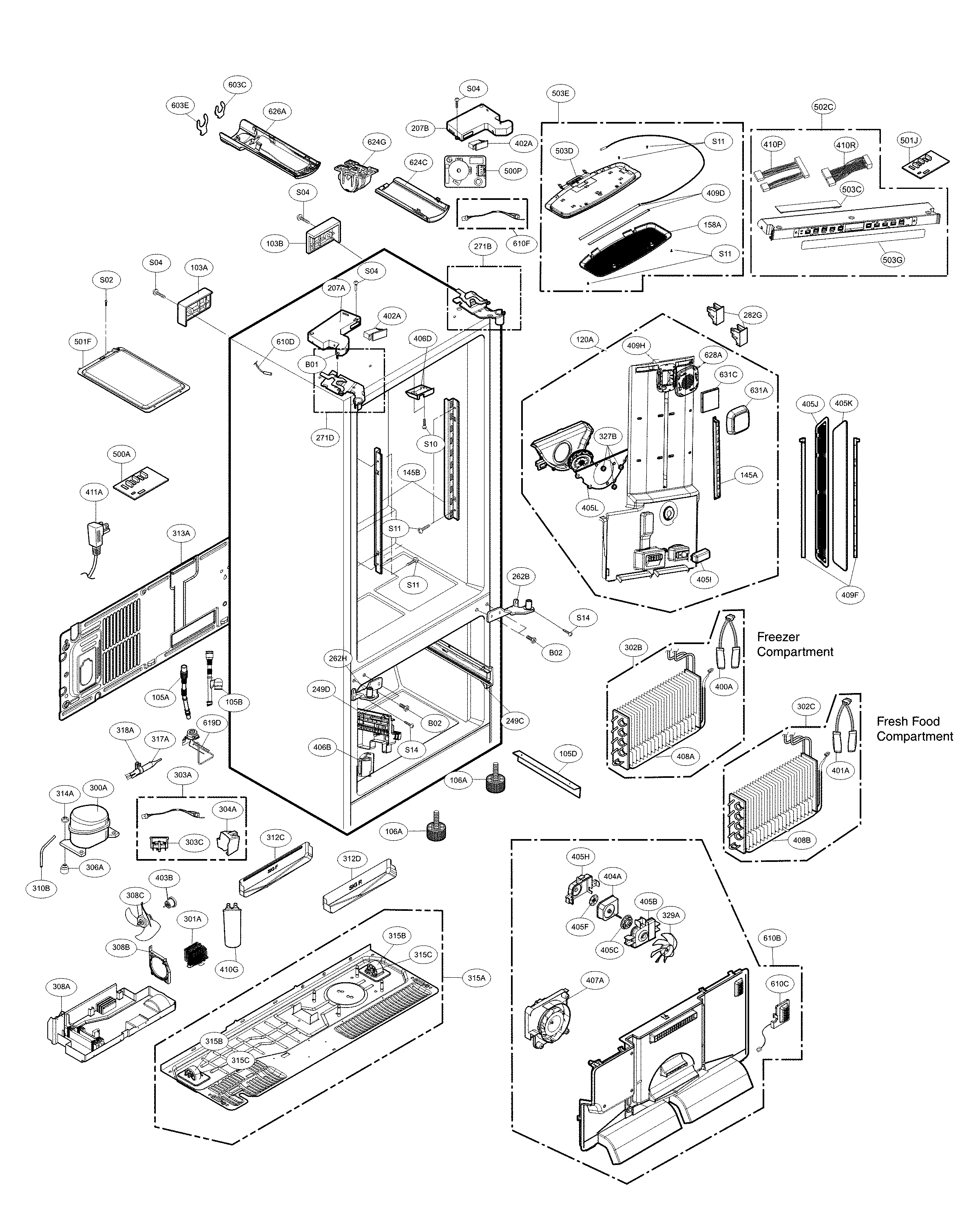

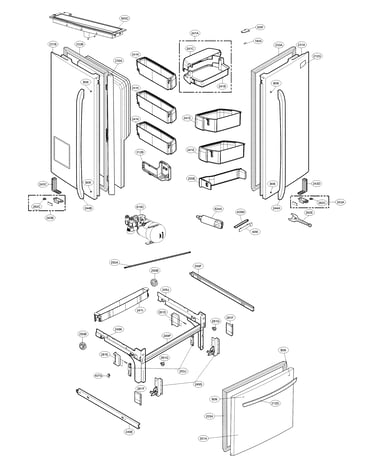

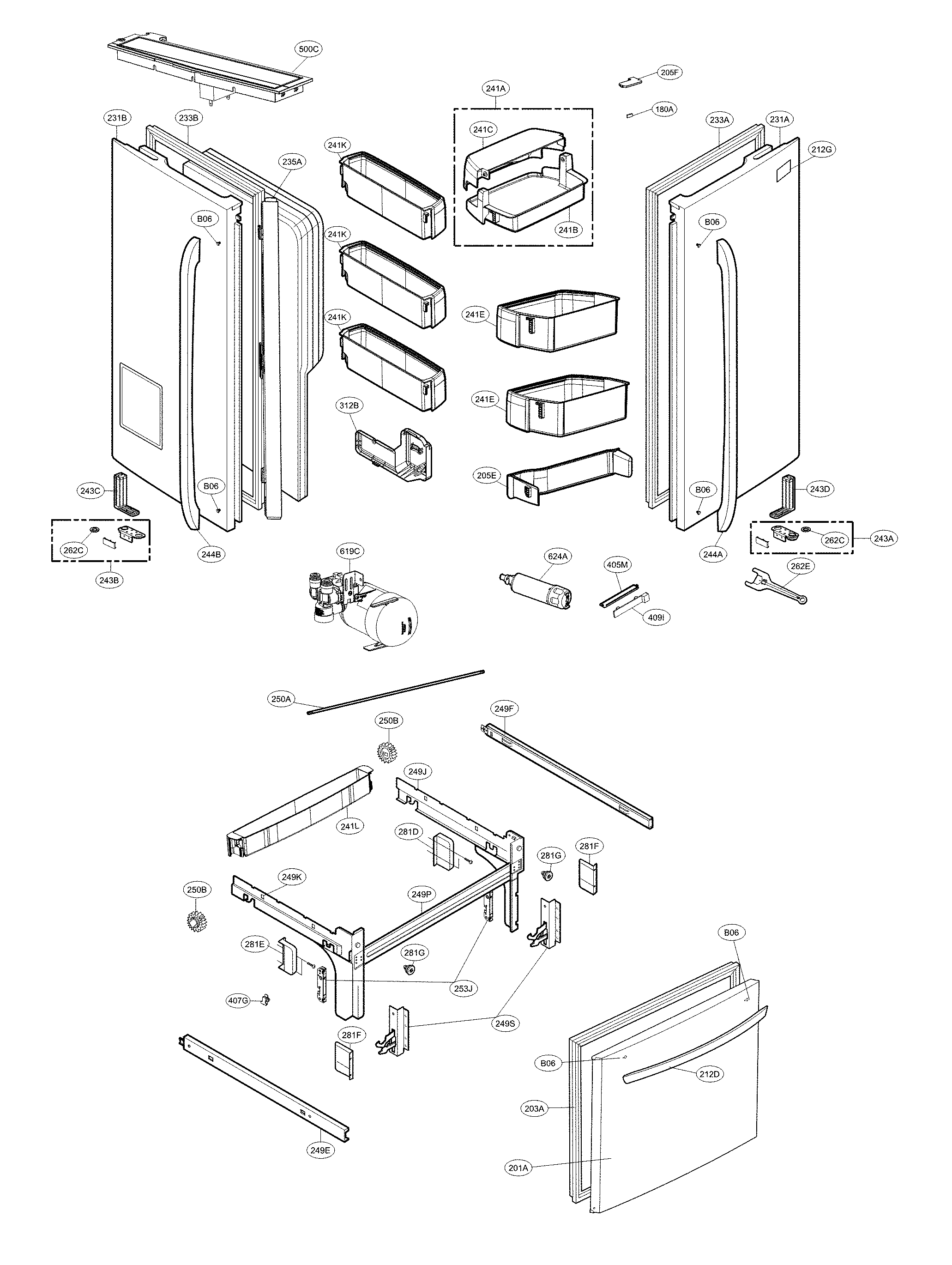

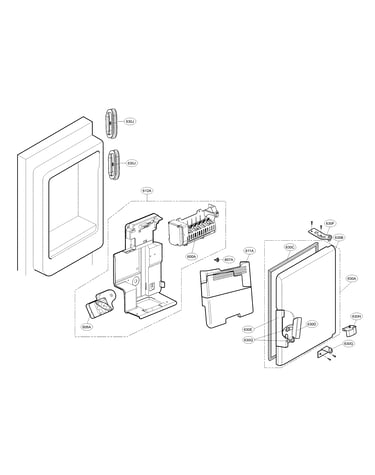

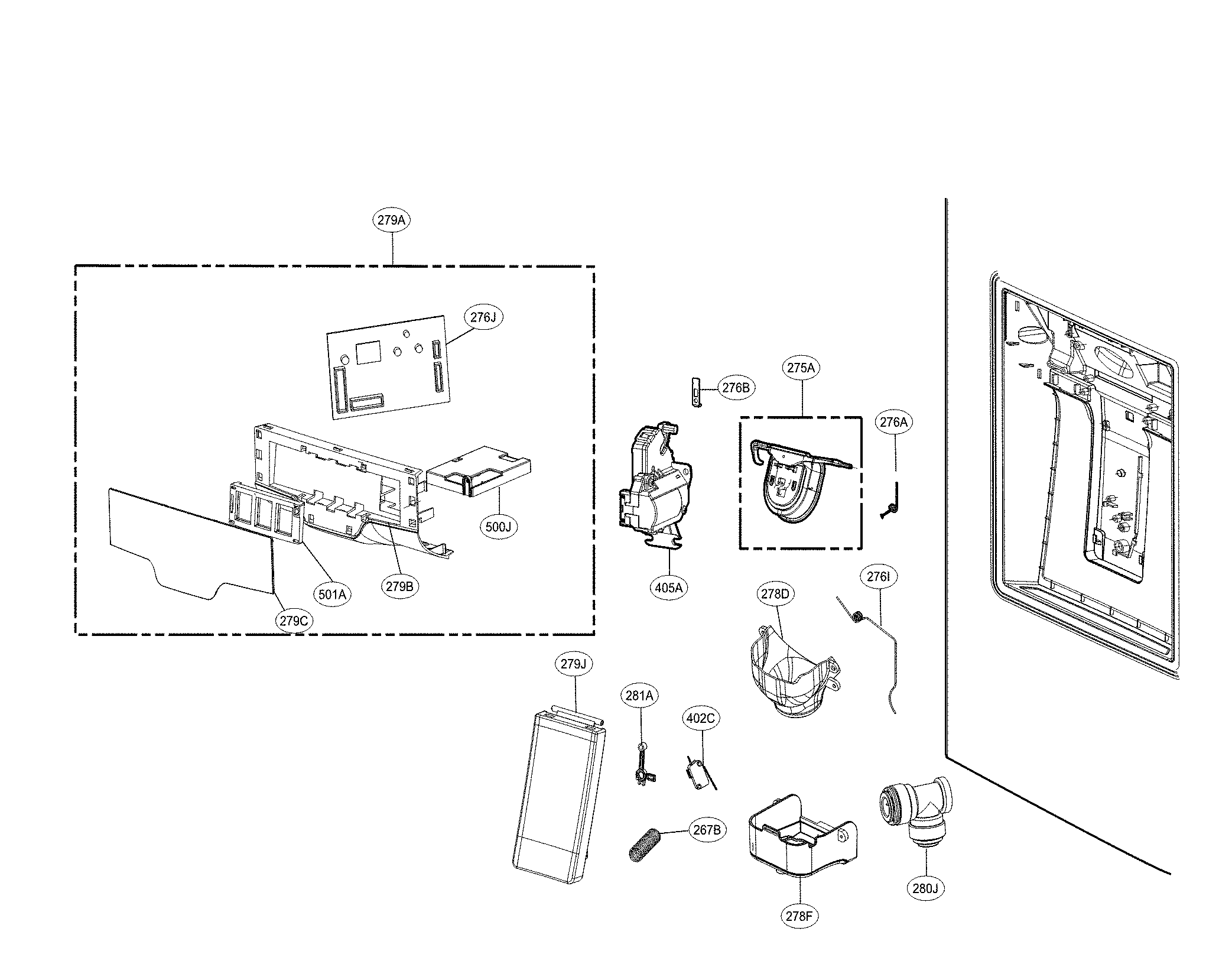

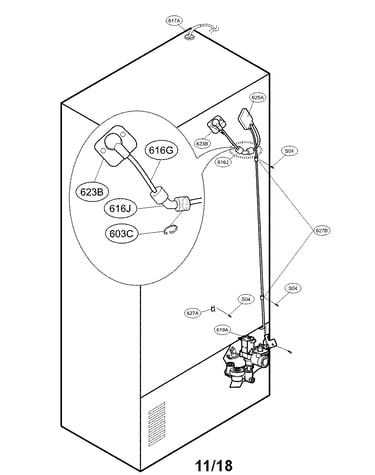

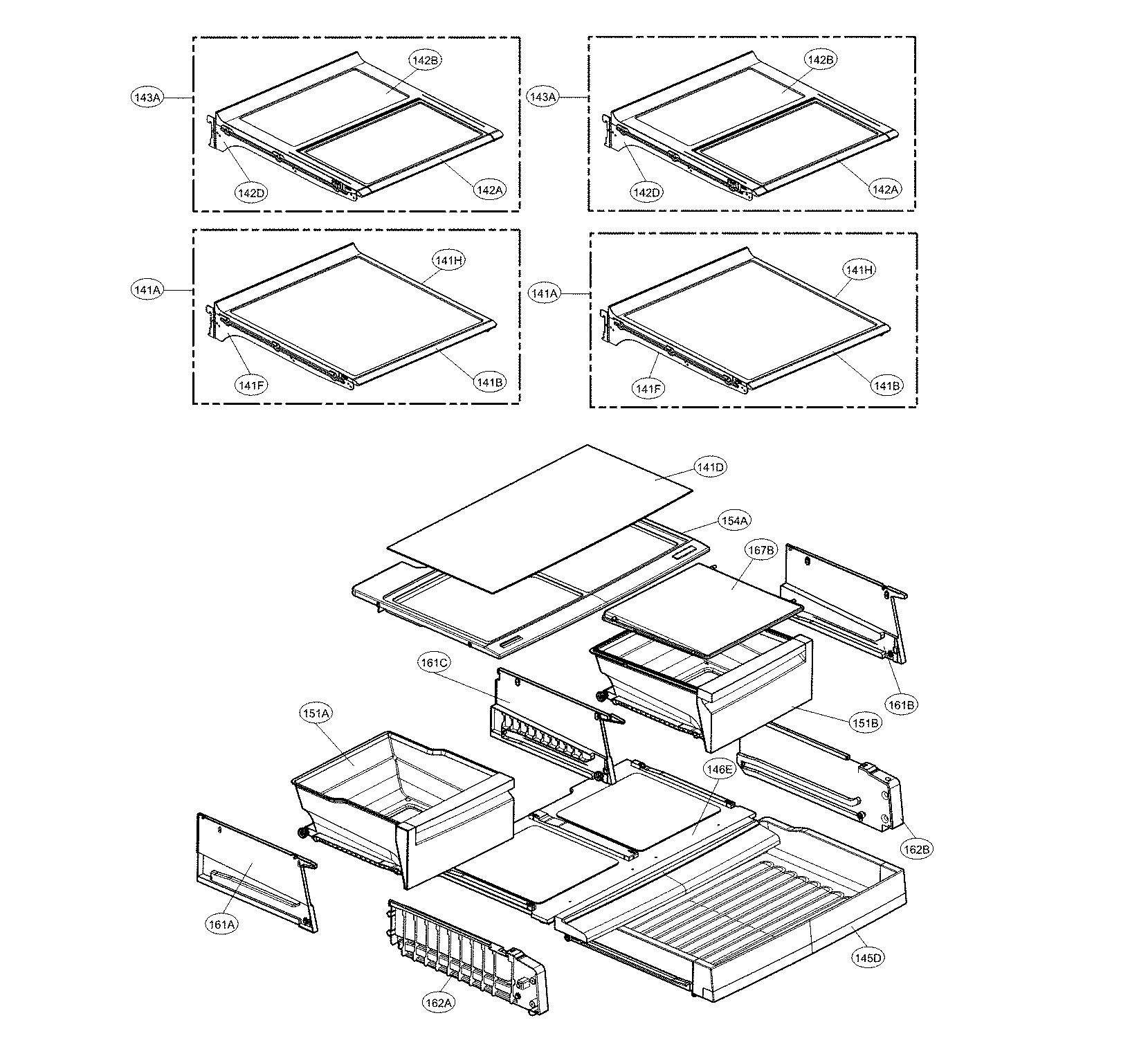

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 226 parts  |
Refrigerator Filter Dryer 5851JA2007U

#315B

All parts diagram

Refrigerator filter dryer

Part #5851JA2007U

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JA2007U. Substitute parts can look different from the original.
