Model # D28494N TYPE 2 Official DeWalt angle grinder

Here are the diagrams and repair parts for Official DeWalt D28494N-TYPE-2 angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Side Handle 651858-00
#117

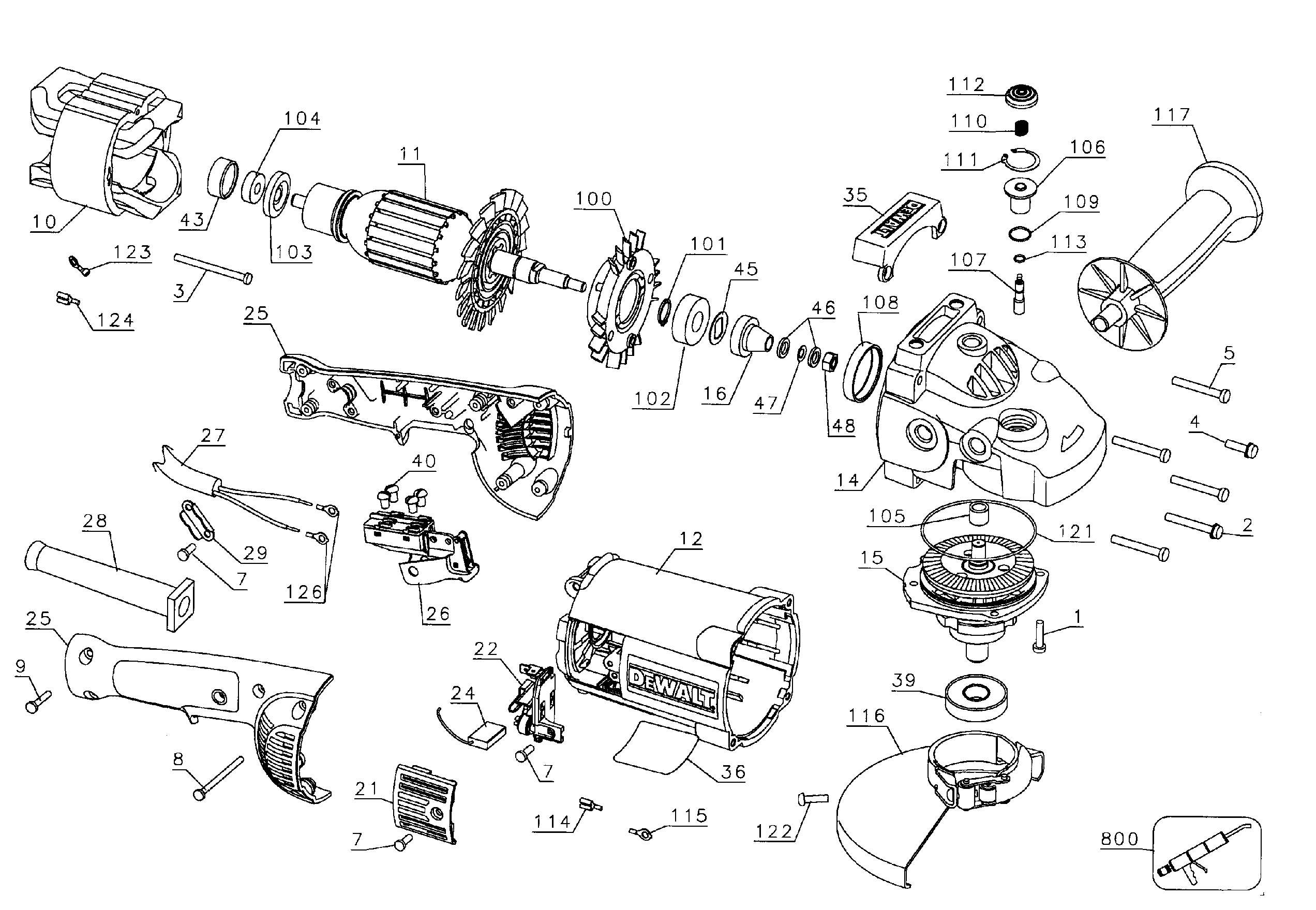

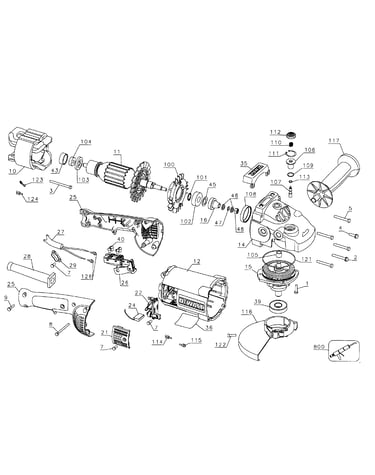

Grinder assy diagram

Side handle

Part #651858-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 330045-67
#5

Grinder assy diagram

Screw

Part #330045-67

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 609125-00
#48

Grinder assy diagram

Lock nut

Part #609125-00

The manufacturer no longer makes this part, and there's no substitute part

Bearing Cup 609970-00
#43

Grinder assy diagram

Bearing cup

Part #609970-00

The manufacturer no longer makes this part, and there's no substitute part

Brush Door 394387-00
#21

Grinder assy diagram

Brush door

Part #394387-00

The manufacturer no longer makes this part, and there's no substitute part

Terminal 612273-00
#124

Grinder assy diagram

Terminal

Part #612273-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Nameplate 606186-29
#36

Grinder assy diagram

Dewalt nameplate

Part #606186-29

The manufacturer no longer makes this part, and there's no substitute part

Grinder Motor Brush 392574-01
#24

Grinder assy diagram

Grinder motor brush

Part #392574-01

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 611213-00
#106

Grinder assy diagram

Sleeve

Part #611213-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 330045-70
#4

Grinder assy diagram

Screw

Part #330045-70

The manufacturer no longer makes this part, and there's no substitute part
