Model # WTW5100HC2 Official Whirlpool laundry, residential, washer
Here are the diagrams and repair parts for Official Whirlpool WTW5100HC2 laundry, residential, washer, as well as links to manuals and error code tables, if available.
By Schematic
By Part

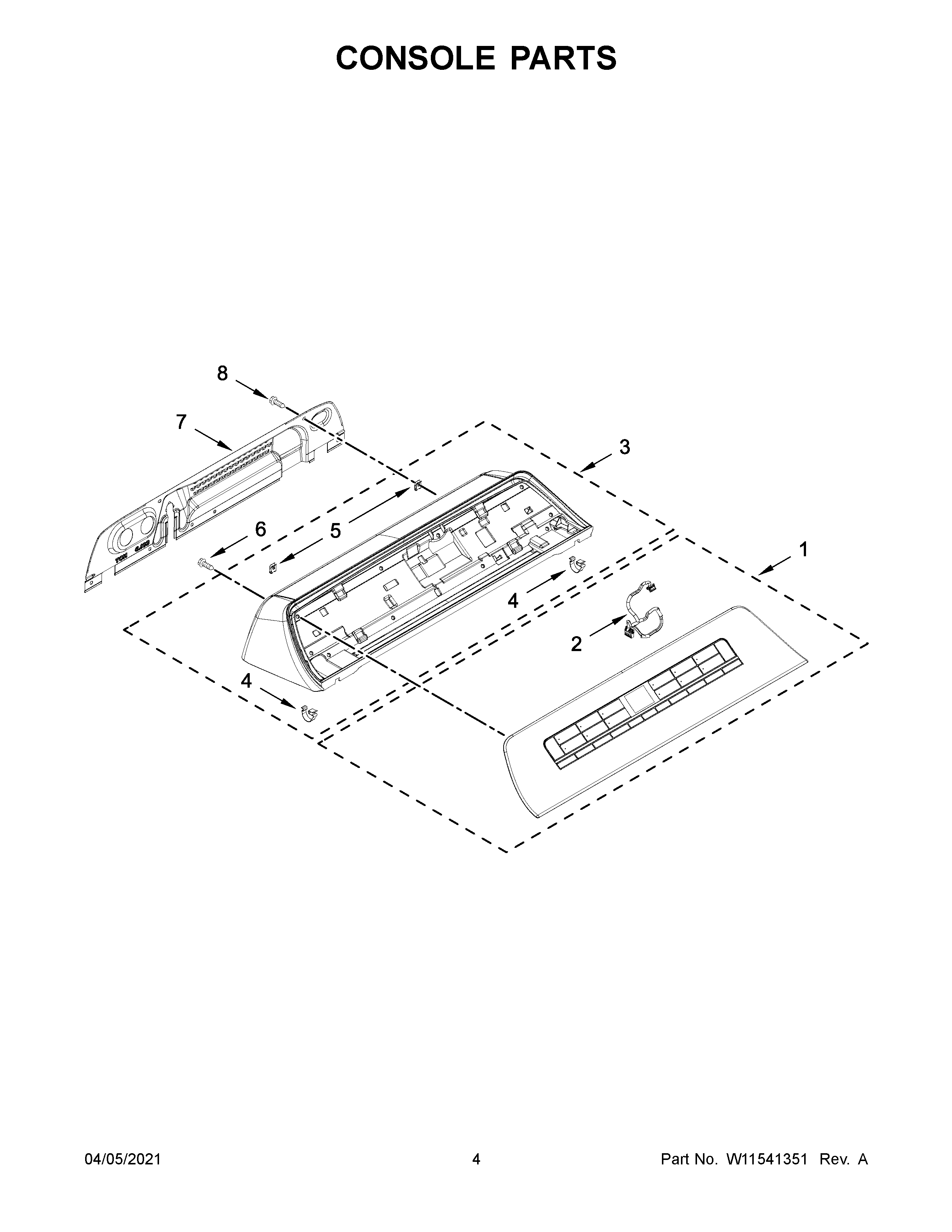

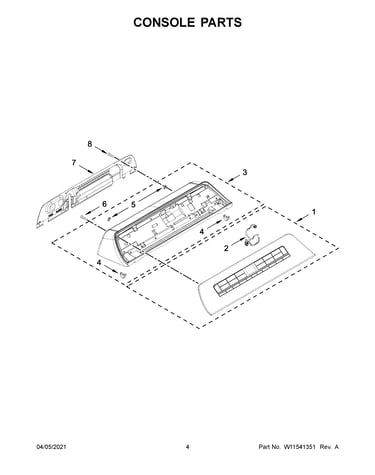

SELECT DIAGRAM
Browse Parts for
WTW5100HC2 LAUNDRY, RESIDENTIAL, WASHER
#6

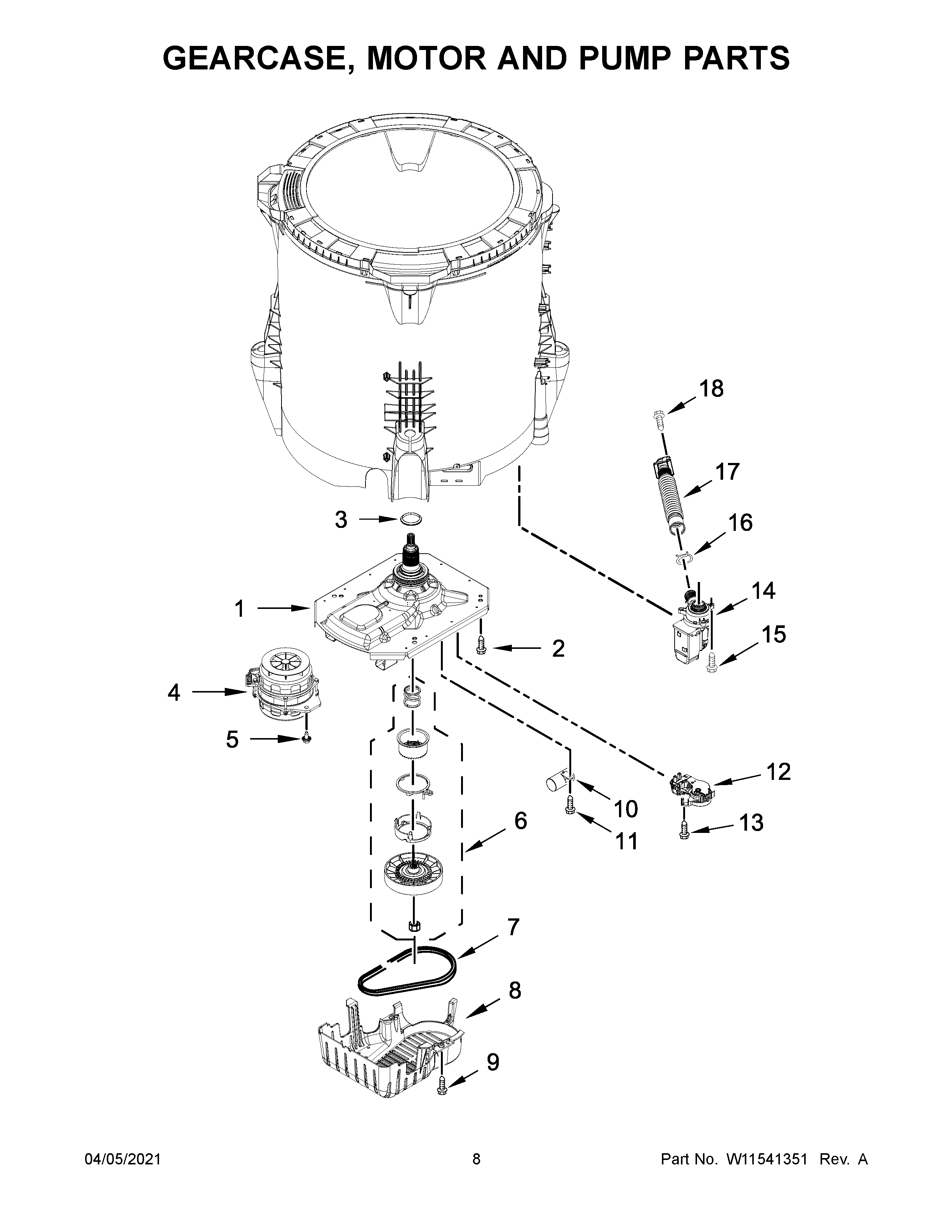

Gearcase, motor and pump parts diagram
Whirlpool washer drive pulley (replaces w10006356, w10239973, w10315818, w10536113, w11396423)
Part #W10721967
$50.46 |
11% OFF Phone Price : $56.46
In Stock
#25

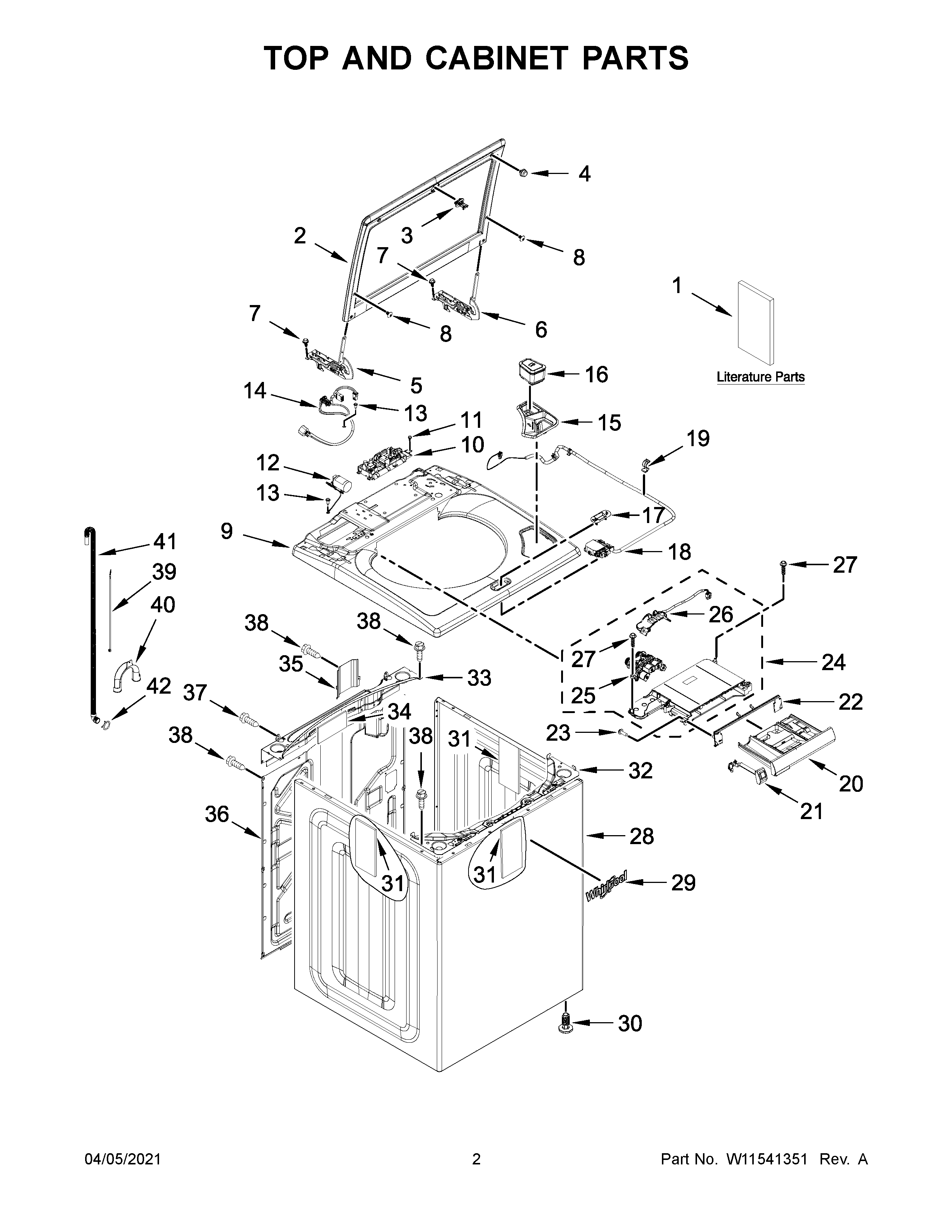

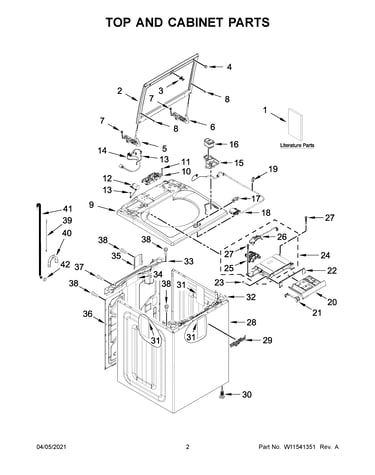

Top and cabinet parts diagram
Washer water inlet valve
Part #W11096267
Replaced by #W11165546
?
Manufacturer substitution
This part replaces W11096267. Substitute parts can look different from the original.
$54.70 |
10% OFF Phone Price : $60.70
In Stock
#7
Gearcase, motor and pump parts diagram
Drive belt
Part #W10808317
Replaced by #W11239857
?
Manufacturer substitution
This part replaces W10808317. Substitute parts can look different from the original.
$31.88 |
16% OFF Phone Price : $37.88
In Stock
#NI
Optional parts (not included) diagram
Affresh washer cleaner, 3-pack (replaces 18001080, 77109, w10135699a)
Part #W10135699
Get free shipping with Automatic Reorder
$11.89 |
14% OFF Phone Price : $13.89
In Stock
#3

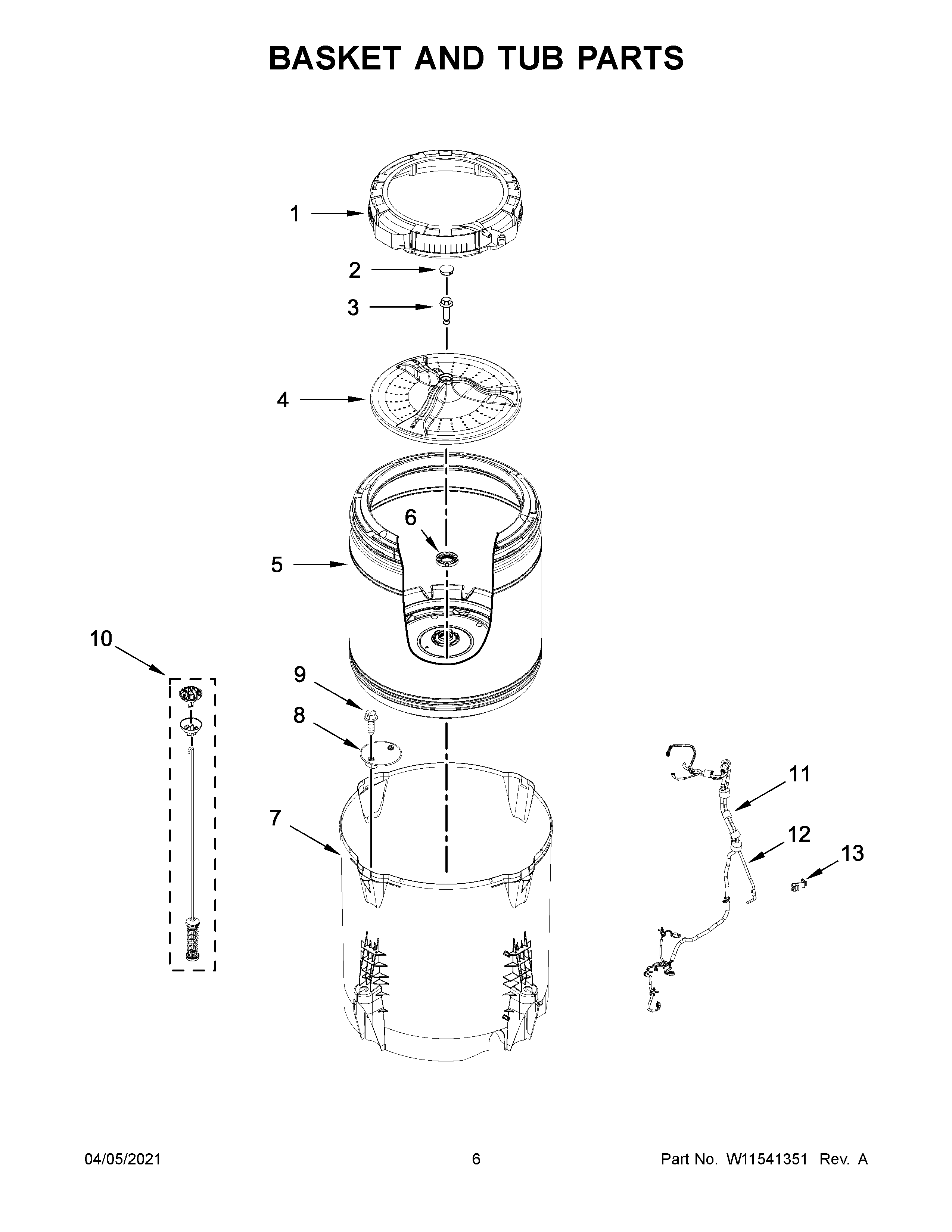

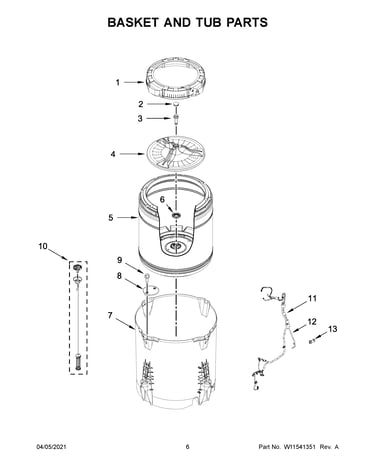

Basket and tub parts diagram
Washer washplate screw
Part #W10625252
Replaced by #W10752187
?
Manufacturer substitution
This part replaces W10625252. Substitute parts can look different from the original.
This item is not returnable
$3.40 |
23% OFF Phone Price : $4.40
In Stock
#10
Gearcase, motor and pump parts diagram
Washer start/run capacitor
Part #W11162560
Replaced by #W11395618
?
Manufacturer substitution
This part replaces W11162560. Substitute parts can look different from the original.
$56.29 |
10% OFF Phone Price : $62.29
In Stock
#12
Gearcase, motor and pump parts diagram
Actuator, shift
Part #W11398781
Replaced by #W11481722
?
Manufacturer substitution
This part replaces W11398781. Substitute parts can look different from the original.
$53.42 |
10% OFF Phone Price : $59.42
In Stock
#10
Basket and tub parts diagram
Damper asm -
Part #W11171694
Replaced by #W11396716
?
Manufacturer substitution
This part replaces W11171694. Substitute parts can look different from the original.
$127.89
In Stock
#14
Gearcase, motor and pump parts diagram
Pump assembly, drain
Part #W11259498
Replaced by #W11399437
?
Manufacturer substitution
This part replaces W11259498. Substitute parts can look different from the original.
$101.50 |
11% OFF Phone Price : $113.50
In Stock
#4
Basket and tub parts diagram
Impeller
Part #W10834890
Replaced by #W10752283
?
Manufacturer substitution
This part replaces W10834890. Substitute parts can look different from the original.
$73.78 |
8% OFF Phone Price : $79.78
In Stock
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
- $11.89 |14% OFF Phone Price : $13.89
- $26.22 |19% OFF Phone Price : $32.22
- $8.29 |11% OFF Phone Price : $9.29
- $38.72 |13% OFF Phone Price : $44.72
- $31.19 |16% OFF Phone Price : $37.19
- $92.89 |6% OFF Phone Price : $98.89
- $66.39 |8% OFF Phone Price : $72.39
Most common symptoms to help you fix your washers
Choose a symptom to see related washer repairs.
Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…
