Model # RGB530BEA1WH Official Hotpoint gas range

Here are the diagrams and repair parts for Official Hotpoint RGB530BEA1WH gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

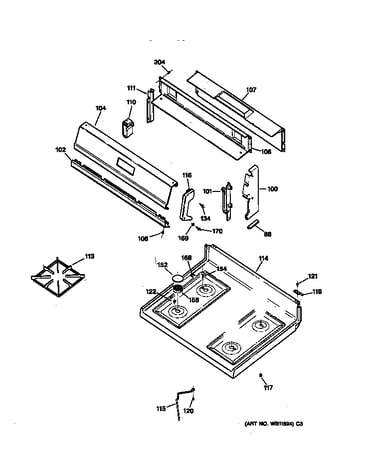

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 169 parts  |
Range Oven Burner Igniter (replaces Wb13k0021, Wb13k10009, Wb13k10026, Wb13k12, Wb13k13, Wb13k14) WB13K21
#218

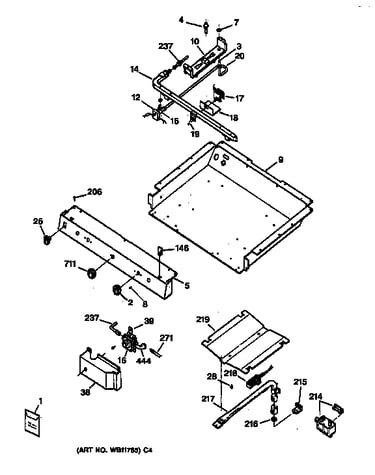

Gas & burner parts diagram

Range oven burner igniter (replaces wb13k0021, wb13k10009, wb13k10026, wb13k12, wb13k13, wb13k14)

Part #WB13K21

BEST SELLER
$53.97 |
10% OFF Phone Price : $59.97
In Stock
40a15bulb STD372401
#235

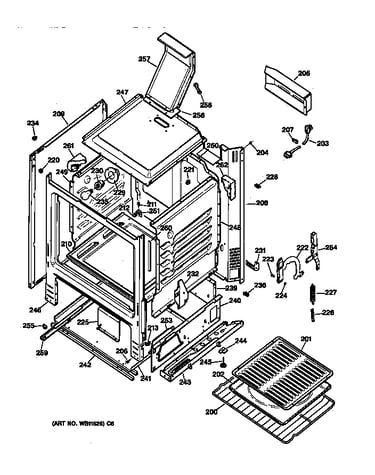

Body parts diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Range Surface Burner Valve (replaces Wb21k0038) WB21K38
#15

Gas & burner parts diagram

Range surface burner valve (replaces wb21k0038)

Part #WB21K38

$44.24 |
36% OFF Was : $69.36
In Stock
Microwave Door Handle (replaces Wb15x5203) WB15K5076
#365

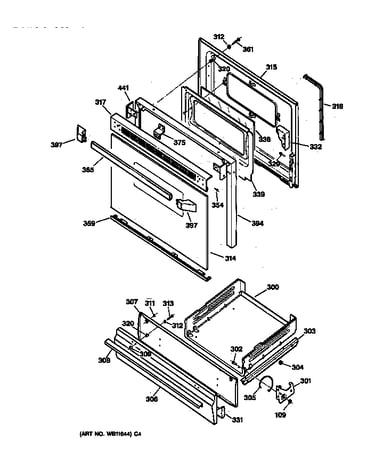

Door & drawer parts diagram

Microwave door handle (replaces wb15x5203)

Part #WB15K5076

$33.13 |
15% OFF Phone Price : $39.13
In Stock
Screw 8-3 WB1K10002
#8

Gas & burner parts diagram

Screw 8-3

Part #WB1K10002

Replaced by #WB01K10002

?
Manufacturer substitution
This part replaces WB1K10002. Substitute parts can look different from the original.
This item is not returnable
$17.51 |
10% OFF Phone Price : $19.51
In Stock
Range Screw WB1K42
Range screw

Part #WB1K42

Replaced by #WB1K5062

?
Manufacturer substitution
This part replaces WB1K42. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Burner Safety Valve Bracket WB2K65
#215

Gas & burner parts diagram

Range oven burner safety valve bracket

Part #WB2K65

$6.51 |
13% OFF Phone Price : $7.51
In Stock
Range Oven Control Thermostat WB20K08
#17

Gas & burner parts diagram

Range oven control thermostat

Part #WB20K08

$96.49
In Stock
Range Screw WB1K63
#361B

Door & drawer parts diagram

Range screw

Part #WB1K63

This item is not returnable
$48.78 |
11% OFF Phone Price : $54.78
In Stock
Range Oven Door Hinge Screw WB1K53
#254C

Body parts diagram

Range oven door hinge screw

Part #WB1K53

$7.69 |
12% OFF Phone Price : $8.69
In Stock
