Front-Engine Lawn Tractor

Model # 91725782 Official Craftsman tractor

Here are the diagrams and repair parts for Official Craftsman 91725782 tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

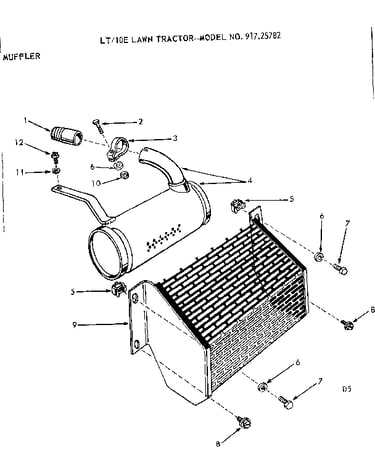

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 300 parts  |
Solenoid 103R
Solenoid

Part #103R

Replaced by #532146154

?
Manufacturer substitution
This part replaces 103R. Substitute parts can look different from the original.
BEST SELLER
$24.60 |
20% OFF Phone Price : $30.60
In Stock
Tire 4843R
#26

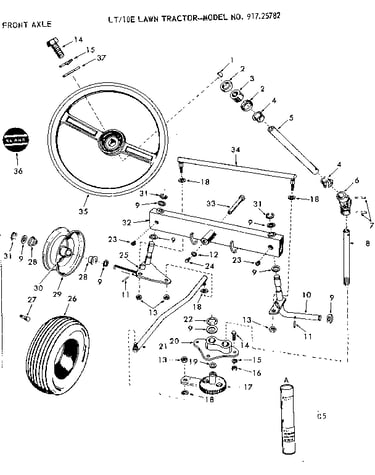

10e lawn tractor/front axle diagram

Tire

Part #4843R

Replaced by #532122073

?
Manufacturer substitution
This part replaces 4843R. Substitute parts can look different from the original.
BEST SELLER
$61.64 |
9% OFF Phone Price : $67.64
In Stock
Lawn Tractor Bearing 3366R
#4

10e lawn tractor/front axle diagram

Lawn tractor bearing

Part #3366R

Replaced by #532003366

?
Manufacturer substitution
This part replaces 3366R. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Valve 795R
Valve

Part #795R

Replaced by #65139

?
Manufacturer substitution
This part replaces 795R. Substitute parts can look different from the original.
BEST SELLER
$10.49 |
16% OFF Phone Price : $12.49
In Stock
E-ring 5000P
E-ring

Part #5000P

Replaced by #812000029

?
Manufacturer substitution
This part replaces 5000P. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.50 |
22% OFF Phone Price : $4.50
In Stock
Starter Switch 4406R
#18

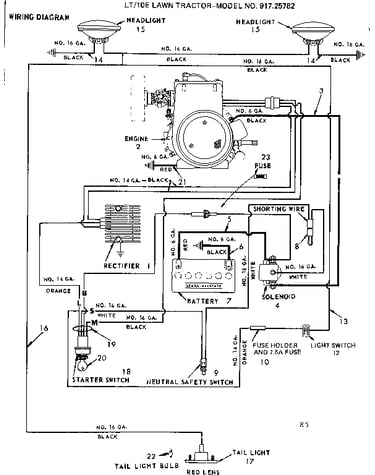

10e lawn tractor/wiring diagram diagram

Starter switch

Part #4406R

Replaced by #532365402

?
Manufacturer substitution
This part replaces 4406R. Substitute parts can look different from the original.
BEST SELLER
$28.82 |
17% OFF Phone Price : $34.82
In Stock
Plate 790007
#80

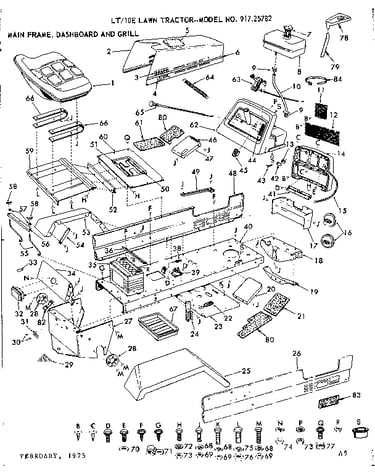

Replacement parts diagram

Plate

Part #790007

Replaced by #790007

?
Manufacturer substitution
This part replaces 790007. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.29 |
16% OFF Phone Price : $6.29
In Stock
Huglock Nut 6684H
#37

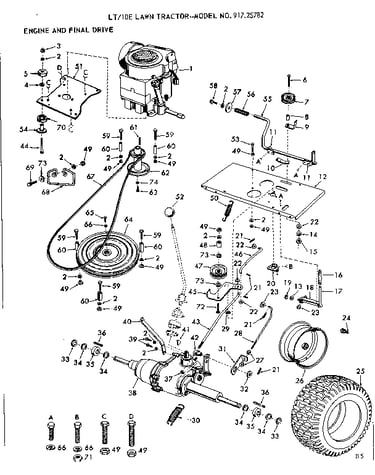

10e lawn tractor/engine and final drive diagram

Huglock nut

Part #6684H

Replaced by #596322601

?
Manufacturer substitution
This part replaces 6684H. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.11
In Stock
Holder 790005
#81

Replacement parts diagram

Holder

Part #790005

Replaced by #790025

?
Manufacturer substitution
This part replaces 790005. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$18.30 |
10% OFF Phone Price : $20.30
In Stock
Pin 786026
#67

Replacement parts diagram

Pin

Part #786026

Replaced by #786026B

?
Manufacturer substitution
This part replaces 786026. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.60 |
18% OFF Phone Price : $5.60
In Stock
