Model # P2DRC20N11201 Official York furnace

Here are the diagrams and repair parts for Official York P2DRC20N11201 furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

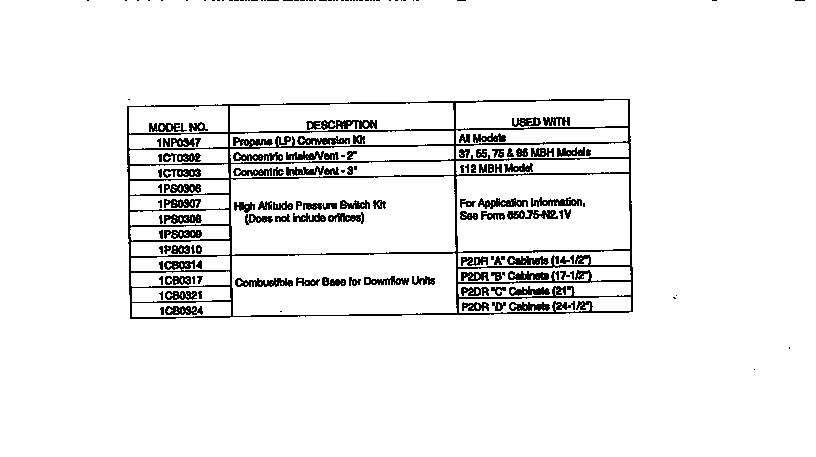

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Furnace Burner Flame Sensor 025-30788-700
#9

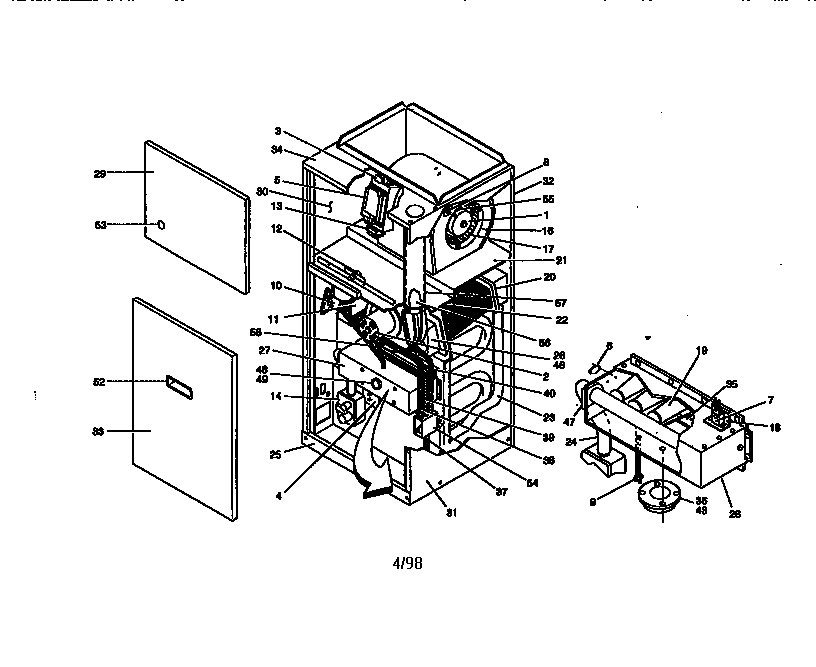

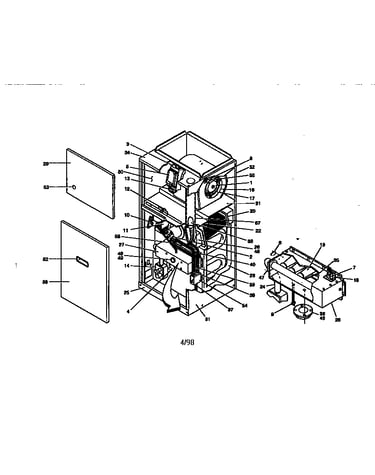

Down-flow natural gas (90+) diagram

Furnace burner flame sensor

Part #025-30788-700

The manufacturer no longer makes this part, and there's no substitute part

Kero-sun Furnace Burner 029-20482-000
#19

Down-flow natural gas (90+) diagram

Kero-sun furnace burner

Part #029-20482-000

The manufacturer no longer makes this part, and there's no substitute part

Furnace Temperature Limit Switch 025-29041-005
#4

Down-flow natural gas (90+) diagram

Furnace temperature limit switch

Part #025-29041-005

The manufacturer no longer makes this part, and there's no substitute part

Switch, Air Pressure 024-26038-000
#10

Down-flow natural gas (90+) diagram

Switch, air pressure

Part #024-26038-000

The manufacturer no longer makes this part, and there's no substitute part

Chase, Vent 026-35453-003
#57

Down-flow natural gas (90+) diagram

Chase, vent

Part #026-35453-003

The manufacturer no longer makes this part, and there's no substitute part

Gasket, Air Intake 3" 028-12460-002
#43

Down-flow natural gas (90+) diagram

Gasket, air intake 3"

Part #028-12460-002

The manufacturer no longer makes this part, and there's no substitute part

Gasket, Heat Shield 028-13244-005
#51

Down-flow natural gas (90+) diagram

Gasket, heat shield

Part #028-13244-005

The manufacturer no longer makes this part, and there's no substitute part

Wrapper, Right Side 373-18008-001
#31

Down-flow natural gas (90+) diagram

Wrapper, right side

Part #373-18008-001

The manufacturer no longer makes this part, and there's no substitute part

Panel, Front (blower) 073-17987-004
#29

Down-flow natural gas (90+) diagram

Panel, front (blower)

Part #073-17987-004

The manufacturer no longer makes this part, and there's no substitute part

Filter Bracket 373-18262-001
#42

Down-flow natural gas (90+) diagram

Filter bracket

Part #373-18262-001

The manufacturer no longer makes this part, and there's no substitute part
