Model # 5871738581 Official Kenmore portable dishwasher

Here are the diagrams and repair parts for Official Kenmore 5871738581 portable dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

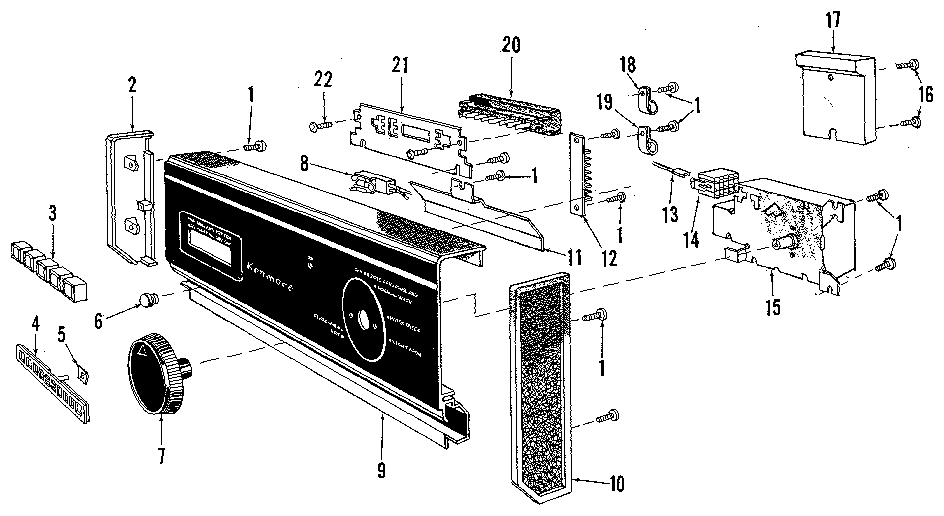

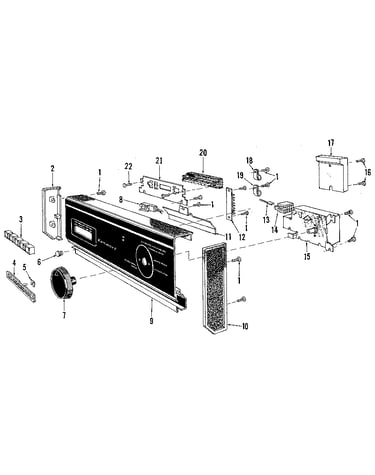

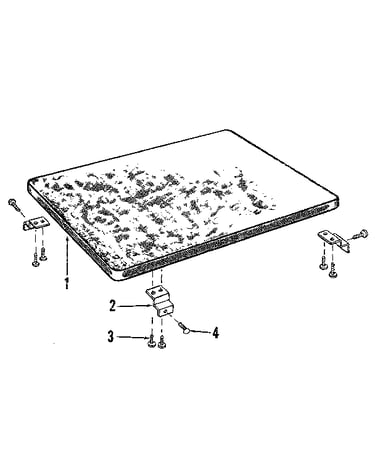

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 203 parts  |
Nut 806834
#24

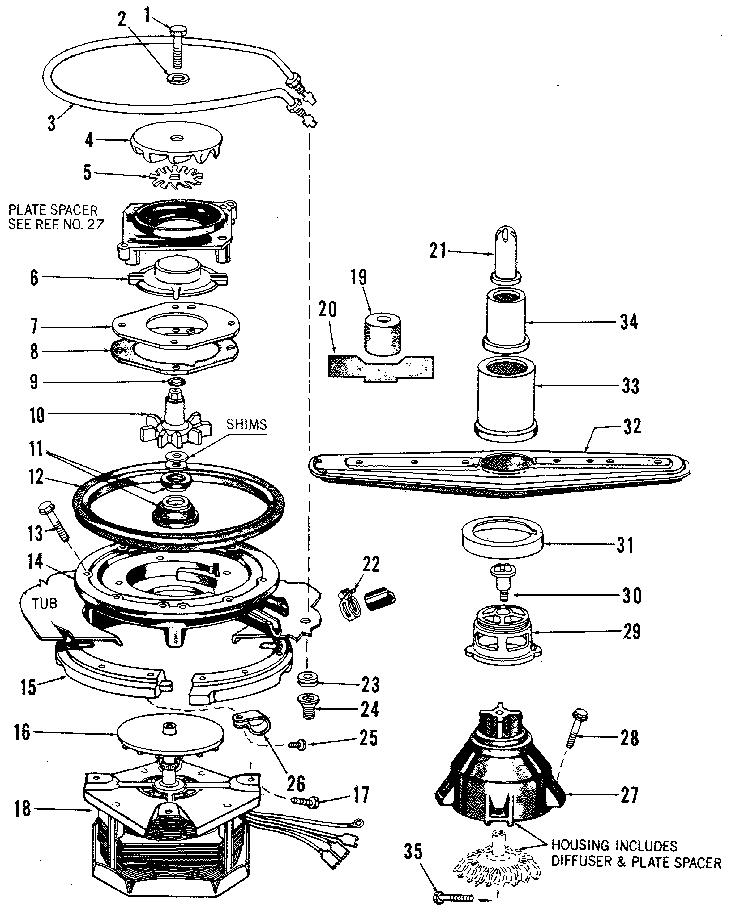

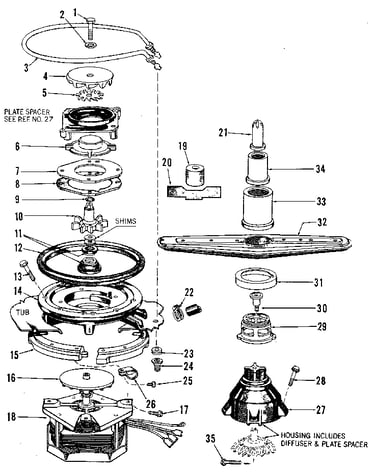

Motor, heater, and spray arm diagram

Nut

Part #806834

Replaced by #154106202

?
Manufacturer substitution
This part replaces 806834. Substitute parts can look different from the original.
BEST SELLER
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Scalant 807509

#NI

All parts diagram

Scalant

Part #807509

Replaced by #5304469950

?
Manufacturer substitution
This part replaces 807509. Substitute parts can look different from the original.
$86.64 |
6% OFF Phone Price : $92.64
In Stock
Screw 806890
#7

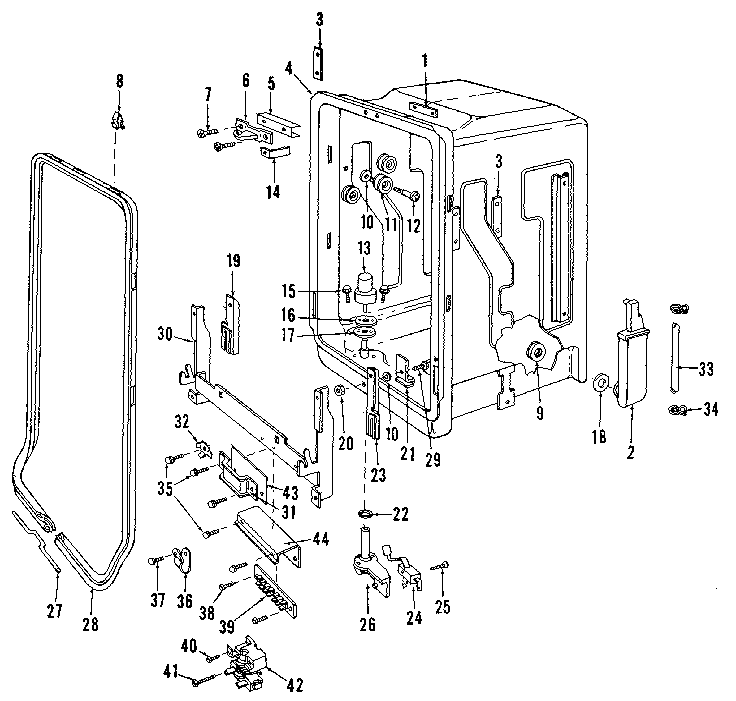

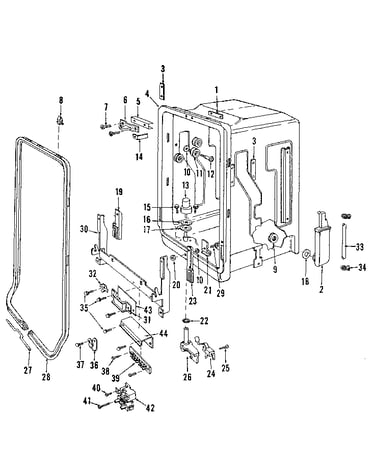

Tub diagram

Screw

Part #806890

Replaced by #131302901

?
Manufacturer substitution
This part replaces 806890. Substitute parts can look different from the original.
This item is not returnable
$5.40 |
16% OFF Phone Price : $6.40
In Stock
Screw 808658
Screw

Part #808658

Replaced by #154419403

?
Manufacturer substitution
This part replaces 808658. Substitute parts can look different from the original.
$12.69
In Stock
Screw 809163
#9

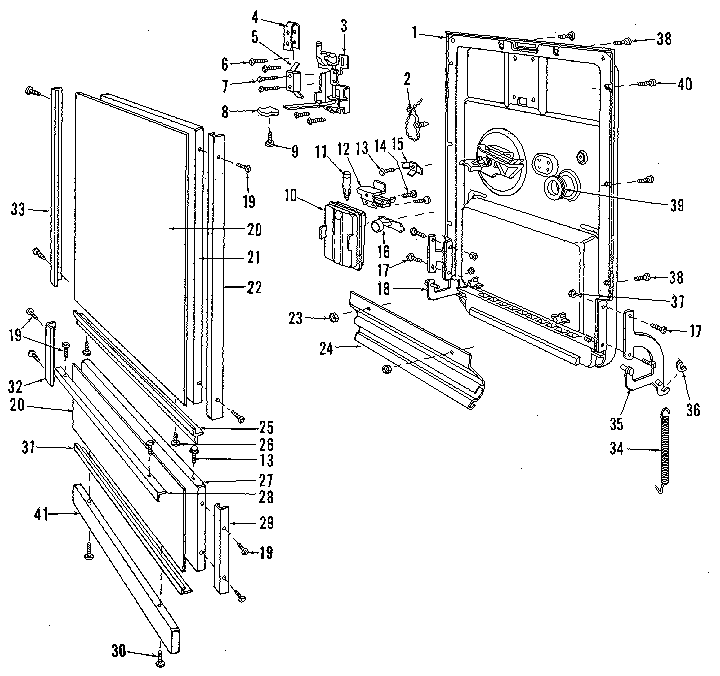

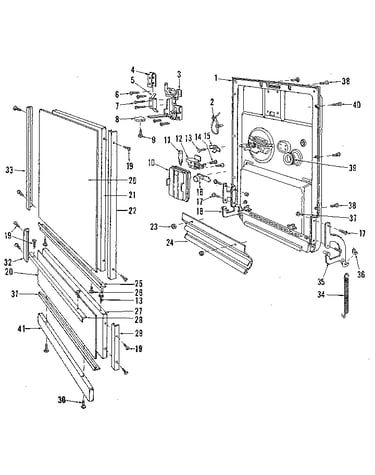

Door diagram

Screw

Part #809163

This item is not returnable
$2.16
In Stock
Washer 807373
#7

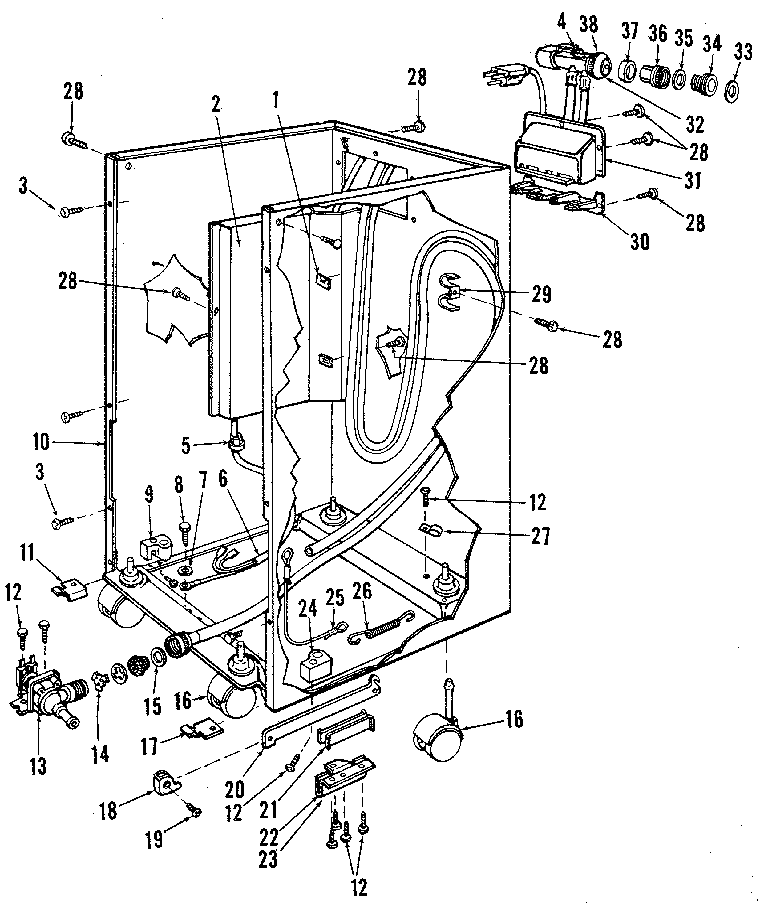

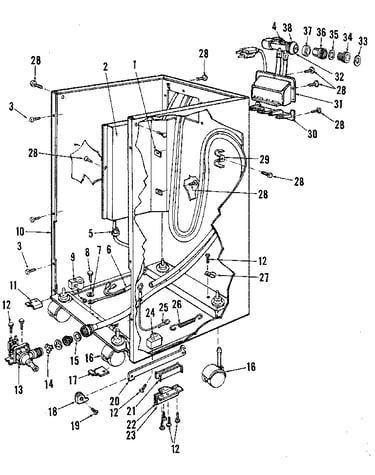

Frame diagram

Washer

Part #807373

Replaced by #5300807373

?
Manufacturer substitution
This part replaces 807373. Substitute parts can look different from the original.
This item is not returnable
$7.49
In Stock
Wheel Bracket 809640
#1

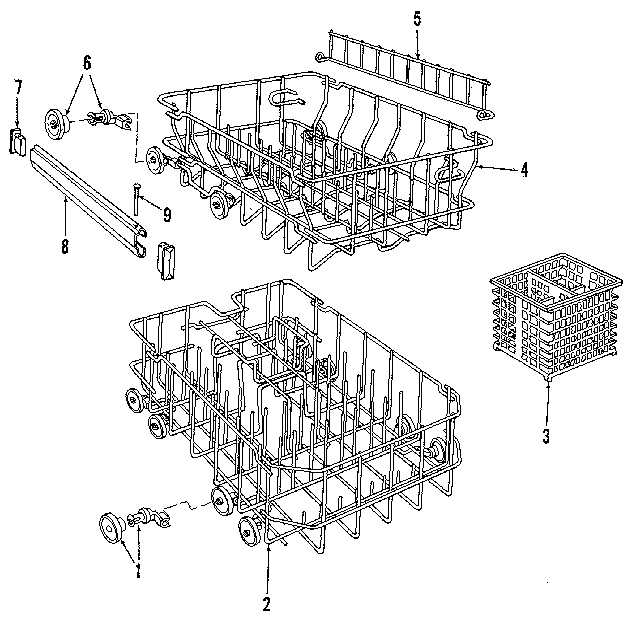

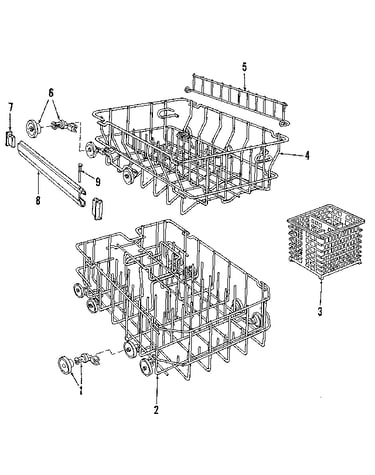

Rack diagram

Wheel bracket

Part #809640

Replaced by #5304532229

?
Manufacturer substitution
This part replaces 809640. Substitute parts can look different from the original.
This item is not returnable
$4.88 |
17% OFF Phone Price : $5.88
In Stock
Cam 806566
#2

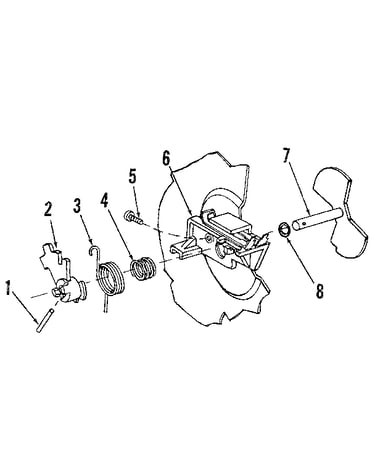

Detergent cup diagram

Cam

Part #806566

Replaced by #154180301

?
Manufacturer substitution
This part replaces 806566. Substitute parts can look different from the original.
$16.20
In Stock
Clamp 808442
Clamp

Part #808442

Replaced by #5308000133

?
Manufacturer substitution
This part replaces 808442. Substitute parts can look different from the original.
$11.20
In Stock
Screw 807293
#19

Door diagram

Screw

Part #807293

Replaced by #5300807293

?
Manufacturer substitution
This part replaces 807293. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
