Model # WTW6200SW3 Official Whirlpool washer
Here are the diagrams and repair parts for Official Whirlpool WTW6200SW3 washer, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part

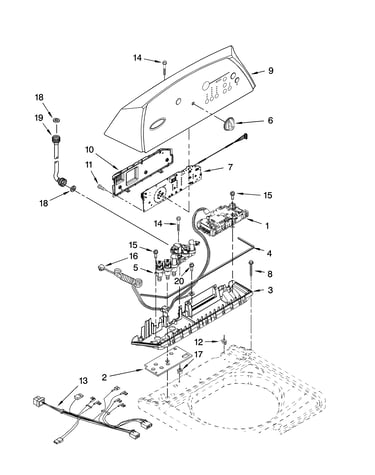

SELECT DIAGRAM
Browse Parts for
WTW6200SW3 Washer
#(NI)

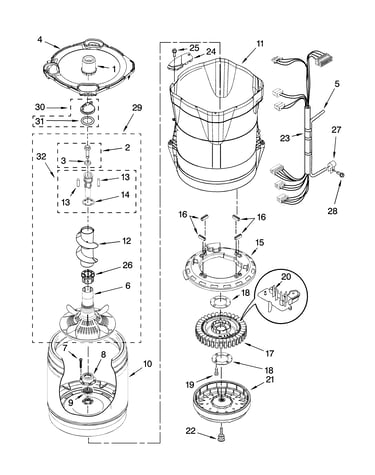

Motor, basket and tub parts diagram
Whirlpool washer tub bearing and drive shaft kit
Part #W10435302
$92.42 |
6% OFF Phone Price : $98.42
In Stock
#9
Motor, basket and tub parts diagram
Hub
Part #8545953
Replaced by #W10820039
?
Manufacturer substitution
This part replaces 8545953. Substitute parts can look different from the original.
$28.36 |
17% OFF Phone Price : $34.36
In Stock
#8
Motor, basket and tub parts diagram
Hub
Part #W10118114
Replaced by #W10820039
?
Manufacturer substitution
This part replaces W10118114. Substitute parts can look different from the original.
$28.36 |
17% OFF Phone Price : $34.36
In Stock
#1

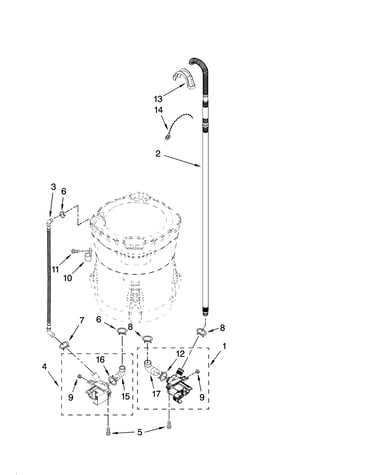

Pump parts, optional parts (not included) diagram
Pump-water
Part #W10049390
Replaced by #W10536347
?
Manufacturer substitution
This part replaces W10049390. Substitute parts can look different from the original.
$83.34 |
7% OFF Phone Price : $89.34
In Stock
#17
Motor, basket and tub parts diagram
Stator
Part #8565170
Replaced by #WPW10419333
?
Manufacturer substitution
This part replaces 8565170. Substitute parts can look different from the original.
$178.70 |
6% OFF Phone Price : $190.70
In Stock
#7
Motor, basket and tub parts diagram
Washer screw
Part #8533953
Replaced by #WP8533953
?
Manufacturer substitution
This part replaces 8533953. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
#20
Motor, basket and tub parts diagram
Sensor
Part #W10137685
Replaced by #WPW10178988
?
Manufacturer substitution
This part replaces W10137685. Substitute parts can look different from the original.
$38.89 |
13% OFF Phone Price : $44.89
In Stock
#5
Motor, basket and tub parts diagram
Hose
Part #8572540
Replaced by #WP353244
?
Manufacturer substitution
This part replaces 8572540. Substitute parts can look different from the original.
$43.73 |
12% OFF Phone Price : $49.73
In Stock
Clamp
Part #371503
Replaced by #WP596669
?
Manufacturer substitution
This part replaces 371503. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
#41

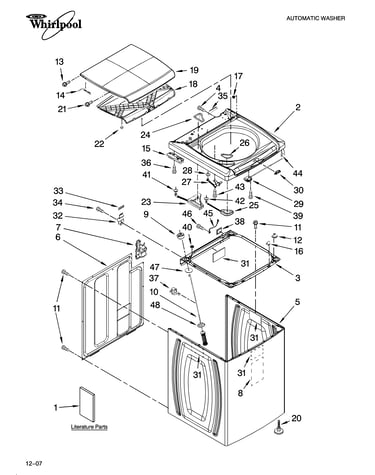

Top and cabinet parts diagram
Hose clamp
Part #370451
Replaced by #WP596669
?
Manufacturer substitution
This part replaces 370451. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
