Model # 502472661 Official Sears 26" lightweight bicycle

Here are the diagrams and repair parts for Official Sears 502472661 26" lightweight bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

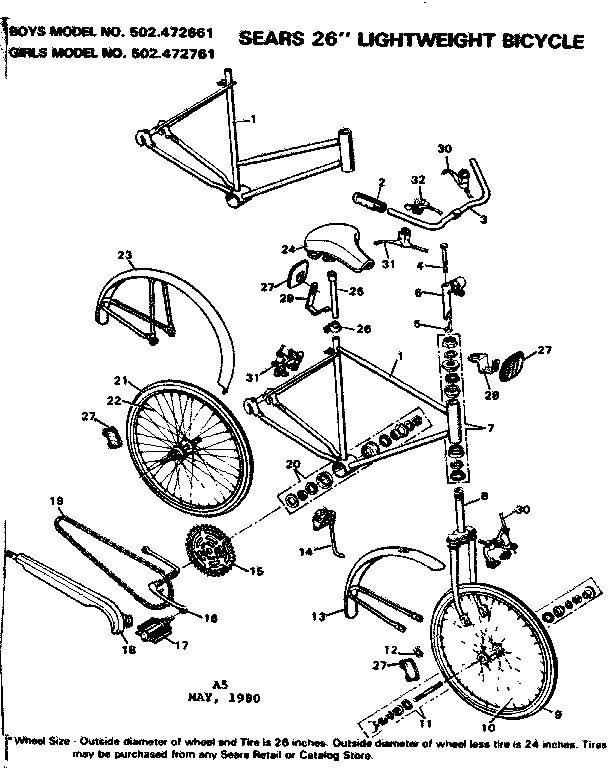

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Sprocket 300424
#24A

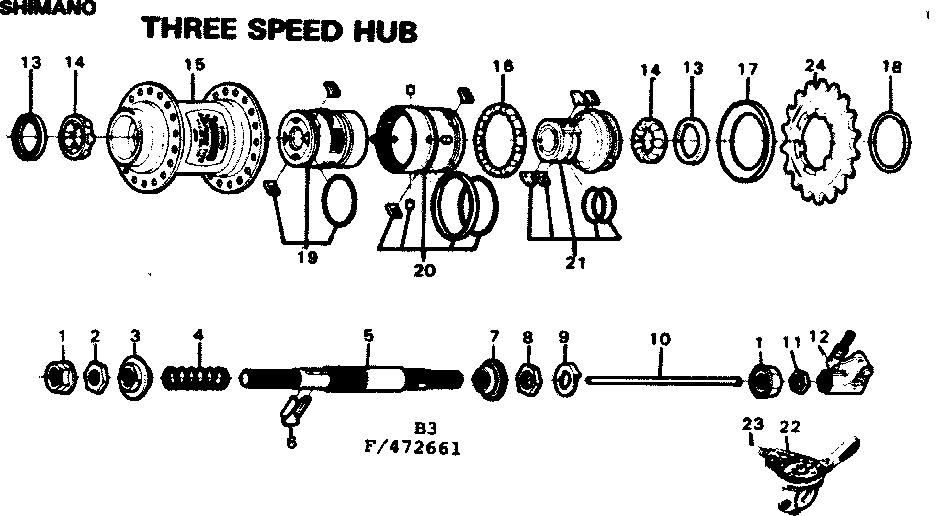

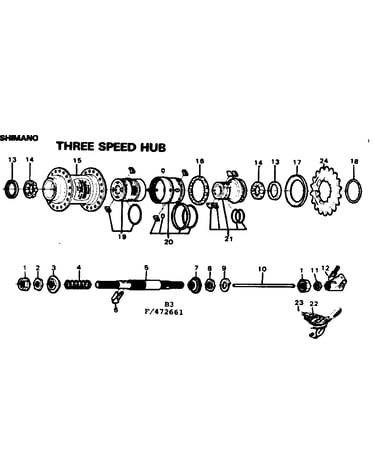

Three speed hub diagram

Sprocket

Part #300424

The manufacturer no longer makes this part, and there's no substitute part

F Axle Set 303518
#11

Unit parts diagram

F axle set

Part #303518

The manufacturer no longer makes this part, and there's no substitute part

Brake Shoe 308697
#2

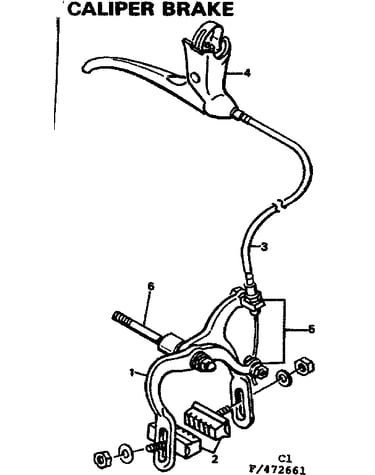

Caliper brake diagram

Brake shoe

Part #308697

The manufacturer no longer makes this part, and there's no substitute part

Spk 11-9/32 303157
Spk 11-9/32

Part #303157

The manufacturer no longer makes this part, and there's no substitute part

Driver 302327
#21

Three speed hub diagram

Driver

Part #302327

The manufacturer no longer makes this part, and there's no substitute part

Fr Caliper 304401
#1

Caliper brake diagram

Fr caliper

Part #304401

The manufacturer no longer makes this part, and there's no substitute part

Bar Stem 27160

#NI

All parts diagram

Bar stem

Part #27160

The manufacturer no longer makes this part, and there's no substitute part

Rr Caliper 304403
#1A

Caliper brake diagram

Rr caliper

Part #304403

The manufacturer no longer makes this part, and there's no substitute part

Bolt 302111
#6A

Caliper brake diagram

Bolt

Part #302111

The manufacturer no longer makes this part, and there's no substitute part

Cable 65-70 308713
#23

Three speed hub diagram

Cable 65-70

Part #308713

The manufacturer no longer makes this part, and there's no substitute part
