Model # AEM08LQG1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AEM08LQG1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

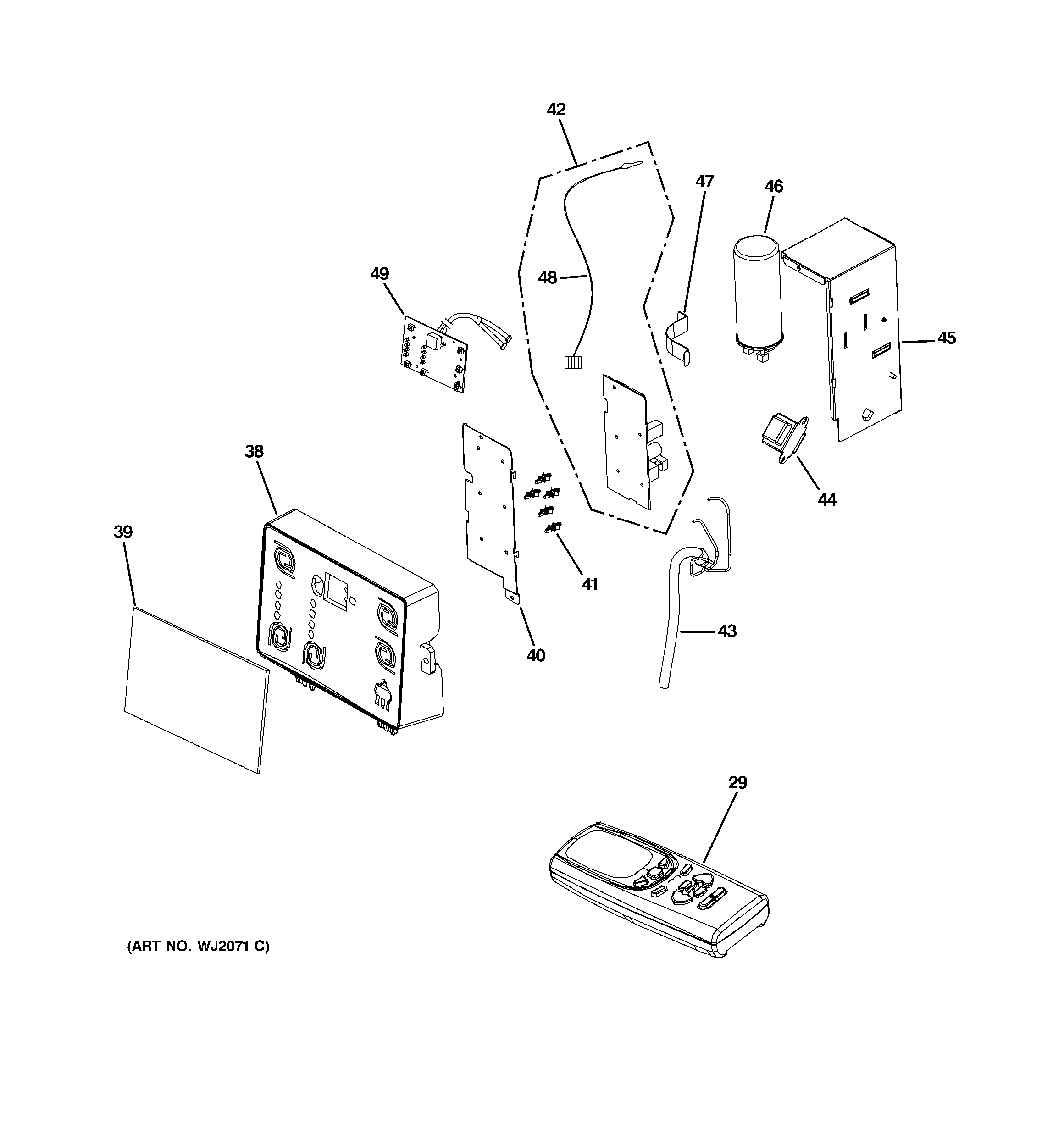

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |

Housing, Pro WJ76X10315
#14

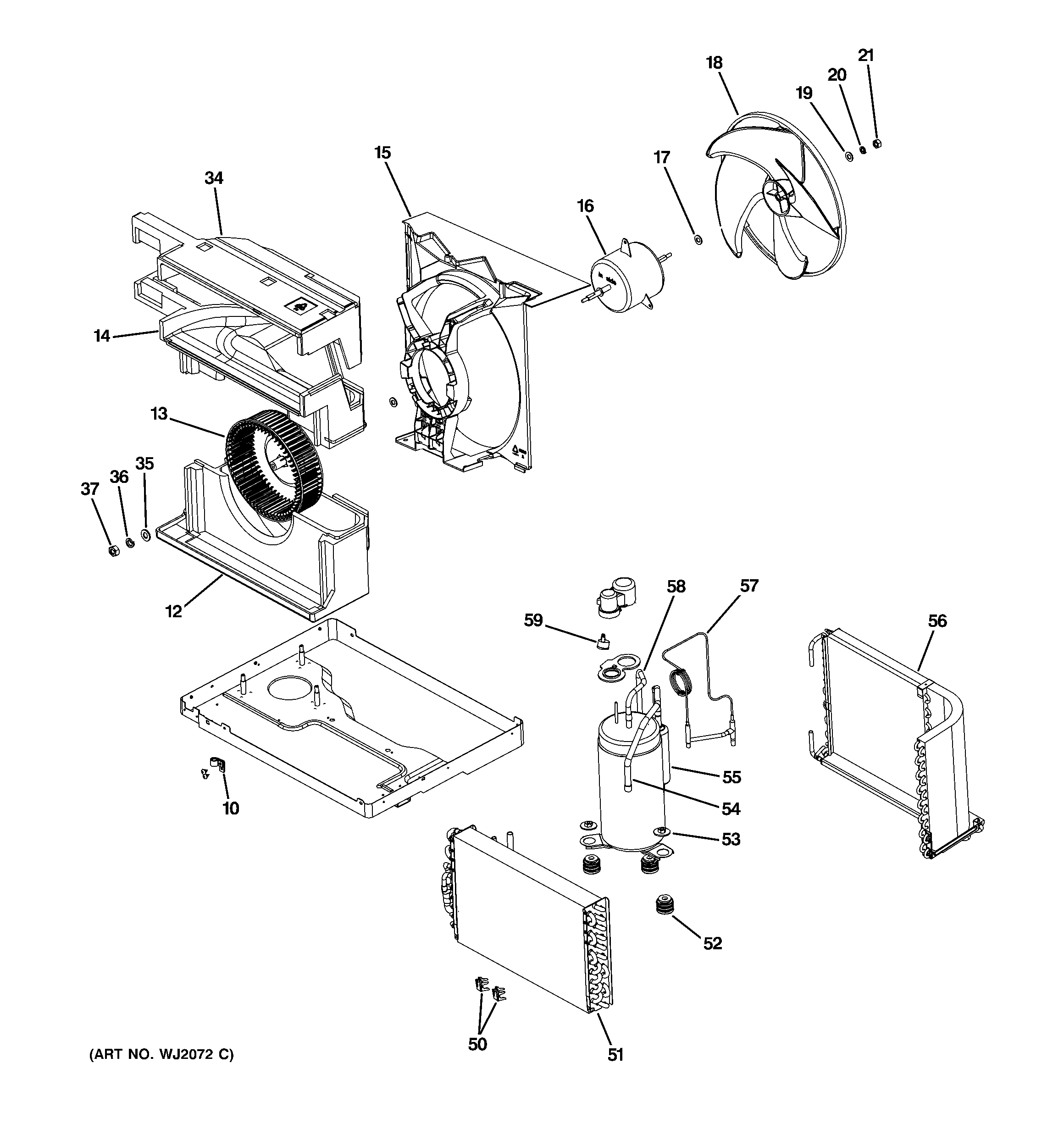

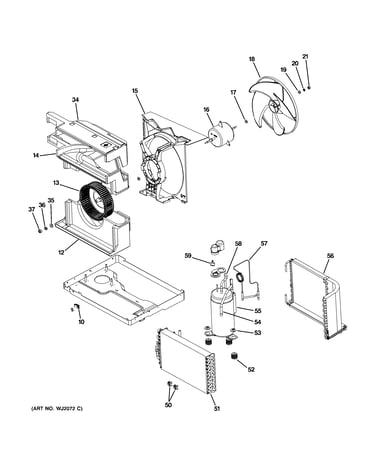

Base pan & unit parts diagram

Housing, pro

Part #WJ76X10315

In Stock
Air Conditioner Air Guide Frame WJ14X10082
#2

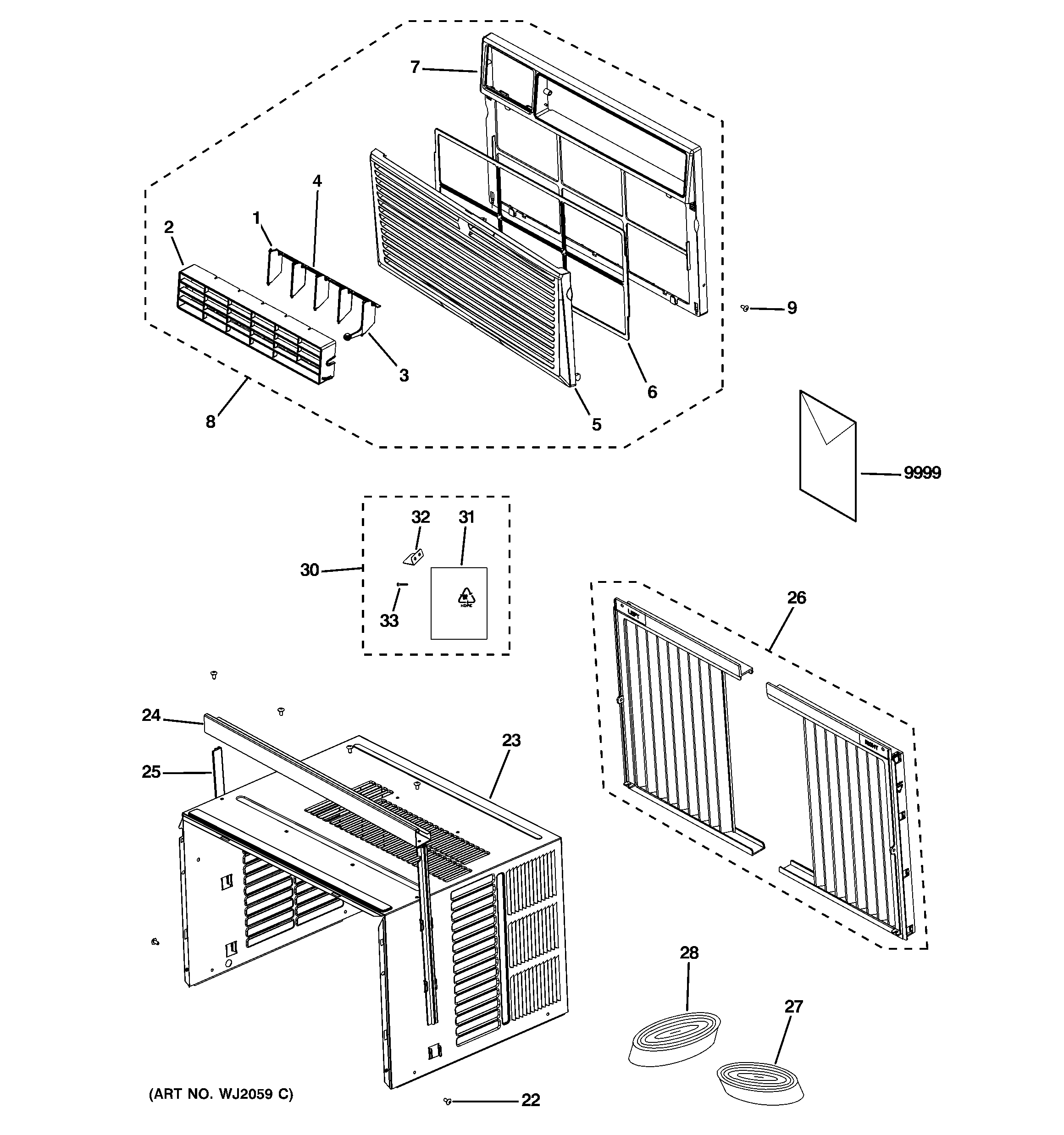

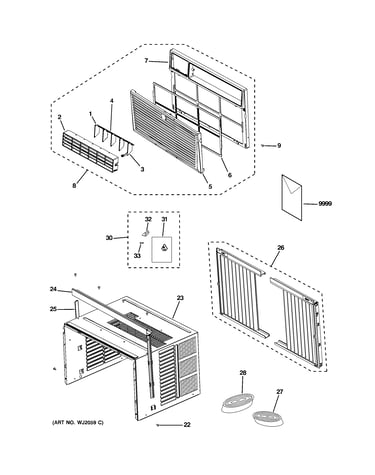

Grille & chassis parts diagram

Air conditioner air guide frame

Part #WJ14X10082

$12.04
14% OFF Phone Price : $14.04
In Stock
Nut WJ01X10345
#35

Base pan & unit parts diagram

Nut

Part #WJ01X10345

In Stock
Prop Housing WJ76X10314
#12

Base pan & unit parts diagram

Prop housing

Part #WJ76X10314

In Stock
Gasket Seal WJ43X10073
#27

Grille & chassis parts diagram

Gasket seal

Part #WJ43X10073

$10.93
15% OFF Phone Price : $12.93
In Stock
Swing Louver WJ71X10573
#3

Grille & chassis parts diagram

Swing louver

Part #WJ71X10573

$12.08
14% OFF Phone Price : $14.08
In Stock
Capillary Assembly WJ53X10254
#57

Base pan & unit parts diagram

Capillary assembly

Part #WJ53X10254

In Stock
Screw WJ01X10351
#33

Grille & chassis parts diagram

Screw

Part #WJ01X10351

In Stock
Motor Housing WJ76X10337
#15

Base pan & unit parts diagram

Motor housing

Part #WJ76X10337

In Stock
Gasket Seal WJ43X10074
#28

Grille & chassis parts diagram

Gasket seal

Part #WJ43X10074

In Stock
