Model # DSC-S40 Official Sony camera

Here are the diagrams and repair parts for Official Sony DSC-S40 camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |

Sony Flex Cable 183057211
#104

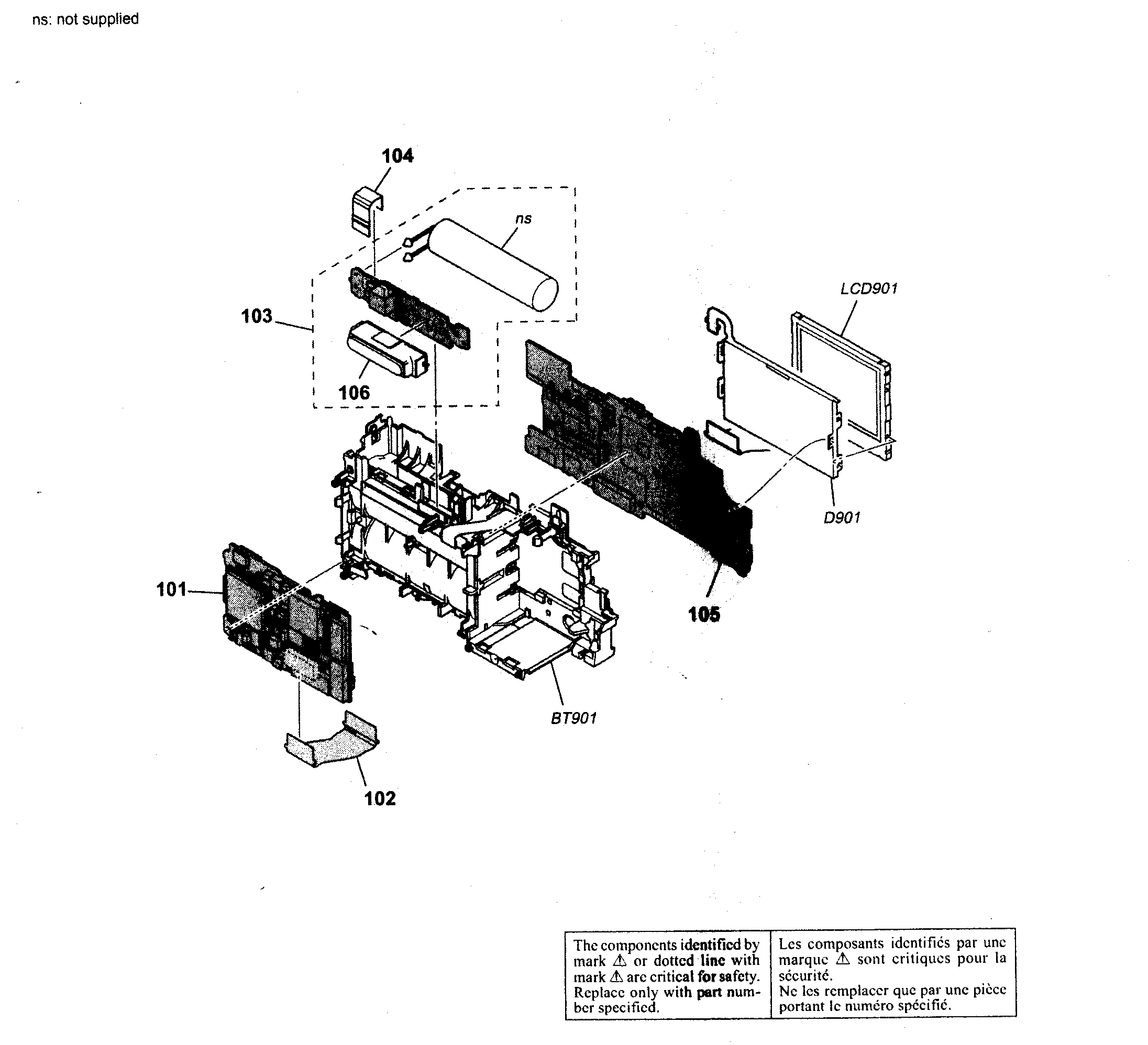

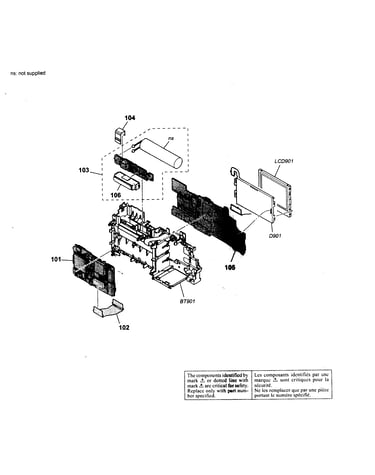

Battery holder diagram

Sony flex cable

Part #183057211

This item is not returnable
In Stock
Battery, L 175653911
#BT1

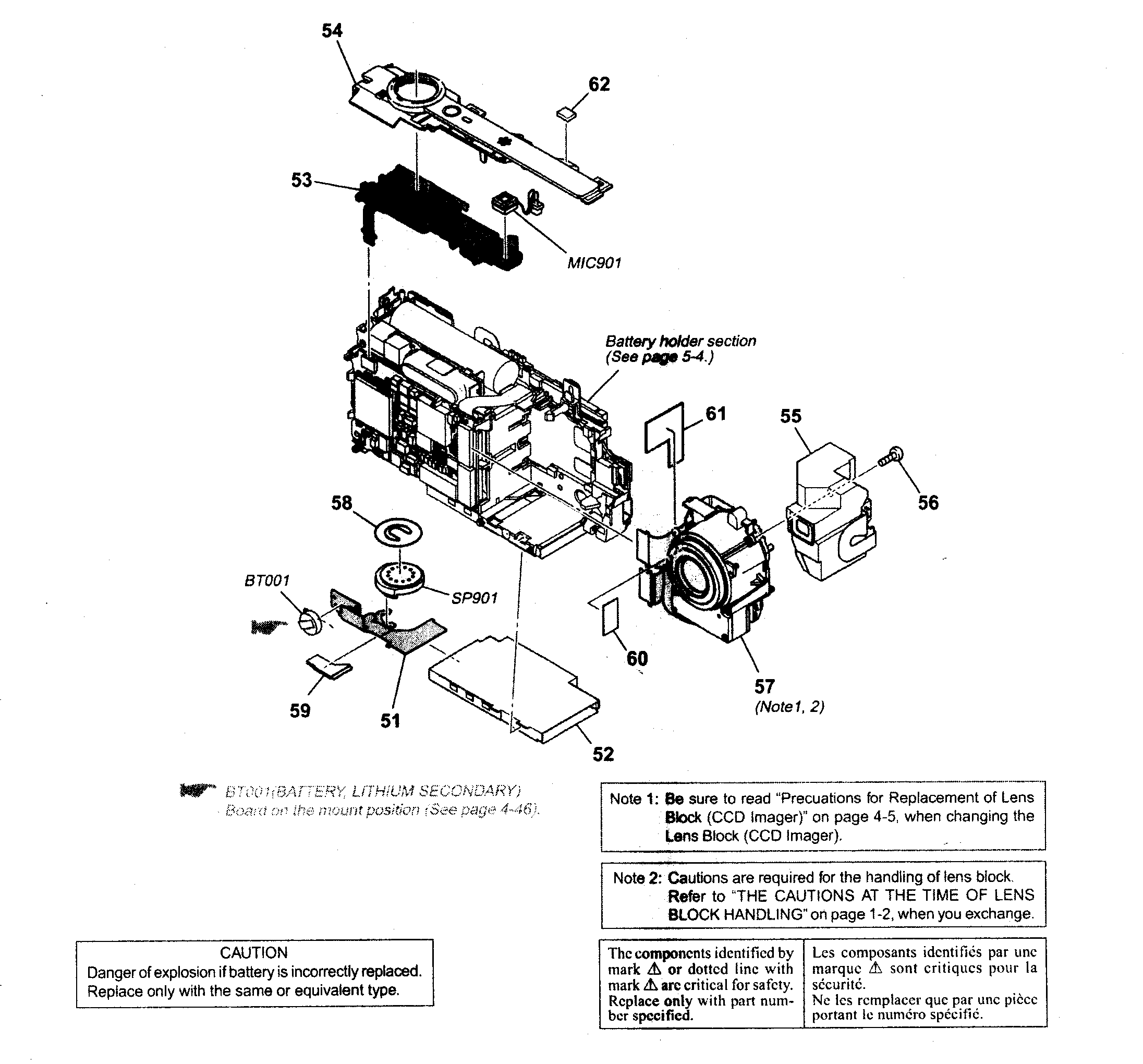

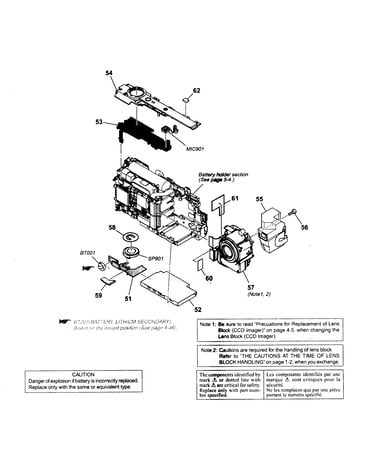

Bt holder block diagram

Battery, l

Part #175653911

In Stock
Sony Speaker 182566511
#NI

Bt holder block diagram

Sony speaker

Part #182566511

In Stock
Coil 145619311
#NI

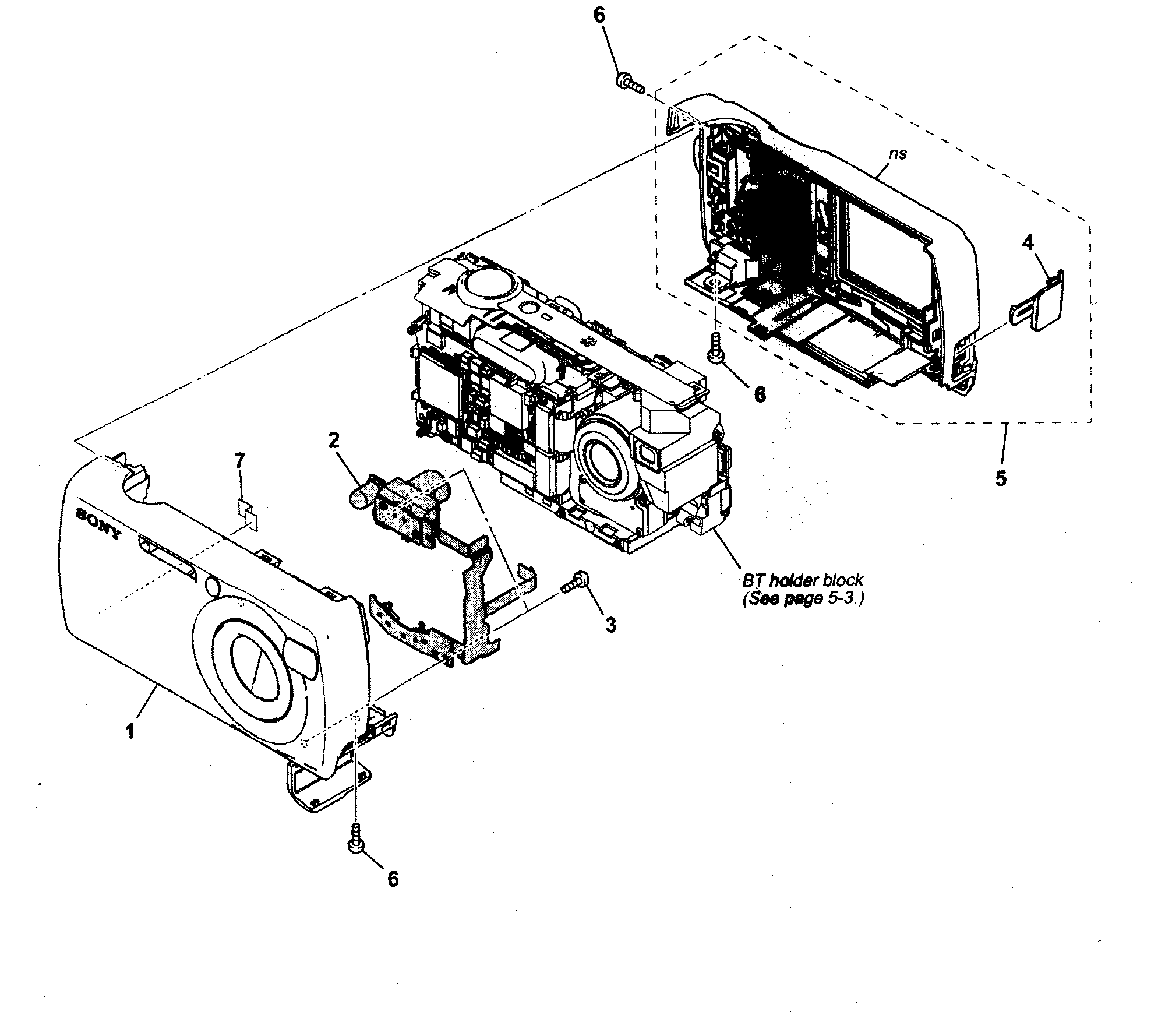

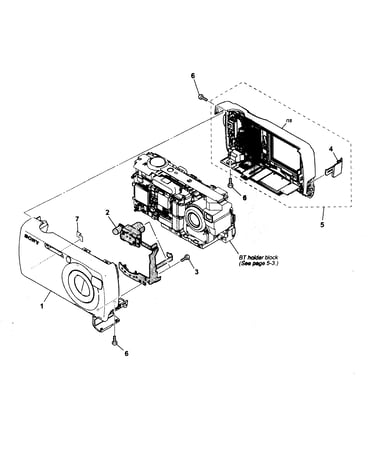

Overal section diagram

Coil

Part #145619311

In Stock
Capacitor 110075811
#NI

Overal section diagram

Capacitor

Part #110075811

The manufacturer no longer makes this part, and there's no substitute part

Dc Motor 176381851
#NI

Overal section diagram

Dc motor

Part #176381851

The manufacturer no longer makes this part, and there's no substitute part

Tr, Cy25ba 655065601
#NI

Overal section diagram

Tr, cy25ba

Part #655065601

Replaced by #655167501

?
Manufacturer substitution
This part replaces 655065601. Substitute parts can look different from the original.
In Stock
Hand Strap 205098101
#NI

Overal section diagram

Hand strap

Part #205098101

Replaced by #447089901

?
Manufacturer substitution
This part replaces 205098101. Substitute parts can look different from the original.
In Stock
Transformer 144364821
#NI

Overal section diagram

Transformer

Part #144364821

The manufacturer no longer makes this part, and there's no substitute part

Microphone 154260021
#NI

Bt holder block diagram

Microphone

Part #154260021

The manufacturer no longer makes this part, and there's no substitute part
