Model # DVG52M7750W/A3-00 Official Samsung dryer

Here are the diagrams and repair parts for Official Samsung DVG52M7750W-A3-00 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

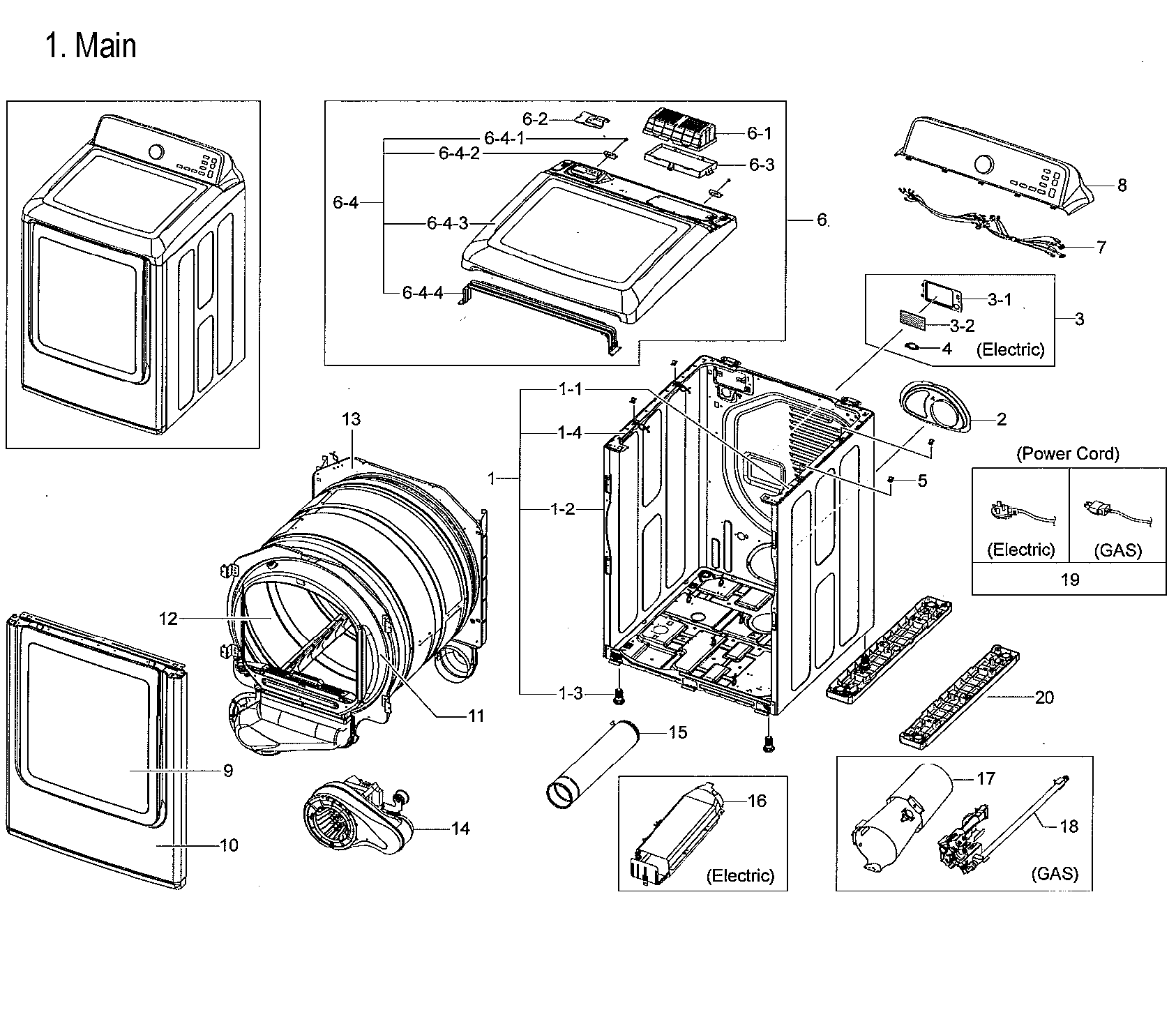

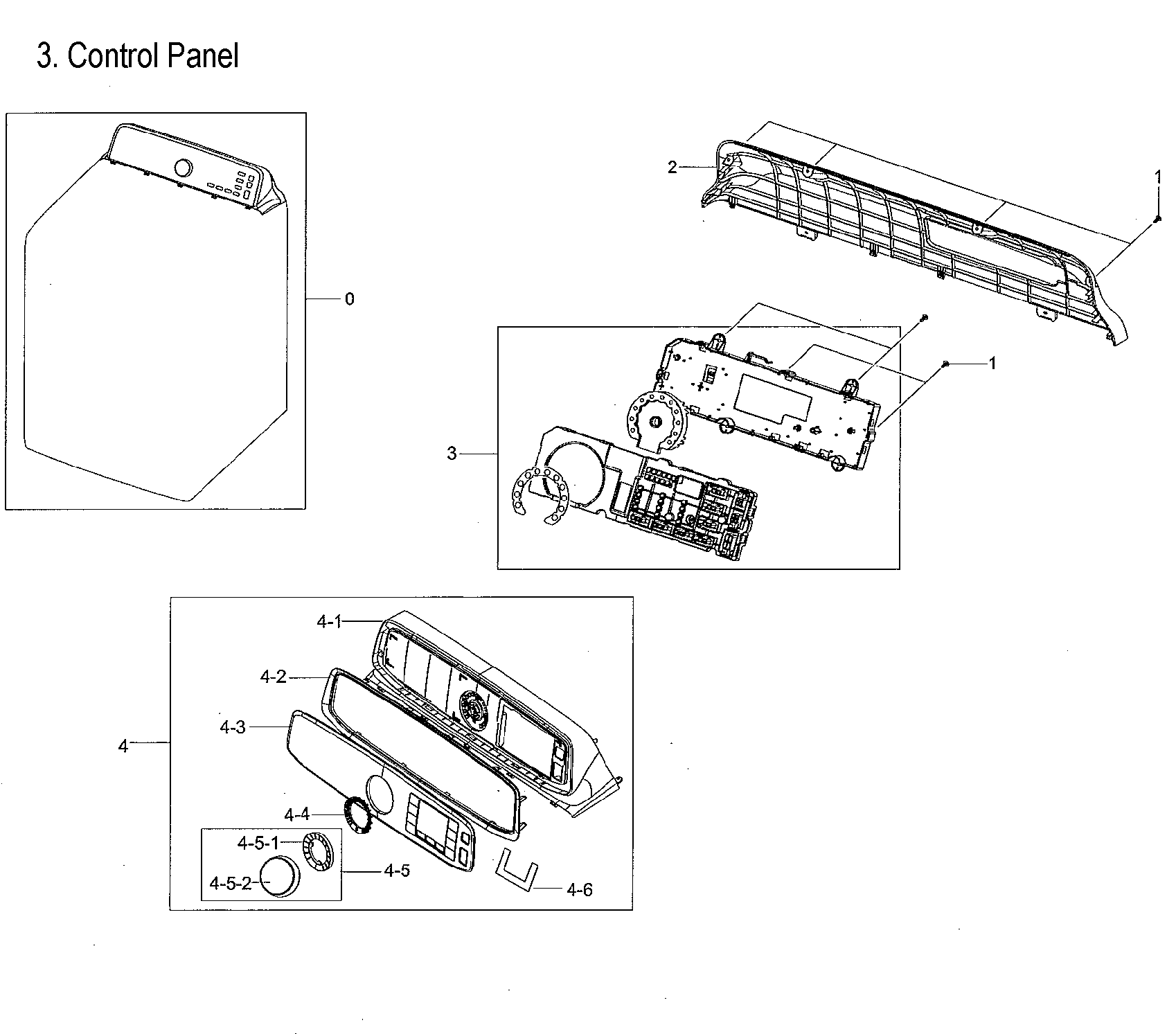

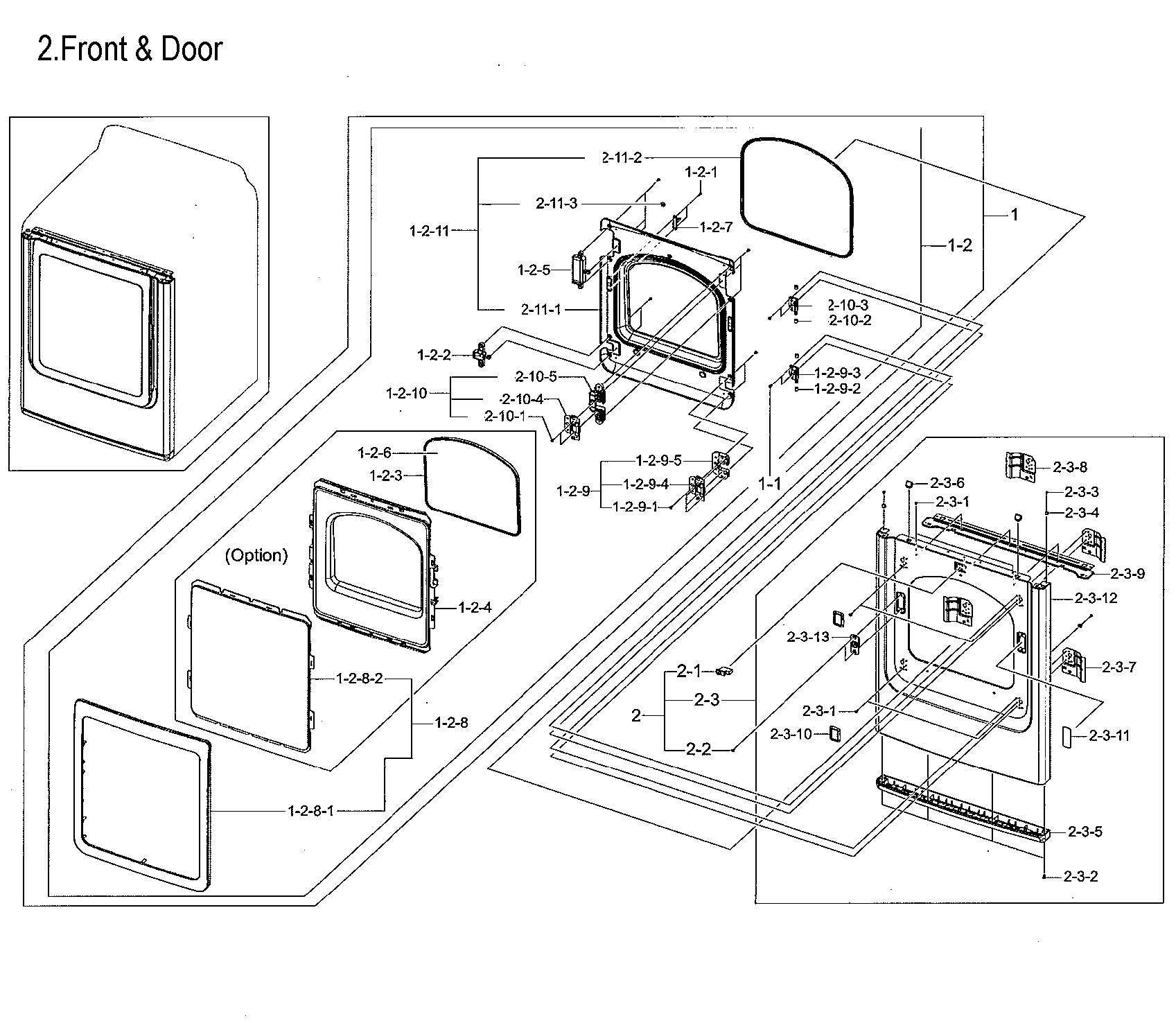

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 157 parts  |
Dryer Drum Belt (replaces 6602-001314) 6602-001655
#1

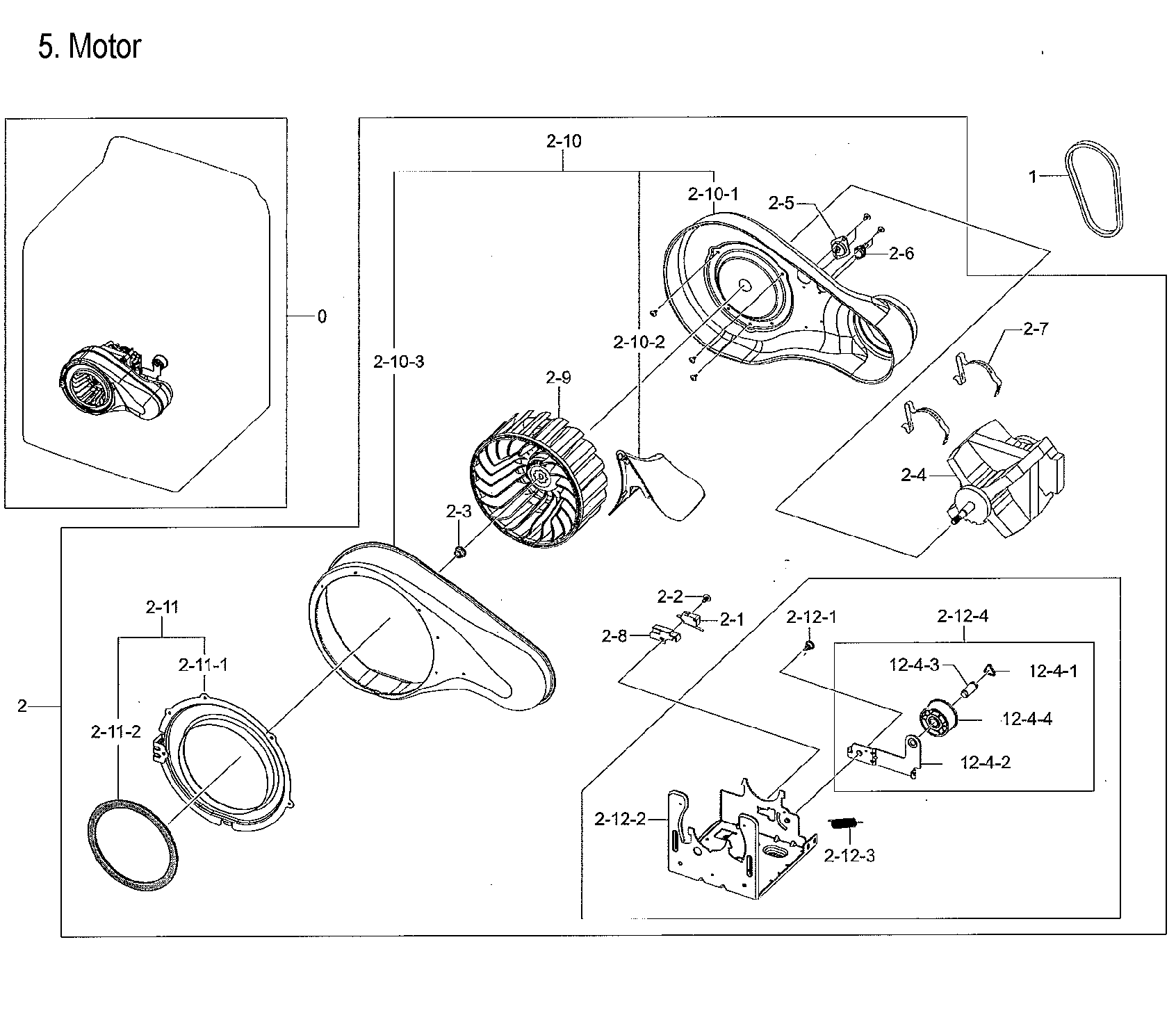

Motor duct diagram

Dryer drum belt (replaces 6602-001314)

Part #6602-001655

BEST SELLER
$32.20 |
16% OFF Phone Price : $38.20
In Stock
Dryer Thermistor (replaces Dc32-0007a) DC32-00007A
#2-5

Motor duct diagram

Dryer thermistor (replaces dc32-0007a)

Part #DC32-00007A

BEST SELLER
$25.82 |
19% OFF Phone Price : $31.82
In Stock
Dryer Thermal Cut-off Thermostat DC47-00016A
#2-6

Motor duct diagram

Dryer thermal cut-off thermostat

Part #DC47-00016A

BEST SELLER
$25.87 |
19% OFF Phone Price : $31.87
In Stock
Dryer Drive Motor (replaces Dc31-00055h) DC31-00055G
#2-4

Motor duct diagram

Dryer drive motor (replaces dc31-00055h)

Part #DC31-00055G

BEST SELLER
$213.61 |
5% OFF Phone Price : $225.61
In Stock
Plastic Supportor DC97-16782B
Plastic supportor

Part #DC97-16782B

Replaced by #DC97-16782E

?
Manufacturer substitution
This part replaces DC97-16782B. Substitute parts can look different from the original.
BEST SELLER
$70.49 |
8% OFF Phone Price : $76.49
In Stock
Dryer Motor And Blower Assembly DC93-00101U
#2

Motor duct diagram

Dryer motor and blower assembly

Part #DC93-00101U

BEST SELLER
This item is not returnable
$286.04 |
$12.00 OFF Phone Price : $298.04
In Stock
Dryer Burner Igniter DC47-00022A
#4

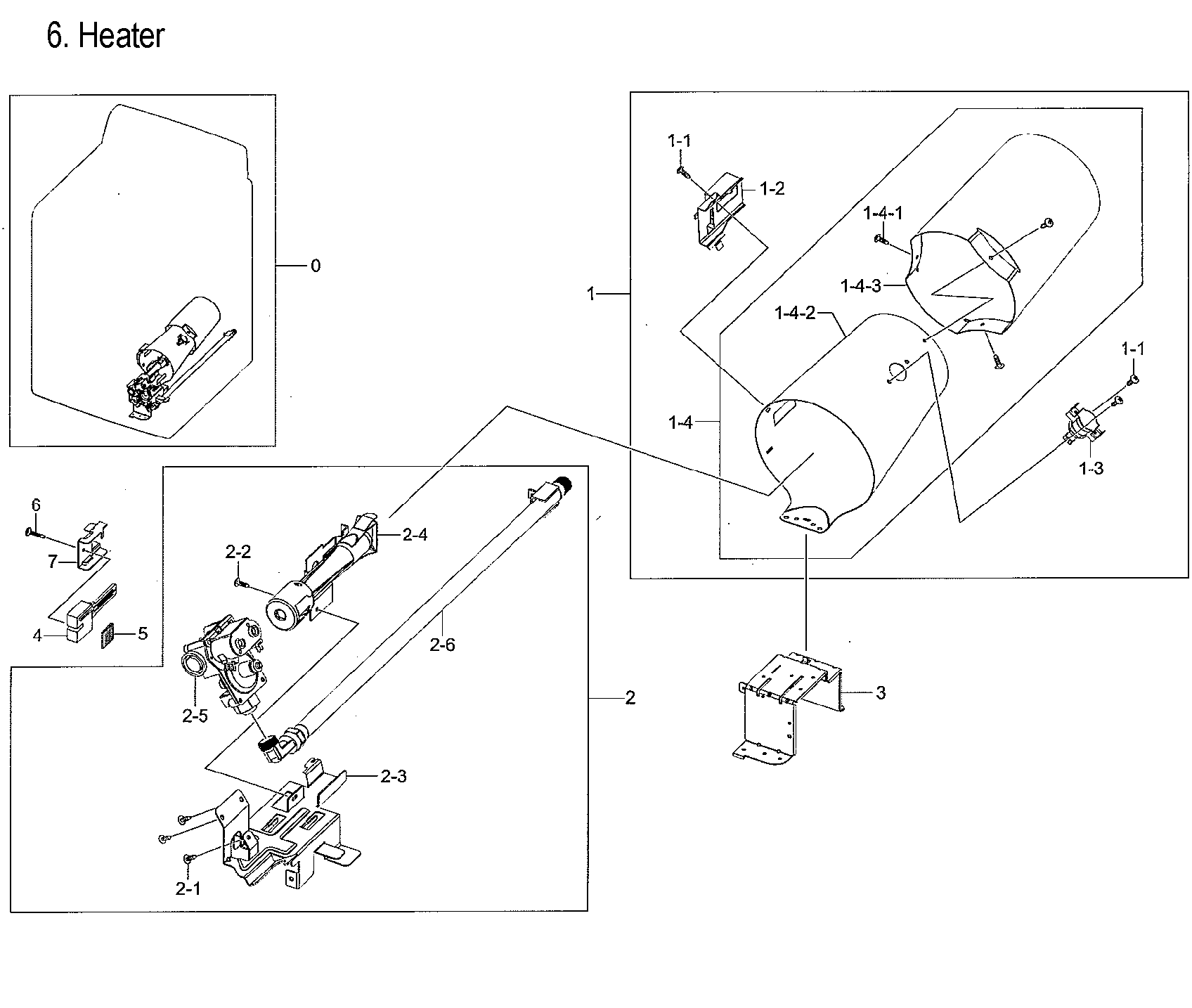

Duct & burner diagram

Dryer burner igniter

Part #DC47-00022A

BEST SELLER
$117.34 |
9% OFF Phone Price : $129.34
In Stock
Dryer Blower Wheel (replaces Dc67-00180a) DC67-00180B
#2-9

Motor duct diagram

Dryer blower wheel (replaces dc67-00180a)

Part #DC67-00180B

BEST SELLER
$92.59 |
6% OFF Phone Price : $98.59
In Stock
Dryer High-limit Thermostat (replaces 35001192) DC47-00017A
#1-3

Duct & burner diagram

Dryer high-limit thermostat (replaces 35001192)

Part #DC47-00017A

BEST SELLER
$70.15 |
8% OFF Phone Price : $76.15
In Stock
Dryer Lint Screen Cover Spring DC61-02740A
#1445

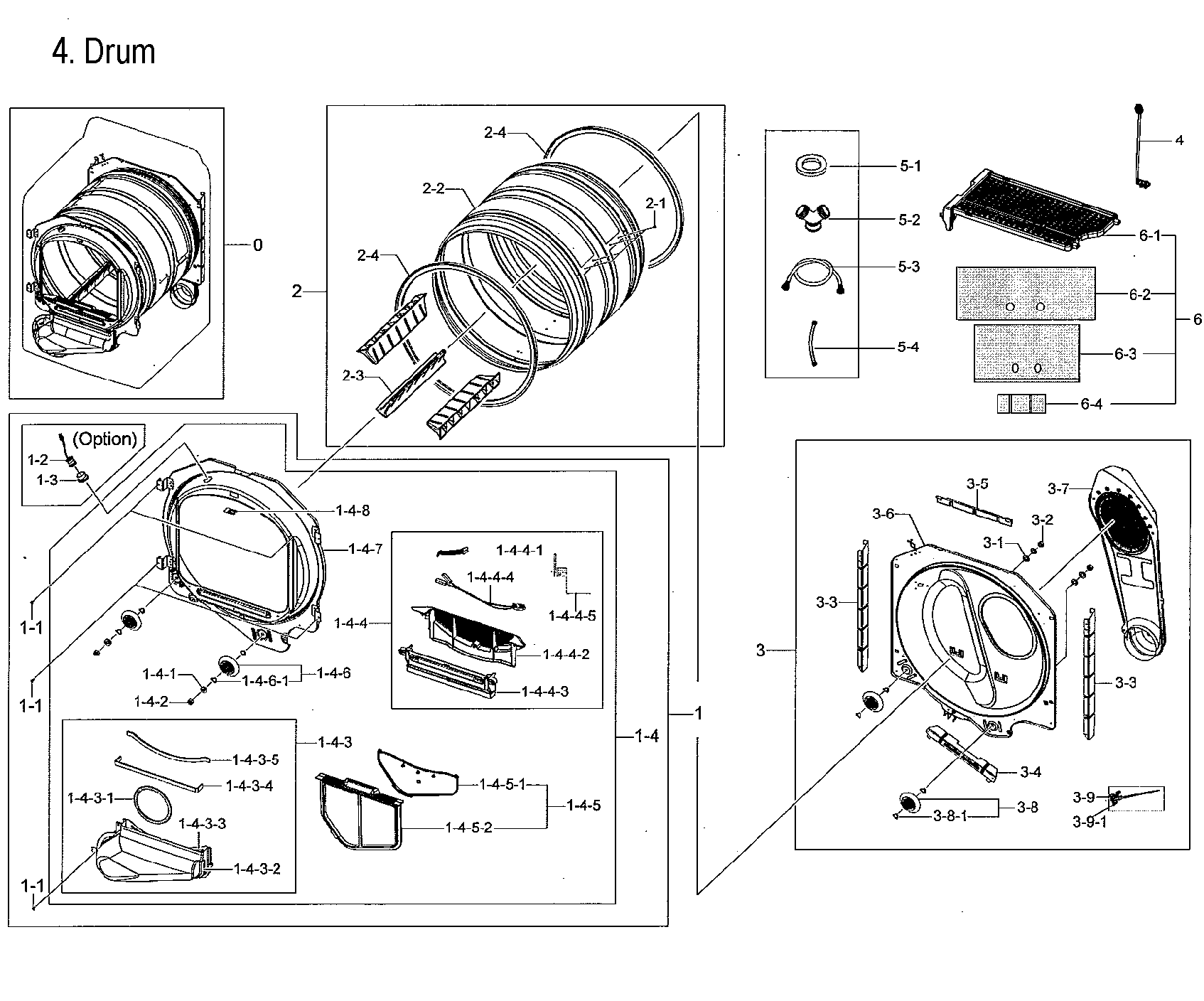

Drum parts diagram
