KitchenAid
Warming Drawer

Model # KEWS175SPA03 Official KitchenAid warming drawer

Here are the diagrams and repair parts for Official KitchenAid KEWS175SPA03 warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Screw (black) 4449743
#7

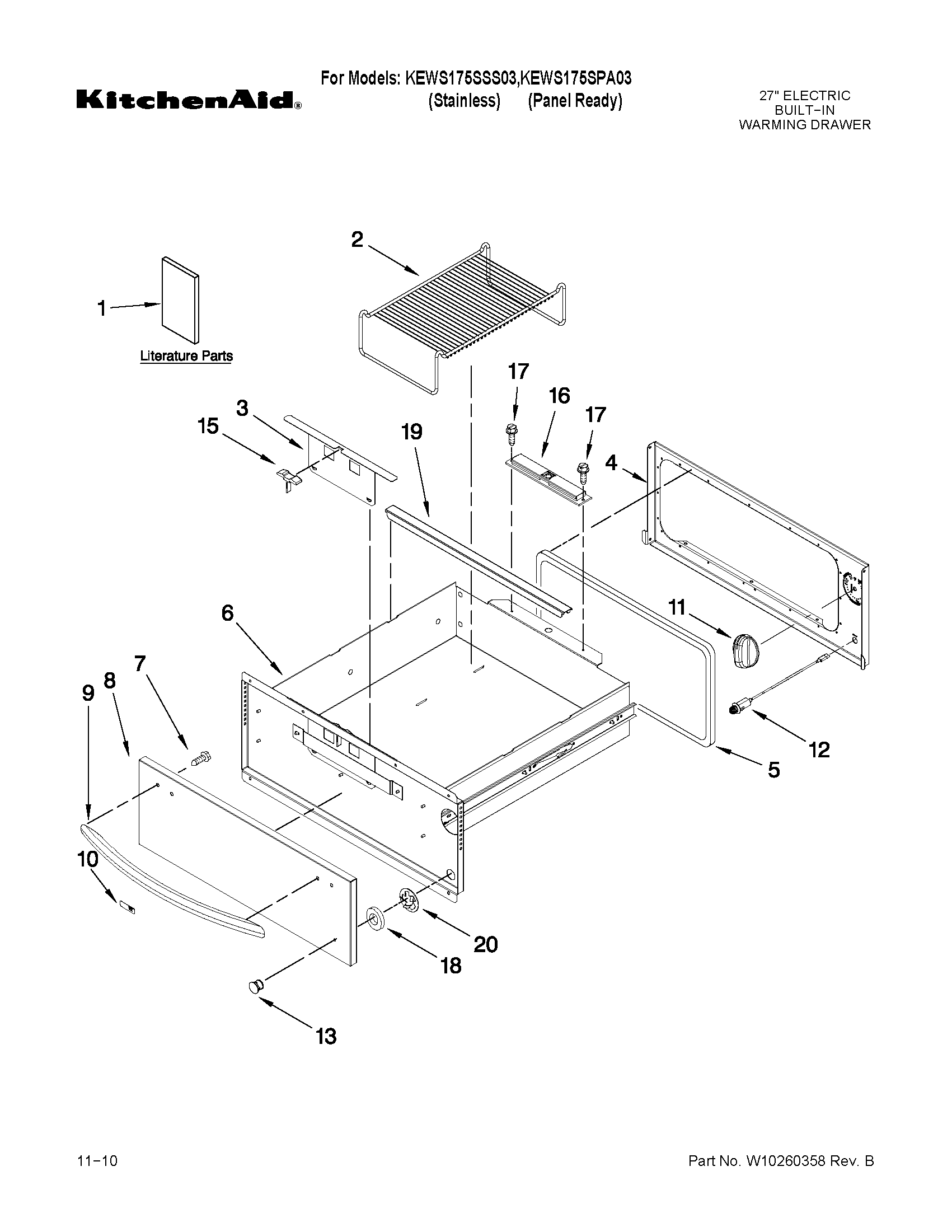

Control, door and drawer parts diagram

Screw (black)

Part #4449743

Replaced by #WP4449743

?
Manufacturer substitution
This part replaces 4449743. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Whirlpool Warming Drawer Thermal Fuse 9763126
#8

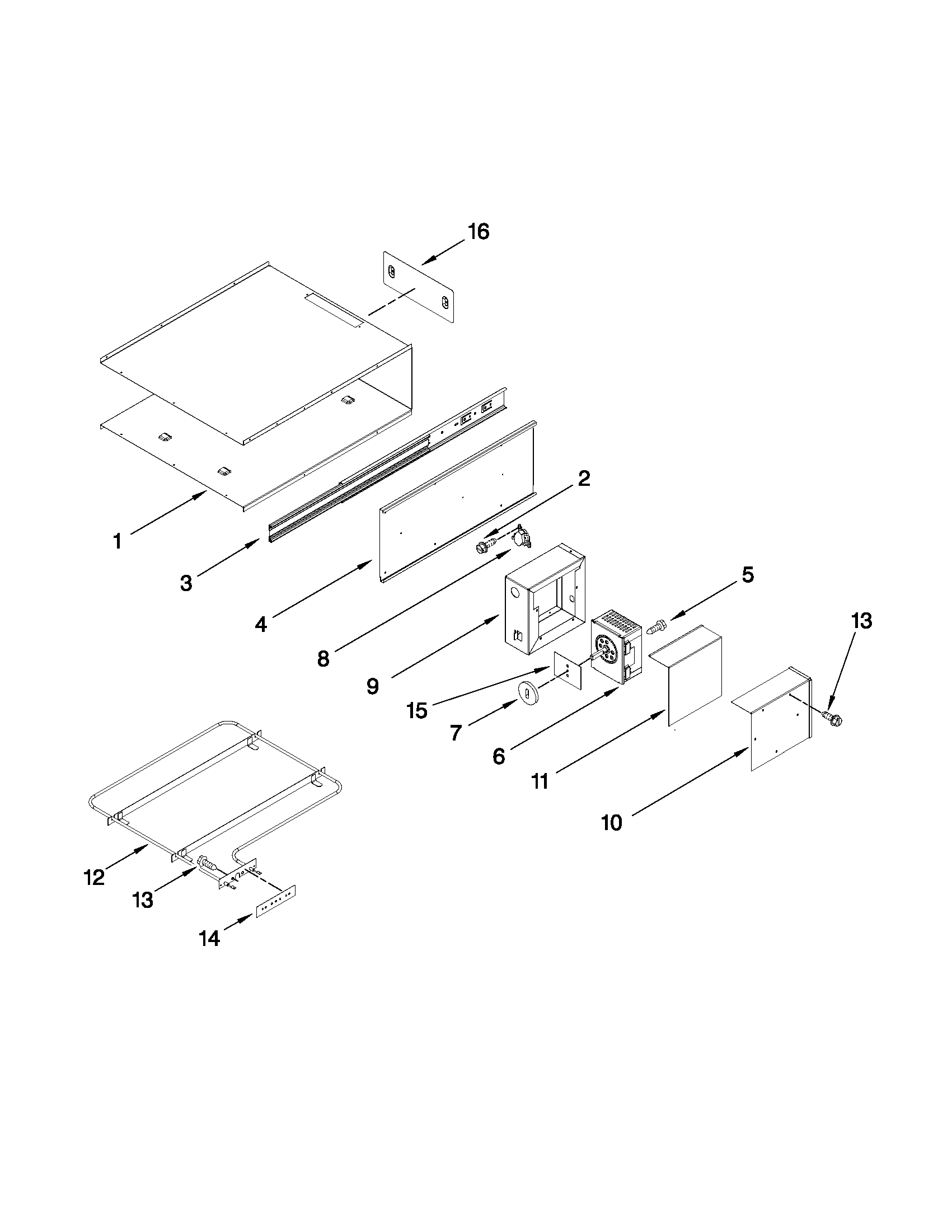

Internal warming drawer parts diagram

Whirlpool warming drawer thermal fuse

Part #9763126

$32.87
In Stock
Whirlpool Oven Rack 8273277
#2

Control, door and drawer parts diagram

Whirlpool oven rack

Part #8273277

$58.22
In Stock
Heat Shield W10118073
#16

Internal warming drawer parts diagram

Heat shield

Part #W10118073

$29.89
In Stock
Washer 4456861
#18

Control, door and drawer parts diagram

Washer

Part #4456861

$8.49 |
11% OFF Phone Price : $9.49
In Stock
Power Cord W10129023
#NI

Internal warming drawer parts diagram

Power cord

Part #W10129023

$64.38
In Stock
Light Lens 9763644
#13A

Control, door and drawer parts diagram

Light lens

Part #9763644

$32.87
In Stock
Seal Element W10118049
#14

Internal warming drawer parts diagram

Seal element

Part #W10118049

$7.80
In Stock
Whirlpool Light Lens 4456314
#13

Control, door and drawer parts diagram

Whirlpool light lens

Part #4456314

$43.67
In Stock
Whirlpool Drawer Panel 9762307
#4

Internal warming drawer parts diagram

Whirlpool drawer panel

Part #9762307

$29.89
In Stock
