Power Nailer

Model # 14218882 Official Craftsman nailer

Here are the diagrams and repair parts for Official Craftsman 14218882 nailer, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
14218882 Power Tools
O-ring 2041109-02030-0
#206

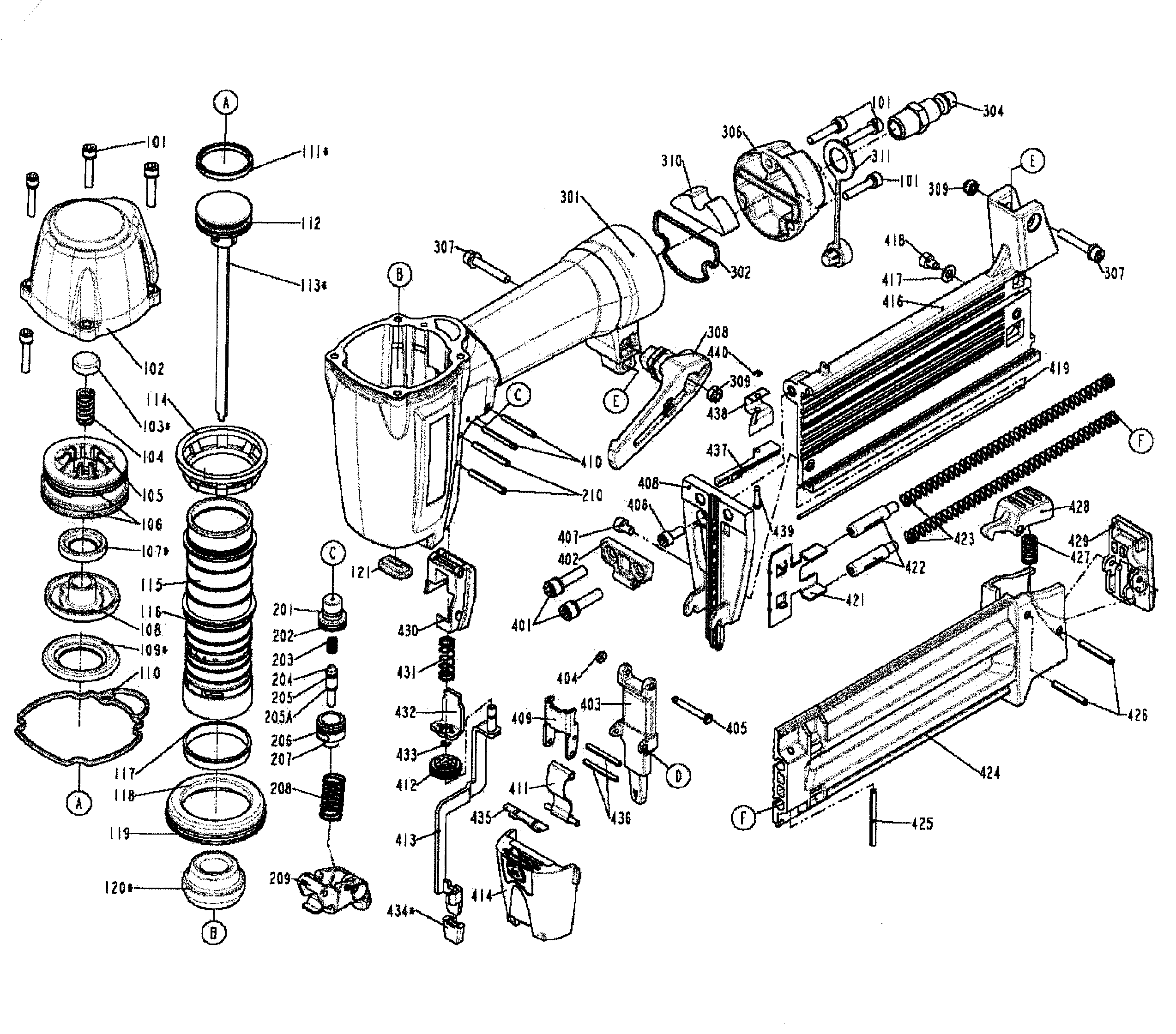

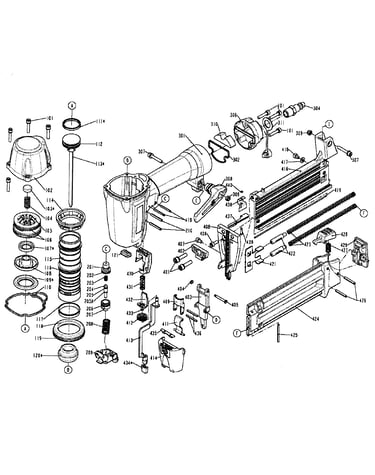

Nailer diagram

O-ring

Part #2041109-02030-0

The manufacturer no longer makes this part, and there's no substitute part

O-ring 2041102-01030-0
#205

Nailer diagram

O-ring

Part #2041102-01030-0

The manufacturer no longer makes this part, and there's no substitute part

O-ring 2041102-05010-0
#119

Nailer diagram

O-ring

Part #2041102-05010-0

The manufacturer no longer makes this part, and there's no substitute part

Nailer Piston 11204-1040006-2
#113

Nailer diagram

Nailer piston

Part #11204-1040006-2

The manufacturer no longer makes this part, and there's no substitute part

Gun Body 11230-1041305-1
#301

Nailer diagram

Gun body

Part #11230-1041305-1

The manufacturer no longer makes this part, and there's no substitute part

Casing 11339-1049101-1
#434

Nailer diagram

Casing

Part #11339-1049101-1

The manufacturer no longer makes this part, and there's no substitute part

O-ring 2041102-04060-0
#106

Nailer diagram

O-ring

Part #2041102-04060-0

The manufacturer no longer makes this part, and there's no substitute part

Ring 1131C-0664701-1
#433

Nailer diagram

Ring

Part #1131C-0664701-1

The manufacturer no longer makes this part, and there's no substitute part

O-ring 2041102-01031-0
#205A

Nailer diagram

O-ring

Part #2041102-01031-0

The manufacturer no longer makes this part, and there's no substitute part

Collar 11399-1040003-2
#105

Nailer diagram

Collar

Part #11399-1040003-2

The manufacturer no longer makes this part, and there's no substitute part
