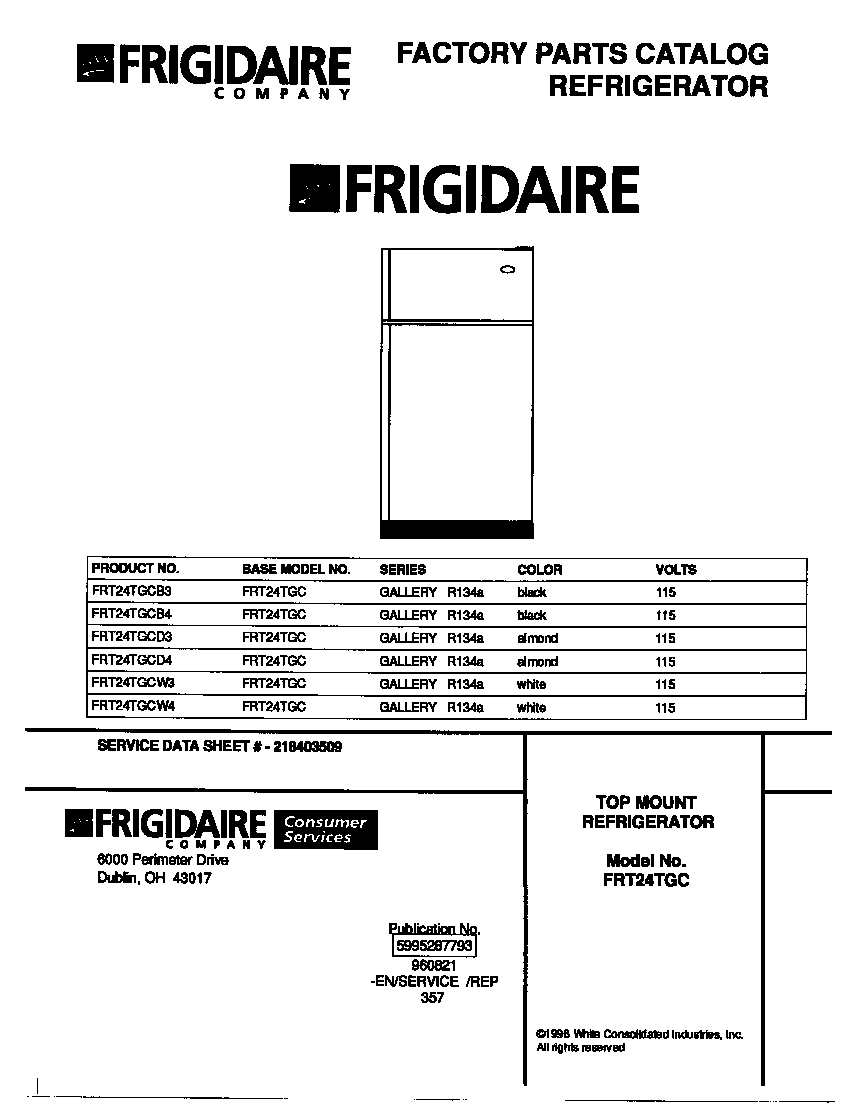

Model # FRT24TGCW3 Official Frigidaire top-mount refrigerator - 5995287793

Here are the diagrams and repair parts for Official Frigidaire FRT24TGCW3 top-mount refrigerator - 5995287793, as well as links to manuals and error code tables, if available.

By Schematic
By Part

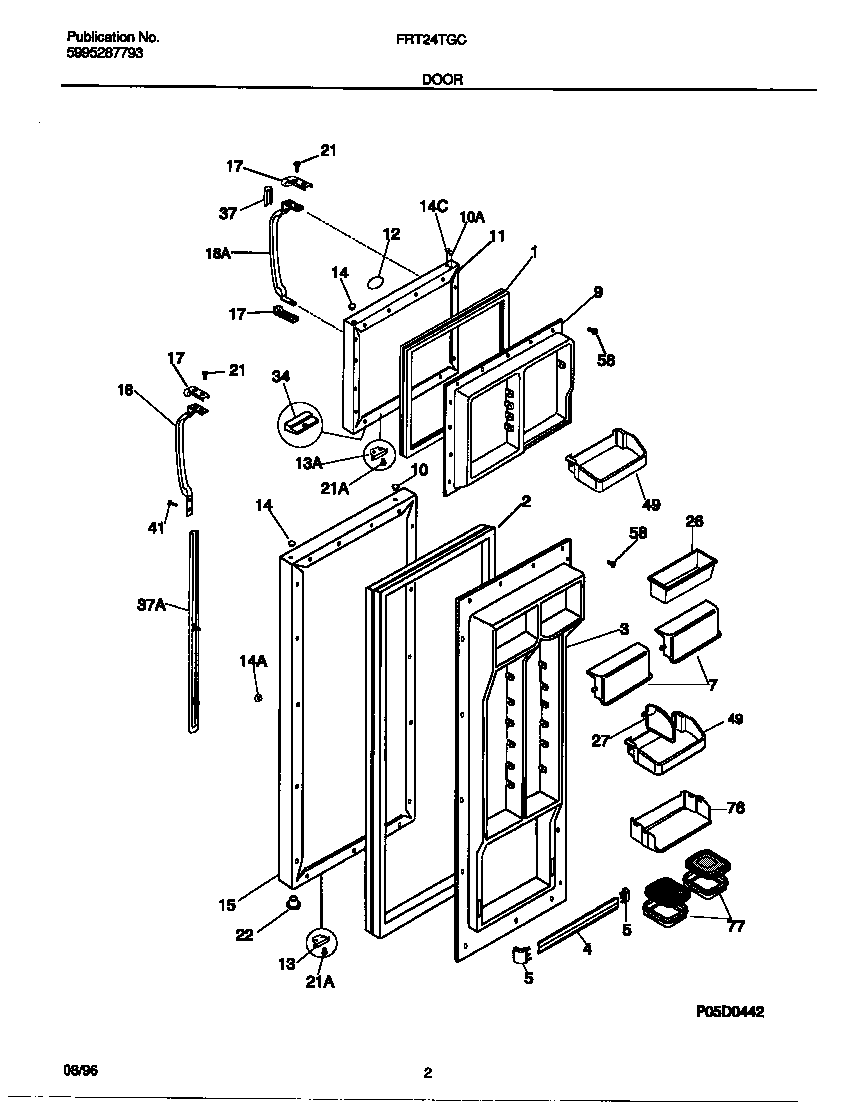

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forFRT24TGCW3 Refrigerators

  • Drier-r12 218541000
    #4

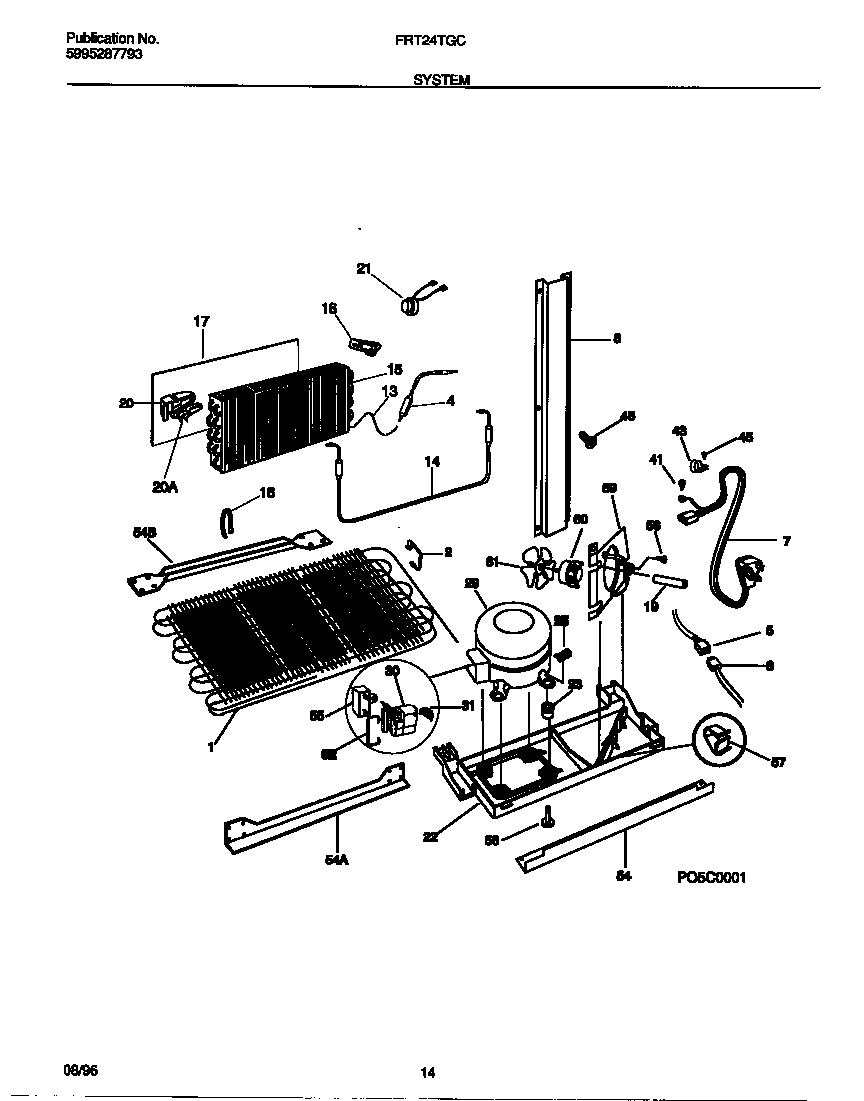

    System diagram

    Drier-r12

    Part #218541000

    Replaced by #5303305677

    ?
    Manufacturer substitution
    This part replaces 218541000. Substitute parts can look different from the original.
    BEST SELLER
    $23.67
    20% OFF Phone Price : $29.67
    In Stock
  • Appliance Light Bulb, 40-watt 5303001179
    #15

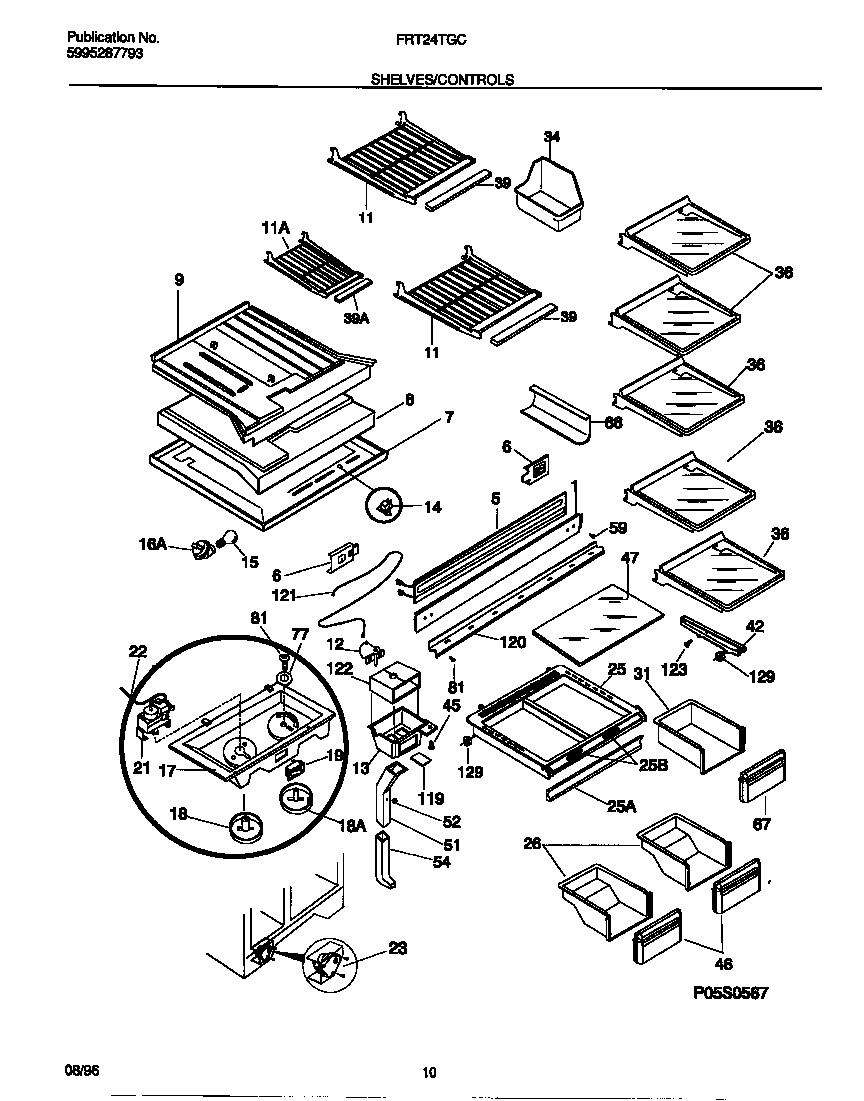

    Shelves/controls diagram

    Appliance light bulb, 40-watt

    Part #5303001179

    Replaced by #316538904

    ?
    Manufacturer substitution
    This part replaces 5303001179. Substitute parts can look different from the original.
    BEST SELLER
    $15.89
    11% OFF Phone Price : $17.89
    In Stock
  • Refrigerator Water Valve 218720400
    #55

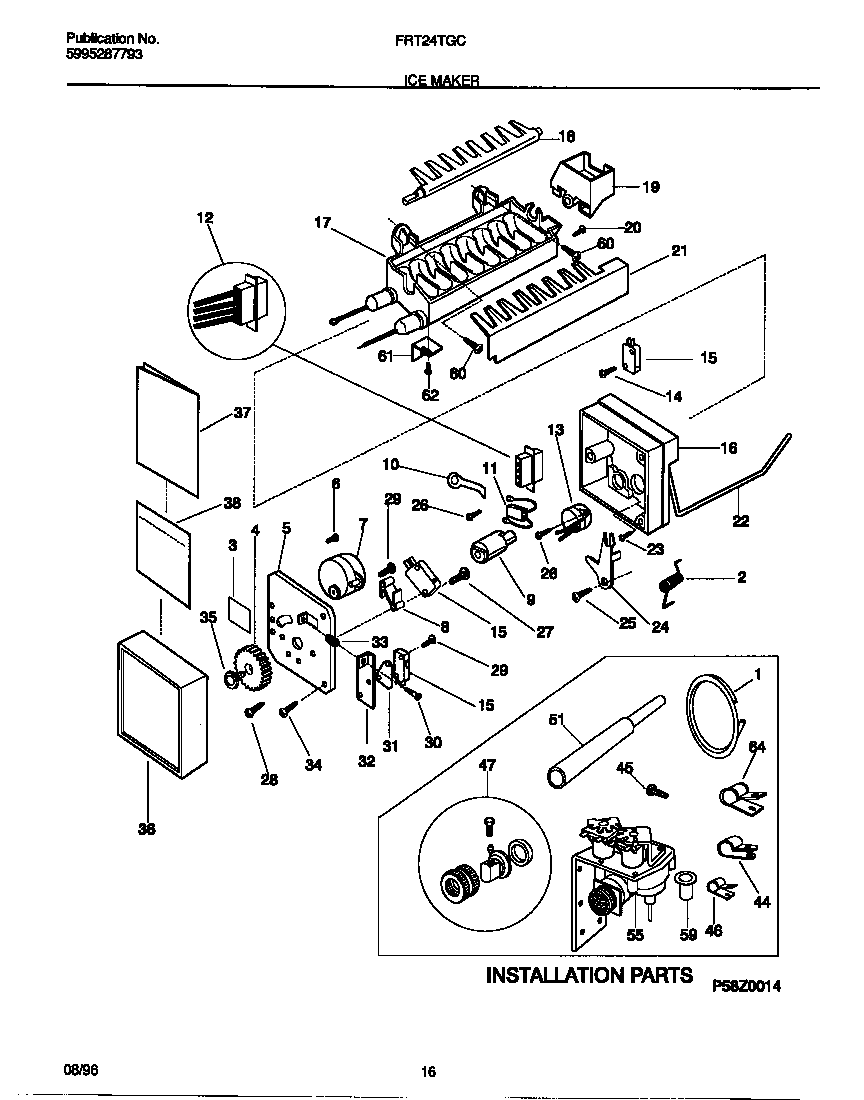

    Ice maker diagram

    Refrigerator water valve

    Part #218720400

    Replaced by #242252603

    ?
    Manufacturer substitution
    This part replaces 218720400. Substitute parts can look different from the original.
    BEST SELLER
    $56.15
    10% OFF Phone Price : $62.15
    In Stock
  • Timer-def 8h 5303321133
    #23

    Shelves/controls diagram

    Timer-def 8h

    Part #5303321133

    Replaced by #215846602

    ?
    Manufacturer substitution
    This part replaces 5303321133. Substitute parts can look different from the original.
    BEST SELLER
    $24.38
    20% OFF Phone Price : $30.38
    In Stock
  • Capacitor 216236200
    #55

    System diagram

    Capacitor

    Part #216236200

    Replaced by #5304464438

    ?
    Manufacturer substitution
    This part replaces 216236200. Substitute parts can look different from the original.
    BEST SELLER
    $28.67
    17% OFF Phone Price : $34.67
    In Stock
  • Compr-r134a 5303917694
    #29

    System diagram

    Compr-r134a

    Part #5303917694

    Replaced by #5304478809

    ?
    Manufacturer substitution
    This part replaces 5303917694. Substitute parts can look different from the original.
    BEST SELLER
    $421.87
    $12.00 OFF Phone Price : $433.87
    In Stock
  • Refrigerator Ice Maker Assembly 3206306
    #7

    Ice maker diagram

    Refrigerator ice maker assembly

    Part #3206306

    Replaced by #5303918277

    ?
    Manufacturer substitution
    This part replaces 3206306. Substitute parts can look different from the original.
    BEST SELLER
    $90.33
    6% OFF Phone Price : $96.33
    In Stock
  • Ikea Refrigerator Evaporator Fan Shaft Washer 215474201
    #13B

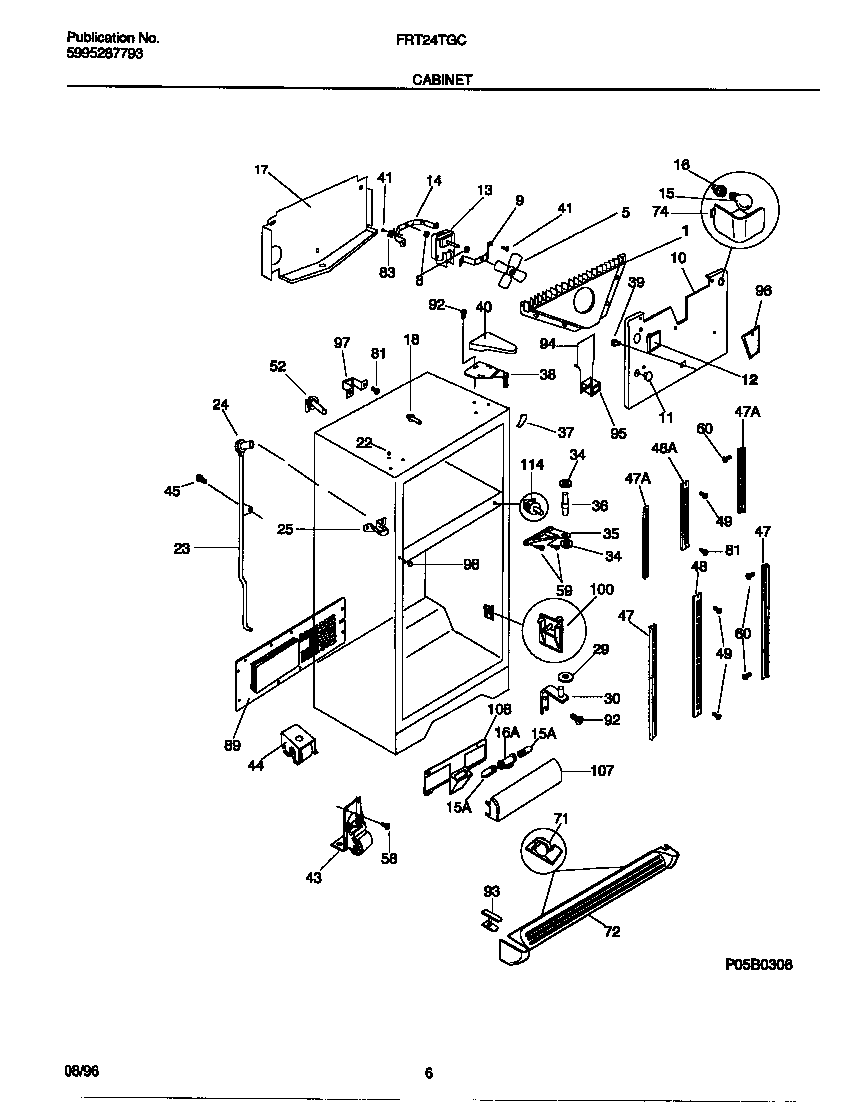

    Cabinet diagram

    Ikea refrigerator evaporator fan shaft washer

    Part #215474201

    This item is not returnable
    $19.47
    9% OFF Phone Price : $21.47
    In Stock
  • Refrigerator Screw Roller 215005100
    #123

    Shelves/controls diagram

    Refrigerator screw roller

    Part #215005100

    Replaced by #215005101

    ?
    Manufacturer substitution
    This part replaces 215005100. Substitute parts can look different from the original.
    This item is not returnable
    $15.02
    12% OFF Phone Price : $17.02
    In Stock
  • Touch Paint 5303305345

    #NI

    All parts diagram

    Touch paint

    Part #5303305345

    Replaced by #5303321321

    ?
    Manufacturer substitution
    This part replaces 5303305345. Substitute parts can look different from the original.
    This item is not returnable
    $22.08
    21% OFF Phone Price : $28.08
    In Stock
