Jenn-Air
Stand Mixer

Model # JSM900XAAN Official Jenn-Air stand mixer

Here are the diagrams and repair parts for Official Jenn-Air JSM900XAAN stand mixer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 16 parts  |
Foot (blk) (qty 3) (series 10) (non-illus) 11001023
#7

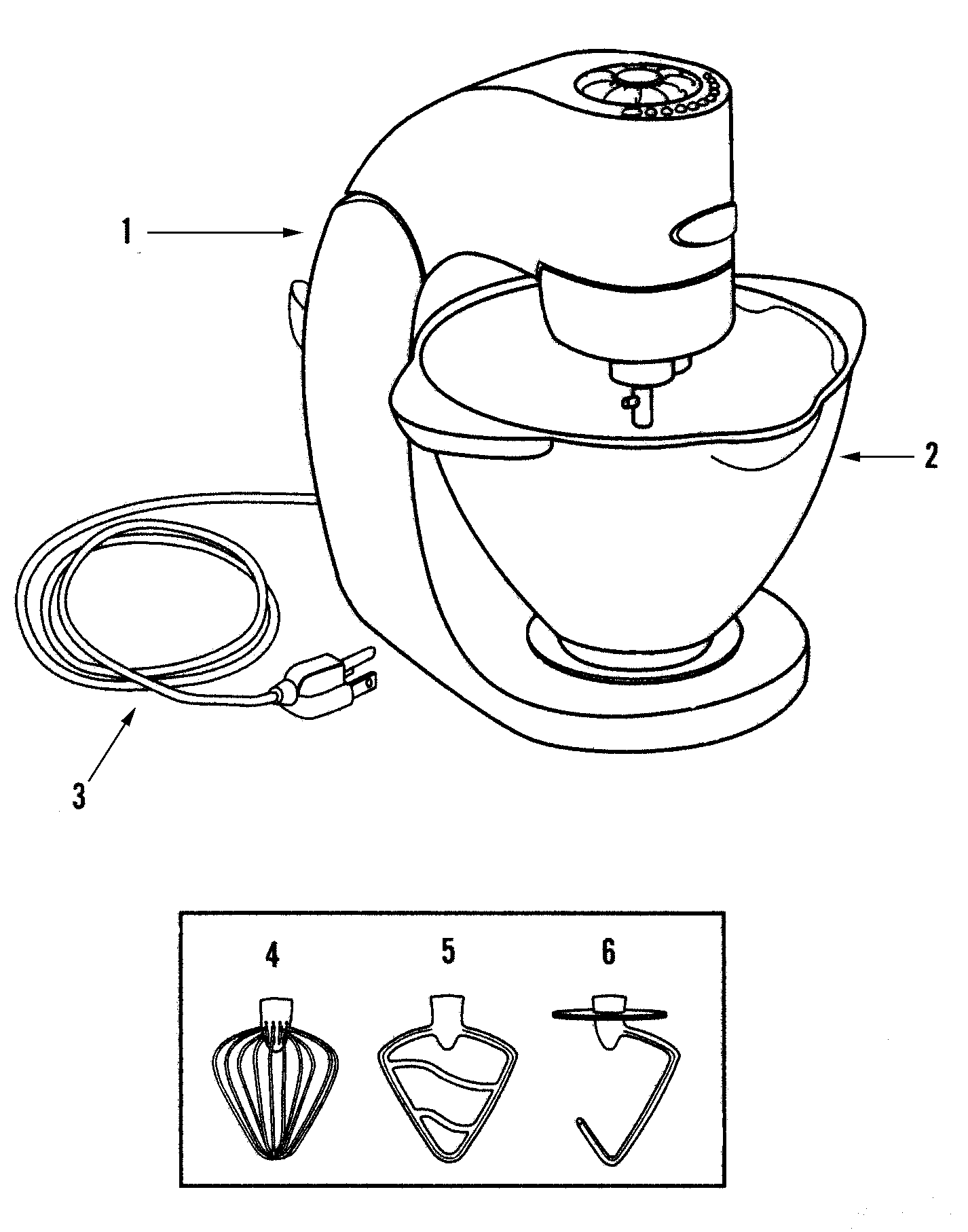

Stand mixer diagram

Foot (blk) (qty 3) (series 10) (non-illus)

Part #11001023

The manufacturer no longer makes this part, and there's no substitute part

Bowl, Mixer-amber Tort Shell (series 10) 11001060
#2

Stand mixer diagram

Bowl, mixer-amber tort shell (series 10)

Part #11001060

The manufacturer no longer makes this part, and there's no substitute part

Bowl, Mixer-aqua Beach (series 10) 11001061
#2A

Stand mixer diagram

Bowl, mixer-aqua beach (series 10)

Part #11001061

The manufacturer no longer makes this part, and there's no substitute part

Bowl, Mixer-stainless Steel (series 10) 11001068
#2G

Stand mixer diagram

Bowl, mixer-stainless steel (series 10)

Part #11001068

The manufacturer no longer makes this part, and there's no substitute part

Bowl, Mixer-merlot Red (series 10) 11001066
#2E

Stand mixer diagram

Bowl, mixer-merlot red (series 10)

Part #11001066

The manufacturer no longer makes this part, and there's no substitute part

Cord, Power (blk) (series 10) 11001026
#3

Stand mixer diagram

Cord, power (blk) (series 10)

Part #11001026

The manufacturer no longer makes this part, and there's no substitute part

Beater, Flat (series 10) 11001021
#5

Stand mixer diagram

Beater, flat (series 10)

Part #11001021

The manufacturer no longer makes this part, and there's no substitute part

Base Assy., Stand Mixer (oiled Bronze) (incl. Flat Beater, Wire Whip, & Dough Hook) (series 10) 11001205
#1

Stand mixer diagram

Base assy., stand mixer (oiled bronze) (incl. flat beater, wire whip, & dough hook) (series 10)

Part #11001205

The manufacturer no longer makes this part, and there's no substitute part

Bowl, Mixer-clear Etched (series 10) 11001063
#2B

Stand mixer diagram

Bowl, mixer-clear etched (series 10)

Part #11001063

The manufacturer no longer makes this part, and there's no substitute part

Whip, Wire (series 10) 11001022
#4

Stand mixer diagram

Whip, wire (series 10)

Part #11001022

The manufacturer no longer makes this part, and there's no substitute part
