Kenmore
Electric Range

Model # 9116483190 Official Kenmore electric freestanding range

Here are the diagrams and repair parts for Official Kenmore 9116483190 electric freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

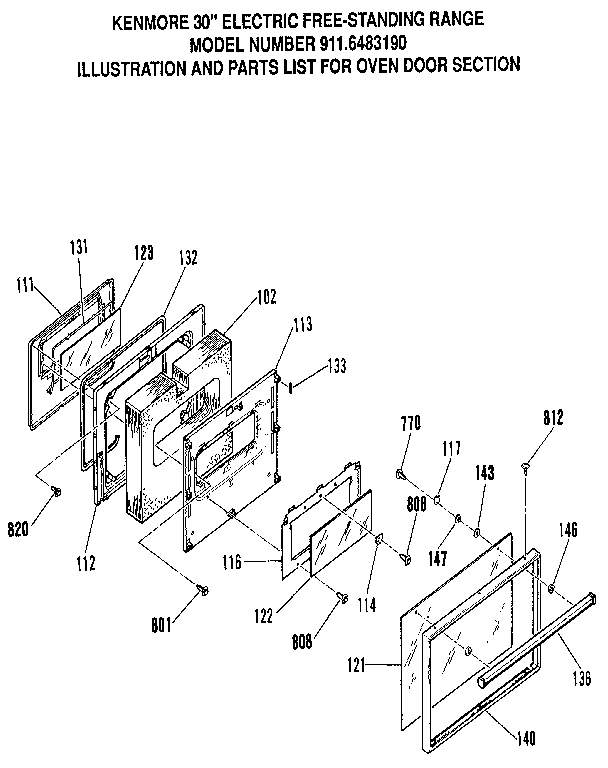

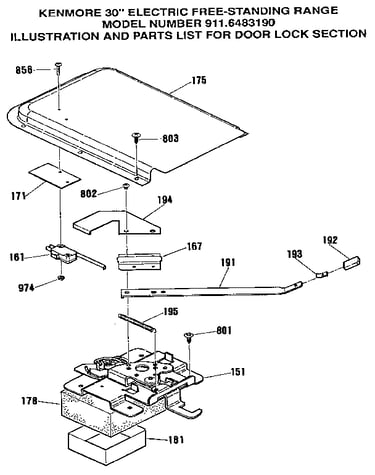

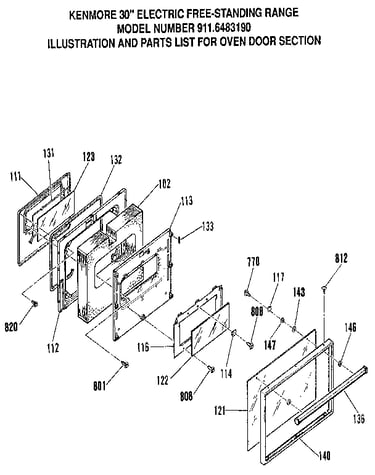

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 155 parts  |
Bake Element WB44K5012
#251

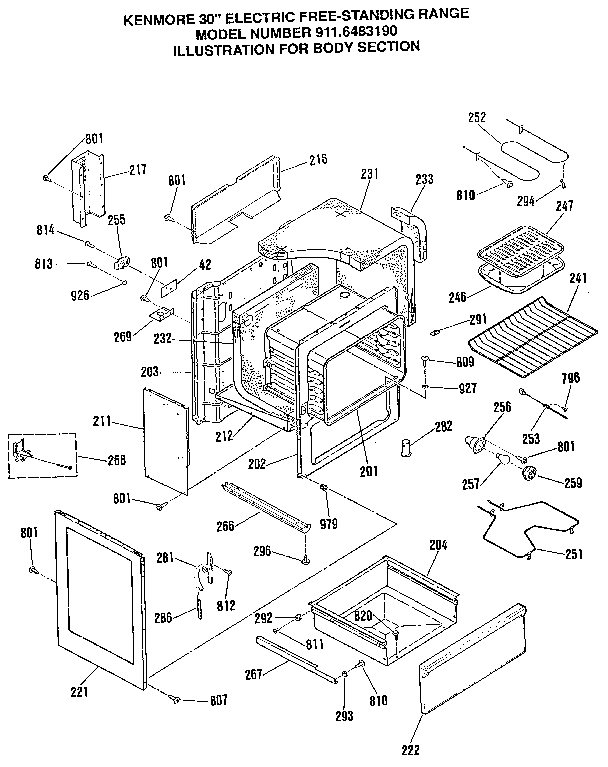

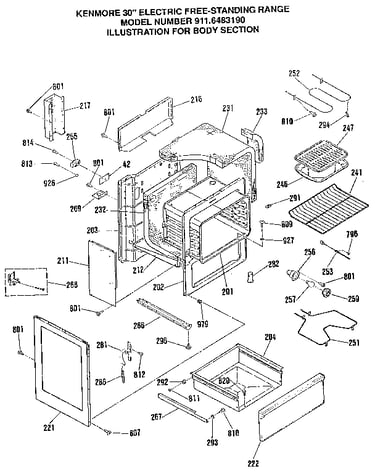

Body section diagram

Bake element

Part #WB44K5012

Replaced by #WB44K5012

?
Manufacturer substitution
This part replaces WB44K5012. Substitute parts can look different from the original.
BEST SELLER
$44.59 |
12% OFF Phone Price : $50.59
In Stock
Sensor WB20X0106
#253

Body section diagram

Sensor

Part #WB20X0106

Replaced by #WB21X5301

?
Manufacturer substitution
This part replaces WB20X0106. Substitute parts can look different from the original.
BEST SELLER
$144.49 |
8% OFF Phone Price : $156.49
In Stock
Broil Support WB02X9719
#294

Body section diagram

Broil support

Part #WB02X9719

Replaced by #WB2X9719

?
Manufacturer substitution
This part replaces WB02X9719. Substitute parts can look different from the original.
BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Hinge WB14X0104
#281B

Body section diagram

Hinge

Part #WB14X0104

Replaced by #WB14X104

?
Manufacturer substitution
This part replaces WB14X0104. Substitute parts can look different from the original.
BEST SELLER
$32.83 |
15% OFF Phone Price : $38.83
In Stock
Hinge WB14X0103
#281A

Body section diagram

Hinge

Part #WB14X0103

Replaced by #WB14X103

?
Manufacturer substitution
This part replaces WB14X0103. Substitute parts can look different from the original.
BEST SELLER
$38.22 |
14% OFF Phone Price : $44.22
In Stock
Surf Unit-8" WB30X0255
#57

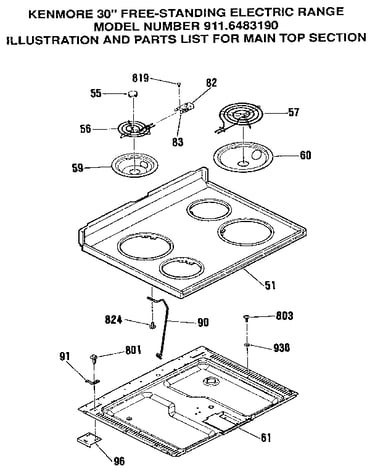

Main top section diagram

Surf unit-8"

Part #WB30X0255

Replaced by #WP660533

?
Manufacturer substitution
This part replaces WB30X0255. Substitute parts can look different from the original.
$26.68 |
18% OFF Phone Price : $32.68
In Stock
Screw 10 WB01M0001
Screw 10

Part #WB01M0001

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01M0001. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Screw WB01K5138
#800

Backguard section diagram

Screw

Part #WB01K5138

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01K5138. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Control WB23M0024
#19A

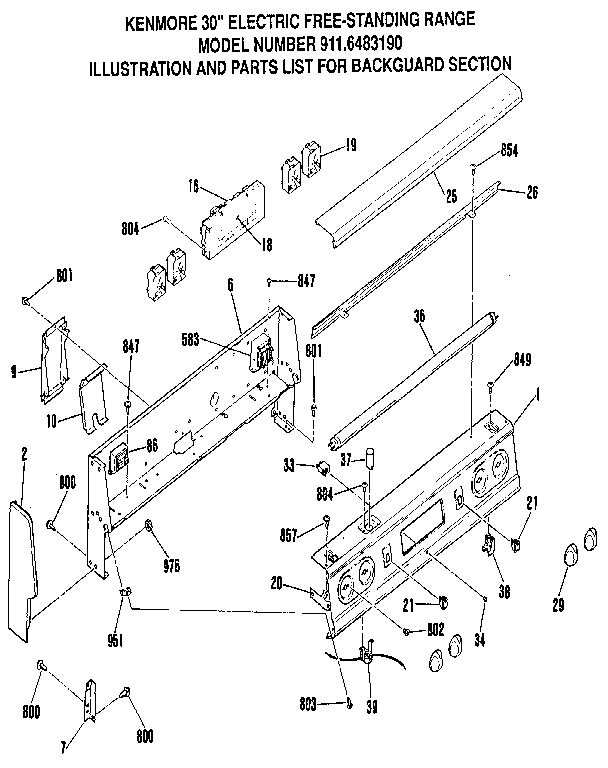

Backguard section diagram

Control

Part #WB23M0024

Replaced by #WB23M24

?
Manufacturer substitution
This part replaces WB23M0024. Substitute parts can look different from the original.
$85.06 |
7% OFF Phone Price : $91.06
In Stock
Screw-10-32 WB01X1135
#810

Body section diagram

Screw-10-32

Part #WB01X1135

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces WB01X1135. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
